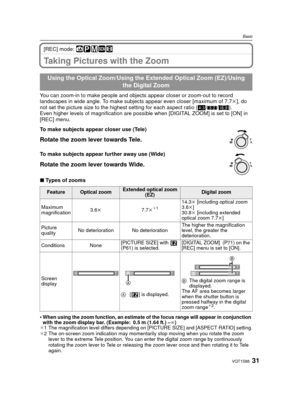

Page 31
![Page 31
31VQT1S88
Basic
[REC] mode: 񳲿n
Taking Pictures with the Zoom
You can zoom-in to make people and objects appear closer or zoom-out to record
landscapes in wide angle. To make subjec ts appear even closer [maximum of 7.7k], do
not set the picture size to the hi ghest setting for each aspect ratio (X /Y/W).
Even higher levels of magnification are possi ble when [DIGITAL ZOOM] is set to [ON] in
[REC] menu.
∫ Types of zooms
•
When using the zoom function, an estimate of the focus range will appear in...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-30.png "Page 31
31VQT1S88
Basic
[REC] mode: 񳲿n
Taking Pictures with the Zoom
You can zoom-in to make people and objects appear closer or zoom-out to record
landscapes in wide angle. To make subjec ts appear even closer [maximum of 7.7k], do
not set the picture size to the hi ghest setting for each aspect ratio (X /Y/W).
Even higher levels of magnification are possi ble when [DIGITAL ZOOM] is set to [ON] in
[REC] menu.
∫ Types of zooms
•
When using the zoom function, an estimate of the focus range will appear in...")
31VQT1S88 Basic [REC] mode: ñ³²¿n Taking Pictures with the Zoom You can zoom-in to make people and objects appear closer or zoom-out to record landscapes in wide angle. To make subjec ts appear even closer [maximum of 7.7k], do not set the picture size to the hi ghest setting for each aspect ratio (X /Y/W). Even higher levels of magnification are possi ble when [DIGITAL ZOOM] is set to [ON] in [REC] menu. ∫ Types of zooms • When using the zoom function, an estimate of the focus range will appear in...

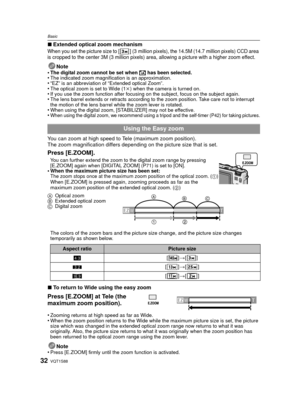

Page 32
![Page 32
VQT1S8832
Basic
∫Extended optical zoom mechanism
When you set the picture size to [ ] (3 million pixels), the 14.5M (14.7 million pixels) CCD area
is cropped to the center 3M (3 million pixels) area, allowing a picture with a higher zoom effect.
Note
•The digital zoom cannot be set when õ has been selected.•The indicated zoom magnification is an approximation.•“EZ” is an abbreviation of “Extended optical Zoom”.•The optical zoom is set to Wide (1k ) when the camera is turned on.•If you use the zoom...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-31.png "Page 32
VQT1S8832
Basic
∫Extended optical zoom mechanism
When you set the picture size to [ ] (3 million pixels), the 14.5M (14.7 million pixels) CCD area
is cropped to the center 3M (3 million pixels) area, allowing a picture with a higher zoom effect.
Note
•The digital zoom cannot be set when õ has been selected.•The indicated zoom magnification is an approximation.•“EZ” is an abbreviation of “Extended optical Zoom”.•The optical zoom is set to Wide (1k ) when the camera is turned on.•If you use the zoom...")
VQT1S8832 Basic ∫Extended optical zoom mechanism When you set the picture size to [ ] (3 million pixels), the 14.5M (14.7 million pixels) CCD area is cropped to the center 3M (3 million pixels) area, allowing a picture with a higher zoom effect. Note •The digital zoom cannot be set when õ has been selected.•The indicated zoom magnification is an approximation.•“EZ” is an abbreviation of “Extended optical Zoom”.•The optical zoom is set to Wide (1k ) when the camera is turned on.•If you use the zoom...

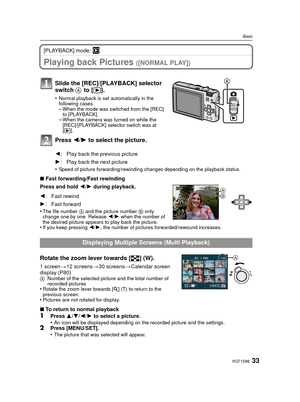

Page 33
![Page 33
33VQT1S88
Basic
[PLAYBACK] mode: ¸
Playing back Pictures ([NORMAL PLAY])
•Speed of picture forwarding/rewinding changes depending on the playback status.
∫Fast forwarding/Fast rewinding
Press and hold 2/1 during playback.
•
The file number A and the picture number B only
change one by one. Release 2/1 when the number of
the desired picture appears to play back the picture.
•If you keep pressing 2/1, the number of pictures forwarded/rewound increases.
Rotate the zoom lever towards [ L] (W).
1...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-32.png "Page 33
33VQT1S88
Basic
[PLAYBACK] mode: ¸
Playing back Pictures ([NORMAL PLAY])
•Speed of picture forwarding/rewinding changes depending on the playback status.
∫Fast forwarding/Fast rewinding
Press and hold 2/1 during playback.
•
The file number A and the picture number B only
change one by one. Release 2/1 when the number of
the desired picture appears to play back the picture.
•If you keep pressing 2/1, the number of pictures forwarded/rewound increases.
Rotate the zoom lever towards [ L] (W).
1...")
33VQT1S88 Basic [PLAYBACK] mode: ¸ Playing back Pictures ([NORMAL PLAY]) •Speed of picture forwarding/rewinding changes depending on the playback status. ∫Fast forwarding/Fast rewinding Press and hold 2/1 during playback. • The file number A and the picture number B only change one by one. Release 2/1 when the number of the desired picture appears to play back the picture. •If you keep pressing 2/1, the number of pictures forwarded/rewound increases. Rotate the zoom lever towards [ L] (W). 1...

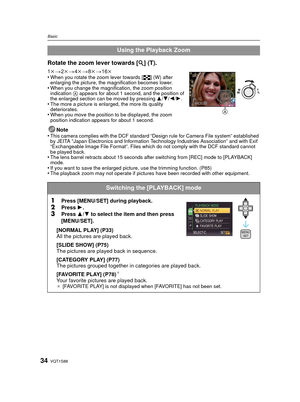

Page 34
![Page 34
VQT1S8834
Basic
Note
•This camera complies with the DCF standard “Design rule for Camera File system” established
by JEITA “Japan Electronics and Information Technology Industries Association” and with Exif
“Exchangeable Image File Format”. Files which do not comply with the DCF standard cannot
be played back.
•The lens barrel retracts about 15 seconds after switching from [REC] mode to [PLAYBACK]
mode.
•If you want to save the enlarged picture, use the trimming function. (P85)•The playback zoom may...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-33.png "Page 34
VQT1S8834
Basic
Note
•This camera complies with the DCF standard “Design rule for Camera File system” established
by JEITA “Japan Electronics and Information Technology Industries Association” and with Exif
“Exchangeable Image File Format”. Files which do not comply with the DCF standard cannot
be played back.
•The lens barrel retracts about 15 seconds after switching from [REC] mode to [PLAYBACK]
mode.
•If you want to save the enlarged picture, use the trimming function. (P85)•The playback zoom may...")
VQT1S8834 Basic Note •This camera complies with the DCF standard “Design rule for Camera File system” established by JEITA “Japan Electronics and Information Technology Industries Association” and with Exif “Exchangeable Image File Format”. Files which do not comply with the DCF standard cannot be played back. •The lens barrel retracts about 15 seconds after switching from [REC] mode to [PLAYBACK] mode. •If you want to save the enlarged picture, use the trimming function. (P85)•The playback zoom may...

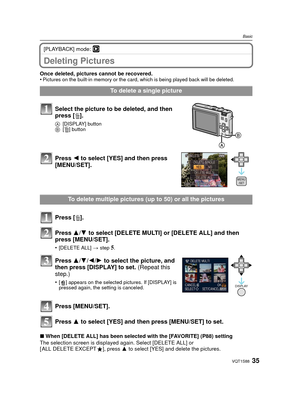

Page 35
![Page 35
35VQT1S88
Basic
[PLAYBACK] mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, which is being played back will be deleted.
∫When [DELETE ALL] has been selected with the [FAVORITE] (P88) setting
The selection screen is displayed again. Select [DELETE ALL] or
[ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures.
To delete a single picture
Select the picture to be deleted, and then
press [ ‚].
A [DISPLAY] button
B [‚]...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-34.png "Page 35
35VQT1S88
Basic
[PLAYBACK] mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, which is being played back will be deleted.
∫When [DELETE ALL] has been selected with the [FAVORITE] (P88) setting
The selection screen is displayed again. Select [DELETE ALL] or
[ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures.
To delete a single picture
Select the picture to be deleted, and then
press [ ‚].
A [DISPLAY] button
B [‚]...")
35VQT1S88 Basic [PLAYBACK] mode: ¸ Deleting Pictures Once deleted, pictures cannot be recovered. •Pictures on the built-in memory or the card, which is being played back will be deleted. ∫When [DELETE ALL] has been selected with the [FAVORITE] (P88) setting The selection screen is displayed again. Select [DELETE ALL] or [ ALL DELETE EXCEPT Ü], press 3 to select [YES] and delete the pictures. To delete a single picture Select the picture to be deleted, and then press [ ‚]. A [DISPLAY] button B [‚]...

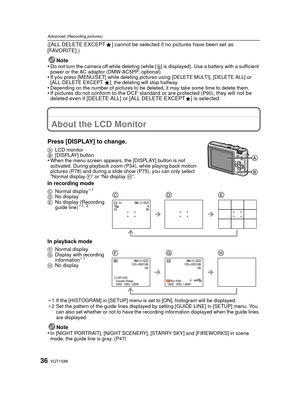

Page 36
![Page 36
VQT1S8836
Advanced (Recording pictures)
([ALL DELETE EXCEPTÜ] cannot be selected if no pictures have been set as
[FAVORITE].)
Note
•
Do not turn the camera off while deleting (while [ ‚] is displayed). Use a battery with a sufficient
power or the AC adaptor (DMW-AC5PP; optional).
•If you press [MENU/SET] while deleting pictures using [DELETE MULTI], [DELETE ALL] or
[ALL DELETE EXCEPT Ü], the deleting will stop halfway.
•Depending on the number of pictures to be deleted, it may take some time to...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-35.png "Page 36
VQT1S8836
Advanced (Recording pictures)
([ALL DELETE EXCEPTÜ] cannot be selected if no pictures have been set as
[FAVORITE].)
Note
•
Do not turn the camera off while deleting (while [ ‚] is displayed). Use a battery with a sufficient
power or the AC adaptor (DMW-AC5PP; optional).
•If you press [MENU/SET] while deleting pictures using [DELETE MULTI], [DELETE ALL] or
[ALL DELETE EXCEPT Ü], the deleting will stop halfway.
•Depending on the number of pictures to be deleted, it may take some time to...")
VQT1S8836 Advanced (Recording pictures) ([ALL DELETE EXCEPTÜ] cannot be selected if no pictures have been set as [FAVORITE].) Note • Do not turn the camera off while deleting (while [ ‚] is displayed). Use a battery with a sufficient power or the AC adaptor (DMW-AC5PP; optional). •If you press [MENU/SET] while deleting pictures using [DELETE MULTI], [DELETE ALL] or [ALL DELETE EXCEPT Ü], the deleting will stop halfway. •Depending on the number of pictures to be deleted, it may take some time to...

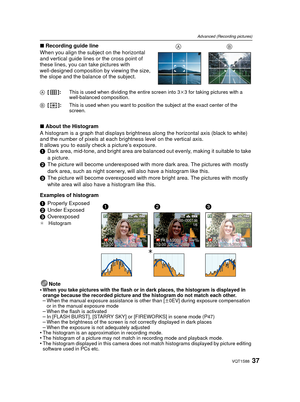

Page 37
37VQT1S88 Advanced (Recording pictures) ∫Recording guide line When you align the subject on the horizontal and vertical guide lines or the cross point of these lines, you can take pictures with well-designed composition by viewing the size, the slope and the balance of the subject. ∫ About the Histogram A histogram is a graph that disp lays brightness along the horizontal axis (black to white) and the number of pixels at each br ightness level on the vertical axis. It allows you to easily c heck a...

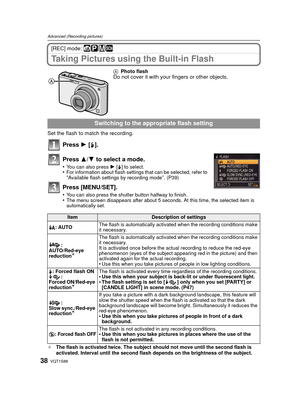

Page 38
![Page 38
VQT1S8838
Advanced (Recording pictures)
[REC] mode: 񳲿
Taking Pictures using the Built-in Flash
Set the flash to match the recording.
Press 1 [‰].
Press 3/4 to select a mode.
•You can also press 1 [‰] to select.•For information about flash settings that can be selected, refer to “Available flash settings by recording mode”. (P39)
Press [MENU/SET].
•You can also press the shutter button halfway to finish.•The menu screen disappears after about 5 seconds. At this time, the selected item is...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-37.png "Page 38
VQT1S8838
Advanced (Recording pictures)
[REC] mode: 񳲿
Taking Pictures using the Built-in Flash
Set the flash to match the recording.
Press 1 [‰].
Press 3/4 to select a mode.
•You can also press 1 [‰] to select.•For information about flash settings that can be selected, refer to “Available flash settings by recording mode”. (P39)
Press [MENU/SET].
•You can also press the shutter button halfway to finish.•The menu screen disappears after about 5 seconds. At this time, the selected item is...")
VQT1S8838 Advanced (Recording pictures) [REC] mode: ñ³²¿ Taking Pictures using the Built-in Flash Set the flash to match the recording. Press 1 [‰]. Press 3/4 to select a mode. •You can also press 1 [‰] to select.•For information about flash settings that can be selected, refer to “Available flash settings by recording mode”. (P39) Press [MENU/SET]. •You can also press the shutter button halfway to finish.•The menu screen disappears after about 5 seconds. At this time, the selected item is...

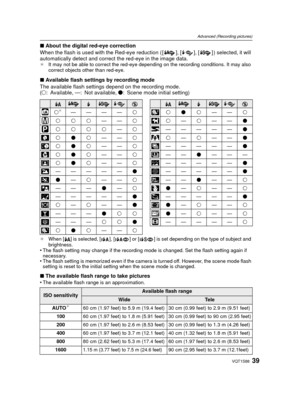

Page 39
![Page 39
39VQT1S88
Advanced (Recording pictures)
∫About the digital red-eye correction
When the flash is used with the Red-eye reduction ( [ ], [ ], [ ] ) selected, it will
automatically detect and correct t he red-eye in the image data.
¢It may not be able to correct the red-eye depending on the recording conditions. It may also
correct objects other than red-eye.
∫Available flash settings by recording mode
The available flash settings depend on the recording mode.
( ± : Available, —: Not available, ¥:...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-38.png "Page 39
39VQT1S88
Advanced (Recording pictures)
∫About the digital red-eye correction
When the flash is used with the Red-eye reduction ( [ ], [ ], [ ] ) selected, it will
automatically detect and correct t he red-eye in the image data.
¢It may not be able to correct the red-eye depending on the recording conditions. It may also
correct objects other than red-eye.
∫Available flash settings by recording mode
The available flash settings depend on the recording mode.
( ± : Available, —: Not available, ¥:...")
39VQT1S88 Advanced (Recording pictures) ∫About the digital red-eye correction When the flash is used with the Red-eye reduction ( [ ], [ ], [ ] ) selected, it will automatically detect and correct t he red-eye in the image data. ¢It may not be able to correct the red-eye depending on the recording conditions. It may also correct objects other than red-eye. ∫Available flash settings by recording mode The available flash settings depend on the recording mode. ( ± : Available, —: Not available, ¥:...

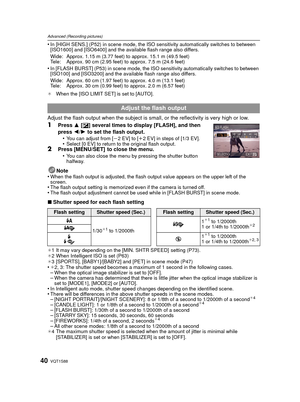

Page 40
![Page 40
VQT1S8840
Advanced (Recording pictures)
•In [HIGH SENS.] (P52) in scene mode, the ISO sensitivity automatically switches to between
[ISO1600] and [ISO6400] and the available flash range also differs.
Wide: Approx. 1.15 m (3.77 feet) to approx. 15.1 m (49.5 feet)
Tele: Approx. 90 cm (2.95 feet) to approx. 7.5 m (24.6 feet)
•In [FLASH BURST] (P53) in scene mode, the ISO sensitivity automatically switches to between
[ISO100] and [ISO3200] and the available flash range also differs.
Wide: Approx. 60 cm...](http://img.usermanuals.tech/thumb/58/65642/w300_dmc-fx150_en_om_d-39.png "Page 40
VQT1S8840
Advanced (Recording pictures)
•In [HIGH SENS.] (P52) in scene mode, the ISO sensitivity automatically switches to between
[ISO1600] and [ISO6400] and the available flash range also differs.
Wide: Approx. 1.15 m (3.77 feet) to approx. 15.1 m (49.5 feet)
Tele: Approx. 90 cm (2.95 feet) to approx. 7.5 m (24.6 feet)
•In [FLASH BURST] (P53) in scene mode, the ISO sensitivity automatically switches to between
[ISO100] and [ISO3200] and the available flash range also differs.
Wide: Approx. 60 cm...")
VQT1S8840 Advanced (Recording pictures) •In [HIGH SENS.] (P52) in scene mode, the ISO sensitivity automatically switches to between [ISO1600] and [ISO6400] and the available flash range also differs. Wide: Approx. 1.15 m (3.77 feet) to approx. 15.1 m (49.5 feet) Tele: Approx. 90 cm (2.95 feet) to approx. 7.5 m (24.6 feet) •In [FLASH BURST] (P53) in scene mode, the ISO sensitivity automatically switches to between [ISO100] and [ISO3200] and the available flash range also differs. Wide: Approx. 60 cm...
