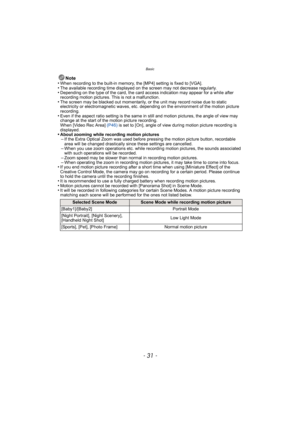

Page 31
![Page 31
- 31 -
Basic
Note
•When recording to the built-in memory, the [MP4] setting is fixed to [VGA].•The available recording time displayed on the screen may not decrease regularly.•Depending on the type of the card, the card access indication may appear for a while after
recording motion pictures. This is not a malfunction.
•The screen may be blacked out momentarily, or the unit may record noise due to static
electricity or electromagnetic waves, etc. depending on the environment of the motion picture...](http://img.usermanuals.tech/thumb/58/65604/w300_dmc-fx80_en_adv_om_d-30.png "Page 31
- 31 -
Basic
Note
•When recording to the built-in memory, the [MP4] setting is fixed to [VGA].•The available recording time displayed on the screen may not decrease regularly.•Depending on the type of the card, the card access indication may appear for a while after
recording motion pictures. This is not a malfunction.
•The screen may be blacked out momentarily, or the unit may record noise due to static
electricity or electromagnetic waves, etc. depending on the environment of the motion picture...")
- 31 - Basic Note •When recording to the built-in memory, the [MP4] setting is fixed to [VGA].•The available recording time displayed on the screen may not decrease regularly.•Depending on the type of the card, the card access indication may appear for a while after recording motion pictures. This is not a malfunction. •The screen may be blacked out momentarily, or the unit may record noise due to static electricity or electromagnetic waves, etc. depending on the environment of the motion picture...

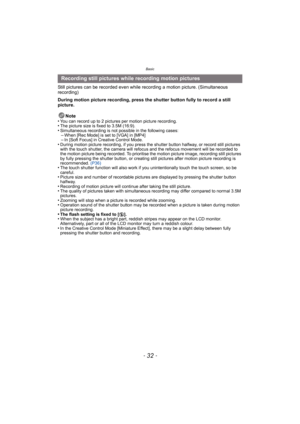

Page 32
![Page 32
Basic
- 32 -
Still pictures can be recorded even while recording a motion picture. (Simultaneous
recording)
During motion picture recording, press the shutter button fully to record a still
picture.Note
•
You can record up to 2 pictures per motion picture recording.•The picture size is fixed to 3.5M (16:9).•Simultaneous recording is not possible in the following cases:–When [Rec Mode] is set to [VGA] in [MP4]–In [Soft Focus] in Creative Control Mode.•During motion picture recording, if you press the...](http://img.usermanuals.tech/thumb/58/65604/w300_dmc-fx80_en_adv_om_d-31.png "Page 32
Basic
- 32 -
Still pictures can be recorded even while recording a motion picture. (Simultaneous
recording)
During motion picture recording, press the shutter button fully to record a still
picture.Note
•
You can record up to 2 pictures per motion picture recording.•The picture size is fixed to 3.5M (16:9).•Simultaneous recording is not possible in the following cases:–When [Rec Mode] is set to [VGA] in [MP4]–In [Soft Focus] in Creative Control Mode.•During motion picture recording, if you press the...")
Basic - 32 - Still pictures can be recorded even while recording a motion picture. (Simultaneous recording) During motion picture recording, press the shutter button fully to record a still picture.Note • You can record up to 2 pictures per motion picture recording.•The picture size is fixed to 3.5M (16:9).•Simultaneous recording is not possible in the following cases:–When [Rec Mode] is set to [VGA] in [MP4]–In [Soft Focus] in Creative Control Mode.•During motion picture recording, if you press the...
Page 33
![Page 33

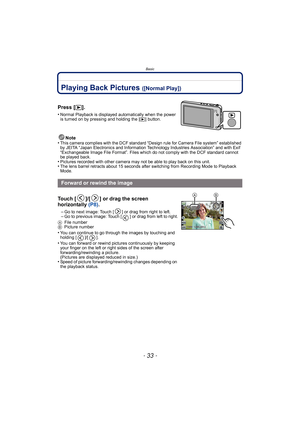

- 33 -
Basic
Playing Back Pictures ([Normal Play])
Note
•This camera complies with the DCF standard “D esign rule for Camera File system” established
by JEITA “Japan Electronics and Information Technology Industries Association” and with Exif
“Exchangeable Image File Format”. Files which do not comply with the DCF standard cannot
be played back.
•Pictures recorded with other camera may not be able to play back on this unit.•The lens barrel retracts about 15 seconds after switching from Recording Mode...](http://img.usermanuals.tech/thumb/58/65604/w300_dmc-fx80_en_adv_om_d-32.png "Page 33
- 33 -
Basic
Playing Back Pictures ([Normal Play])
Note
•This camera complies with the DCF standard “D esign rule for Camera File system” established
by JEITA “Japan Electronics and Information Technology Industries Association” and with Exif
“Exchangeable Image File Format”. Files which do not comply with the DCF standard cannot
be played back.
•Pictures recorded with other camera may not be able to play back on this unit.•The lens barrel retracts about 15 seconds after switching from Recording Mode...")
- 33 - Basic Playing Back Pictures ([Normal Play]) Note •This camera complies with the DCF standard “D esign rule for Camera File system” established by JEITA “Japan Electronics and Information Technology Industries Association” and with Exif “Exchangeable Image File Format”. Files which do not comply with the DCF standard cannot be played back. •Pictures recorded with other camera may not be able to play back on this unit.•The lens barrel retracts about 15 seconds after switching from Recording Mode...

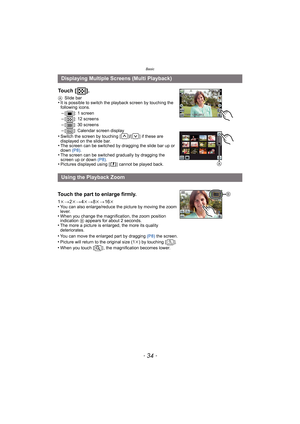

Page 34
![Page 34
Basic
- 34 -
Displaying Multiple Screens (Multi Playback)
Touch [ ].
A Slide bar•It is possible to switch the playback screen by touching the
following icons.
–[ ]: 1 screen–[ ]: 12 screens
–[ ]: 30 screens–[ ]: Calendar screen display•Switch the screen by touching [ ]/[ ] if these are
displayed on the slide bar.
•The screen can be switched by dragging the slide bar up or
down (P8).
•The screen can be switched gradually by dragging the
screen up or down (P8).
•Pictures displayed using [ ] cannot be...](http://img.usermanuals.tech/thumb/58/65604/w300_dmc-fx80_en_adv_om_d-33.png "Page 34
Basic
- 34 -
Displaying Multiple Screens (Multi Playback)
Touch [ ].
A Slide bar•It is possible to switch the playback screen by touching the
following icons.
–[ ]: 1 screen–[ ]: 12 screens
–[ ]: 30 screens–[ ]: Calendar screen display•Switch the screen by touching [ ]/[ ] if these are
displayed on the slide bar.
•The screen can be switched by dragging the slide bar up or
down (P8).
•The screen can be switched gradually by dragging the
screen up or down (P8).
•Pictures displayed using [ ] cannot be...")
Basic - 34 - Displaying Multiple Screens (Multi Playback) Touch [ ]. A Slide bar•It is possible to switch the playback screen by touching the following icons. –[ ]: 1 screen–[ ]: 12 screens –[ ]: 30 screens–[ ]: Calendar screen display•Switch the screen by touching [ ]/[ ] if these are displayed on the slide bar. •The screen can be switched by dragging the slide bar up or down (P8). •The screen can be switched gradually by dragging the screen up or down (P8). •Pictures displayed using [ ] cannot be...
Page 35
![Page 35

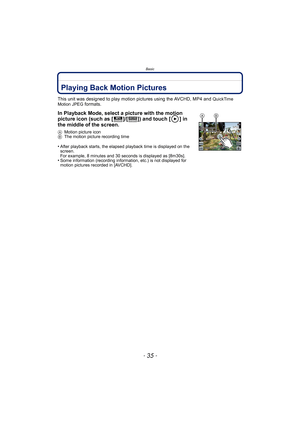

- 35 -
Basic
Playing Back Motion Pictures
This unit was designed to play motion pictures using the AVCHD, MP4 and QuickTime
Motion JPEG formats.
In Playback Mode, select a picture with the motion
picture icon (such as [ ]/[ ]) and touch [ ] in
the middle of the screen.
A Motion picture icon
B The motion picture recording time
•After playback starts, the elapsed playback time is displayed on the
screen.
For example, 8 minutes and 30 seconds is displayed as [8m30s].
•Some information (recording...](http://img.usermanuals.tech/thumb/58/65604/w300_dmc-fx80_en_adv_om_d-34.png "Page 35
- 35 -
Basic
Playing Back Motion Pictures
This unit was designed to play motion pictures using the AVCHD, MP4 and QuickTime
Motion JPEG formats.
In Playback Mode, select a picture with the motion
picture icon (such as [ ]/[ ]) and touch [ ] in
the middle of the screen.
A Motion picture icon
B The motion picture recording time
•After playback starts, the elapsed playback time is displayed on the
screen.
For example, 8 minutes and 30 seconds is displayed as [8m30s].
•Some information (recording...")
- 35 - Basic Playing Back Motion Pictures This unit was designed to play motion pictures using the AVCHD, MP4 and QuickTime Motion JPEG formats. In Playback Mode, select a picture with the motion picture icon (such as [ ]/[ ]) and touch [ ] in the middle of the screen. A Motion picture icon B The motion picture recording time •After playback starts, the elapsed playback time is displayed on the screen. For example, 8 minutes and 30 seconds is displayed as [8m30s]. •Some information (recording...

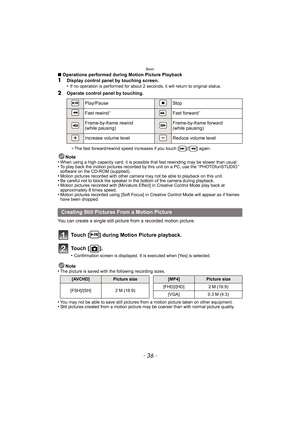

Page 36
![Page 36
Basic
- 36 -
∫Operations performed during Motion Picture Playback1Display control panel by touching screen.
•If no operation is performed for about 2 s econds, it will return to original status.
2Operate control panel by touching.
¢The fast forward/rewind speed increases if you touch [ ]/[ ] again.
Note
•When using a high capacity card, it is possible that fast rewinding may be slower than usual.•To play back the motion pictures recorded by this unit on a PC, use the “ PHOTOfunSTUDIO ”
software on the...](http://img.usermanuals.tech/thumb/58/65604/w300_dmc-fx80_en_adv_om_d-35.png "Page 36
Basic
- 36 -
∫Operations performed during Motion Picture Playback1Display control panel by touching screen.
•If no operation is performed for about 2 s econds, it will return to original status.
2Operate control panel by touching.
¢The fast forward/rewind speed increases if you touch [ ]/[ ] again.
Note
•When using a high capacity card, it is possible that fast rewinding may be slower than usual.•To play back the motion pictures recorded by this unit on a PC, use the “ PHOTOfunSTUDIO ”
software on the...")
Basic - 36 - ∫Operations performed during Motion Picture Playback1Display control panel by touching screen. •If no operation is performed for about 2 s econds, it will return to original status. 2Operate control panel by touching. ¢The fast forward/rewind speed increases if you touch [ ]/[ ] again. Note •When using a high capacity card, it is possible that fast rewinding may be slower than usual.•To play back the motion pictures recorded by this unit on a PC, use the “ PHOTOfunSTUDIO ” software on the...

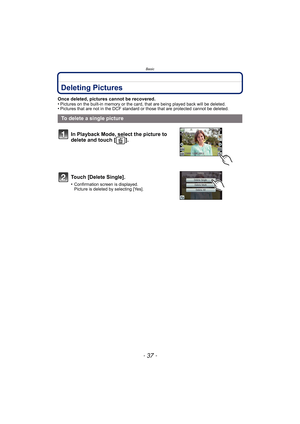

Page 37
![Page 37
- 37 -
Basic
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, that are being played back will be deleted.•Pictures that are not in the DCF standard or those that are protected cannot be deleted.
To delete a single pictureIn Playback Mode, select the picture to
delete and touch [ ].
Touch [Delete Single].
•Confirmation screen is displayed.
Picture is deleted by selecting [Yes].](http://img.usermanuals.tech/thumb/58/65604/w300_dmc-fx80_en_adv_om_d-36.png "Page 37
- 37 -
Basic
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, that are being played back will be deleted.•Pictures that are not in the DCF standard or those that are protected cannot be deleted.
To delete a single pictureIn Playback Mode, select the picture to
delete and touch [ ].
Touch [Delete Single].
•Confirmation screen is displayed.
Picture is deleted by selecting [Yes].")
- 37 - Basic Deleting Pictures Once deleted, pictures cannot be recovered. •Pictures on the built-in memory or the card, that are being played back will be deleted.•Pictures that are not in the DCF standard or those that are protected cannot be deleted. To delete a single pictureIn Playback Mode, select the picture to delete and touch [ ]. Touch [Delete Single]. •Confirmation screen is displayed. Picture is deleted by selecting [Yes].

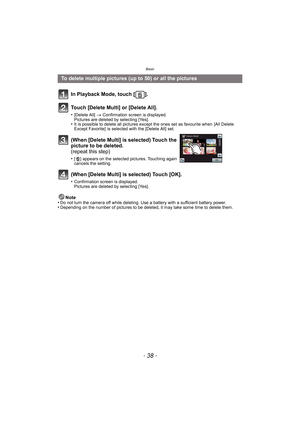

Page 38
![Page 38
Basic
- 38 -
Note
•Do not turn the camera off while deleting. Use a battery with a sufficient battery power.•Depending on the number of pictures to be deleted, it may take some time to delete them.
To delete multiple pictures (up to 50) or all the pictures
In Playback Mode, touch [ ].
Touch [Delete Multi] or [Delete All].
•[Delete All] > Confirmation screen is displayed.
Pictures are deleted by selecting [Yes].
•It is possible to delete all pictures except the ones set as favourite when [All Delete...](http://img.usermanuals.tech/thumb/58/65604/w300_dmc-fx80_en_adv_om_d-37.png "Page 38
Basic
- 38 -
Note
•Do not turn the camera off while deleting. Use a battery with a sufficient battery power.•Depending on the number of pictures to be deleted, it may take some time to delete them.
To delete multiple pictures (up to 50) or all the pictures
In Playback Mode, touch [ ].
Touch [Delete Multi] or [Delete All].
•[Delete All] > Confirmation screen is displayed.
Pictures are deleted by selecting [Yes].
•It is possible to delete all pictures except the ones set as favourite when [All Delete...")
Basic - 38 - Note •Do not turn the camera off while deleting. Use a battery with a sufficient battery power.•Depending on the number of pictures to be deleted, it may take some time to delete them. To delete multiple pictures (up to 50) or all the pictures In Playback Mode, touch [ ]. Touch [Delete Multi] or [Delete All]. •[Delete All] > Confirmation screen is displayed. Pictures are deleted by selecting [Yes]. •It is possible to delete all pictures except the ones set as favourite when [All Delete...

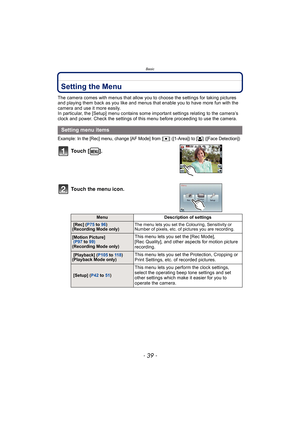

Page 39
![Page 39
- 39 -
Basic
Setting the Menu
The camera comes with menus that allow you to choose the settings for taking pictures
and playing them back as you like and menus that enable you to have more fun with the
camera and use it more easily.
In particular, the [Setup] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
Example: In the [Rec] menu, change [AF Mode] from [Ø] ([1-Area]) to [š] ([Face Detection])...](http://img.usermanuals.tech/thumb/58/65604/w300_dmc-fx80_en_adv_om_d-38.png "Page 39
- 39 -
Basic
Setting the Menu
The camera comes with menus that allow you to choose the settings for taking pictures
and playing them back as you like and menus that enable you to have more fun with the
camera and use it more easily.
In particular, the [Setup] menu contains some important settings relating to the camera’s
clock and power. Check the settings of this menu before proceeding to use the camera.
Example: In the [Rec] menu, change [AF Mode] from [Ø] ([1-Area]) to [š] ([Face Detection])...")
- 39 - Basic Setting the Menu The camera comes with menus that allow you to choose the settings for taking pictures and playing them back as you like and menus that enable you to have more fun with the camera and use it more easily. In particular, the [Setup] menu contains some important settings relating to the camera’s clock and power. Check the settings of this menu before proceeding to use the camera. Example: In the [Rec] menu, change [AF Mode] from [Ø] ([1-Area]) to [š] ([Face Detection])...

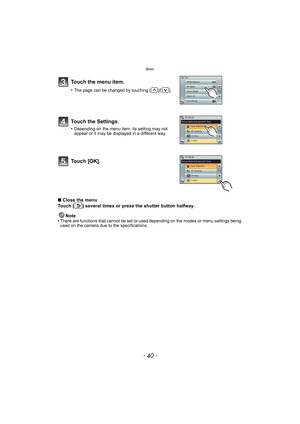

Page 40
![Page 40
Basic
- 40 -
∫Close the menu
Touch [ ] several times or press the shutter button halfway.
Note
•
There are functions that cannot be set or used depending on the modes or menu settings being
used on the camera due to the specifications.
Touch the menu item.
•The page can be changed by touching [ ]/[ ].
Touch the Settings.
•Depending on the menu item, its setting may not
appear or it may be displayed in a different way.
To u c h [ O K ] .](http://img.usermanuals.tech/thumb/58/65604/w300_dmc-fx80_en_adv_om_d-39.png "Page 40
Basic
- 40 -
∫Close the menu
Touch [ ] several times or press the shutter button halfway.
Note
•
There are functions that cannot be set or used depending on the modes or menu settings being
used on the camera due to the specifications.
Touch the menu item.
•The page can be changed by touching [ ]/[ ].
Touch the Settings.
•Depending on the menu item, its setting may not
appear or it may be displayed in a different way.
To u c h [ O K ] .")
Basic - 40 - ∫Close the menu Touch [ ] several times or press the shutter button halfway. Note • There are functions that cannot be set or used depending on the modes or menu settings being used on the camera due to the specifications. Touch the menu item. •The page can be changed by touching [ ]/[ ]. Touch the Settings. •Depending on the menu item, its setting may not appear or it may be displayed in a different way. To u c h [ O K ] .
