Panasonic Dmc Fx80 Operating Instructions Manual

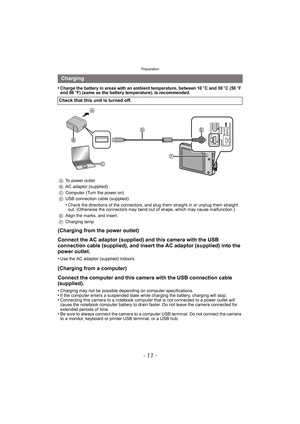

- 11 -
Preparation
•Charge the battery in areas with an ambient temperature, between 10oC and 30 oC (50 oF
and 86 oF) (same as the battery temperature), is recommended.
(Charging from the power outlet)
Connect the AC adaptor (supplied) and this camera with the USB
connection cable (supplied), and insert the AC adaptor (supplied) into the
power outlet.
•Use the AC adaptor (supplied) indoors.
(Charging from a computer)
Connect the computer and this camera with the USB connection cable
(supplied)....

Preparation
- 12 -

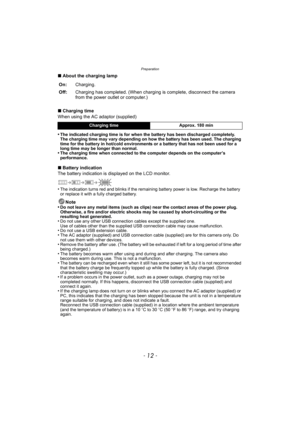

∫About the charging lamp
∫ Charging time
When using the AC adaptor (supplied)
•
The indicated charging time is for when the battery has been discharged completely.
The charging time may vary depending on how the battery has been used. The charging
time for the battery in hot/cold environments or a battery that has not been used for a
long time may be longer than normal.
•The charging time when connected to the computer depends on the computer’s
performance.
∫ Battery indication
The...

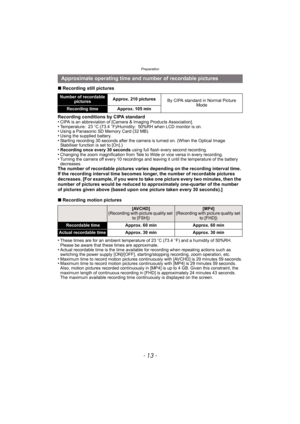

- 13 -
Preparation
∫Recording still pictures
Recording conditions by CIPA standard
•
CIPA is an abbreviation of [Camera & Imaging Products Association].•Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.•Using a Panasonic SD Memory Card (32 MB).•Using the supplied battery.•Starting recording 30 seconds after the camera is turned on. (When the Optical Image
Stabiliser function is set to [On].)
•Recording once every 30 seconds  using full flash every second recording.•Changing the zoom...

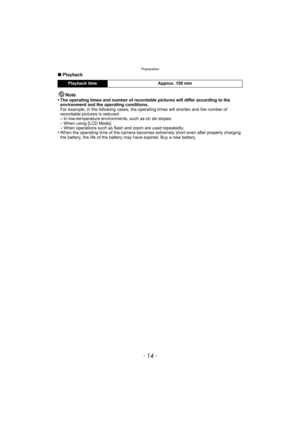

Preparation
- 14 -
∫Playback
Note
•
The operating times and number of recordable pictures will differ according to the
environment and the operating conditions.
For example, in the following cases, the operating times will shorten and the number of
recordable pictures is reduced:
–In low-temperature environments, such as on ski slopes.–When using [LCD Mode].–When operations such as flash and zoom are used repeatedly.•When the operating time of the camera become s extremely short even after properly...

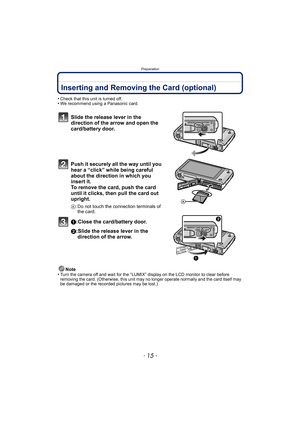

- 15 -
Preparation
Inserting and Removing the Card (optional)
•Check that this unit is turned off.•We recommend using a Panasonic card.
Slide the release lever in the
direction of the arrow and open the
card/battery door.
Push it securely all the way until you
hear a “click” while being careful
about the direction in which you
insert it.
To remove the card, push the card
until it clicks, then pull the card out
upright.
A: Do not touch the connection terminals of
the card.
1:Close the...

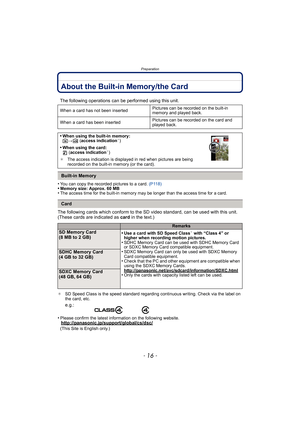

Preparation
- 16 -
About the Built-in Memory/the Card
•You can copy the recorded pictures to a card. (P118)•Memory size: Approx. 60 MB•The access time for the built-in memory may be longer than the access time for a card.
The following cards which conform to the SD video standard, can be used with this unit.
(These cards are indicated as card in the text.)
¢SD Speed Class is the speed standard regarding continuous writing. Check via the label on
the card, etc.
•Please confirm the latest information on...

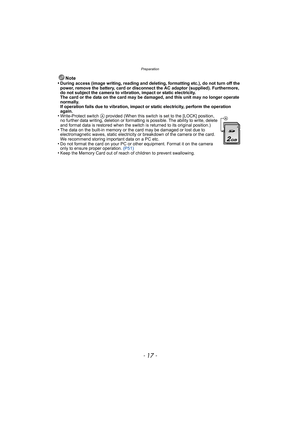

- 17 -
Preparation
Note
•During access (image writing, reading and deleting, formatting etc.), do not turn off the
power, remove the battery, card or disconnect the AC adaptor (supplied). Furthermore,
do not subject the camera to vibration, impact or static electricity.
The card or the data on the card may be damaged, and this unit may no longer operate
normally.
If operation fails due to vibration, impact or static electricity, perform the operation
again.
•Write-Protect switch A provided (When...

Preparation
- 18 -

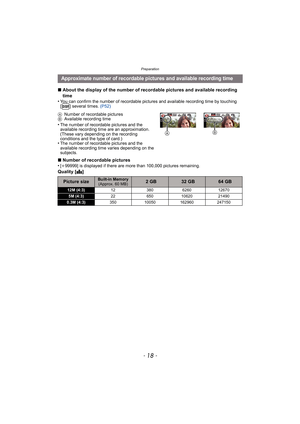

∫About the display of the number of recordable pictures and available recording
time
•
You can confirm the number of recordable pictures and available recording time by touching
[ ] several times. (P52)
∫ Number of recordable pictures
•[ i 99999] is displayed if there are more than 100,000 pictures remaining.
Quality [ A]
Approximate number of recordable pictures and available recording time
A Number of recordable pictures
B Available recording time
•The number of recordable pictures...

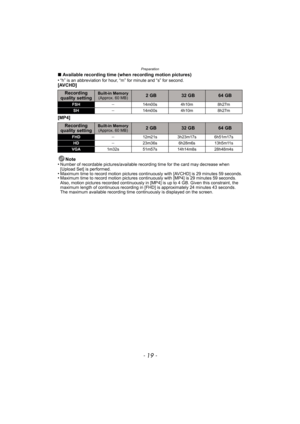

- 19 -
Preparation
∫Available recording time (when recording motion pictures)
•“h” is an abbreviation for hour, “m” for minute and “s” for second.[AVCHD]
[MP4]
Note
•
Number of recordable pictures/available recording time for the card may decrease when
[Upload Set] is performed.
•Maximum time to record motion pictures continuously with [AVCHD] is 29 minutes 59 seconds.•Maximum time to record motion pictures continuously with [MP4] is 29 minutes 59 seconds.
Also, motion pictures recorded continuously in...

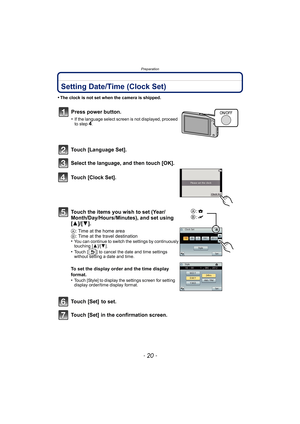

Preparation
- 20 -
Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
Touch [Language Set].
Select the language, and then touch [OK].
Touch [Clock Set].
Touch the items you wish to set (Year/
Month/Day/Hours/Minutes), and set using
[3]/[4].
A: Time at the home area
B : Time at the travel destination
•
You can continue to switch the settings by continuously
touching [ 3]/[4].
•Touch [ ] to cancel the date and time settings
without setting a date and time.
To set the display...
