Panasonic Dmc Fx80 Operating Instructions Manual

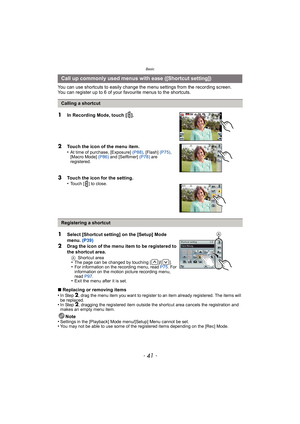

- 41 -
Basic
You can use shortcuts to easily change the menu settings from the recording screen.
You can register up to 6 of your  favourite menus to the shortcuts.
∫ Replacing or removing items
•
In Step 2, drag the menu item you want to register to an item already registered. The items will
be replaced.
•In Step 2, dragging the registered item outside the shortcut area cancels the registration and
makes an empty menu item.
Note
•Settings in the [Playback] Mode menu/[Setup] Menu cannot be set.•You may...

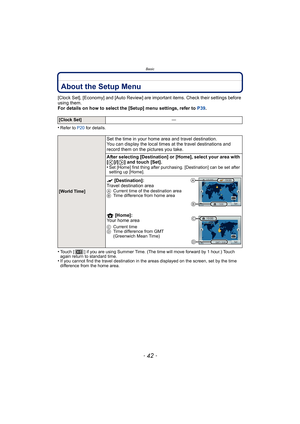

Basic
- 42 -
About the Setup Menu
[Clock Set], [Economy] and [Auto Review] are important items. Check their settings before
using them.
For details on how to select the [Setup] menu settings, refer to  P39.
•
Refer to P20  for details.
•Touch [ ] if you are using Summer Time. (The time will move forward by 1 hour.) Touch
again return to standard time.
•If you cannot find the travel destination in the areas displayed on the screen, set by the time
difference from the home area.
[Clock Set] —
[World...

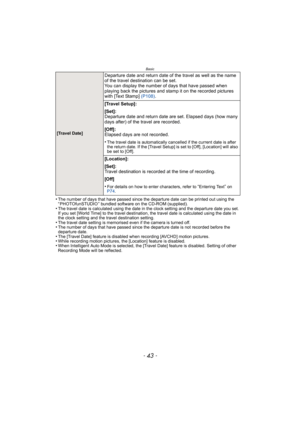

- 43 -
Basic
•The number of days that have passed since the departure date can be printed out using the
“ PHOTOfunSTUDIO ” bundled software on the CD-ROM (supplied).
•The travel date is calculated using the date in the clock setting and the departure date you set.
If you set [World Time] to the travel destination, the travel date is calculated using the date in
the clock setting and the travel destination setting.
•The travel date setting is memorised even if the camera is turned off.•The number of...

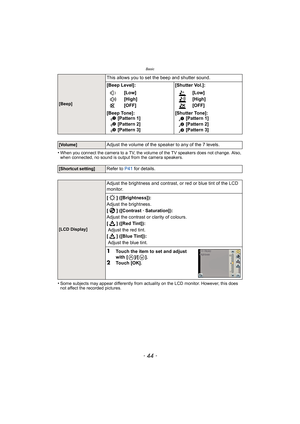

Basic
- 44 -
•When you connect the camera to a TV, the volume of the TV speakers does not change. Also,
when connected, no sound is output from the camera speakers.
•Some subjects may appear differently from actuality on the LCD monitor. However, this does
not affect the recorded pictures.
[Beep]
This allows you to set the beep and shutter sound.
[Beep Level]: [Shutter Vol.]:t
u
s [Low]
[High]
[OFF] [Low]
[High]
[OFF]
[Beep Tone]:  [Pattern 1]
 [Pattern 2]
 [Pattern 3] [Shutter Tone]:
 [Pattern 1]...

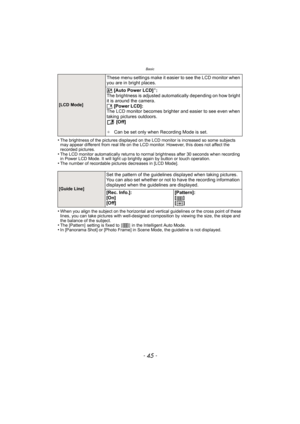

- 45 -
Basic
•The brightness of the pictures displayed on the LCD monitor is increased so some subjects
may appear different from real life on the LCD monitor. However, this does not affect the
recorded pictures.
•The LCD monitor automatically returns to normal brightness after 30 seconds when recording
in Power LCD Mode. It will light up brightly again by button or touch operation.
•The number of recordable pictures decreases in [LCD Mode].
•When you align the subject on the horizontal and vertical...

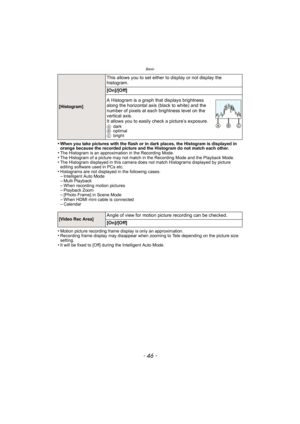

Basic
- 46 -
•When you take pictures with the flash or in dark places, the Histogram is displayed in
orange because the recorded picture and the Histogram do not match each other.
•The Histogram is an approximation in the Recording Mode.•The Histogram of a picture may not match in the Recording Mode and the Playback Mode.•The Histogram displayed in this camera does not match Histograms displayed by picture
editing software used in PCs etc.
•Histograms are not displayed in the following...

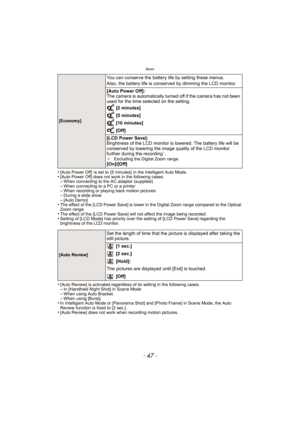

- 47 -
Basic
•[Auto Power Off]  is set to  [5 minutes]  in the Intelligent Auto Mode.•[Auto Power Off] does not work in the following cases.–When connecting to the AC adaptor (supplied)–When connecting to a PC or a printer–When recording or playing back motion pictures–During a slide show–[Auto Demo]•The effect of the [LCD Power Save] is lower in the Digital Zoom range compared to the Optical
Zoom range.
•The effect of the [LCD Power Save] will not affect the image being recorded.•Setting of [LCD Mode]...

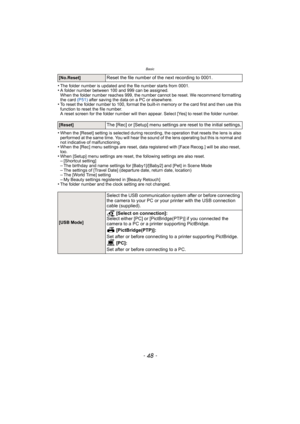

Basic
- 48 -
•The folder number is updated and the file number starts from 0001.•A folder number between 100 and 999 can be assigned.
When the folder number reaches 999, the number cannot be reset. We recommend formatting
the card (P51) after saving the data on a PC or elsewhere.
•To reset the folder number to 100, format the built-in memory or the card first and then use this
function to reset the file number.
A reset screen for the folder number will then appear. Select [Yes] to reset the folder...

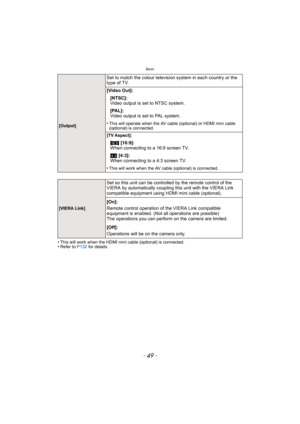

- 49 -
Basic
•This will work when the HDMI mini cable (optional) is connected.•Refer to P132 for details.
Set to match the colour television system in each country or the
type of TV.
[Video Out]:
[NTSC]:
Video output is set to NTSC system.
[PAL]:
Video output is set to PAL system.
[Output]•This will operate when the AV cable (optional) or HDMI mini cable
(optional) is connected.
[TV Aspect]:
W [16:9]:
When connecting to a 16:9 screen TV.
X  [4:3]:
When connecting to a 4:3 screen TV.
•This will work...

Basic

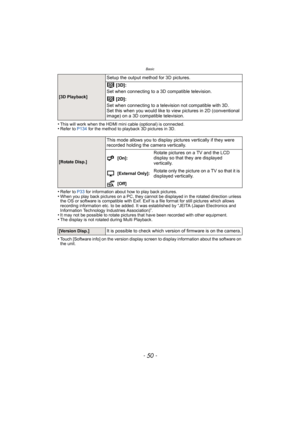

- 50 -
•This will work when the HDMI mini cable (optional) is connected.•Refer to P134 for the method to playback 3D pictures in 3D.
•Refer to P33 for information about how to play back pictures.•When you play back pictures on a PC, they canno t be displayed in the rotated direction unless
the OS or software is compatible with Exif. Exif  is a file format for still pictures which allows
recording information etc. to be added. It was established by “JEITA (Japan Electronics and
Information...
