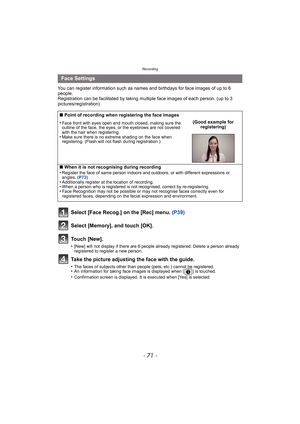

- 71 -
Recording
You can register information such as names and birthdays for face images of up to 6
people.
Registration can be facilitated by taking multiple face images of each person. (up to 3
pictures/registration)
Select [Face Recog.] on the [Rec] menu. (P39)
Select [Memory], and touch [OK].
Touch [New].
•[New] will not display if there are 6 people already registered. Delete a person already
registered to register a new person.
Take the picture adjusting the face with the guide.
•The faces of...

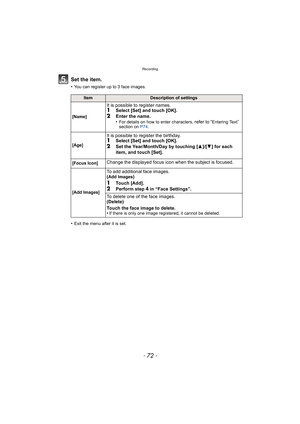

Recording
- 72 -
Set the item.
•You can register up to 3 face images.
•Exit the menu after it is set.
ItemDescription of settings
[Name]
It is possible to register names.1Select [Set] and touch [OK].
2Enter the name.
•For details on how to enter characters, refer to “Entering Text”
section on  P74.
[Age]
It is possible to register the birthday.1Select [Set] and touch [OK].2Set the Year/Month/Day by touching [ 3]/[4] for each
item, and touch [Set].
[Focus Icon]Change the displayed focus icon when the...

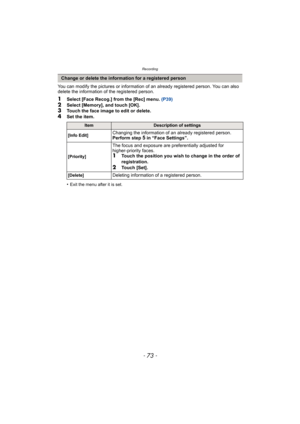

- 73 -
Recording
You can modify the pictures or information of an already registered person. You can also
delete the information of the registered person.
1Select [Face Recog.] from the [Rec] menu.  (P39)2Select [Memory], and touch [OK].3Touch the face image to edit or delete.
4Set the item.
•
Exit the menu after it is set.
Change or delete the information for a registered person
ItemDescription of settings
[Info Edit]
Changing the information of an already registered person.
Perform step 5 in “Face...

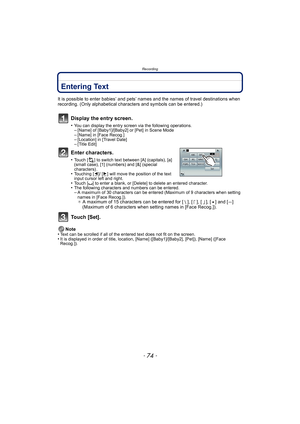

Recording
- 74 -
Entering Text
It is possible to enter babies’ and pets’ names and the names of travel destinations when
recording. (Only alphabetical characters and symbols can be entered.)
Display the entry screen.
•You can display the entry screen via the following operations.–[Name] of [Baby1]/[Baby2] or [Pet] in Scene Mode–[Name] in [Face Recog.]–[Location] in [Travel Date]–[Title Edit]
Enter characters.
•Touch [ ] to switch text between [A] (capitals), [a]
(small case), [1] (numbers) and [&]...

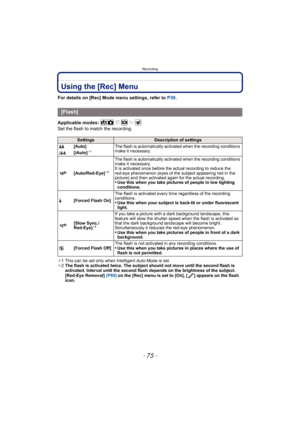

- 75 -
Recording
Using the [Rec] Menu
For details on [Rec] Mode menu settings, refer to P39.
Applicable modes:
Set the flash to match the recording.
¢ 1 This can be set only when Intelligent Auto Mode is set.
¢ 2 The flash is activated twice. The subject should not move until the second flash is
activated. Interval until the second flash depends on the brightness of the subject.
[Red-Eye Removal]  (P95) on the [Rec] menu is set to [On], [ ] appears on the flash
icon.
[Flash]
SettingsDescription of...

Recording
- 76 -

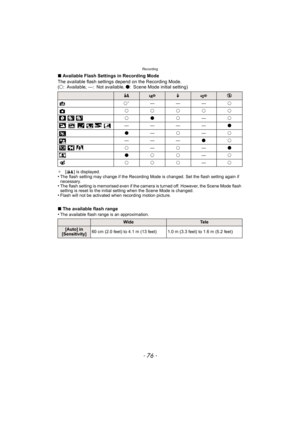

∫Available Flash Settings in Recording Mode
The available flash settings depend on the Recording Mode.
(± : Available, —: Not available,  ¥: Scene Mode initial setting)
¢ [ ] is displayed.•The flash setting may change if the Recording Mode is changed. Set the flash setting again if
necessary.
•The flash setting is memorised even if the camera is turned off. However, the Scene Mode flash
setting is reset to the initial setting when the Scene Mode is changed.
•Flash will not be activated...

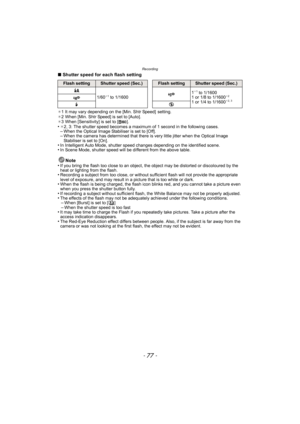

- 77 -
Recording
∫Shutter speed for each flash setting
¢1 It may vary depending on the [Min. Shtr Speed]  setting.
¢ 2 When [Min. Shtr Speed] is set to [Auto].
¢ 3 When [Sensitivity] is set to [ ].
•¢2, 3: The shutter speed becomes a maximum of 1 second in the following cases.–When the Optical Image Stabiliser is set to [Off].–When the camera has determined that there is very little jitter when the Optical Image
Stabiliser is set to [On].
•In Intelligent Auto Mode, shutter speed changes depending on the...

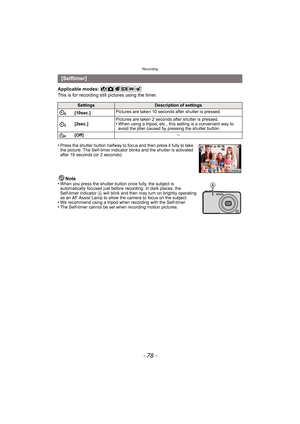

Recording
- 78 -
Applicable modes:
This is for recording still pictures using the timer.
•
Press the shutter button halfway to focus and then press it fully to take
the picture. The Self-timer indicator blinks and the shutter is activated
after 10 seconds (or 2 seconds).
Note
•When you press the shutter button once fully, the subject is
automatically focused just before recording. In dark places, the
Self-timer indicator  A will blink and then may turn on brightly operating
as an AF Assist Lamp to...

- 79 -
Recording
Applicable modes:
Set the number of pixels. The higher the numbers of pixels, the finer the detail of the
pictures will appear even when they  are printed onto large sheets.
¢This item cannot be set in the Intelligent Auto Mode.
Note
•
In specific modes, Extra Optical Zoom cannot be used, and the picture size for [ ] is not
displayed. For details regarding modes in which Extra Optical Zoom cannot be used, refer to  P57.
•Pictures may appear in mosaic depending on the subject and the...

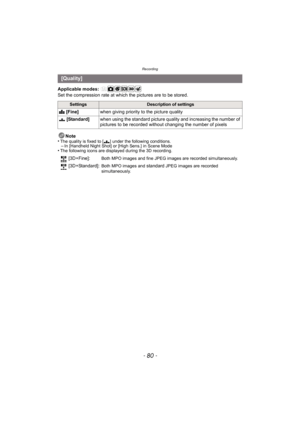

Recording
- 80 -
Applicable modes:
Set the compression rate at which the pictures are to be stored.Note
•
The quality is fixed to [›] under the following conditions.–In [Handheld Night Shot] or [High Sens.] in Scene Mode•The following icons are displayed during the 3D recording.
[Quality]
SettingsDescription of settings
A  [Fine] when giving priority to the picture quality
›  [Standard] when using the standard picture quality and increasing the number of
pictures to be recorded without changing the...
