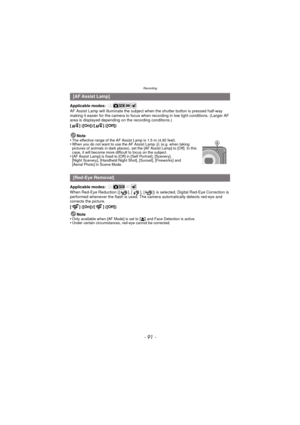

- 91 -
Recording
Applicable modes:
AF Assist Lamp will illuminate the subject when the shutter button is pressed half-way
making it easier for the camera to focus when recording in low light conditions. (Larger AF
area is displayed depending on the recording conditions.)
[ ] ([On])/[ ] ([Off])
Applicable modes:
When Red-Eye Reduction ([ ], [ ], [ ]) is selected, Digital Red-Eye Correction is
performed whenever the flash is used. The camera automatically detects red-eye and
corrects the picture.
[ ]...

Recording

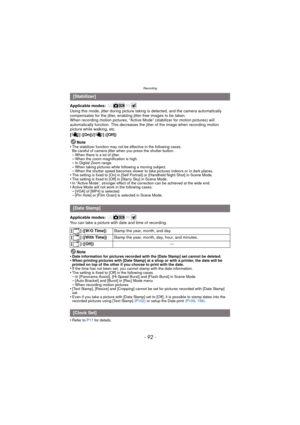

- 92 -
Applicable modes:
Using this mode, jitter during picture taking is detected, and the camera automatically
compensates for the jitter, enabli ng jitter-free images to be taken.
When recording motion pictures, “Active Mode” (stabilizer for motion pictures) will
automatically function. This decreases the jitter of the image when recording motion
picture while walking, etc.
[ ] ([On])/[ ] ([Off])
Note
•
The stabilizer function may not be effective in the following cases.
Be careful of...

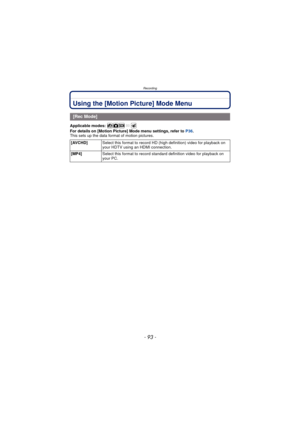

- 93 -
Recording
Using the [Motion Picture] Mode Menu
Applicable modes:
For details on [Motion Picture] Mode menu settings, refer to P36.
This sets up the data format of motion pictures.
[Rec Mode]
[AVCHD] Select this format to record HD (high definition) video for playback on
your HDTV using an HDMI connection.
[MP4] Select this format to record standard definition video for playback on
your PC.

Recording

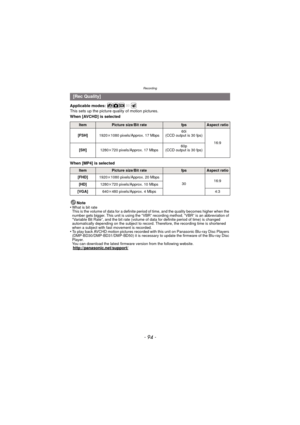

- 94 -
Applicable modes:
This sets up the picture quality of motion pictures.
When [AVCHD] is selected
When [MP4] is selectedNote
•
What is bit rate
This is the volume of data for a definite period of time, and the quality becomes higher when the
number gets bigger. This unit is using the “VBR” recording method. “VBR” is an abbreviation of
“Variable Bit Rate”, and the bit rate (volume of data for definite period of time) is changed
automatically depending on the subject to record....

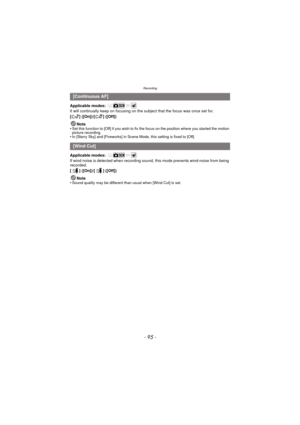

- 95 -
Recording
Applicable modes:
It will continually keep on focusing on the subject that the focus was once set for.
[ ] ([On])/[ ] ([Off])Note
•
Set this function to [Off] if you wish to fix the focus on the position where you started the motion
picture recording.
•In [Starry Sky] and [Fireworks] in Scene Mode, this setting is fixed to [Off].
Applicable modes:
If wind noise is detected when recording sound,  this mode prevents wind-noise from being
recorded.
[ ] ([On])/[ ] ([Off])
Note
•
Sound...

Playback/Editing

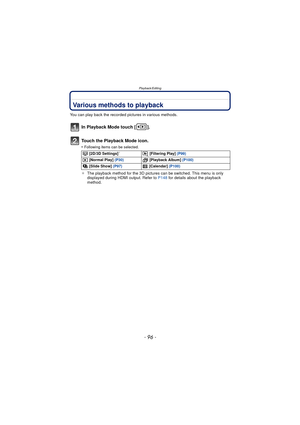

- 96 -
Playback/EditingVarious methods to playback
You can play back the recorded pictures in various methods.
In Playback Mode touch [ ].
Touch the Playback Mode icon.
•Following items can be selected.
¢The playback method for the 3D pictures can be switched. This menu is only
displayed during HDMI output. Refer to  P148 for details about the playback
method.
 [2D/3D Settings]¢ [Filtering Play]  (P99)
 [Normal Play] (P30)  [Playback Album] (P100)
 [Slide Show]  (P97)  [Calendar] (P100)

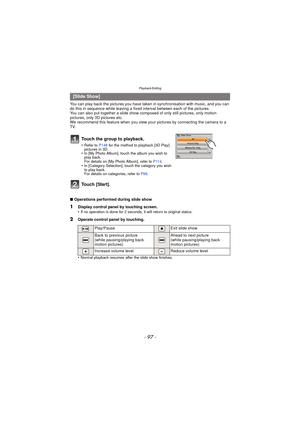

- 97 -
Playback/Editing
You can play back the pictures you have taken in synchronisation with music, and you can
do this in sequence while leaving a fixed interval between each of the pictures.
You can also put together a slide show co mposed of only still pictures, only motion
pictures, only 3D pictures etc.
We recommend this feature when you view your  pictures by connecting the camera to a
TV.
∫ Operations performed during slide show
•
Normal playback resumes after the slide show finishes.
[Slide...

Playback/Editing

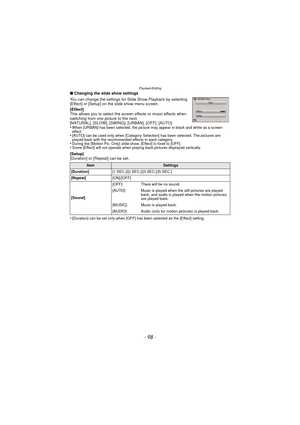

- 98 -
∫Changing the slide show settings
You can change the settings for Slide Show Playback by selecting
[Effect] or [Setup] on the slide show menu screen.
[Effect]
This allows you to select the screen effects or music effects when
switching from one picture to the next.
[NATURAL], [SLOW], [SWING], [URBAN], [OFF], [AUTO]
•
When [URBAN] has been selected, the picture may appear in black and white as a screen
effect.
•[AUTO] can be used only when [Category Selection] has been selected....

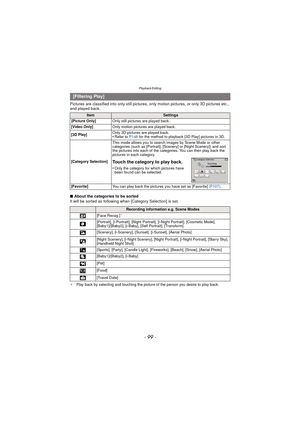

- 99 -
Playback/Editing
Pictures are classified into only still pictures, only motion pictures, or only 3D pictures etc.,
and played back.
∫ About the categories to be sorted
It will be sorted as following when [Category Selection] is set.
¢Play back by selecting and touching the pict ure of the person you desire to play back.
[Filtering Play]
ItemSettings
[Picture Only] Only still pictures are played back.
[Video Only] Only motion pictures are played back.
[3D Play] Only 3D pictures are played back....

Playback/Editing

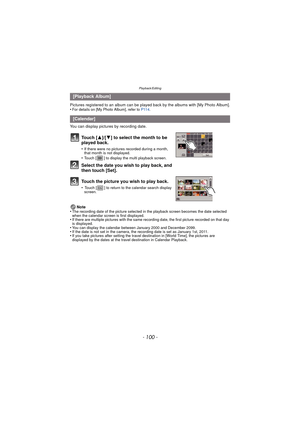

- 100 -
Pictures registered to an album can be played back by the albums with [My Photo Album].
•For details on [My Photo Album], refer to  P114.
You can display pictures by recording date.
Note
•
The recording date of the picture selected in the playback screen becomes the date selected
when the calendar screen is first displayed.
•If there are multiple pictures with the same recording date, the first picture recorded on that day
is displayed.
•You can display the calendar between...
