Panasonic Dmc Fz10 Operating Instructions Manual

Others
121

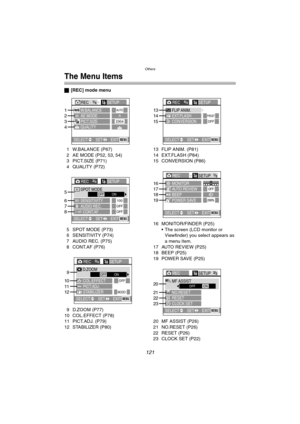

The Menu Items
ª[REC] mode menu
1 W.BALANCE (P67)
2 AE MODE (P52, 53, 54)
3 PICT.SIZE (P71)
4 QUALITY (P72)
5 SPOT MODE (P73)
6 SENSITIVITY (P74)
7 AUDIO REC. (P75)
8 CONT.AF (P76)
9 D.ZOOM (P77)
10 COL.EFFECT (P78)
11 PICT.ADJ. (P79)
12 STABILIZER (P80)13 FLIP ANIM. (P81)
14 EXT.FLASH (P84)
15 CONVERSION (P86)
16 MONITOR/FINDER (P25)
 The screen (LCD monitor or
Viewfinder) you select appears as
a menu item.
17 AUTO REVIEW (P25)
18 BEEP (P25)
19 POWER SAVE (P25)
20 MF ASSIST (P26)
21...

Others
122

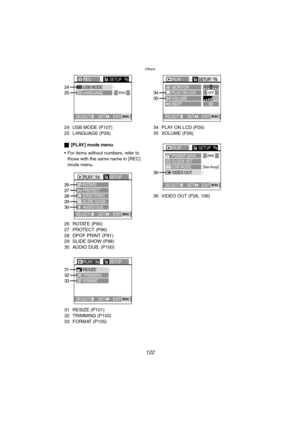

24 USB MODE (P107)
25 LANGUAGE (P26)
ª[PLAY] mode menu
 For items without numbers, refer to
those with the same name in [REC]
mode menu.
26 ROTATE (P90)
27 PROTECT (P96)
28 DPOF PRINT (P91)
29 SLIDE SHOW (P98)
30 AUDIO DUB. (P100)
31 RESIZE (P101)
32 TRIMMING (P103)
33 FORMAT (P105)34 PLAY ON LCD (P26)
35 VOLUME (P26)
36 VIDEO OUT (P26, 106)
24
25
RECSETUP3/3
LANGUAGEENGUSB MODE
EXITSET SELECTMENU
PLAY1/2SETUP
PROTECT ROTATE
DPOF PRINT
SLIDE SHOW
AUDIO DUB.26
27
28
29
30
EXITSET SELECTMENU...

Others
123

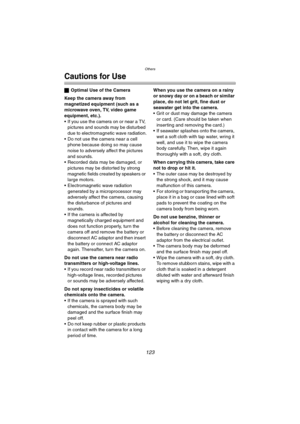

Cautions for Use
ªOptimal Use of the Camera
Keep the camera away from
magnetized equipment (such as a
microwave oven, TV, video game
equipment, etc.).
 If you use the camera on or near a TV,
pictures and sounds may be disturbed
due to electromagnetic wave radiation.
 Do not use the camera near a cell
phone because doing so may cause
noise to adversely affect the pictures
and sounds.
 Recorded data may be damaged, or
pictures may be distorted by strong
magnetic fields created by...

Others
124

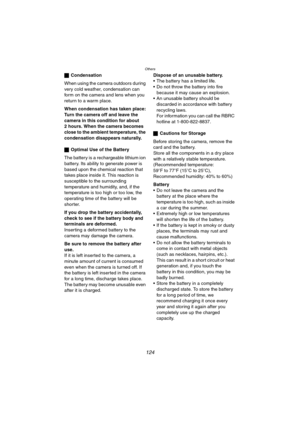

ªCondensation
When using the camera outdoors during
very cold weather, condensation can
form on the camera and lens when you
return to a warm place.
When condensation has taken place:
Turn the camera off and leave the
camera in this condition for about
2 hours. When the camera becomes
close to the ambient temperature, the
condensation disappears naturally.
ªOptimal Use of the Battery
The battery is a rechargeable lithium ion
battery. Its ability to generate power is
based upon the...

Others
125

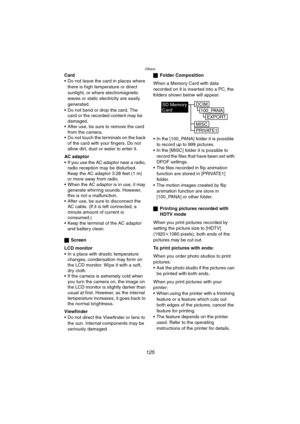

Card
 Do not leave the card in places where
there is high temperature or direct
sunlight, or where electromagnetic
waves or static electricity are easily
generated.
 Do not bend or drop the card. The
card or the recorded content may be
damaged.
 After use, be sure to remove the card
from the camera.
 Do not touch the terminals on the back
of the card with your fingers. Do not
allow dirt, dust or water to enter it.
AC adaptor
 If you use the AC adaptor near a radio,
radio...

Others
126

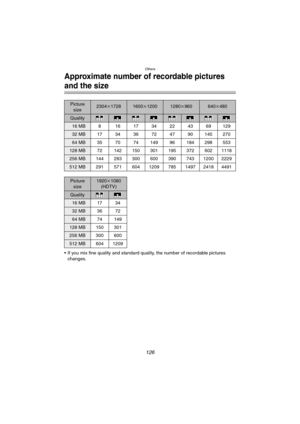

Approximate number of recordable pictures
and the size
 If you mix fine quality and standard quality, the number of recordable pictures
changes.
size2304k17281600k12001280k960640k480
Quality
16 MB8 161734224369129
32 MB 17 34 36 72 47 90 145 270
64 MB 35 70 74 149 96 184 298 553
128 MB 72 142 150 301 195 372 602 1118
256 MB 144 283 300 600 390 743 1200 2229
512 MB 291 571 604 1209 785 1497 2418 4491
size1920k1080
(HDTV)
Quality
16 MB 17 34
32 MB 36 72
64 MB 74 149
128 MB...

Others
127

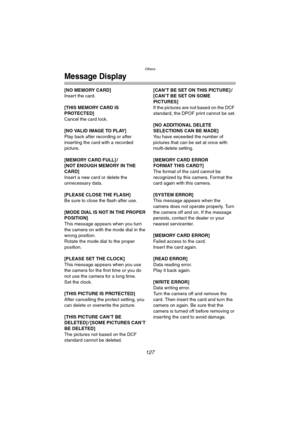

Message Display
[NO MEMORY CARD]
Insert the card.
[THIS MEMORY CARD IS
PROTECTED]
Cancel the card lock.
[NO VALID IMAGE TO PLAY]
Play back after recording or after
inserting the card with a recorded
picture.
[MEMORY CARD FULL] /
[NOT ENOUGH MEMORY IN THE
CARD]
Insert a new card or delete the
unnecessary data.
[PLEASE CLOSE THE FLASH]
Be sure to close the flash after use.
[MODE DIAL IS NOT IN THE PROPER
POSITION]
This message appears when you turn
the camera on with the mode dial in the...

Others
128
Troubleshooting
1: The camera is not turned on.
1-1: Are the battery inserted or the AC
adaptor correctly connected?
Check the connection.
1-2: Is the battery sufficiently charged?
Use the battery that has been
sufficiently charged.
2: As the camera is turned on, it
turns off immediately.
2: Is the battery charge insufficient to
operate the camera?
Use the battery with charged one.
3: The brightness of the screen
changes dark or bright for a
moment.
3: This phenomenon appears when...

Others
129

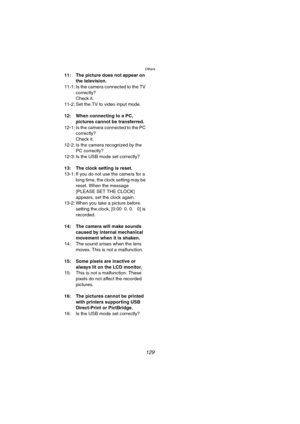

11: The picture does not appear on
the television.
11-1: Is the camera connected to the TV
correctly?
Check it.
11-2: Set the TV to video input mode.
12: When connecting to a PC,
pictures cannot be transferred.
12-1: Is the camera connected to the PC
correctly?
Check it.
12-2: Is the camera recognized by the
PC correctly?
12-3: Is the USB mode set correctly?
13: The clock setting is reset.
13-1: If you do not use the camera for a
long time, the clock setting may be
reset. When the...

Others
130

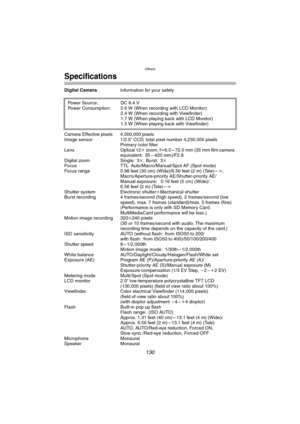

Specifications
Digital CameraInformation for your safety
Camera Effective pixels 4,000,000 pixels
Image sensor 1/2.5q CCD, total pixel number 4,230,000 pixels
Primary color filter
Lens Optical 12k zoom, fl6.0 – 72.0 mm (35 mm film camera
equivalent: 35 – 420 mm)/F2.8
Digital zoom Single: 3k, Burst: 3k
Focus TTL Auto/Macro/Manual/Spot AF (Spot mode)
Focus range 0.98 feet (30 cm) (Wide)/6.56 feet (2 m) (Tele) –¶,
Macro/Aperture-priority AE/Shutter-priority AE/
Manual exposure:  0.16 feet (5 cm)...
