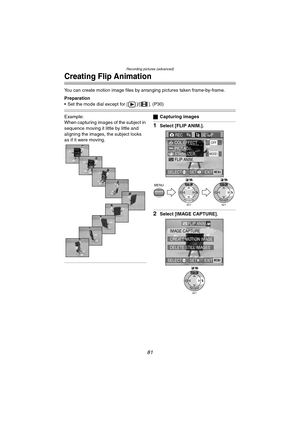

Recording pictures (advanced)
81
Creating Flip Animation
You can create motion image files by arranging pictures taken frame-by-frame.
Preparation
 Set the mode dial except for [ ]/[ ]. (P30)
Example:
When capturing images of the subject in
sequence moving it little by little and
aligning the images, the subject looks
as if it were moving.ªCapturing images
1Select [FLIP ANIM.].
2Select [IMAGE CAPTURE].
MENU
SET
WB
REVIEWSET
WB
REVIEW
REC3/4SETUP
PICT.ADJ.
STABILIZER
FLIP ANIM.MODE1
COL.EFFECTOFF...

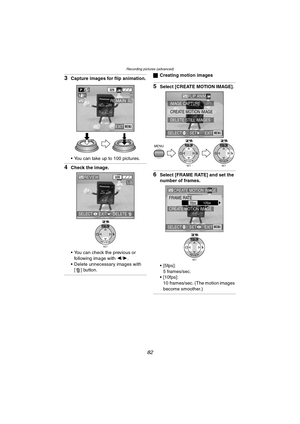

Recording pictures (advanced)
82
3Capture images for flip animation.
 You can take up to 100 pictures.
4Check the image.
 You can check the previous or
following image with 2/1.
 Delete unnecessary images with
[ ] button.
ªCreating motion images
5Select [CREATE MOTION IMAGE].
6Select [FRAME RATE] and set the
number of frames.
 [5fps]:
5 frames/sec.
 [10fps]:
10 frames/sec. (The motion images
become smoother.)
P320
892
1
EXITMENU
REMAIN
SELECT EXITDELETE
320
1/8REVIEW
SET
WB
REVIEW
MENU
SET
WB...

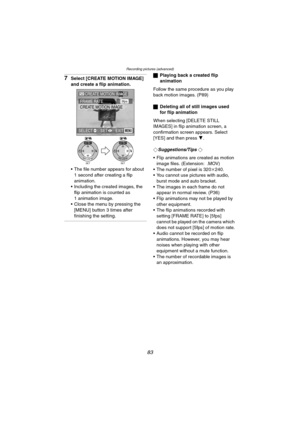

Recording pictures (advanced)
83
7Select [CREATE MOTION IMAGE]
and create a flip animation.
 The file number appears for about
1 second after creating a flip
animation.
 Including the created images, the
flip animation is counted as
1 animation image.
 Close the menu by pressing the
[MENU] button 3 times after
finishing the setting.
ªPlaying back a created flip
animation
Follow the same procedure as you play
back motion images. (P89)
ªDeleting all of still images used
for flip animation
When...

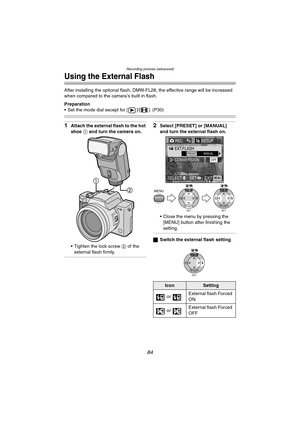

Recording pictures (advanced)
84
Using the External Flash
After installing the optional flash, DMW-FL28, the effective range will be increased
when compared to the camera’s built in flash.
Preparation
 Set the mode dial except for [ ]/[ ]. (P30)
1Attach the external flash to the hot
shoe 1 and turn the camera on.
 Tighten the lock screw 2 of the
external flash firmly.2Select [PRESET] or [MANUAL]
and turn the external flash on.
 Close the menu by pressing the
[MENU] button after finishing the...

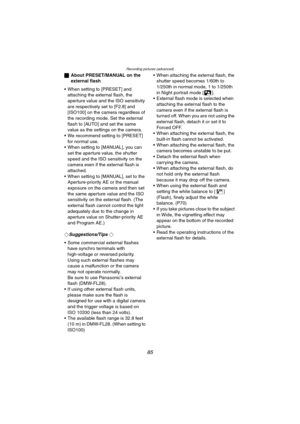

Recording pictures (advanced)
85
ªAbout PRESET/MANUAL on the
external flash
 When setting to [PRESET] and
attaching the external flash, the
aperture value and the ISO sensitivity
are respectively set to [F2.8] and
[ISO100] on the camera regardless of
the recording mode. Set the external
flash to [AUTO] and set the same
value as the settings on the camera.
 We recommend setting to [PRESET]
for normal use.
 When setting to [MANUAL], you can
set the aperture value, the shutter
speed and the...

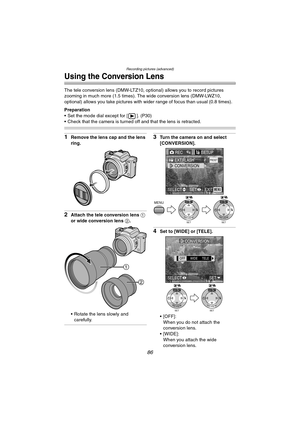

Recording pictures (advanced)
86
Using the Conversion Lens
The tele conversion lens (DMW-LTZ10, optional) allows you to record pictures
zooming in much more (1.5 times). The wide conversion lens (DMW-LWZ10,
optional) allows you take pictures with wider range of focus than usual (0.8 times).
Preparation
 Set the mode dial except for [ ]. (P30)
 Check that the camera is turned off and that the lens is retracted.
1Remove the lens cap and the lens
ring.
2Attach the tele conversion lens 1
or wide...

Recording pictures (advanced)
87
[TELE]:
When you attach the tele
conversion lens.
 Close the menu by pressing the
[MENU] button after finishing the
setting.
ªRecordable range when using the
conversion lens
When using the tele conversion lens:
 Normal: 15.1 feet (4.6 m) –¶
 Macro mode [ ]:
15.1 feet (4.6 m) –¶
When using the wide conversion lens:
 Normal: 0.56 feet (17 cm) –¶
 Macro mode [ ]: 0.03 feet (1 cm) –¶
 When using the tele conversion lens,
the available zoom range is limited to
6...

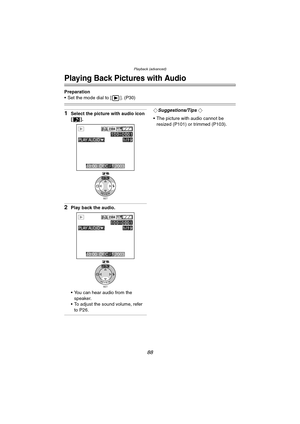

Playback (advanced)
88
Playback (advanced)
Playing Back Pictures with Audio
Preparation
 Set the mode dial to [ ]. (P30)
1Select the picture with audio icon
[].
2Play back the audio.
 You can hear audio from the speaker.
 To adjust the sound volume, refer
to P26.
¬Suggestions/Tips ¬
 The picture with audio cannot be  resized (P101) or trimmed (P103).
SET
WB
REVIEW
PLAY AUDIO
2304
10:00  DEC. 1.2003
100 _
00011/19
SET
WB
REVIEW
2304
10:00  DEC. 1.2003
100 _
00011/19PLAY AUDIO
FZ10-PP.book  88 ページ...

Playback (advanced)
89

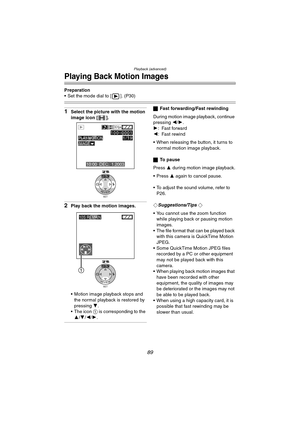

Playing Back Motion Images
Preparation
 Set the mode dial to [ ]. (P30)
1Select the picture with the motion
image icon [ ].
2Play back the motion images.
 Motion image playback stops and the normal playback is restored by
pressing  4.
 The icon 1 is corresponding to the  3 /4 /2/ 1.
ª Fast forwarding/Fast rewinding
During motion image playback, continue
pressing  2/1.
1 : Fast forward
2 : Fast rewind
 When releasing the button, it turns to  normal motion image playback.
ª To...

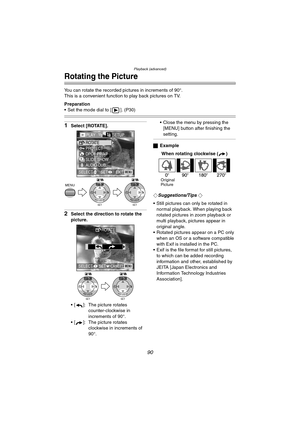

Playback (advanced)
90
Rotating the Picture
You can rotate the recorded pictures in increments of 90°.
This is a convenient function to play back pictures on TV.
Preparation
 Set the mode dial to [ ]. (P30)
1Select [ROTATE].
2Select the direction to rotate the
picture.
 [ ]: The picture rotates
counter-clockwise in
increments of 90°.
 [ ]: The picture rotates
clockwise in increments of
90°. Close the menu by pressing the
[MENU] button after finishing the
setting.
ªExample
When rotating...
