Panasonic Dmc Fz10 Operating Instructions Manual

Playback (advanced)
101
Resizing the Pictures
This function is useful if you want to reduce the file size of the picture, in those cases
when it needs to be attached to an E-mail or uploaded it to a web site.
Preparation
 Set the mode dial to [ ]. (P30)
1Select [RESIZE].
2Select the picture and set it.
3Select the size and set it.
 [1600]: 1600k1200 pixels
 [1280]: 1280 k960 pixels
 [640]: 640k 480 pixels
PLAY2/2SETUP
TRIMMING RESIZE
FORMAT
MENU
SET
WB
REVIEWSET
WB
REVIEW
EXITSET
SELECTMENU
SET
WB...

Playback (advanced)
102
4Select [YES] or [NO] and set it.
 When you select [YES], the picture is overwritten.
 When resized pictures are  overwritten, they cannot be
restored.
 Close the menu by pressing the  [MENU] button 2 times after
finishing the resizing.
¬Suggestions/Tips ¬
 The following pictures cannot be  resized.
– Pictures not over 640 k480 pixels
– Pictures recorded with setting the  picture size to [HDTV]
– Motion images
– Flip animation
– Pictures with audio
– Rotated pictures (You...

Playback (advanced)
103
Trimming the Pictures
Preparation
 Set the mode dial to [ ]. (P30)
1Select [TRIMMING].
2Select the picture to trim.
3Enlarge or decrease the picture.
PLAY2/2SETUP
TRIMMING RESIZE
FORMAT
MENU
SET
WB
REVIEWSET
WB
REVIEW
EXITSET SELECTMENU
SET
WB
REVIEWSET
WB
REVIEW
TRIMMING2304
100_
00011/19
EXITSETSELECTMENU
TRIMMING2304
100_
00011/19
EXITMENUZOOM
T W
FZ10-PP.book  103 ページ  ２００３年１１月１８日　火曜日　午後１時７分

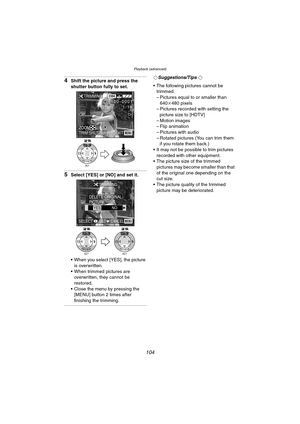

Playback (advanced)
104
4Shift the picture and press the
shutter button fully to set.
5Select [YES] or [NO] and set it.
 When you select [YES], the picture
is overwritten.
 When trimmed pictures are
overwritten, they cannot be
restored.
 Close the menu by pressing the
[MENU] button 2 times after
finishing the trimming.
¬Suggestions/Tips ¬
 The following pictures cannot be
trimmed.
– Pictures equal to or smaller than
640k480 pixels
– Pictures recorded with setting the
picture size to [HDTV]
–...

Playback (advanced)
105
Formatting the Card
Preparation
 Set the mode dial to [ ]. (P30)
1Select [FORMAT].
2Select [YES] to format.
¬Suggestions/Tips ¬
 Usually, it is not necessary to format
the card (initializing). Format the card
when the message [MEMORY CARD
ERROR] appears.
 If the card has been formatted by a PC
or other equipment, format the card on
the camera again.
 After formatting, recorded pictures and
any other data cannot be recovered.
 If the card is formatted all images
and...

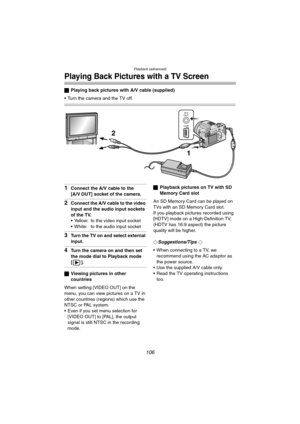

Playback (advanced)
106
Playing Back Pictures with a TV Screen
ªPlaying back pictures with A/V cable (supplied)
 Turn the camera and the TV off.
1Connect the A/V cable to the
[A/V OUT] socket of the camera.
2Connect the A/V cable to the video
input and the audio input sockets
of the TV.
 Yellow: to the video input socket
 White: to the audio input socket
3Turn the TV on and select external
input.
4Turn the camera on and then set
the mode dial to Playback mode
[].
ªViewing pictures in other...

Playback (advanced)
107
Before Connecting with USB Connection
Cable
Select the USB communication system according to the OS of your PC or your
printer before connecting them to the camera with the USB connection cable
(supplied).
Set the items on [USB MODE] in the [SETUP] menu. (P26)
1Select [USB MODE].
(In the recording mode)2Select [Mass Storage] or [PTP].
RECSETUP3/3
LANGUAGEENGUSB MODE
EXITSET SELECTMENU
MENU
SET
WB
REVIEW
SET
WB
REVIEWSET
WB
REVIEW
SET
WB
REVIEWSET
WB
REVIEW
Mass StoragePTP
USB...

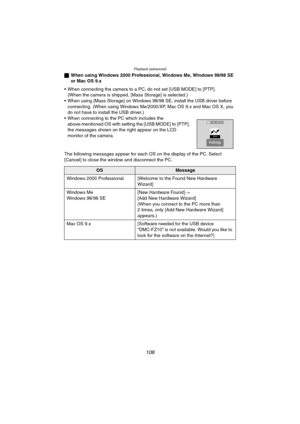

Playback (advanced)
108
ªWhen using Windows 2000 Professional, Windows Me, Windows 98/98 SE
or Mac OS 9.x
 When connecting the camera to a PC, do not set [USB MODE] to [PTP].
(When the camera is shipped, [Mass Storage] is selected.)
 When using [Mass Storage] on Windows 98/98 SE, install the USB driver before
connecting. (When using Windows Me/2000/XP, Mac OS 9.x and Mac OS X, you
do not have to install the USB driver.)
 When connecting to the PC which includes the
above-mentioned OS with setting...

Playback (advanced)
109
Connecting to a PC (Mass Storage)
1Turn the camera on and then set
[USB MODE] to [Mass Storage].
(P107)
2Connect the camera to a PC via
the USB connection cable
(supplied).
[Windows]
The drive appears on the
[My Computer] folder.
 If it is the first time for you to
connect the camera to a PC, the
required driver is installed
automatically so that the camera
can be recognized by the Windows
Plug and Play, then it appears on
the [My Computer] folder.
[Macintosh]
The...

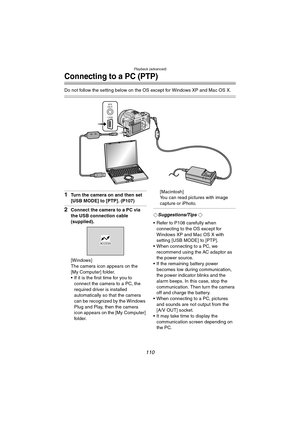

Playback (advanced)
110
Connecting to a PC (PTP)
Do not follow the setting below on the OS except for Windows XP and Mac OS X.
1Turn the camera on and then set
[USB MODE] to [PTP]. (P107)
2Connect the camera to a PC via
the USB connection cable
(supplied).
[Windows]
The camera icon appears on the
[My Computer] folder.
 If it is the first time for you to
connect the camera to a PC, the
required driver is installed
automatically so that the camera
can be recognized by the Windows
Plug and Play,...
