Playback (advanced)
111

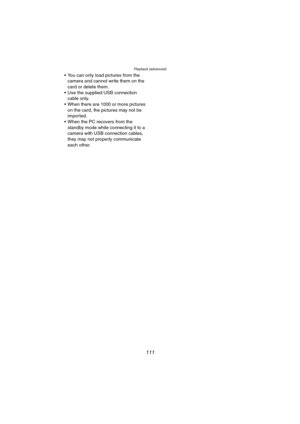

 You can only load pictures from the
camera and cannot write them on the
card or delete them.
 Use the supplied USB connection
cable only.
 When there are 1000 or more pictures
on the card, the pictures may not be
imported.
 When the PC recovers from the
standby mode while connecting it to a
camera with USB connection cables,
they may not properly communicate
each other.
FZ10-PP.book  111 ページ  ２００３年１１月１８日　火曜日　午後１時７分

Playback (advanced)
112

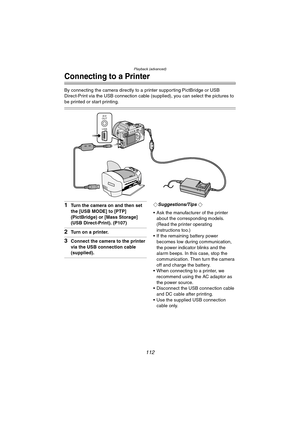

Connecting to a Printer
By connecting the camera directly to a printer supporting PictBridge or USB
Direct-Print via the USB connection cable (supplied), you can select the pictures to
be printed or start printing.
1Turn the camera on and then set
the [USB MODE] to [PTP]
(PictBridge) or [Mass Storage]
(USB Direct-Print). (P107)
2Turn on a printer.
3Connect the camera to the printer
via the USB connection cable
(supplied).
¬Suggestions/Tips ¬
 Ask the manufacturer of the...

Playback (advanced)
113

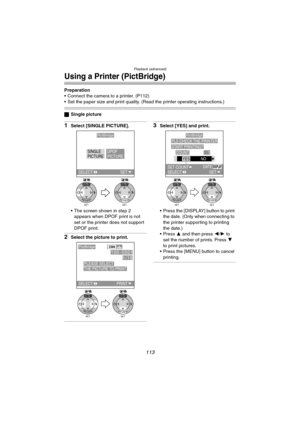

Using a Printer (PictBridge)
Preparation
 Connect the camera to a printer. (P112)
 Set the paper size and print quality. (Read the printer operating instructions.)
ªSingle picture
1Select [SINGLE PICTURE].
 The screen shown in step 2
appears when DPOF print is not
set or the printer does not support
DPOF print.
2Select the picture to print.
3Select [YES] and print.
 Press the [DISPLAY] button to print
the date. (Only when connecting to
the printer supporting to printing...

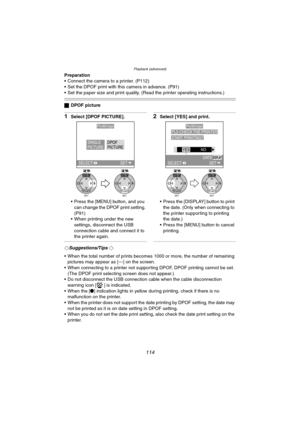

Playback (advanced)
114
Preparation
 Connect the camera to a printer. (P112)
 Set the DPOF print with this camera in advance. (P91)
 Set the paper size and print quality. (Read the printer operating instructions.)
ªDPOF picture
1Select [DPOF PICTURE].
 Press the [MENU] button, and you
can change the DPOF print setting.
(P91)
 When printing under the new
settings, disconnect the USB
connection cable and connect it to
the printer again.2Select [YES] and print.
 Press the [DISPLAY] button to...

Playback (advanced)
115

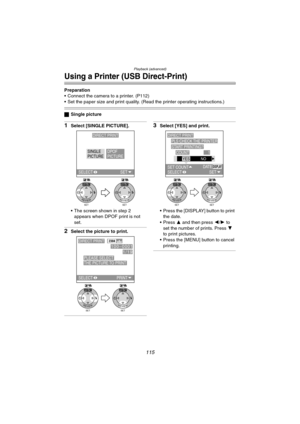

Using a Printer (USB Direct-Print)
Preparation
 Connect the camera to a printer. (P112)
 Set the paper size and print quality. (Read the printer operating instructions.)
ªSingle picture
1Select [SINGLE PICTURE].
 The screen shown in step 2
appears when DPOF print is not
set.
2Select the picture to print.
3Select [YES] and print.
 Press the [DISPLAY] button to print
the date.
Press 3 and then press 2/1 to
set the number of prints. Press 4
to print pictures.
 Press the...

Playback (advanced)
116

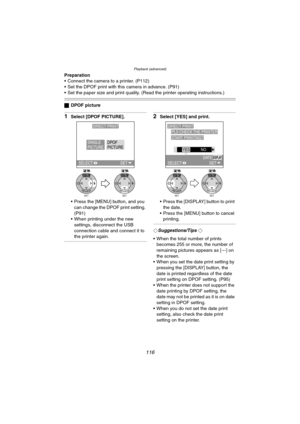

Preparation
 Connect the camera to a printer. (P112)
 Set the DPOF print with this camera in advance. (P91)
 Set the paper size and print quality. (Read the printer operating instructions.)
ªDPOF picture
1Select [DPOF PICTURE].
 Press the [MENU] button, and you
can change the DPOF print setting.
(P91)
 When printing under the new
settings, disconnect the USB
connection cable and connect it to
the printer again.2Select [YES] and print.
 Press the [DISPLAY] button to...

Others
117
Others

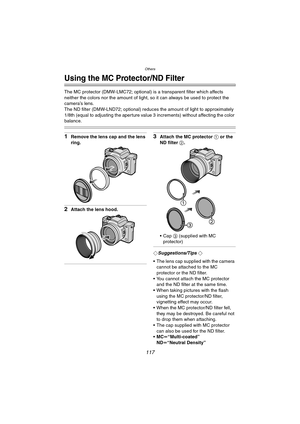

Using the MC Protector/ND Filter
The MC protector (DMW-LMC72; optional) is a transparent filter which affects
neither the colors nor the amount of light, so it can always be used to protect the
camera’s lens.
The ND filter (DMW-LND72; optional) reduces the amount of light to approximately
1/8th (equal to adjusting the aperture value 3 increments) without affecting the color
balance.
1Remove the lens cap and the lens
ring.
2Attach the lens hood.
3Attach the MC protector 1 or the
ND...

Others
118

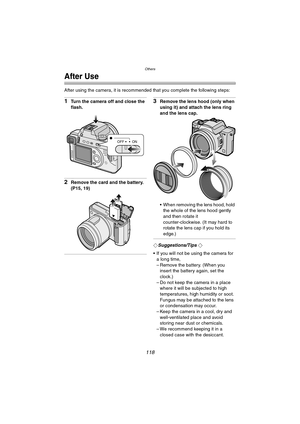

After Use
After using the camera, it is recommended that you complete the following steps:
1Turn the camera off and close the
flash.
2Remove the card and the battery.
(P15, 19)
3Remove the lens hood (only when
using it) and attach the lens ring
and the lens cap.
 When removing the lens hood, hold
the whole of the lens hood gently
and then rotate it
counter-clockwise. (It may hard to
rotate the lens cap if you hold its
edge.)
¬Suggestions/Tips ¬
 If you will not be using the camera...

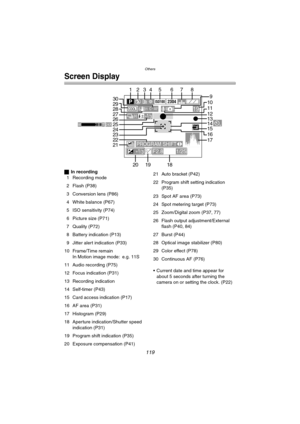

Others
119
Screen Display
ªIn recording
1 Recording mode
2 Flash (P38)
3 Conversion lens (P86)
4 White balance (P67)
5 ISO sensitivity (P74)
6 Picture size (P71)
7 Quality (P72)
8 Battery indication (P13)
9 Jitter alert indication (P33)
10 Frame/Time remain
In Motion image mode: e.g. 11S
11 Audio recording (P75)
12 Focus indication (P31)
13 Recording indication
14 Self-timer (P43)
15 Card access indication (P17)
16 AF area (P31)
17 Histogram (P29)
18 Aperture indication/Shutter speed
indication (P31)
19...

Others
120

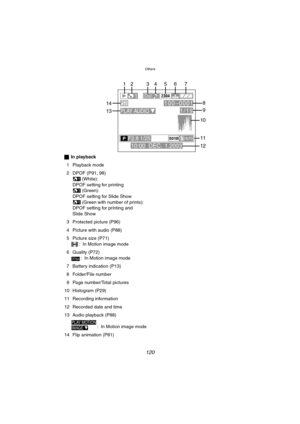

ªIn playback
1 Playback mode
2 DPOF (P91, 98)
 (White):
DPOF setting for printing
 (Green):
DPOF setting for Slide Show
 (Green with number of prints):
DPOF setting for printing and
Slide Show
3 Protected picture (P96)
4 Picture with audio (P88)
5 Picture size (P71)
: In Motion image mode
6 Quality (P72)
: In Motion image mode
7 Battery indication (P13)
8 Folder/File number
9 Page number/Total pictures
10 Histogram (P29)
11 Recording information
12 Recorded date and time
13 Audio playback...
