Panasonic Dmc Fz150 Owners Manual
Here you can view all the pages of manual Panasonic Dmc Fz150 Owners Manual . The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

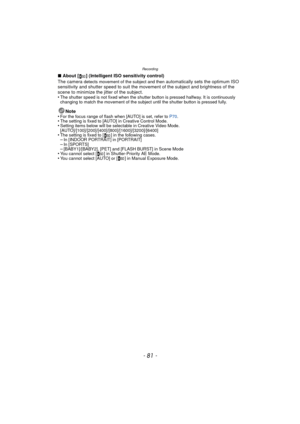

Page 81
![Page 81
- 81 -
Recording
∫About [ ] (Intelligent ISO sensitivity control)
The camera
detects movement of the subject and then automatically sets the optimum ISO
sensitivity and shutter speed to suit the movement of the subject and brightness of the
scene to minimize the jitter of the subject.
•
The shutter speed is not fixed when the shutter button is pressed halfway. It is continuously
changing to match the movement of the subject until the shutter button is pressed fully.
Note
•For the focus range of flash...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-80.png "Page 81
- 81 -
Recording
∫About [ ] (Intelligent ISO sensitivity control)
The camera
detects movement of the subject and then automatically sets the optimum ISO
sensitivity and shutter speed to suit the movement of the subject and brightness of the
scene to minimize the jitter of the subject.
•
The shutter speed is not fixed when the shutter button is pressed halfway. It is continuously
changing to match the movement of the subject until the shutter button is pressed fully.
Note
•For the focus range of flash...")
- 81 - Recording ∫About [ ] (Intelligent ISO sensitivity control) The camera detects movement of the subject and then automatically sets the optimum ISO sensitivity and shutter speed to suit the movement of the subject and brightness of the scene to minimize the jitter of the subject. • The shutter speed is not fixed when the shutter button is pressed halfway. It is continuously changing to match the movement of the subject until the shutter button is pressed fully. Note •For the focus range of flash...

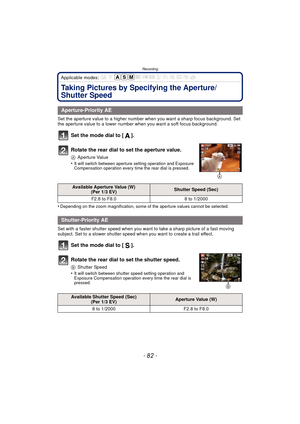

Page 82
![Page 82
Recording
- 82 -
Applicable modes:
Taking Pictures by Specifying the Aperture/
Shutter Speed
Set the aperture value to a higher number when you want a sharp focus background. Set
the aperture value to a lower number when you want a soft focus background.
Set the mode dial to [ ].
Rotate the rear dial to set the aperture value.
AAperture Value
•
It will switch between aperture setting operation and Exposure
Compensation operation every time the rear dial is pressed.
•Depending on the zoom...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-81.png "Page 82
Recording
- 82 -
Applicable modes:
Taking Pictures by Specifying the Aperture/
Shutter Speed
Set the aperture value to a higher number when you want a sharp focus background. Set
the aperture value to a lower number when you want a soft focus background.
Set the mode dial to [ ].
Rotate the rear dial to set the aperture value.
AAperture Value
•
It will switch between aperture setting operation and Exposure
Compensation operation every time the rear dial is pressed.
•Depending on the zoom...")
Recording - 82 - Applicable modes: Taking Pictures by Specifying the Aperture/ Shutter Speed Set the aperture value to a higher number when you want a sharp focus background. Set the aperture value to a lower number when you want a soft focus background. Set the mode dial to [ ]. Rotate the rear dial to set the aperture value. AAperture Value • It will switch between aperture setting operation and Exposure Compensation operation every time the rear dial is pressed. •Depending on the zoom...

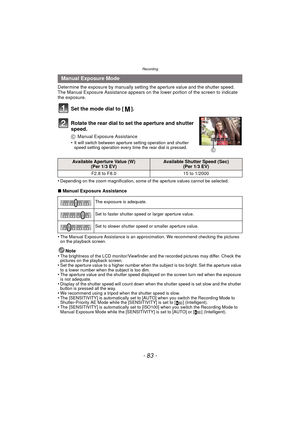

Page 83
![Page 83
- 83 -
Recording
Determine the exposure by manually setting the aperture value and the shutter speed.
The Manual Exposure Assistance appears on the lower portion of the screen to indicate
the exposure.
Set the mode dial to [ ].
Rotate the rear dial to set the aperture and shutter
speed.
CManual Exposure Assistance
•
It will switch between aperture setting operation and shutter
speed setting operation every time the rear dial is pressed.
•Depending on the zoom magnification, some of the aperture...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-82.png "Page 83
- 83 -
Recording
Determine the exposure by manually setting the aperture value and the shutter speed.
The Manual Exposure Assistance appears on the lower portion of the screen to indicate
the exposure.
Set the mode dial to [ ].
Rotate the rear dial to set the aperture and shutter
speed.
CManual Exposure Assistance
•
It will switch between aperture setting operation and shutter
speed setting operation every time the rear dial is pressed.
•Depending on the zoom magnification, some of the aperture...")
- 83 - Recording Determine the exposure by manually setting the aperture value and the shutter speed. The Manual Exposure Assistance appears on the lower portion of the screen to indicate the exposure. Set the mode dial to [ ]. Rotate the rear dial to set the aperture and shutter speed. CManual Exposure Assistance • It will switch between aperture setting operation and shutter speed setting operation every time the rear dial is pressed. •Depending on the zoom magnification, some of the aperture...

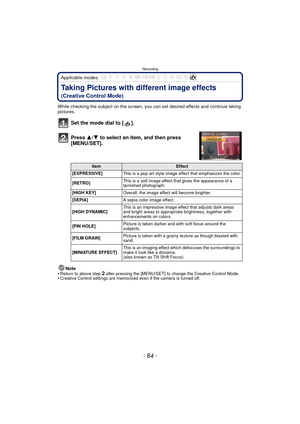

Page 84
![Page 84
Recording
- 84 -
Applicable modes:
Taking Pictures with different image effects
(Creative Control Mode)
While checking the subject on the screen, you can set desired effects and continue taking
pictures.
Set the mode dial to [ ].
Press 3/4 to select an item, and then press
[MENU/SET].
Note
•Return to above step 2 after pressing the [MENU/SET] to change the Creative Control Mode.•Creative Control settings are memorized even if the camera is turned off.
ItemEffect
[EXPRESSIVE] This is a pop art style...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-83.png "Page 84
Recording
- 84 -
Applicable modes:
Taking Pictures with different image effects
(Creative Control Mode)
While checking the subject on the screen, you can set desired effects and continue taking
pictures.
Set the mode dial to [ ].
Press 3/4 to select an item, and then press
[MENU/SET].
Note
•Return to above step 2 after pressing the [MENU/SET] to change the Creative Control Mode.•Creative Control settings are memorized even if the camera is turned off.
ItemEffect
[EXPRESSIVE] This is a pop art style...")
Recording - 84 - Applicable modes: Taking Pictures with different image effects (Creative Control Mode) While checking the subject on the screen, you can set desired effects and continue taking pictures. Set the mode dial to [ ]. Press 3/4 to select an item, and then press [MENU/SET]. Note •Return to above step 2 after pressing the [MENU/SET] to change the Creative Control Mode.•Creative Control settings are memorized even if the camera is turned off. ItemEffect [EXPRESSIVE] This is a pop art style...

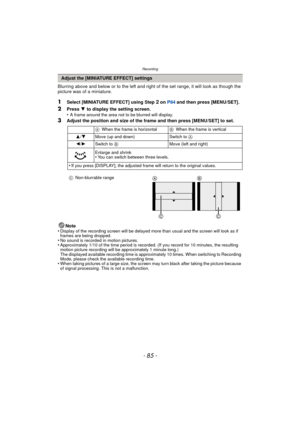

Page 85
![Page 85
- 85 -
Recording
Blurring above and below or to the left and right of the set range, it will look as though the
picture was of a miniature.
1Select [MINIATURE EFFECT] using Step 2 on P84 and then press [MENU/SET].
2Press 4 to display the setting screen.
•A frame around the area not to be blurred will display.
3Adjust the position and size of the frame and then press [MENU/SET] to set.
Note
•
Display of the recording screen will be delayed mo re than usual and the screen will look as if
frames are...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-84.png "Page 85
- 85 -
Recording
Blurring above and below or to the left and right of the set range, it will look as though the
picture was of a miniature.
1Select [MINIATURE EFFECT] using Step 2 on P84 and then press [MENU/SET].
2Press 4 to display the setting screen.
•A frame around the area not to be blurred will display.
3Adjust the position and size of the frame and then press [MENU/SET] to set.
Note
•
Display of the recording screen will be delayed mo re than usual and the screen will look as if
frames are...")
- 85 - Recording Blurring above and below or to the left and right of the set range, it will look as though the picture was of a miniature. 1Select [MINIATURE EFFECT] using Step 2 on P84 and then press [MENU/SET]. 2Press 4 to display the setting screen. •A frame around the area not to be blurred will display. 3Adjust the position and size of the frame and then press [MENU/SET] to set. Note • Display of the recording screen will be delayed mo re than usual and the screen will look as if frames are...

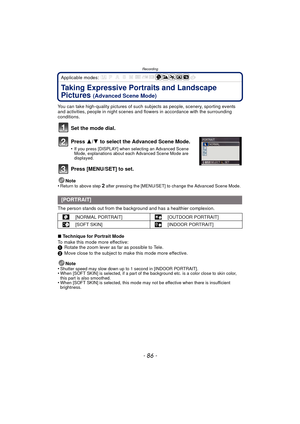

Page 86
![Page 86
Recording
- 86 -
Applicable modes:
Taking Expressive Portraits and Landscape
Pictures
(Advanced Scene Mode)
You can take high-quality pictures of such subjects as people, scenery, sporting events
and activities, people in night scenes and fl owers in accordance with the surrounding
conditions.
Set the mode dial.
Press 3/4 to select the Advanced Scene Mode.
•If you press [DISPLAY] when selecting an Advanced Scene
Mode, explanations about each Advanced Scene Mode are
displayed.
Press [MENU/SET] to...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-85.png "Page 86
Recording
- 86 -
Applicable modes:
Taking Expressive Portraits and Landscape
Pictures
(Advanced Scene Mode)
You can take high-quality pictures of such subjects as people, scenery, sporting events
and activities, people in night scenes and fl owers in accordance with the surrounding
conditions.
Set the mode dial.
Press 3/4 to select the Advanced Scene Mode.
•If you press [DISPLAY] when selecting an Advanced Scene
Mode, explanations about each Advanced Scene Mode are
displayed.
Press [MENU/SET] to...")
Recording - 86 - Applicable modes: Taking Expressive Portraits and Landscape Pictures (Advanced Scene Mode) You can take high-quality pictures of such subjects as people, scenery, sporting events and activities, people in night scenes and fl owers in accordance with the surrounding conditions. Set the mode dial. Press 3/4 to select the Advanced Scene Mode. •If you press [DISPLAY] when selecting an Advanced Scene Mode, explanations about each Advanced Scene Mode are displayed. Press [MENU/SET] to...

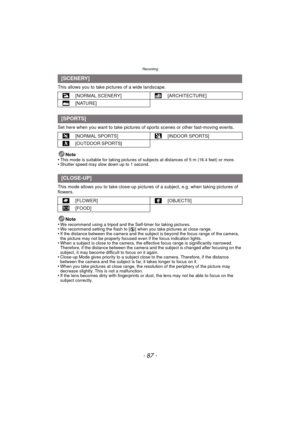

Page 87
- 87 - Recording This allows you to take pictures of a wide landscape. Set here when you want to take pictures of sports scenes or other fast-moving events.Note • This mode is suitable for taking pictures of subjects at distances of 5 m (16.4 feet) or more.•Shutter speed may slow down up to 1 second. This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of flowers. Note • We recommend using a tripod and the Self-timer for taking pictures.•We recommend setting the flash...

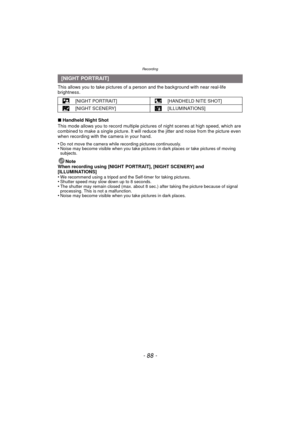

Page 88
Recording - 88 - This allows you to take pictures of a person and the background with near real-life brightness. ∫ Handheld Night Shot This mode allows you to record multiple pict ures of night scenes at high speed, which are combined to make a single picture. It will reduce the jitter and noise from the picture even when recording with the camera in your hand. • Do not move the camera while recording pictures continuously.•Noise may become visible when you take pictures in dark places or take...

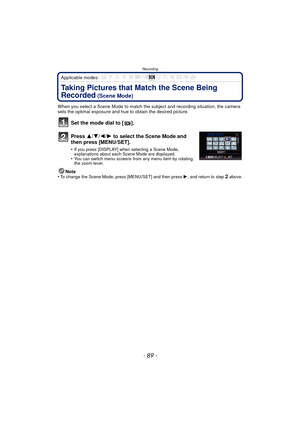

Page 89
![Page 89
- 89 -
Recording
Applicable modes:
Taking Pictures that Match the Scene Being
Recorded
(Scene Mode)
When you select a Scene Mode to match the subject and recording situation, the camera
sets the optimal exposure and hue to obtain the desired picture.
Set the mode dial to [ ].
Press 3/4/2/ 1 to select the Scene Mode and
then press [MENU/SET].
•If you press [DISPLAY] when selecting a Scene Mode,
explanations about each Scene Mode are displayed.
•You can switch menu screens from any menu item by...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-88.png "Page 89
- 89 -
Recording
Applicable modes:
Taking Pictures that Match the Scene Being
Recorded
(Scene Mode)
When you select a Scene Mode to match the subject and recording situation, the camera
sets the optimal exposure and hue to obtain the desired picture.
Set the mode dial to [ ].
Press 3/4/2/ 1 to select the Scene Mode and
then press [MENU/SET].
•If you press [DISPLAY] when selecting a Scene Mode,
explanations about each Scene Mode are displayed.
•You can switch menu screens from any menu item by...")
- 89 - Recording Applicable modes: Taking Pictures that Match the Scene Being Recorded (Scene Mode) When you select a Scene Mode to match the subject and recording situation, the camera sets the optimal exposure and hue to obtain the desired picture. Set the mode dial to [ ]. Press 3/4/2/ 1 to select the Scene Mode and then press [MENU/SET]. •If you press [DISPLAY] when selecting a Scene Mode, explanations about each Scene Mode are displayed. •You can switch menu screens from any menu item by...

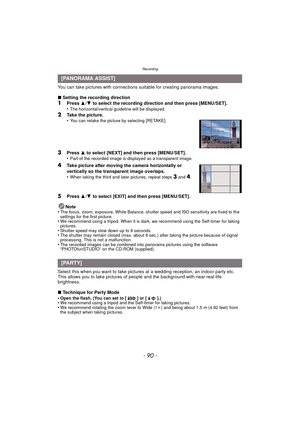

Page 90
![Page 90
Recording
- 90 -
You can take pictures with connections suitable for creating panorama images.
∫Setting the recording direction
1Press 3/4 to select the recording direction and then press [MENU/SET].
•The horizontal/vertical guideline will be displayed.
2Take the picture.
•You can retake the picture by selecting [RETAKE].
3Press 3 to select [NEXT] and then press [MENU/SET].
•Part of the recorded image is displayed as a transparent image.
4Take picture after moving the camera horizontally or...](http://img.usermanuals.tech/thumb/58/65621/w300_dmc-fz150_adv_en_om_d-89.png "Page 90
Recording
- 90 -
You can take pictures with connections suitable for creating panorama images.
∫Setting the recording direction
1Press 3/4 to select the recording direction and then press [MENU/SET].
•The horizontal/vertical guideline will be displayed.
2Take the picture.
•You can retake the picture by selecting [RETAKE].
3Press 3 to select [NEXT] and then press [MENU/SET].
•Part of the recorded image is displayed as a transparent image.
4Take picture after moving the camera horizontally or...")
Recording - 90 - You can take pictures with connections suitable for creating panorama images. ∫Setting the recording direction 1Press 3/4 to select the recording direction and then press [MENU/SET]. •The horizontal/vertical guideline will be displayed. 2Take the picture. •You can retake the picture by selecting [RETAKE]. 3Press 3 to select [NEXT] and then press [MENU/SET]. •Part of the recorded image is displayed as a transparent image. 4Take picture after moving the camera horizontally or...
