Digital Camera
Operating Instructions
Model No.DMC-FZ2PP
FZ2-PP.book  1 ページ  ２００３年９月２６日　金曜日　午後１２時１分

Safety
2
SafetyDear Customer,We would like to take this opportunity to
thank you for purchasing this Panasonic
Digital Camera. Please read these
Operating Instructions carefully and keep
them handy for future reference.
Infor mation for
Your Safety
Carefully observe copyright laws.
Recording of pre-recorded tapes or
discs or other published or
broadcast material for purposes
other than your own private use may
infringe copyright laws. Even for the
purpose of private use, recording of
certain...

Safety
3
FCC Note: (U.S. only)
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is...

4
Contents
SafetyInformation for Your Safety ...................... 2
PreparationStandard Accessories .............................. 5
Names of the Components....................... 6
LCD Monitor Display/Viewfinder Display... 8
Quick Guide.............................................. 10
Charging the Battery ................................ 11
Inserting the Battery ................................. 12
Using the AC Adaptor............................... 14
Inserting the Card...

Preparation
5

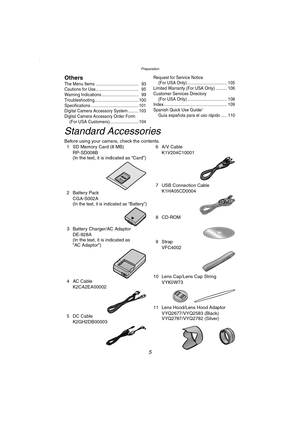

PreparationOthersThe Menu Items ..................................... 93
Cautions for Use..................................... 95
Warning Indications ................................ 99
Troubleshooting...................................... 100
Specifications ......................................... 101
Digital Camera Accessory System ......... 103
Digital Camera Accessory Order Form(For USA Customers)......................... 104 Request for Service Notice
(For USA Only)...

Preparation
6
Preparation

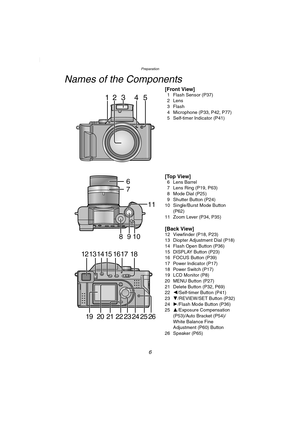

Names of the Components
[Front View]1 Flash Sensor (P37)
2 Lens
3Flash
4 Microphone (P33, P42, P77)
5 Self-timer Indicator (P41)
[Top View]6 Lens Barrel
7 Lens Ring (P19, P63)
8 Mode Dial (P25)
9 Shutter Button (P24)
10 Single/Burst Mode Button
(P62)
11 Zoom Lever (P34, P35)
[Back View]12 Viewfinder (P18, P23)
13 Diopter Adjustment Dial (P18)
14 Flash Open Button (P36)
15 DISPLAY Button (P23)
16 FOCUS Button (P39)
17 Power Indicator (P17)
18 Power Switch (P17)
19 LCD Monitor...

Preparation
7

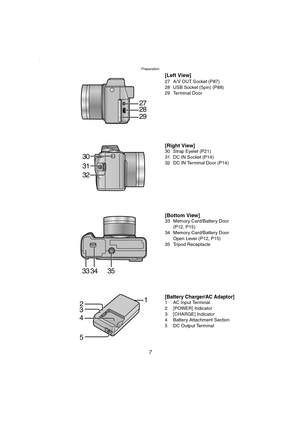

[Left View]
27 A/V OUT Socket (P87)
28 USB Socket (5pin) (P88)
29 Terminal Door
[Right View]30 Strap Eyelet (P21)
31 DC IN Socket (P14)
32 DC IN Terminal Door (P14)
[Bottom View]33 Memory Card/Battery Door
(P12, P15)
34 Memory Card/Battery Door
Open Lever (P12, P15)
35 Tripod Receptacle
[Battery Charger/AC Adaptor]1 AC Input Terminal
2 [POWER] Indicator
3 [CHARGE] Indicator
4 Battery Attachment Section
5 DC Output Terminal
27
28
29
31 30
32
3433 35
2
3
5 41
FZ2-PP.book  7 ページ  ２００３年９月２６日...

Preparation
8

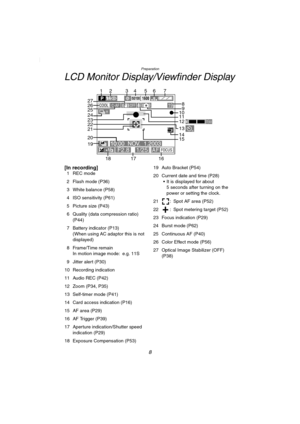

LCD Monitor Display/Viewfinder Display
[In recording]1 REC mode
2 Flash mode (P36)
3 White balance (P58)
4 ISO sensitivity (P61)
5 Picture size (P43)
6 Quality (data compression ratio)
(P44)
7 Battery indicator (P13)
(When using AC adaptor this is not
displayed)
8 Frame/Time remain
In motion image mode: e.g. 11S
9 Jitter alert (P30)
10 Recording indication
11 Audio REC (P42)
12 Zoom (P34, P35)
13 Self-timer mode (P41)
14 Card access indication (P16)
15 AF area (P29)
16 AF Trigger (P39)
17...

Preparation
9

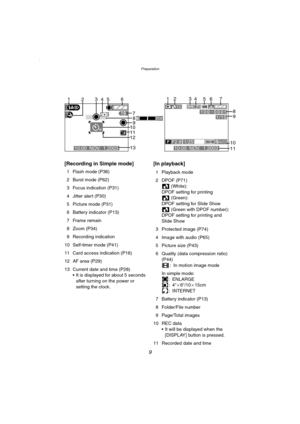

[Recording in Simple mode]
1 Flash mode (P36)
2 Burst mode (P62)
3 Focus indication (P31)
4 Jitter alert (P30)
5 Picture mode (P31)
6 Battery indicator (P13)
7 Frame remain
8 Zoom (P34)
9 Recording indication
10 Self-timer mode (P41)
11 Card access indication (P16)
12 AF area (P29)
13 Current date and time (P28)
 It is displayed for about 5 seconds
after turning on the power or
setting the clock.
[In playback]
1 Playback mode
2DPOF (P71)
 (White):
DPOF setting for printing
 (Green):...

Preparation
10

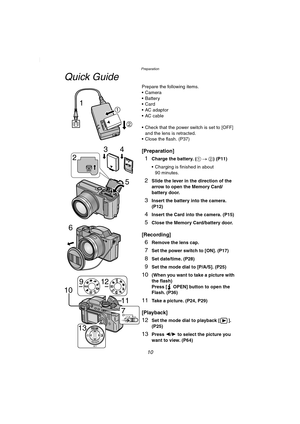

Quick Guide
