Panasonic Dmc Fz2 Operating Instructions Manual

Recording images (advanced)
51

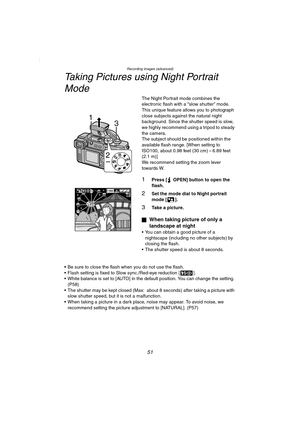

Taking Pictures using Night Portrait Mode
The Night Portrait mode combines the
electronic flash with a “slow shutter” mode.
This unique feature allows you to photograph
close subjects against the natural night
background. Since the shutter speed is slow,
we highly recommend using a tripod to steady
the camera.
The subject should be positioned within the
available flash range. [When setting to
ISO100, about 0.98 feet (30 cm) – 6.89 feet
(2.1 m)]
We recommend setting...

Recording images (advanced)
52

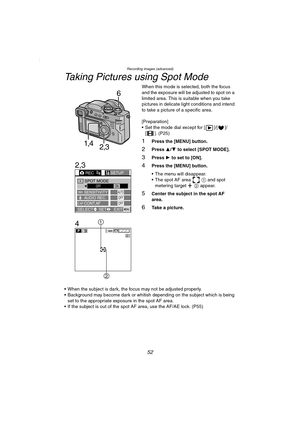

Taking Pictures using Spot Mode
When this mode is selected, both the focus
and the exposure will be adjusted to spot on a
limited area. This is suitable when you take
pictures in delicate light conditions and intend
to take a picture of a specific area.
[Preparation]
 Set the mode dial except for [ ]/[ ]/
[ ]. (P25)
1Press the [MENU] button.
2Press 3/4 to select [SPOT MODE].
3Press 1 to set to [ON].
4Press the [MENU] button.
 The menu will disappear.
 The spot AF...

Recording images (advanced)
53

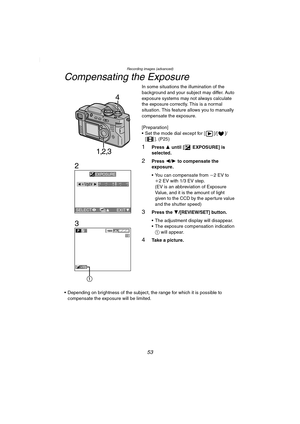

Compensating the Exposure
In some situations the illumination of the
background and your subject may differ. Auto
exposure systems may not always calculate
the exposure correctly. This is a normal
situation. This feature allows you to manually
compensate the exposure.
[Preparation]
 Set the mode dial except for [ ]/[ ]/
[ ]. (P25)
1Press 3 until [ EXPOSURE] is
selected.
2Press 2/1 to compensate the
exposure.
 You can compensate from j2EV to
i2 EV with 1/3 EV...

Recording images (advanced)
54

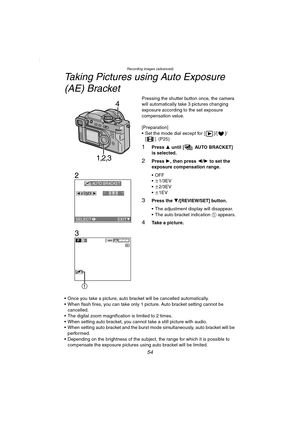

Taking Pictures using Auto Exposure
(AE) Bracket
Pressing the shutter button once, the camera
will automatically take 3 pictures changing
exposure according to the set exposure
compensation value.
[Preparation]
 Set the mode dial except for [ ]/[ ]/
[ ]. (P25)
1Press 3 until [ AUTO BRACKET]
is selected.
2Press 1, then press 2/1 to set the
exposure compensation range.
OFF
n1/3EV
n2/3EV
n1EV
3Press the 4/[REVIEW/SET] button.
 The adjustment display will...

Recording images (advanced)
55

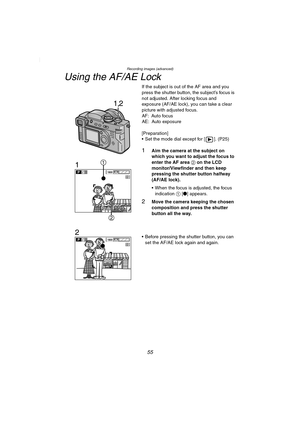

Using the AF/AE Lock
If the subject is out of the AF area and you
press the shutter button, the subject’s focus is
not adjusted. After locking focus and
exposure (AF/AE lock), you can take a clear
picture with adjusted focus.
AF: Auto focus
AE: Auto exposure
[Preparation]
 Set the mode dial except for [ ]. (P25)
1Aim the camera at the subject on
which you want to adjust the focus to
enter the AF area 2 on the LCD
monitor/Viewfinder and then keep
pressing the...

Recording images (advanced)
56

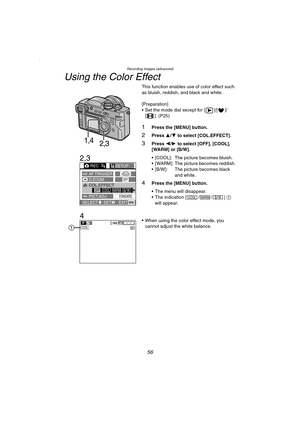

Using the Color Effect
This function enables use of color effect such
as bluish, reddish, and black and white.
[Preparation]
 Set the mode dial except for [ ]/[ ]/
[ ]. (P25)
1Press the [MENU] button.
2Press 3/4 to select [COL.EFFECT].
3Press 2/1 to select [OFF], [COOL],
[WARM] or [B/W].
 [COOL]: The picture becomes bluish.
 [WARM]: The picture becomes reddish.
 [B/W]: The picture becomes black
and white.
4Press the [MENU] button.
 The menu will disappear.
The...

Recording images (advanced)
57

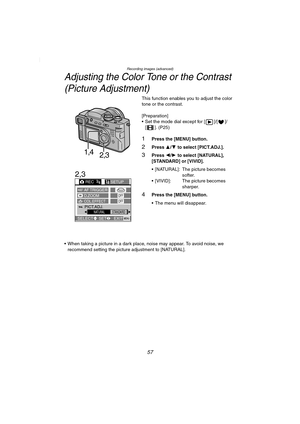

Adjusting the Color Tone or the Contrast
(Picture Adjustment)
This function enables you to adjust the color
tone or the contrast.
[Preparation]
 Set the mode dial except for [ ]/[ ]/
[ ]. (P25)
1Press the [MENU] button.
2Press 3/4 to select [PICT.ADJ.].
3Press 2/1 to select [NATURAL],
[STANDARD] or [VIVID].
 [NATURAL]: The picture becomes
softer.
 [VIVID]: The picture becomes
sharper.
4Press the [MENU] button.
 The menu will disappear.
 When taking a picture in a...

Recording images (advanced)
58

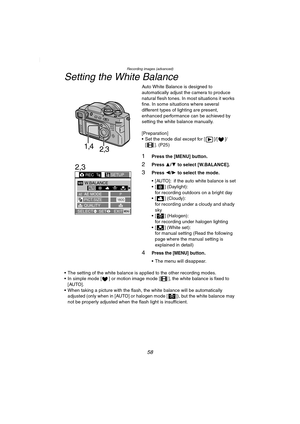

Setting the White Balance
Auto White Balance is designed to
automatically adjust the camera to produce
natural flesh tones. In most situations it works
fine. In some situations where several
different types of lighting are present,
enhanced performance can be achieved by
setting the white balance manually.
[Preparation]
 Set the mode dial except for [ ]/[ ]/
[ ]. (P25)
1Press the [MENU] button.
2Press 3/4 to select [W.BALANCE].
3Press 2/1 to select the mode.
...

Recording images (advanced)
59

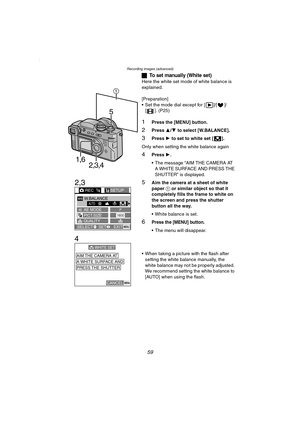

ªTo set manually (White set)
Here the white set mode of white balance is
explained.
[Preparation]
 Set the mode dial except for [ ]/[ ]/
[ ]. (P25)
1Press the [MENU] button.
2Press 3/4 to select [W.BALANCE].
3Press 1 to set to white set [ ].
Only when setting the white balance again
4Press 1.
 The message “AIM THE CAMERA AT
A WHITE SURFACE AND PRESS THE
SHUTTER” is displayed.
5Aim the camera at a sheet of white
paper 1 or similar object so that it
completely fills...

Recording images (advanced)
60

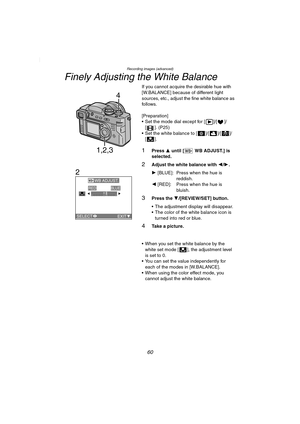

Finely Adjusting the White Balance
If you cannot acquire the desirable hue with
[W.BALANCE] because of different light
sources, etc., adjust the fine white balance as
follows.
[Preparation]
 Set the mode dial except for [ ]/[ ]/
[ ]. (P25)
 Set the white balance to [ ]/[ ]/[ ]/
[].
1Press 3 until [ WB ADJUST.] is
selected.
2Adjust the white balance with 2/1.
1 [BLUE]: Press when the hue is
reddish.
2 [RED]: Press when the hue is
bluish.
3Press the 4/[REVIEW/SET]...
