Panasonic Dmc Fz2 Operating Instructions Manual

Preparation
11

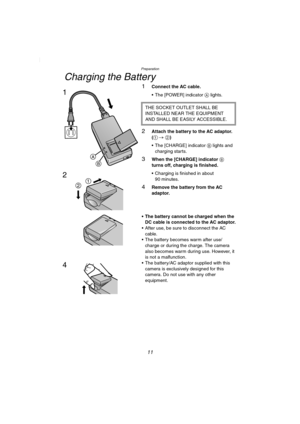

Charging the Battery
1Connect the AC cable.
 The [POWER] indicatorA lights.
2Attach the battery to the AC adaptor.
(1 # 2)
 The [CHARGE] indicatorB lights and
charging starts.
3When the [CHARGE] indicatorB
turns off, charging is finished.
 Charging is finished in about
90 minutes.
4Remove the battery from the AC
adaptor.
• The battery cannot be charged when the
DC cable is connected to the AC adaptor.
 After use, be sure to disconnect the AC
cable.
 The battery becomes warm...

Preparation
12

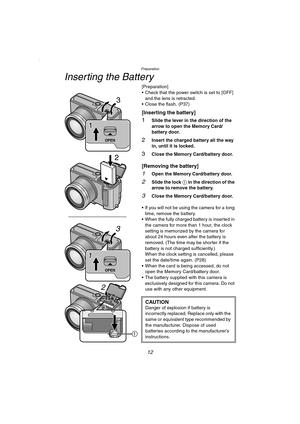

Inserting the Battery
[Preparation]
 Check that the power switch is set to [OFF]
and the lens is retracted.
 Close the flash. (P37)
[Inserting the battery]
1Slide the lever in the direction of the
arrow to open the Memory Card/
battery door.
2Insert the charged battery all the way
in, until it is locked.
3Close the Memory Card/battery door.
[Removing the battery]
1Open the Memory Card/battery door.
2Slide the lock 1 in the direction of the
arrow to remove the battery.
3Close the...

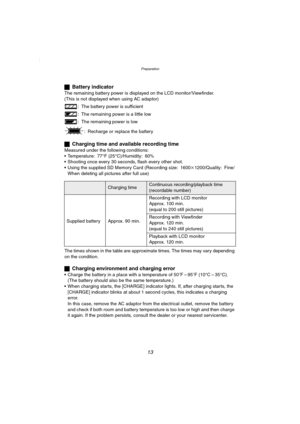

Preparation
13
ªBattery indicator
The remaining battery power is displayed on the LCD monitor/Viewfinder.
(This is not displayed when using AC adaptor)
: The battery power is sufficient
: The remaining power is a little low
: The remaining power is low
: Recharge or replace the battery
ªCharging time and available recording time
Measured under the following conditions:
 Temperature: 77°F (25°C)/Humidity: 60% Shooting once every 30 seconds, flash every other shot.
 Using the supplied SD Memory Card...

Preparation
14

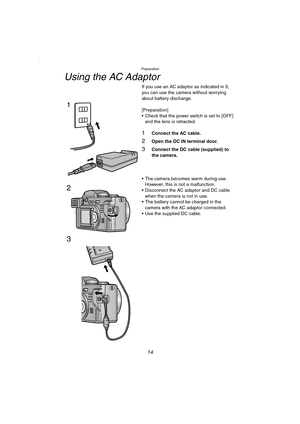

Using the AC Adaptor
If you use an AC adaptor as indicated in 3,
you can use the camera without worrying
about battery discharge.
[Preparation]
 Check that the power switch is set to [OFF]
and the lens is retracted.
1Connect the AC cable.
2Open the DC IN terminal door.
3Connect the DC cable (supplied) to
the camera.
 The camera becomes warm during use.
However, this is not a malfunction.
 Disconnect the AC adaptor and DC cable
when the camera is not in use.
 The battery cannot be...

Preparation
15

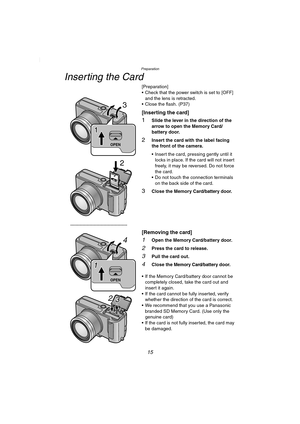

Inserting the Card
[Preparation]
 Check that the power switch is set to [OFF]
and the lens is retracted.
 Close the flash. (P37)
[Inserting the card]
1Slide the lever in the direction of the
arrow to open the Memory Card/
battery door.
2Insert the card with the label facing
the front of the camera.
 Insert the card, pressing gently until it
locks in place. If the card will not insert
freely, it may be reversed. Do not force
the card.
 Do not touch the connection terminals
on the...

Preparation
16

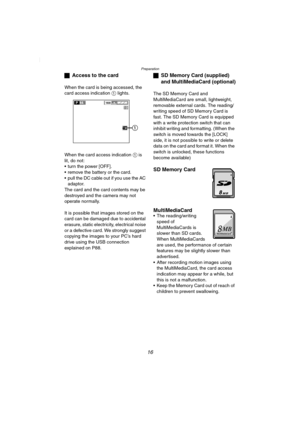

ªAccess to the card
When the card is being accessed, the
card access indication 1 lights.
When the card access indication 1 is
lit, do not:
 turn the power [OFF].
 remove the battery or the card.
 pull the DC cable out if you use the AC
adaptor.
The card and the card contents may be
destroyed and the camera may not
operate normally.
It is possible that images stored on the
card can be damaged due to accidental
erasure, static electricity, electrical noise
or a defective card. We...

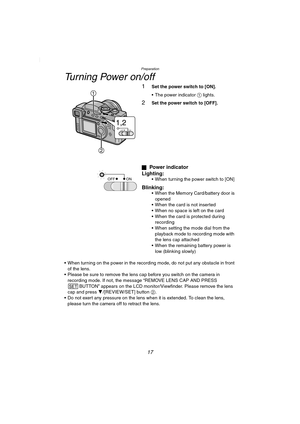

Preparation
17
Turning Power on/off
1Set the power switch to [ON].
 The power indicator 1 lights.
2Set the power switch to [OFF].
ª
Power indicator
Lighting:
 When turning the power switch to [ON]
Blinking: When the Memory Card/battery door is
opened
 When the card is not inserted
 When no space is left on the card
 When the card is protected during
recording
 When setting the mode dial from the
playback mode to recording mode with
the lens cap attached
 When the remaining battery power is...

Preparation
18

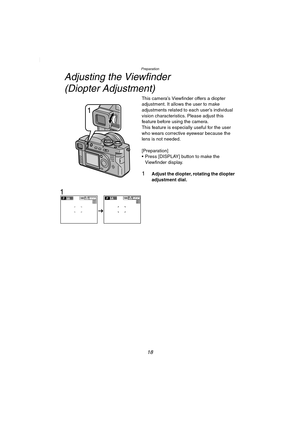

Adjusting the Viewfinder
(Diopter Adjustment)
This camera’s Viewfinder offers a diopter
adjustment. It allows the user to make
adjustments related to each user’s individual
vision characteristics. Please adjust this
feature before using the camera.
This feature is especially useful for the user
who wears corrective eyewear because the
lens is not needed.
[Preparation]
 Press [DISPLAY] button to make the
Viewfinder display.
1Adjust the diopter, rotating the diopter
adjustment...

Preparation
19

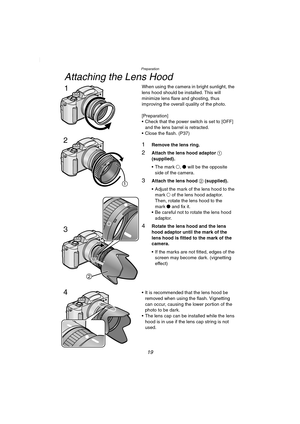

Attaching the Lens Hood
When using the camera in bright sunlight, the
lens hood should be installed. This will
minimize lens flare and ghosting, thus
improving the overall quality of the photo.
[Preparation]
 Check that the power switch is set to [OFF]
and the lens barrel is retracted.
 Close the flash. (P37)
1Remove the lens ring.
2Attach the lens hood adaptor 1
(supplied).
 The mark ±, ¥ will be the opposite
side of the camera.
3Attach the lens hood 2 (supplied).
 Adjust the...

Preparation
20

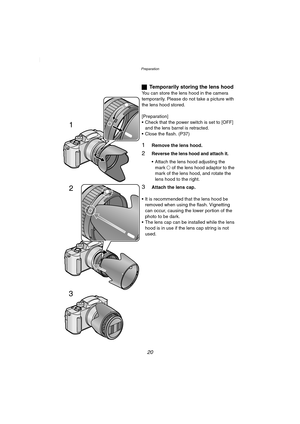

ªTemporarily storing the lens hood
You can store the lens hood in the camera
temporarily. Please do not take a picture with
the lens hood stored.
[Preparation]
 Check that the power switch is set to [OFF]
and the lens barrel is retracted.
 Close the flash. (P37)
1Remove the lens hood.
2Reverse the lens hood and attach it.
 Attach the lens hood adjusting the
mark± of the lens hood adaptor to the
mark of the lens hood, and rotate the
lens hood to the right.
3Attach the lens cap.
...
