Recording images (basic)
31

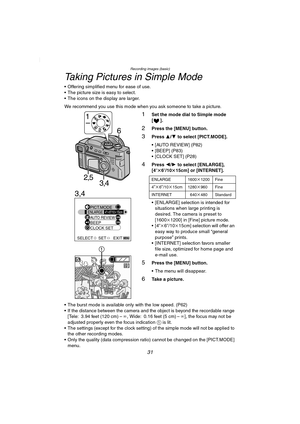

Taking Pictures in Simple Mode
 Offering simplified menu for ease of use.
 The picture size is easy to select.
 The icons on the display are larger.
We recommend you use this mode when you ask someone to take a picture.
1Set the mode dial to Simple mode
[].
2Press the [MENU] button.
3Press 3/4 to select [PICT.MODE].
 [AUTO REVIEW] (P82)
 [BEEP] (P83)
 [CLOCK SET] (P28)
4Press 2/1 to select [ENLARGE],
[4qt6q/10t15cm] or [INTERNET].
 [ENLARGE] selection is intended for...

Recording images (basic)
32

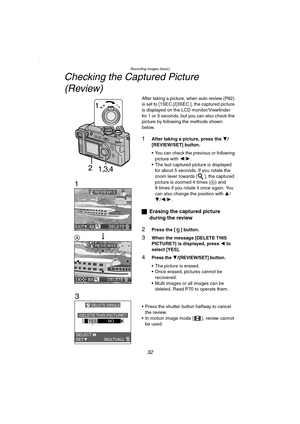

Checking the Captured Picture
(Review)
After taking a picture, when auto review (P82)
is set to [1SEC.]/[3SEC.], the captured picture
is displayed on the LCD monitor/Viewfinder
for 1 or 3 seconds, but you can also check the
picture by following the methods shown
below.
1After taking a picture, press the 4/
[REVIEW/SET] button.
 You can check the previous or following
picture with 2/1.
 The last captured picture is displayed
for about 5 seconds. If you rotate the...

Recording images (basic)
33

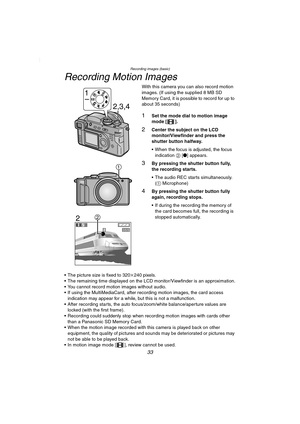

Recording Motion Images
With this camera you can also record motion
images. (If using the supplied 8 MB SD
Memory Card, it is possible to record for up to
about 35 seconds)
1Set the mode dial to motion image
mode [ ].
2Center the subject on the LCD
monitor/Viewfinder and press the
shutter button halfway.
 When the focus is adjusted, the focus
indication 2 [¥] appears.
3By pressing the shutter button fully,
the recording starts.
 The audio REC starts simultaneously....

Recording images (basic)
34

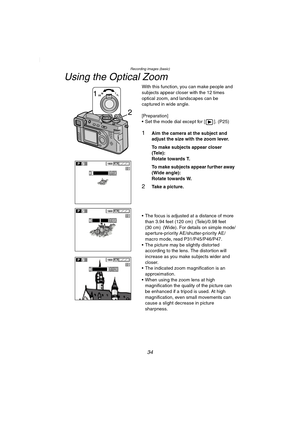

Using the Optical Zoom
With this function, you can make people and
subjects appear closer with the 12 times
optical zoom, and landscapes can be
captured in wide angle.
[Preparation]
 Set the mode dial except for [ ]. (P25)
1Aim the camera at the subject and
adjust the size with the zoom lever.
To make subjects appear closer
(Tele):
Rotate towards T.
To make subjects appear further away
(Wide angle):
Rotate towards W.
2Take a picture.
 The focus is adjusted at a...

Recording images (basic)
35

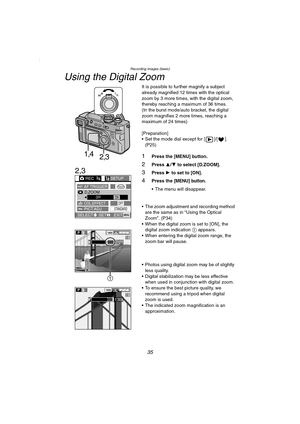

Using the Digital Zoom
It is possible to further magnify a subject
already magnified 12 times with the optical
zoom by 3 more times, with the digital zoom,
thereby reaching a maximum of 36 times.
(In the burst mode/auto bracket, the digital
zoom magnifies 2 more times, reaching a
maximum of 24 times)
[Preparation]
 Set the mode dial except for [ ]/[ ].
(P25)
1Press the [MENU] button.
2Press 3/4 to select [D.ZOOM].
3Press 1 to set to [ON].
4Press the [MENU] button.
 The...

Recording images (basic)
36

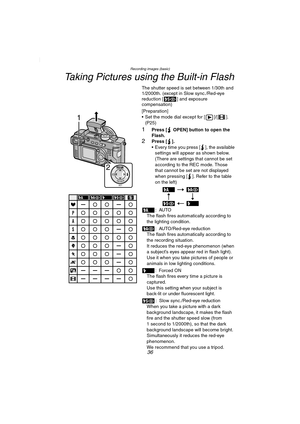

Taking Pictures using the Built-in Flash
The shutter speed is set between 1/30th and
1/2000th. (except in Slow sync./Red-eye
reduction [ ] and exposure
compensation)
[Preparation]
 Set the mode dial except for [ ]/[ ].
(P25)
1Press [ OPEN] button to open the
Flash.
2Press [ ].
 Every time you press [ ], the available
settings will appear as shown below.
(There are settings that cannot be set
according to the REC mode. Those
that cannot be set are not displayed
when...

Recording images (basic)
37
: Forced OFF
When you do not open the flash, this mode
is set. Even in dark places, the flash does
not fire.
Set it when you take pictures in places
where using flash is not allowed.
In this time, the shutter speed is set
between 1/8th and 1/2000th. (except in
night portrait mode [ ])
To close the flash3Press in the direction of the arrow
until it clicks.
• Be sure to close the flash when you do
not use it.
 Do not stare at the flash light from  close proximity when...

Recording images (basic)
38

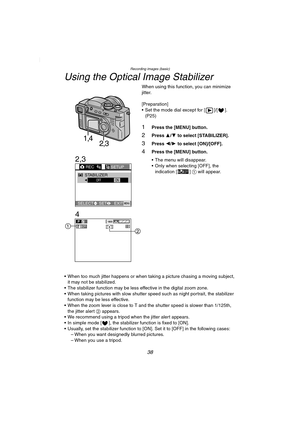

Using the Optical Image Stabilizer
When using this function, you can minimize
jitter.
[Preparation]
 Set the mode dial except for [ ]/[ ].
(P25)
1Press the [MENU] button.
2Press 3/4 to select [STABILIZER].
3Press 2/1 to select [ON]/[OFF].
4Press the [MENU] button.
 The menu will disappear.
 Only when selecting [OFF], the
indication [ ] 1 will appear.
 When too much jitter happens or when taking a picture chasing a moving subject,
it may not be stabilized.
 The...

Recording images (basic)
39

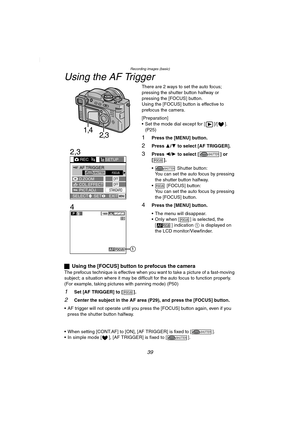

Using the AF Trigger
There are 2 ways to set the auto focus;
pressing the shutter button halfway or
pressing the [FOCUS] button.
Using the [FOCUS] button is effective to
prefocus the camera.
[Preparation]
 Set the mode dial except for [ ]/[ ].
(P25)
1Press the [MENU] button.
2Press 3/4 to select [AF TRIGGER].
3Press 2/1 to select [ ] or
[].
  Shutter button:
You can set the auto focus by pressing
the shutter button halfway.
  [FOCUS] button:
You can set the auto focus...

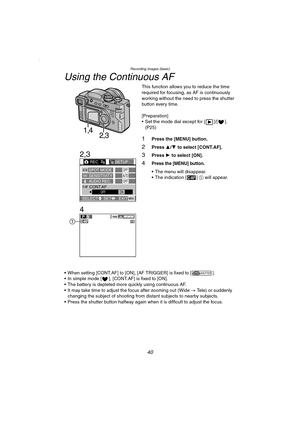

Recording images (basic)
40
Using the Continuous AF
This function allows you to reduce the time
required for focusing, as AF is continuously
working without the need to press the shutter
button every time.
[Preparation]
 Set the mode dial except for [ ]/[ ].
(P25)
1Press the [MENU] button.
2Press 3/4 to select [CONT.AF].
3Press 1 to select [ON].
4Press the [MENU] button.
 The menu will disappear.
 The indication [ ] 1 will appear.
 When setting [CONT.AF] to [ON], [AF TRIGGER] is fixed to [ ].
...
