Panasonic Dmc Fz2 Operating Instructions Manual

Technical use
91

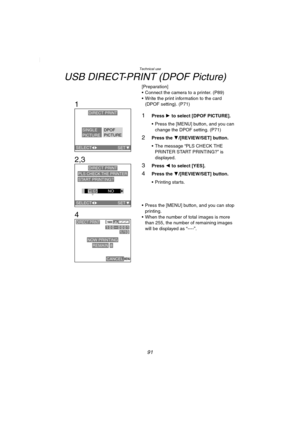

USB DIRECT-PRINT (DPOF Picture)
[Preparation]
 Connect the camera to a printer. (P89)
 Write the print information to the card
(DPOF setting). (P71)
1Press 1 to select [DPOF PICTURE].
 Press the [MENU] button, and you can
change the DPOF setting. (P71)
2Press the 4/[REVIEW/SET] button.
 The message “PLS CHECK THE
PRINTER START PRINTING?” is
displayed.
3Press 2 to select [YES].
4Press the 4/[REVIEW/SET] button.
 Printing starts.
 Press the [MENU] button, and you can stop...

Technical use
92
After Use
After using the camera, it is recommended
that you complete the following steps:
1Turn the power switch to [OFF]. (P17)
 Close the flash. (P37)
2Eject the card. (P15)
3Remove the battery. (P12)
4Remove the lens hood.
5Remove the lens hood adaptor.
6Attach the lens ring.
7Attach the lens cap. (P22)
 If you will not be using the camera for a long
time, remove the battery. (When you insert
the battery again, set the date/time.)
3
45
6
7
OFF≥≥ON1
FZ2-PP.book  92 ページ...

Others
93
Others

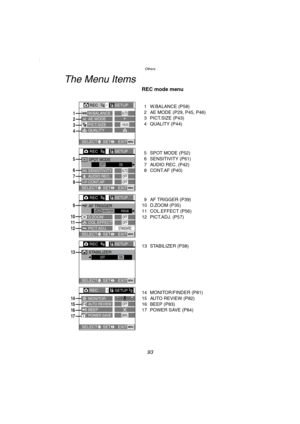

The Menu Items
REC mode menu
1 W.BALANCE (P58)
2 AE MODE (P29, P45, P46)
3 PICT.SIZE (P43)
4 QUALITY (P44)
5 SPOT MODE (P52)
6 SENSITIVITY (P61)
7 AUDIO REC. (P42)
8 CONT.AF (P40)
9 AF TRIGGER (P39)
10 D.ZOOM (P35)
11 COL.EFFECT (P56)
12 PICT.ADJ. (P57)
13 STABILIZER (P38)
14 MONITOR/FINDER (P81)
15 AUTO REVIEW (P82)
16 BEEP (P83)
17 POWER SAVE (P84)
1600PICT.SIZEQUALITY
REC1
/
4
W.BALANCE
SETUP
AE MODEPAUTOAE
SENSITIVITYAUTO
REC2
/
4SETUP
AUDIO REC.OFF
SPOT MODEOFFON
REC3
/
4SETUP...

Others
94

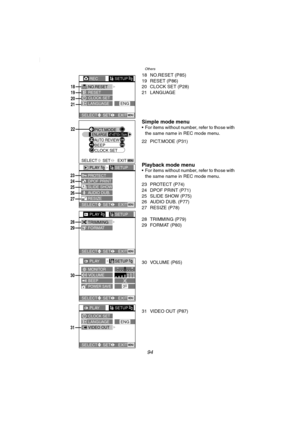

18 NO.RESET (P85)
19 RESET (P86)
20 CLOCK SET (P28)
21 LANGUAGE
Simple mode menu For items without number, refer to those with
the same name in REC mode menu.
22 PICT.MODE (P31)
Playback mode menu For items without number, refer to those with
the same name in REC mode menu.
23 PROTECT (P74)
24 DPOF PRINT (P71)
25 SLIDE SHOW (P75)
26 AUDIO DUB. (P77)
27 RESIZE (P78)
28 TRIMMING (P79)
29 FORMAT (P80)
30 VOLUME (P65)
31 VIDEO OUT (P87)
PICT.SIZEQUALITY
W.BALANC
SETUP
AE MODEAE18
19
20
21
CLOCK...

Others
95

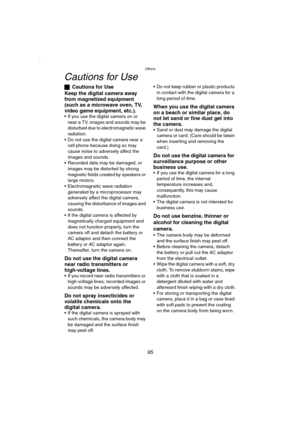

Cautions for Use
ªCautions for Use
Keep the digital camera away
from magnetized equipment
(such as a microwave oven, TV,
video game equipment, etc.).
 If you use the digital camera on or
near a TV, images and sounds may be
disturbed due to electromagnetic wave
radiation.
 Do not use the digital camera near a
cell phone because doing so may
cause noise to adversely affect the
images and sounds.
 Recorded data may be damaged, or
images may be distorted by strong
magnetic fields...

Others
96

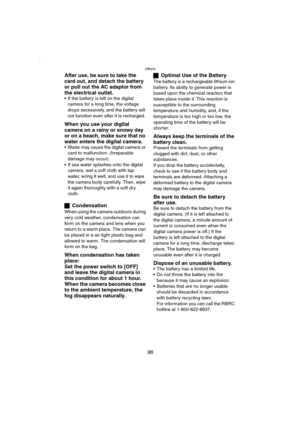

After use, be sure to take the
card out, and detach the battery
or pull out the AC adaptor from
the electrical outlet.
 If the battery is left on the digital
camera for a long time, the voltage
drops excessively, and the battery will
not function even after it is recharged.
When you use your digital
camera on a rainy or snowy day
or on a beach, make sure that no
water enters the digital camera.
 Water may cause the digital camera or
card to malfunction. (Irreparable
damage may...

Others
97

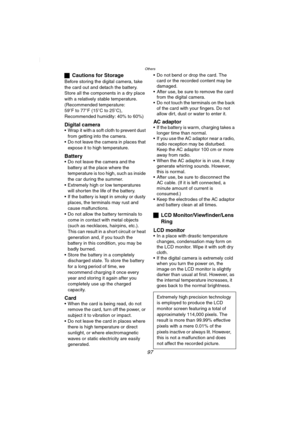

ªCautions for Storage
Before storing the digital camera, take
the card out and detach the battery.
Store all the components in a dry place
with a relatively stable temperature.
(Recommended temperature:
59oF to 77oF (15oC to 25oC),
Recommended humidity: 40% to 60%)
Digital camera Wrap it with a soft cloth to prevent dust
from getting into the camera.
 Do not leave the camera in places that
expose it to high temperature.
Battery Do not leave the camera and the
battery at the place where...

Others
98

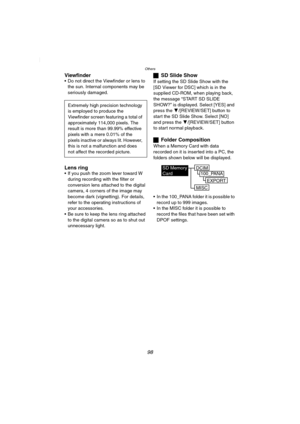

Viewfinder Do not direct the Viewfinder or lens to
the sun. Internal components may be
seriously damaged.
Lens ring If you push the zoom lever toward W
during recording with the filter or
conversion lens attached to the digital
camera, 4 corners of the image may
become dark (vignetting). For details,
refer to the operating instructions of
your accessories.
 Be sure to keep the lens ring attached
to the digital camera so as to shut out
unnecessary light.
ªSD Slide Show
If setting...

Others
99

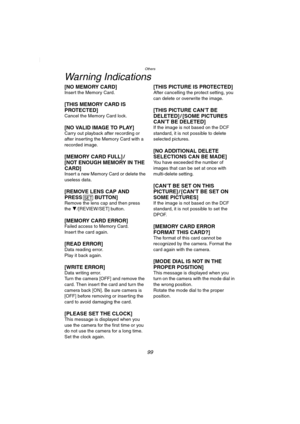

Warning Indications
[NO MEMORY CARD]Insert the Memory Card.
[THIS MEMORY CARD IS
PROTECTED]
Cancel the Memory Card lock.
[NO VALID IMAGE TO PLAY]Carry out playback after recording or
after inserting the Memory Card with a
recorded image.
[MEMORY CARD FULL] /
[NOT ENOUGH MEMORY IN THE
CARD]
Insert a new Memory Card or delete the
useless data.
[REMOVE LENS CAP AND
PRESS BUTTON]
Remove the lens cap and then press
the 4/[REVIEW/SET] button.
[MEMORY CARD ERROR]Failed access to Memory Card....

Others
100

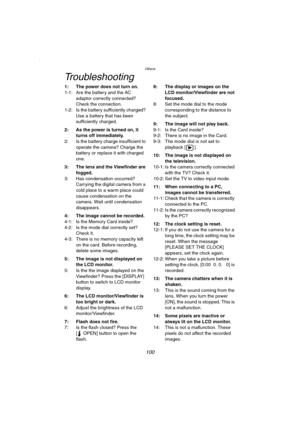

Troubleshooting
1: The power does not turn on.
1-1: Are the battery and the AC
adaptor correctly connected?
Check the connection.
1-2: Is the battery sufficiently charged?
Use a battery that has been
sufficiently charged.
2: As the power is turned on, it
turns off immediately.
2: Is the battery charge insufficient to
operate the camera? Charge the
battery or replace it with charged
one.
3: The lens and the Viewfinder are
fogged.
3: Has condensation occurred?
Carrying the digital...
