Recording images (advanced)
61

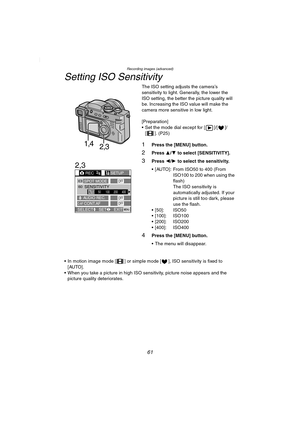

Setting ISO Sensitivity
The ISO setting adjusts the camera’s
sensitivity to light. Generally, the lower the
ISO setting, the better the picture quality will
be. Increasing the ISO value will make the
camera more sensitive in low light.
[Preparation]
 Set the mode dial except for [ ]/[ ]/
[ ]. (P25)
1Press the [MENU] button.
2Press 3/4 to select [SENSITIVITY].
3Press 2/1 to select the sensitivity.
 [AUTO]: From ISO50 to 400 (From
ISO100 to 200 when using the
flash)...

Recording images (advanced)
62

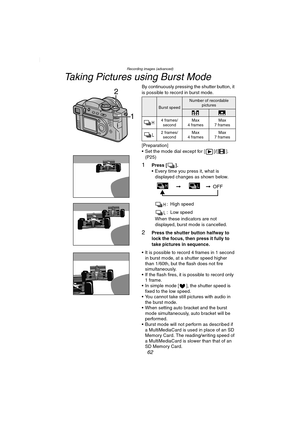

Taking Pictures using Burst Mode
By continuously pressing the shutter button, it
is possible to record in burst mode.
[Preparation]
 Set the mode dial except for [ ]/[ ].
(P25)
1Press [ ].
 Every time you press it, what is
displayed changes as shown below.
: High speed
: Low speed
When these indicators are not
displayed, burst mode is cancelled.
2Press the shutter button halfway to
lock the focus, then press it fully to
take pictures in sequence.
 It is possible to...

Recording images (advanced)
63

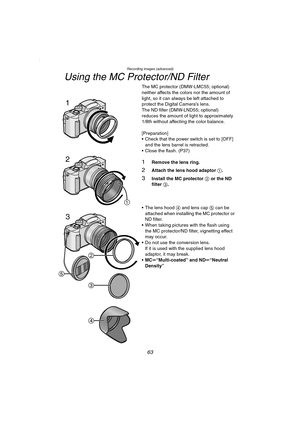

Using the MC Protector/ND Filter
The MC protector (DMW-LMC55; optional)
neither affects the colors nor the amount of
light, so it can always be left attached to
protect the Digital Camera’s lens.
The ND filter (DMW-LND55; optional)
reduces the amount of light to approximately
1/8th without affecting the color balance.
[Preparation]
 Check that the power switch is set to [OFF]
and the lens barrel is retracted.
 Close the flash. (P37)
1Remove the lens ring.
2Attach...

Playback
64
Playback

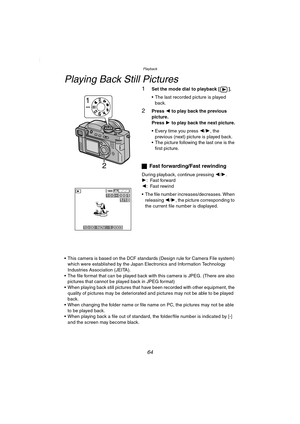

Playing Back Still Pictures
1Set the mode dial to playback [ ].
 The last recorded picture is played
back.
2Press 2 to play back the previous
picture.
Press 1 to play back the next picture.
 Every time you press 2/1, the
previous (next) picture is played back.
 The picture following the last one is the
first picture.
ªFast forwarding/Fast rewinding
During playback, continue pressing 2/1.
1: Fast forward
2: Fast rewind
 The file number increases/decreases. When
releasing 2/1,...

Playback
65

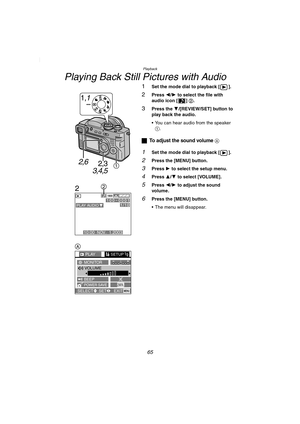

Playing Back Still Pictures with Audio
1Set the mode dial to playback [ ].
2Press 2/1 to select the file with
audio icon [ ] 2.
3Press the 4/[REVIEW/SET] button to
play back the audio.
 You can hear audio from the speaker
1.
ªTo adjust the sound volume A
1Set the mode dial to playback [ ].
2Press the [MENU] button.
3Press 1 to select the setup menu.
4Press 3/4 to select [VOLUME].
5Press 2/1 to adjust the sound
volume .
6Press the [MENU] button.
 The menu will disappear.
2,3
3,4,5
1,1...

Playback
66

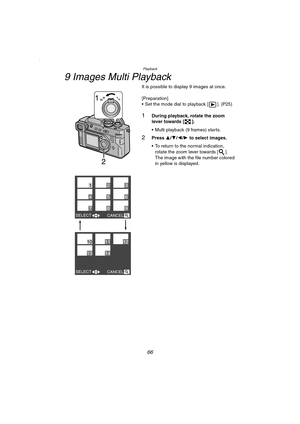

9 Images Multi Playback
It is possible to display 9 images at once.
[Preparation]
 Set the mode dial to playback [ ]. (P25)
1During playback, rotate the zoom
lever towards [ ].
 Multi playback (9 frames) starts.
2Press 3/4/2/1 to select images.
 To return to the normal indication,
rotate the zoom lever towards [ ].
The image with the file number colored
in yellow is displayed.
2
1WT
SELECT
SELECTCANCEL
123
456
789
CANCEL
101112
1314
FZ2-PP.book  66 ページ  ２００３年９月２６日　金曜日　午後１２時１分

Playback
67

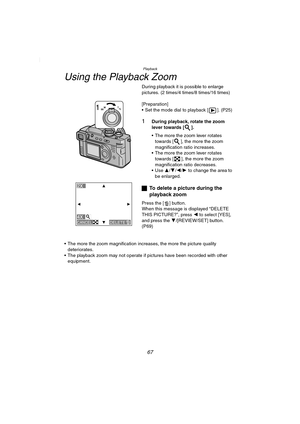

Using the Playback Zoom
During playback it is possible to enlarge
pictures. (2 times/4 times/8 times/16 times)
[Preparation]
 Set the mode dial to playback [ ]. (P25)
1During playback, rotate the zoom
lever towards [ ].
 The more the zoom lever rotates
towards [ ], the more the zoom
magnification ratio increases.
 The more the zoom lever rotates
towards [ ], the more the zoom
magnification ratio decreases.
 Use 3/4/2/1 to change the area to
be enlarged.
ªTo delete a picture during...

Playback
68

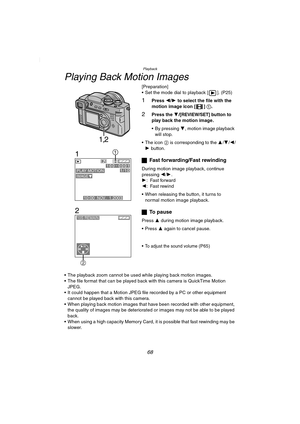

Playing Back Motion Images
[Preparation]
 Set the mode dial to playback [ ]. (P25)
1Press 2/1 to select the file with the
motion image icon [ ] 1.
2Press the 4/[REVIEW/SET] button to
play back the motion image.
 By pressing 4, motion image playback
will stop.
 The icon 2 is corresponding to the 3/4/2/
1 button.
ªFast forwarding/Fast rewinding
During motion image playback, continue
pressing 2/1.
1: Fast forward
2: Fast rewind
 When releasing the button, it turns to
normal motion image...

Editing
69
Editing

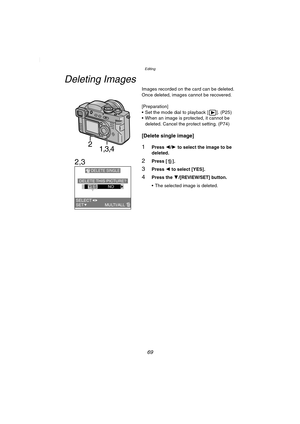

Deleting Images
Images recorded on the card can be deleted.
Once deleted, images cannot be recovered.
[Preparation]
 Set the mode dial to playback [ ]. (P25)
 When an image is protected, it cannot be
deleted. Cancel the protect setting. (P74)
[Delete single image]
1Press 2/1 to select the image to be
deleted.
2Press [ ].
3Press 2 to select [YES].
4Press the 4/[REVIEW/SET] button.
 The selected image is deleted.
21,3,4
2,3
DELETE SINGLE
DELETE THIS  PICTURE?YESNO
SET...

Editing
70

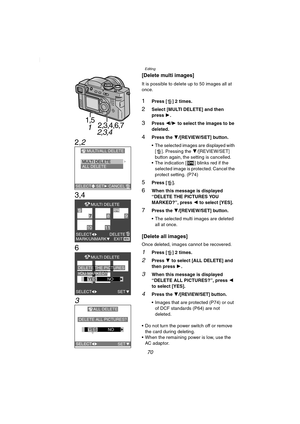

[Delete multi images]
It is possible to delete up to 50 images all at
once.
1Press [] 2 times.
2Select [MULTI DELETE] and then
press 1
.
3Press 2/1 to select the images to be
deleted.
4Press the 4/[REVIEW/SET] button.
 The selected images are displayed with
[ ]. Pressing the 4/[REVIEW/SET]
button again, the setting is cancelled.
 The indication [ ] blinks red if the
selected image is protected. Cancel the
protect setting. (P74)
5Press [].
6When this message is displayed
“DELETE THE...
