Panasonic Dmc Fz28 Operating Instructions Manual

141VQT1S36
Others

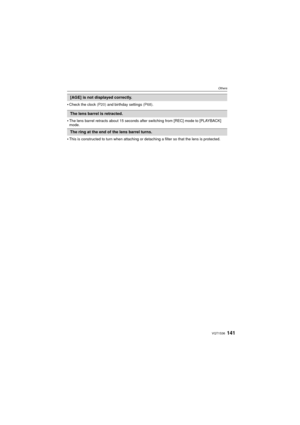

Check the clock (P20) and birthday settings  (P68).
The lens barrel retracts about 15 seconds after switching from [REC] mode to [PLAYBACK]
mode.
This is constructed to turn when attaching or detaching a filter so that the lens is protected.
[AGE] is not displayed correctly.
The lens barrel is retracted.
The ring at the end of the lens barrel turns.
DMC-FZ28P_PC.book  141 ページ  ２００８年７月２日　水曜日　午後１１時１４分

VQT1S36142
Others

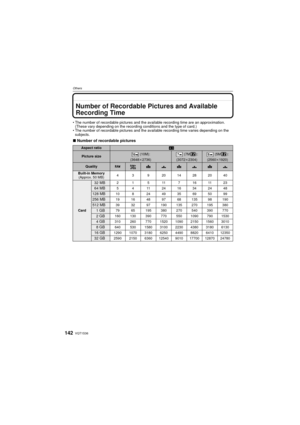

OthersNumber of Recordable Pictures and Available
Recording Time
•The number of recordable pictures and the available recording time are an approximation.
(These vary depending on the recording conditions and the type of card.)
 The number of recordable pictures and the available recording time varies depending on the
subjects.
∫ Number of recordable pictures
Aspect ratioX
Picture size (10M):
(3648 k2736) (7M ):
(3072 k2304) (5M ):
(2560 k1920)
QualityA › A › A ›
Built-in Memory...

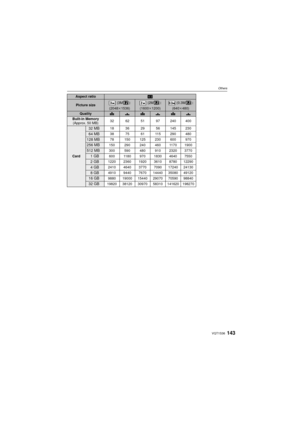

143VQT1S36
Others
Aspect ratioX
Picture size (3M ):
(2048 k1536) (2M ):
(1600 k1200) (0.3M ):
(640 k480)
QualityA › A › A ›
Built-in Memory
(Approx. 50 MB) 32 62 51 97 240 400
Card
32 MB18 36 29 56 145 230
64 MB38 75 61 115 290 480
128 MB78 150 125 230 600 970
256 MB150 290 240 460 1170 1900
512 MB300 590 480 910 2320 3770
1GB600 1180 970 1830 4640 7550
2GB1220 2360 1920 3610 8780 12290
4GB2410 4640 3770 7090 17240 24130
8GB4910 9440 7670 14440 35080 49120
16 GB9880 19000 15440 29070 70590 98840
32...

VQT1S36144
Others

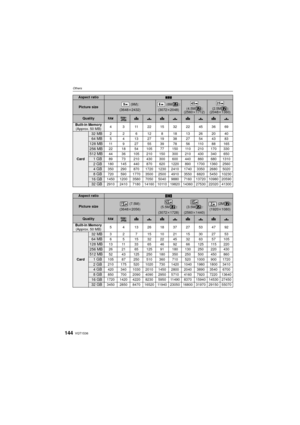

Aspect ratioY
Picture size (9M):
(3648 k2432) (6M ):
(3072 k2048) (4.5M ):
(2560 k1712) (2.5M ):
(2048 k1360)
QualityA  ›  A ›  A ›  A ›
Built-in Memory
(Approx. 50 MB) 4 3 11 22 15 32 22 45 36 69
Card
32 MB2 2 6 12 8 1813262040
64 MB5 4 13 27 19 38 27 54 43 83
128 MB11 9 275539785611088165
256 MB22 18 54 105 77 150 110 210 170 330
512 MB44 36 105 210 150 300 210 430 340 650
1GB89 73 210 430 300 600 440 860 680 1310
2GB180 145 440 870 620 1220 890 1700 1360 2560
4GB350 290 870 1720...

145VQT1S36
Others
∫Available recording time (when recording motion pictures)
Note
The number of recordable pictures and the available recording time displayed on the screen
may not decrease in order.
 This unit does not support recording motion pictures on MultiMediaCards.
 The extended optical zoom does not work in [HIGH SENS.], [FLASH BURST], [PIN HOLE],
[FILM GRAIN] or [HI-SPEED BURST] in scene mode so the picture size for [ ] is not
displayed.
Aspect ratio    Picture quality
setting
Built-in...

VQT1S36146
Others

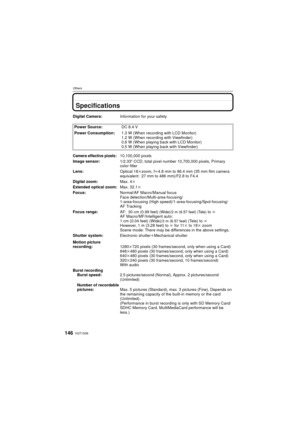

Specifications
Digital Camera:Information for your safety
Power Source: DC 8.4 V
Power Consumption: 1.3 W (When recording with LCD Monitor)
1.2 W (When recording with Viewfinder)
0.6 W (When playing back with LCD Monitor)
0.5 W (When playing back with Viewfinder)
Camera effective pixels:10,100,000 pixels
Image sensor: 1/2.33q CCD, total pixel number 10,700,000 pixels, Primary
color filter
Lens: Optical 18kzoom, fl4.8 mm to 86.4 mm (35 mm film camera
equivalent: 27 mm to 486 mm)/F2.8...

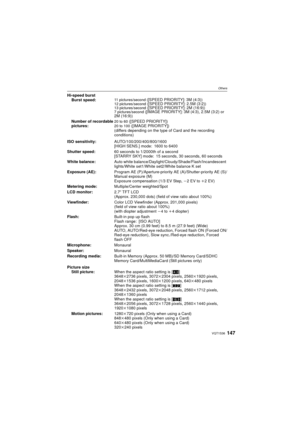

147VQT1S36
Others
Hi-speed burstBurst speed:11 pictures/second ([SPEED PRIORITY]: 3M (4:3))
12 pictures/second ([SPEED PRIORITY]: 2.5M (3:2))
13 pictures/second ([SPEED PRIORITY]: 2M (16:9))
7 pictures/second ([IMAGE PRIORITY]: 3M (4:3), 2.5M (3:2) or
2M (16:9))
Number of recordable
pictures:20 to 60 ([SPEED PRIORITY])20 to 100 ([IMAGE PRIORITY])
(differs depending on the type of Card and the recording
conditions)
ISO sensitivity: AUTO/100/200/400/800/1600
[HIGH SENS.] mode: 1600 to 6400
Shutter...

VQT1S36148
Others

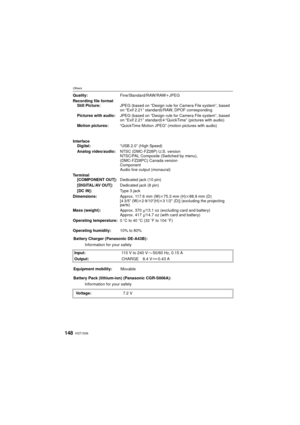

Quality:Fine/Standard/RAW/RAWiJPEG
Recording file format Still Picture: JPEG (based on “Design rule for Camera File system”, based
on “Exif 2.21” standard)/RAW, DPOF corresponding
Pictures with audio: JPEG (based on “Design rule for Camera File system”, based
on “Exif 2.21” standard)r“QuickTime” (pictures with audio)
Motion pictures: “QuickTime Motion JPEG” (motion pictures with audio)
Interface Digital: “USB 2.0” (High Speed)
Analog video/audio: NTSC (DMC-FZ28P) U.S. version
NTSC/PAL...

149VQT1S36
Others

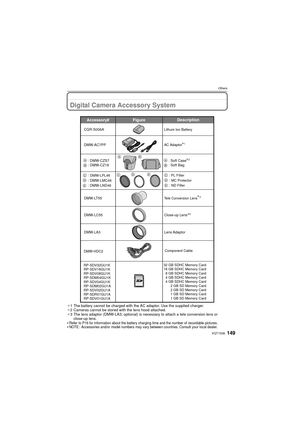

OthersDigital Camera Accessory System
¢1 The battery cannot be charged with the AC adaptor. Use the supplied charger.
¢ 2 Cameras cannot be stored with the lens hood attached.
¢ 3 The lens adaptor (DMW-LA3; optional) is necessary to attach a tele conversion lens or
close-up lens.
Refer to P16 for information about the battery charging time and the number of recordable pictures.NOTE: Accessories and/or model numbers may vary between countries. Consult your local dealer.
Accessory#...

VQT1S36150
Others

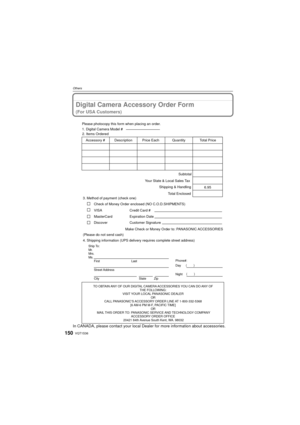

Digital Camera Accessory Order Form
(For USA Customers)
In CANADA, please contact your local Dealer for more information about accessories.
TO OBTAIN ANY OF OUR DIGITAL CAMERA ACCESSORIES YOU CAN DO ANY OF
THE FOLLOWING:
VISIT YOUR LOCAL PANASONIC DEALER  OR
CALL PANASONIC’S ACCESSORY ORDER LINE AT 1-800-332-5368  [6 AM-6 PM M-F, PACIFIC TIME] OR
MAIL THIS ORDER TO: PANASONIC SERVICE AND TECHNOLOGY COMPANY ACCESSORY ORDER OFFICE
20421 84th Avenue South Kent, WA. 98032
Ship To:...
