121VQT1S36
Connecting to other equipment

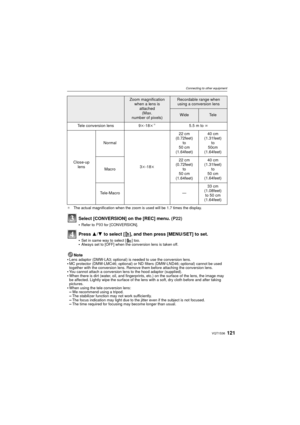

¢The actual magnification when the zoom is used will be 1.7 times the display.
Select [CONVERSION] on the [REC] menu.  (P22)
Refer to P93 for [CONVERSION].
Press 3/4 to select [ ], and then press [MENU/SET] to set.
Set in same way to select [ ] too.Always set to [OFF] when the conversion lens is taken off.
Note
Lens adaptor (DMW-LA3; optional) is needed to use the conversion lens.MC protector (DMW-LMC46; optional) or ND filters (DMW-LND46; optional) cannot be used...

VQT1S36122
Connecting to other equipment

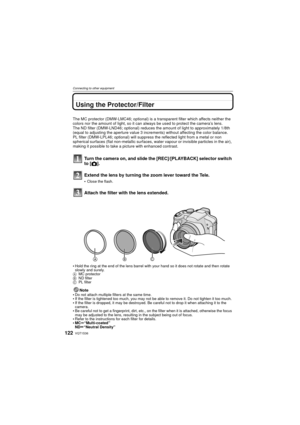

Using the Protector/Filter
The MC protector (DMW-LMC46; optional) is a transparent filter which affects neither the
colors nor the amount of light, so it can always be used to protect the camera’s lens.
The ND filter (DMW-LND46; optional) reduces the amount of light to approximately 1/8th
(equal to adjusting the aperture value 3 incre ments) without affecting the color balance.
PL filter (DMW-LPL46; optional) will suppress the reflected light from a metal or non...

123VQT1S36
Others

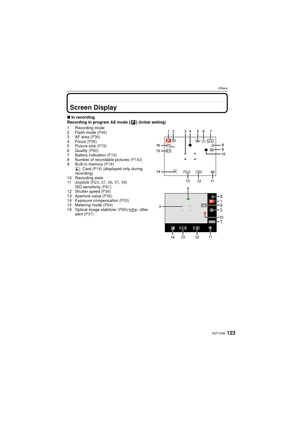

OthersScreen Display
∫In recording
Recording in program AE mode [ ] (Initial setting)
1 Recording mode
2 Flash mode  (P46)
3 AF area  (P36)
4Focus  (P36)
5 Picture size (P79)
6 Quality  (P80)
7 Battery indication  (P16)
8 Number of recordable pictures  (P142)
9 Built-in memory  (P18)
: Card (P18)  (displayed only during
recording)
10 Recording state
11 Joystick  (P23, 37,  56, 57, 59)
ISO sensitivity  (P81)
12 Shutter speed  (P36)
13 Aperture value (P36)
14 Exposure compensation...

VQT1S36124
Others

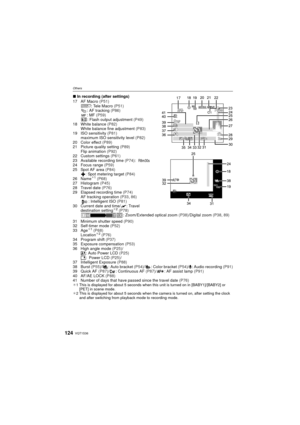

∫In recording (after settings)
17 AF Macro (P51) : Tele Macro (P51)
: AF tracking  (P86)
: MF  (P59)
: Flash output adjustment  (P49)
18 White balance  (P82)
White balance fine adjustment  (P83)
19 ISO sensitivity  (P81)
maximum ISO sensitivity level  (P82)
20 Color effect  (P89)
21 Picture quality setting  (P89)
Flip animation  (P92)
22 Custom settings  (P61)
23 Available recording time  (P74):
24 Focus range  (P59)
25 Spot AF area  (P84)
: Spot metering target  (P84)
26 Name¢1  (P68)...

125VQT1S36
Others

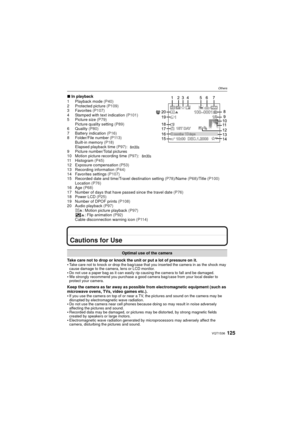

∫In playback
1 Playback mode  (P40)
2 Protected picture  (P109)
3 Favorites  (P107)
4 Stamped with text indication  (P101)
5 Picture size (P79) Picture quality setting  (P89)
6 Quality  (P80)
7 Battery indication  (P16)
8 Folder/File number  (P113)
Built-in memory  (P18)
Elapsed playback time  (P97):
9 Picture number/Total pictures
10 Motion picture recording time  (P97):
11 Histogram  (P45)
12 Exposure compensation  (P53)
13 Recording information  (P44)
14 Favorites settings  (P107)
15...

VQT1S36126
Others

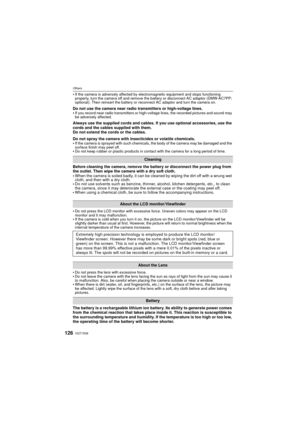

If the camera is adversely affected by electromagnetic equipment and stops functioning
properly, turn the camera off and remove the battery or disconnect AC adaptor (DMW-AC7PP;
optional). Then reinsert the battery or reconnect AC adaptor and turn the camera on.
Do not use the camera near radio transmitters or high-voltage lines.
If you record near radio transmitters or high-voltage lines, the recorded pictures and sound may
be adversely affected.
Always use the supplied cords and...

127VQT1S36
Others
Always remove the battery after use.
If you drop the battery accidentally, check to see if the body of the battery and the
terminals are damaged.

Inserting a damaged battery in the camera will damage the camera.
Bring charged spare batteries when going out.
Be aware that the operating time of the battery becomes shorter in low temperature conditions
such as at a ski resort.
When you travel, do not forget to bring the battery charger (supplied) so that you can charge
the battery in...

VQT1S36128
Others

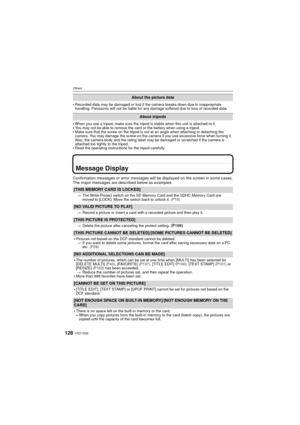

Recorded data may be damaged or lost if the camera breaks down due to inappropriate
handling. Panasonic will not be liable for any damage suffered due to loss of recorded data.
When you use a tripod, make sure the tripod is stable when this unit is attached to it.You may not be able to remove the card or the battery when using a tripod.Make sure that the screw on the tripod is not at an angle when attaching or detaching the
camera. You may damage the screw on the camera if you use...

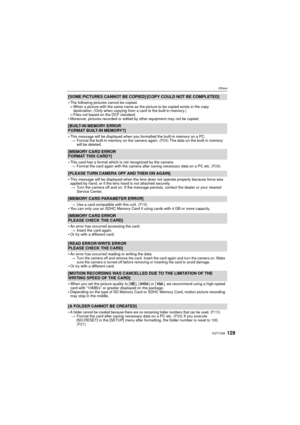

129VQT1S36
Others
[SOME PICTURES CANNOT BE COPIED]/[COPY COULD NOT BE COMPLETED]

The following pictures cannot be copied.–When a picture with the same name as the picture to be copied exists in the copy
destination. (Only when copying from a card to the built-in memory.)
–Files not based on the DCF standard.Moreover, pictures recorded or edited by other equipment may not be copied.
[BUILT-IN MEMORY ERROR
FORMAT BUILT-IN MEMORY?]

This message will be displayed when you formatted the built-in memory on...

VQT1S36130
Others

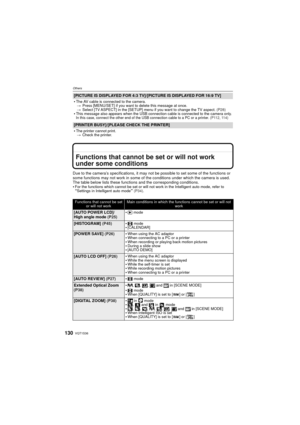

Functions that cannot be set or will not work
under some conditions
Due to the camera’s specifications, it may not be possible to set some of the functions or
some functions may not work in some of the conditions under which the camera is used.
The table below lists these functions and the corresponding conditions.

For the functions which cannot be set or will not work in the Intelligent auto mode, refer to “Settings in Intelligent auto mode”  (P34) .
[PICTURE IS DISPLAYED FOR 4:3...
