Panasonic Dmc Fz28 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fz28 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

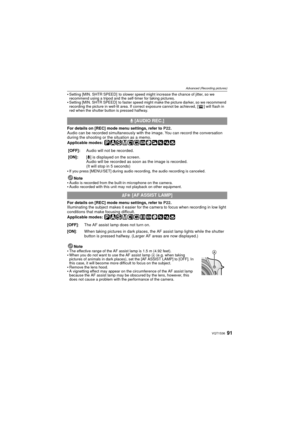

Page 91
![Page 91
91VQT1S36
Advanced (Recording pictures)
Setting [MIN. SHTR SPEED] to slower speed might increase the chance of jitter, so we
recommend using a tripod and the self-timer for taking pictures.
Setting [MIN. SHTR SPEED] to faster speed might make the picture darker, so we recommend
recording the picture in well-lit area. If correct exposure cannot be achieved, [ ] will flash in
red when the shutter button is pressed halfway.
For details on [REC] mode menu settings, refer to P22 .
Audio can be recorded...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-90.png "Page 91
91VQT1S36
Advanced (Recording pictures)
Setting [MIN. SHTR SPEED] to slower speed might increase the chance of jitter, so we
recommend using a tripod and the self-timer for taking pictures.
Setting [MIN. SHTR SPEED] to faster speed might make the picture darker, so we recommend
recording the picture in well-lit area. If correct exposure cannot be achieved, [ ] will flash in
red when the shutter button is pressed halfway.
For details on [REC] mode menu settings, refer to P22 .
Audio can be recorded...")
91VQT1S36 Advanced (Recording pictures) Setting [MIN. SHTR SPEED] to slower speed might increase the chance of jitter, so we recommend using a tripod and the self-timer for taking pictures. Setting [MIN. SHTR SPEED] to faster speed might make the picture darker, so we recommend recording the picture in well-lit area. If correct exposure cannot be achieved, [ ] will flash in red when the shutter button is pressed halfway. For details on [REC] mode menu settings, refer to P22 . Audio can be recorded...

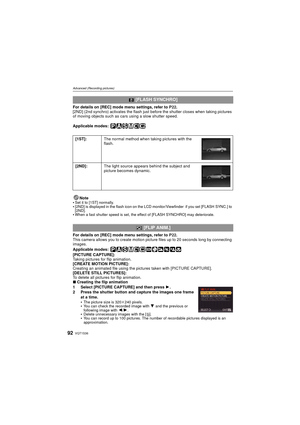

Page 92
![Page 92
VQT1S3692
Advanced (Recording pictures)
For details on [REC] mode menu settings, refer to P22.
[2ND] (2nd synchro) activates the flash just before the shutter closes when taking pictures
of moving objects such as cars using a slow shutter speed.
Applicable modes:
Note
Set it to [1ST] normally.[2ND] is displayed in the flash icon on the LCD monitor/Viewfinder if you set [FLASH SYNC.] to
[2ND].
When a fast shutter speed is set, the effect of [FLASH SYNCHRO] may deteriorate.
For details on [REC]...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-91.png "Page 92
VQT1S3692
Advanced (Recording pictures)
For details on [REC] mode menu settings, refer to P22.
[2ND] (2nd synchro) activates the flash just before the shutter closes when taking pictures
of moving objects such as cars using a slow shutter speed.
Applicable modes:
Note
Set it to [1ST] normally.[2ND] is displayed in the flash icon on the LCD monitor/Viewfinder if you set [FLASH SYNC.] to
[2ND].
When a fast shutter speed is set, the effect of [FLASH SYNCHRO] may deteriorate.
For details on [REC]...")
VQT1S3692 Advanced (Recording pictures) For details on [REC] mode menu settings, refer to P22. [2ND] (2nd synchro) activates the flash just before the shutter closes when taking pictures of moving objects such as cars using a slow shutter speed. Applicable modes: Note Set it to [1ST] normally.[2ND] is displayed in the flash icon on the LCD monitor/Viewfinder if you set [FLASH SYNC.] to [2ND]. When a fast shutter speed is set, the effect of [FLASH SYNCHRO] may deteriorate. For details on [REC]...

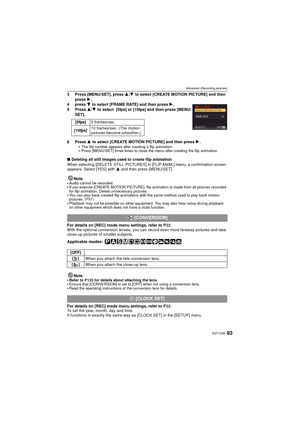

Page 93
![Page 93
93VQT1S36
Advanced (Recording pictures)
3 Press [MENU/SET], press 3/4 to select [CREATE MOTION PICTURE] and then
press 1.
4 press 4 to select [FRAME RATE] and then press 1.
5 Press 3/4 to select [5fps] or [10fps] and then press [MENU/
SET].
6 Press 3 to select [CREATE MOTION PICTURE] and then press 1 .
The file number appears after creating a flip animation.Press [MENU/SET] three times to close the menu after creating the flip animation.
∫ Deleting all still images used to create flip...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-92.png "Page 93
93VQT1S36
Advanced (Recording pictures)
3 Press [MENU/SET], press 3/4 to select [CREATE MOTION PICTURE] and then
press 1.
4 press 4 to select [FRAME RATE] and then press 1.
5 Press 3/4 to select [5fps] or [10fps] and then press [MENU/
SET].
6 Press 3 to select [CREATE MOTION PICTURE] and then press 1 .
The file number appears after creating a flip animation.Press [MENU/SET] three times to close the menu after creating the flip animation.
∫ Deleting all still images used to create flip...")
93VQT1S36 Advanced (Recording pictures) 3 Press [MENU/SET], press 3/4 to select [CREATE MOTION PICTURE] and then press 1. 4 press 4 to select [FRAME RATE] and then press 1. 5 Press 3/4 to select [5fps] or [10fps] and then press [MENU/ SET]. 6 Press 3 to select [CREATE MOTION PICTURE] and then press 1 . The file number appears after creating a flip animation.Press [MENU/SET] three times to close the menu after creating the flip animation. ∫ Deleting all still images used to create flip...

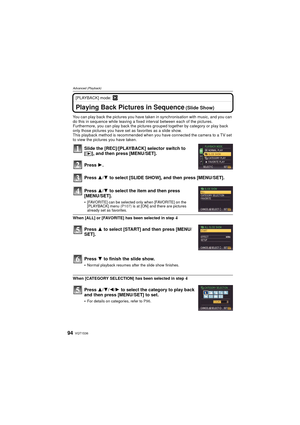

Page 94
![Page 94
VQT1S3694
Advanced (Playback)
[PLAYBACK] mode: ¸
Advanced (Playback)Playing Back Pictures in Sequence (Slide Show)
You can play back the pictures you have taken in synchronisation with music, and you can
do this in sequence while leaving a fixed interval between each of the pictures.
Furthermore, you can play back the pictures grouped together by category or play back
only those pictures you have set as favorites as a slide show.
This playback method is recommended when you have connected the camera...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-93.png "Page 94
VQT1S3694
Advanced (Playback)
[PLAYBACK] mode: ¸
Advanced (Playback)Playing Back Pictures in Sequence (Slide Show)
You can play back the pictures you have taken in synchronisation with music, and you can
do this in sequence while leaving a fixed interval between each of the pictures.
Furthermore, you can play back the pictures grouped together by category or play back
only those pictures you have set as favorites as a slide show.
This playback method is recommended when you have connected the camera...")
VQT1S3694 Advanced (Playback) [PLAYBACK] mode: ¸ Advanced (Playback)Playing Back Pictures in Sequence (Slide Show) You can play back the pictures you have taken in synchronisation with music, and you can do this in sequence while leaving a fixed interval between each of the pictures. Furthermore, you can play back the pictures grouped together by category or play back only those pictures you have set as favorites as a slide show. This playback method is recommended when you have connected the camera...

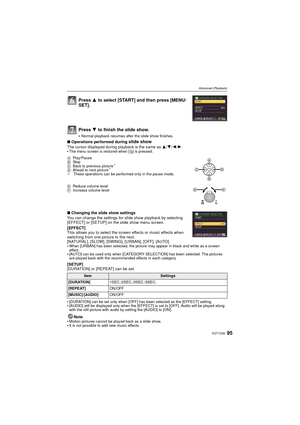

Page 95
![Page 95
95VQT1S36
Advanced (Playback)
∫Operations performed during slide showThe cursor displayed during playback is the same as 3/4 /2 /1.
The menu screen is restored when [ ‚] is pressed.
∫ Changing the slide show settings
You can change the settings for slide show playback by selecting
[EFFECT] or [SETUP] on the slide show menu screen.
[EFFECT]
This allows you to select the screen effects or music effects when
switching from one picture to the next.
[NATURAL], [SLOW], [SWING], [URBAN], [OFF], [AUTO]
When...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-94.png "Page 95
95VQT1S36
Advanced (Playback)
∫Operations performed during slide showThe cursor displayed during playback is the same as 3/4 /2 /1.
The menu screen is restored when [ ‚] is pressed.
∫ Changing the slide show settings
You can change the settings for slide show playback by selecting
[EFFECT] or [SETUP] on the slide show menu screen.
[EFFECT]
This allows you to select the screen effects or music effects when
switching from one picture to the next.
[NATURAL], [SLOW], [SWING], [URBAN], [OFF], [AUTO]
When...")
95VQT1S36 Advanced (Playback) ∫Operations performed during slide showThe cursor displayed during playback is the same as 3/4 /2 /1. The menu screen is restored when [ ‚] is pressed. ∫ Changing the slide show settings You can change the settings for slide show playback by selecting [EFFECT] or [SETUP] on the slide show menu screen. [EFFECT] This allows you to select the screen effects or music effects when switching from one picture to the next. [NATURAL], [SLOW], [SWING], [URBAN], [OFF], [AUTO] When...

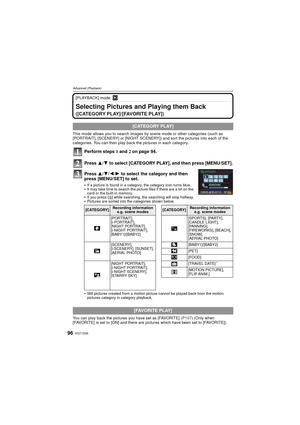

Page 96
![Page 96
VQT1S3696
Advanced (Playback)
[PLAYBACK] mode: ¸
Selecting Pictures and Playing them Back
([CATEGORY PLAY]/[FAVORITE PLAY])
This mode allows you to search images by scene mode or other categories (such as
[PORTRAIT], [SCENERY] or [NIGHT SCENERY]) and sort the pictures into each of the
categories. You can then play back the pictures in each category.
Perform steps 1 and 2 on page 94.
Press 3/4 to select [CATEGORY PLAY] , and then press [MENU/SET].
Press 3/ 4/2/1 to select the category and then...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-95.png "Page 96
VQT1S3696
Advanced (Playback)
[PLAYBACK] mode: ¸
Selecting Pictures and Playing them Back
([CATEGORY PLAY]/[FAVORITE PLAY])
This mode allows you to search images by scene mode or other categories (such as
[PORTRAIT], [SCENERY] or [NIGHT SCENERY]) and sort the pictures into each of the
categories. You can then play back the pictures in each category.
Perform steps 1 and 2 on page 94.
Press 3/4 to select [CATEGORY PLAY] , and then press [MENU/SET].
Press 3/ 4/2/1 to select the category and then...")
VQT1S3696 Advanced (Playback) [PLAYBACK] mode: ¸ Selecting Pictures and Playing them Back ([CATEGORY PLAY]/[FAVORITE PLAY]) This mode allows you to search images by scene mode or other categories (such as [PORTRAIT], [SCENERY] or [NIGHT SCENERY]) and sort the pictures into each of the categories. You can then play back the pictures in each category. Perform steps 1 and 2 on page 94. Press 3/4 to select [CATEGORY PLAY] , and then press [MENU/SET]. Press 3/ 4/2/1 to select the category and then...

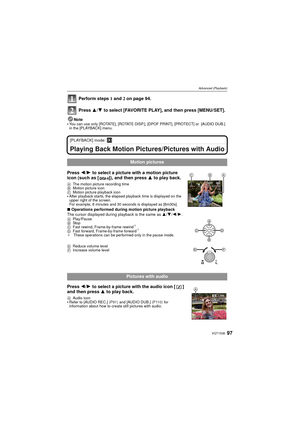

Page 97
![Page 97
97VQT1S36
Advanced (Playback)
Perform steps 1 and 2 on page 94.
Press 3/4 to select [FAVORITE PLAY], and then press [MENU/SET].
Note
You can use only [ROTATE], [ROTATE DISP.], [DPOF PRINT], [PROTECT] or [AUDIO DUB.]
in the [PLAYBACK] menu.
[PLAYBACK] mode: ¸
Playing Back Motion Pictures/Pictures with Audio
Press 2/1 to select a picture with a motion picture
icon (such as [ ]), and then press 3 to play back.
AThe motion picture recording time
B Motion picture icon
C Motion picture playback icon...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-96.png "Page 97
97VQT1S36
Advanced (Playback)
Perform steps 1 and 2 on page 94.
Press 3/4 to select [FAVORITE PLAY], and then press [MENU/SET].
Note
You can use only [ROTATE], [ROTATE DISP.], [DPOF PRINT], [PROTECT] or [AUDIO DUB.]
in the [PLAYBACK] menu.
[PLAYBACK] mode: ¸
Playing Back Motion Pictures/Pictures with Audio
Press 2/1 to select a picture with a motion picture
icon (such as [ ]), and then press 3 to play back.
AThe motion picture recording time
B Motion picture icon
C Motion picture playback icon...")
97VQT1S36 Advanced (Playback) Perform steps 1 and 2 on page 94. Press 3/4 to select [FAVORITE PLAY], and then press [MENU/SET]. Note You can use only [ROTATE], [ROTATE DISP.], [DPOF PRINT], [PROTECT] or [AUDIO DUB.] in the [PLAYBACK] menu. [PLAYBACK] mode: ¸ Playing Back Motion Pictures/Pictures with Audio Press 2/1 to select a picture with a motion picture icon (such as [ ]), and then press 3 to play back. AThe motion picture recording time B Motion picture icon C Motion picture playback icon...
Page 98
![Page 98
VQT1S3698
Advanced (Playback)
Note
Sound can be heard through the speaker. Refer to [VOLUME] (P24) for information about how
to adjust the volume in the [SETUP] menu.
The file format that can be played back with this camera is QuickTime Motion JPEG.Please note that the bundled software inclu des QuickTime to play back motion picture files
created with the camera on the PC.
Some QuickTime Motion JPEG files recorded by a PC or other equipment may not play back
on the camera.
If you play back motion...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-97.png "Page 98
VQT1S3698
Advanced (Playback)
Note
Sound can be heard through the speaker. Refer to [VOLUME] (P24) for information about how
to adjust the volume in the [SETUP] menu.
The file format that can be played back with this camera is QuickTime Motion JPEG.Please note that the bundled software inclu des QuickTime to play back motion picture files
created with the camera on the PC.
Some QuickTime Motion JPEG files recorded by a PC or other equipment may not play back
on the camera.
If you play back motion...")
VQT1S3698 Advanced (Playback) Note Sound can be heard through the speaker. Refer to [VOLUME] (P24) for information about how to adjust the volume in the [SETUP] menu. The file format that can be played back with this camera is QuickTime Motion JPEG.Please note that the bundled software inclu des QuickTime to play back motion picture files created with the camera on the PC. Some QuickTime Motion JPEG files recorded by a PC or other equipment may not play back on the camera. If you play back motion...

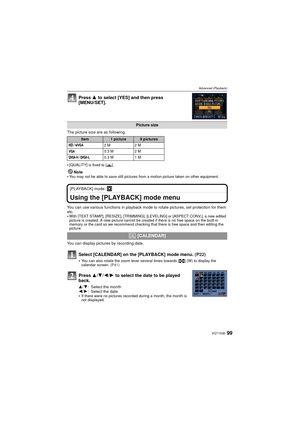

Page 99
![Page 99
99VQT1S36
Advanced (Playback)
Press 3 to select [YES] and then press
[MENU/SET].
The picture size are as following.
[QUALITY] is fixed to [ ›].
Note
You may not be able to save still pictures from a motion picture taken on other equipment.
[PLAYBACK] mode: ¸
Using the [PLAYBACK] mode menu
You can use various functions in playback mode to rotate pictures, set protection for them
etc.
With [TEXT STAMP], [RESIZE], [TRIMMING], [LEVELING] or [ASPECT CONV.], a new edited
picture is created. A new picture...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-98.png "Page 99
99VQT1S36
Advanced (Playback)
Press 3 to select [YES] and then press
[MENU/SET].
The picture size are as following.
[QUALITY] is fixed to [ ›].
Note
You may not be able to save still pictures from a motion picture taken on other equipment.
[PLAYBACK] mode: ¸
Using the [PLAYBACK] mode menu
You can use various functions in playback mode to rotate pictures, set protection for them
etc.
With [TEXT STAMP], [RESIZE], [TRIMMING], [LEVELING] or [ASPECT CONV.], a new edited
picture is created. A new picture...")
99VQT1S36 Advanced (Playback) Press 3 to select [YES] and then press [MENU/SET]. The picture size are as following. [QUALITY] is fixed to [ ›]. Note You may not be able to save still pictures from a motion picture taken on other equipment. [PLAYBACK] mode: ¸ Using the [PLAYBACK] mode menu You can use various functions in playback mode to rotate pictures, set protection for them etc. With [TEXT STAMP], [RESIZE], [TRIMMING], [LEVELING] or [ASPECT CONV.], a new edited picture is created. A new picture...

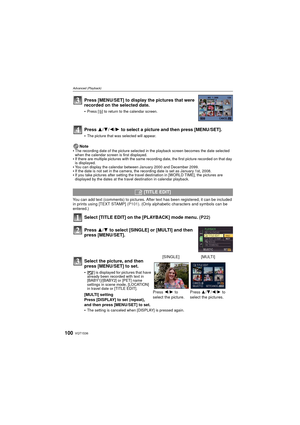

Page 100
VQT1S36100 Advanced (Playback) Note The recording date of the picture selected in the playback screen becomes the date selected when the calendar screen is first displayed. If there are multiple pictures with the same recording date, the first picture recorded on that day is displayed. You can display the calendar between January 2000 and December 2099.If the date is not set in the camera, the recording date is set as January 1st, 2008.If you take pictures after setting the travel destination in [WORLD...
