Panasonic Dmc Fz28 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Dmc Fz28 Operating Instructions Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

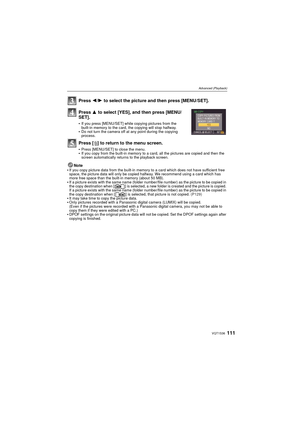

Page 111
![Page 111
111VQT1S36
Advanced (Playback)
Press 2/1 to select the picture and then press [MENU/SET].
Press 3 to select [YES], and then press [MENU/
SET].
If you press [MENU/SET] while copying pictures from the
built-in memory to the card, the copying will stop halfway.
Do not turn the camera off at any point during the copying
process.
Press [ ‚] to return to the menu screen.
Press [MENU/SET] to close the menu.If you copy from the built-in memory to a card, all the pictures are copied and then the
screen...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-110.png "Page 111
111VQT1S36
Advanced (Playback)
Press 2/1 to select the picture and then press [MENU/SET].
Press 3 to select [YES], and then press [MENU/
SET].
If you press [MENU/SET] while copying pictures from the
built-in memory to the card, the copying will stop halfway.
Do not turn the camera off at any point during the copying
process.
Press [ ‚] to return to the menu screen.
Press [MENU/SET] to close the menu.If you copy from the built-in memory to a card, all the pictures are copied and then the
screen...")
111VQT1S36 Advanced (Playback) Press 2/1 to select the picture and then press [MENU/SET]. Press 3 to select [YES], and then press [MENU/ SET]. If you press [MENU/SET] while copying pictures from the built-in memory to the card, the copying will stop halfway. Do not turn the camera off at any point during the copying process. Press [ ‚] to return to the menu screen. Press [MENU/SET] to close the menu.If you copy from the built-in memory to a card, all the pictures are copied and then the screen...

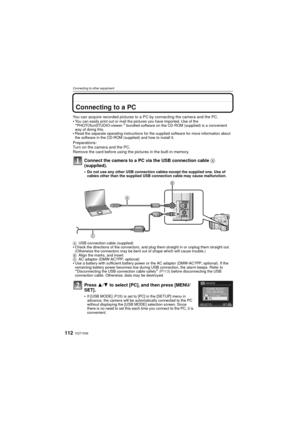

Page 112
VQT1S36112 Connecting to other equipment Connecting to other equipmentConnecting to a PC You can acquire recorded pictures to a PC by connecting the camera and the PC. You can easily print out or mail the pictures you have imported. Use of the “PHOTOfunSTUDIO-viewer-” bundled software on the CD-ROM (supplied) is a convenient way of doing this. Read the separate operating instructions for the supplied software for more information about the software in the CD-ROM (supplied) and how to install it....

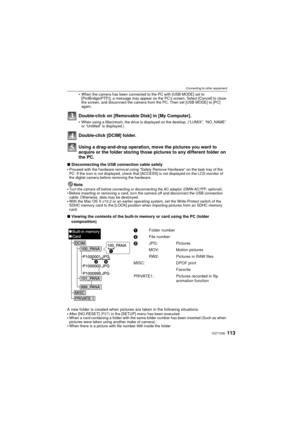

Page 113
![Page 113
113VQT1S36
Connecting to other equipment
When the camera has been connected to the PC with [USB MODE] set to
[PictBridge(PTP)], a message may appear on the PC’s screen. Select [Cancel] to close
the screen, and disconnect the camera from the PC. Then set [USB MODE] to [PC]
again.
Double-click on [Removable Disk] in [My Computer].
When using a Macintosh, the drive is displayed on the desktop. (“LUMIX”, “NO_NAME”
or “Untitled” is displayed.)
Double-click [DCIM] folder.
Using a drag-and-drop operation,...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-112.png "Page 113
113VQT1S36
Connecting to other equipment
When the camera has been connected to the PC with [USB MODE] set to
[PictBridge(PTP)], a message may appear on the PC’s screen. Select [Cancel] to close
the screen, and disconnect the camera from the PC. Then set [USB MODE] to [PC]
again.
Double-click on [Removable Disk] in [My Computer].
When using a Macintosh, the drive is displayed on the desktop. (“LUMIX”, “NO_NAME”
or “Untitled” is displayed.)
Double-click [DCIM] folder.
Using a drag-and-drop operation,...")
113VQT1S36 Connecting to other equipment When the camera has been connected to the PC with [USB MODE] set to [PictBridge(PTP)], a message may appear on the PC’s screen. Select [Cancel] to close the screen, and disconnect the camera from the PC. Then set [USB MODE] to [PC] again. Double-click on [Removable Disk] in [My Computer]. When using a Macintosh, the drive is displayed on the desktop. (“LUMIX”, “NO_NAME” or “Untitled” is displayed.) Double-click [DCIM] folder. Using a drag-and-drop operation,...
Page 114
![Page 114
VQT1S36114
Connecting to other equipment
∫Connection in the PTP mode (WindowsR XP, Windows VistaR and Mac OS X only)
Set [USB MODE] to [PictBridge(PTP)].
Data can now be read only from the card into the PC.
When there are 1000 or more pictures on a card, the pictures may not be imported in the PTP
mode.
Printing the Pictures
If you connect the camera to a printer supporti ng PictBridge, you can select the pictures to
be printed out and instruct that printing be started on the camera’s LCD monitor....](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-113.png "Page 114
VQT1S36114
Connecting to other equipment
∫Connection in the PTP mode (WindowsR XP, Windows VistaR and Mac OS X only)
Set [USB MODE] to [PictBridge(PTP)].
Data can now be read only from the card into the PC.
When there are 1000 or more pictures on a card, the pictures may not be imported in the PTP
mode.
Printing the Pictures
If you connect the camera to a printer supporti ng PictBridge, you can select the pictures to
be printed out and instruct that printing be started on the camera’s LCD monitor....")
VQT1S36114 Connecting to other equipment ∫Connection in the PTP mode (WindowsR XP, Windows VistaR and Mac OS X only) Set [USB MODE] to [PictBridge(PTP)]. Data can now be read only from the card into the PC. When there are 1000 or more pictures on a card, the pictures may not be imported in the PTP mode. Printing the Pictures If you connect the camera to a printer supporti ng PictBridge, you can select the pictures to be printed out and instruct that printing be started on the camera’s LCD monitor....

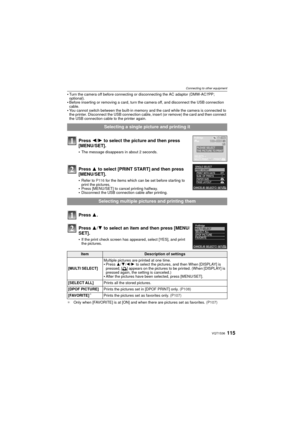

Page 115
![Page 115
115VQT1S36
Connecting to other equipment
Turn the camera off before connecting or disconnecting the AC adaptor (DMW-AC7PP;
optional).
Before inserting or removing a card, turn the camera off, and disconnect the USB connection
cable.
You cannot switch between the built-in memory and the card while the camera is connected to
the printer. Disconnect the USB connection cable, insert (or remove) the card and then connect
the USB connection cable to the printer again.
¢ Only when [FAVORITE] is at [ON] and...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-114.png "Page 115
115VQT1S36
Connecting to other equipment
Turn the camera off before connecting or disconnecting the AC adaptor (DMW-AC7PP;
optional).
Before inserting or removing a card, turn the camera off, and disconnect the USB connection
cable.
You cannot switch between the built-in memory and the card while the camera is connected to
the printer. Disconnect the USB connection cable, insert (or remove) the card and then connect
the USB connection cable to the printer again.
¢ Only when [FAVORITE] is at [ON] and...")
115VQT1S36 Connecting to other equipment Turn the camera off before connecting or disconnecting the AC adaptor (DMW-AC7PP; optional). Before inserting or removing a card, turn the camera off, and disconnect the USB connection cable. You cannot switch between the built-in memory and the card while the camera is connected to the printer. Disconnect the USB connection cable, insert (or remove) the card and then connect the USB connection cable to the printer again. ¢ Only when [FAVORITE] is at [ON] and...

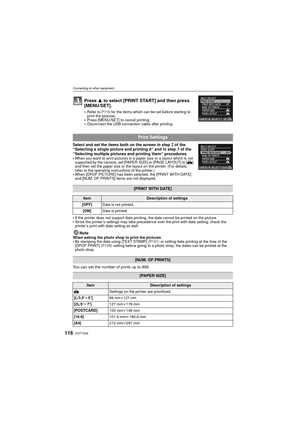

Page 116
![Page 116
VQT1S36116
Connecting to other equipment
Select and set the items both on the screen in step 2 of the
“ Selecting a single picture and printing it ” and in step 3 of the
“ Selecting multiple pictures and printing them ” procedures.
When you want to print pictures in a paper size or a layout which is not
supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ {]
and then set the paper size or the layout on the printer. (For details,
refer to the operating instructions of the printer.)
When...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-115.png "Page 116
VQT1S36116
Connecting to other equipment
Select and set the items both on the screen in step 2 of the
“ Selecting a single picture and printing it ” and in step 3 of the
“ Selecting multiple pictures and printing them ” procedures.
When you want to print pictures in a paper size or a layout which is not
supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ {]
and then set the paper size or the layout on the printer. (For details,
refer to the operating instructions of the printer.)
When...")
VQT1S36116
Connecting to other equipment
Select and set the items both on the screen in step 2 of the
“ Selecting a single picture and printing it ” and in step 3 of the
“ Selecting multiple pictures and printing them ” procedures.
When you want to print pictures in a paper size or a layout which is not
supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to [ {]
and then set the paper size or the layout on the printer. (For details,
refer to the operating instructions of the printer.)
When...

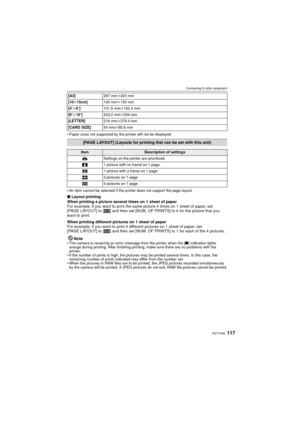

Page 117
![Page 117
117VQT1S36
Connecting to other equipment
Paper sizes not supported by the printer will not be displayed.
An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-116.png "Page 117
117VQT1S36
Connecting to other equipment
Paper sizes not supported by the printer will not be displayed.
An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if...")
117VQT1S36 Connecting to other equipment Paper sizes not supported by the printer will not be displayed. An item cannot be selected if the printer does not support the page layout. ∫Layout printing When printing a picture several times on 1 sheet of paper For example, if you want to print the same picture 4 times on 1 sheet of paper, set [PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you want to print. When printing different pictures on 1 sheet of paper For example, if...

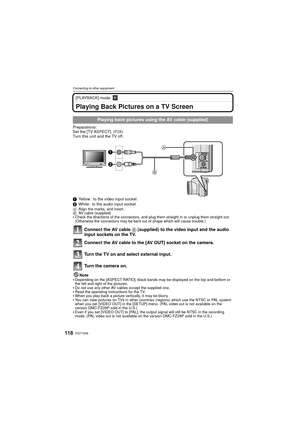

Page 118
![Page 118
VQT1S36118
Connecting to other equipment
[PLAYBACK] mode: ¸
Playing Back Pictures on a TV Screen
Preparations:
Set the [TV ASPECT]. (P28)
Turn this unit and the TV off.
1 Yellow: to the video input socket
2 White: to the audio input socket
A Align the marks, and insert.
B AV cable (supplied)
Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which will cause trouble.)
Connect the AV cable B (supplied) to the...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-117.png "Page 118
VQT1S36118
Connecting to other equipment
[PLAYBACK] mode: ¸
Playing Back Pictures on a TV Screen
Preparations:
Set the [TV ASPECT]. (P28)
Turn this unit and the TV off.
1 Yellow: to the video input socket
2 White: to the audio input socket
A Align the marks, and insert.
B AV cable (supplied)
Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which will cause trouble.)
Connect the AV cable B (supplied) to the...")
VQT1S36118 Connecting to other equipment [PLAYBACK] mode: ¸ Playing Back Pictures on a TV Screen Preparations: Set the [TV ASPECT]. (P28) Turn this unit and the TV off. 1 Yellow: to the video input socket 2 White: to the audio input socket A Align the marks, and insert. B AV cable (supplied) Check the directions of the connectors, and plug them straight in or unplug them straight out. (Otherwise the connectors may be bent out of shape which will cause trouble.) Connect the AV cable B (supplied) to the...

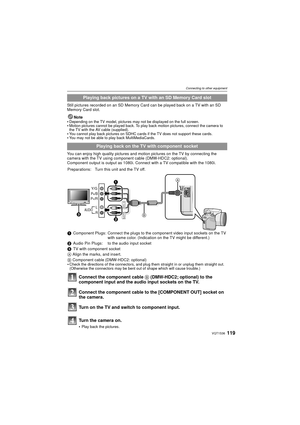

Page 119
119VQT1S36 Connecting to other equipment Still pictures recorded on an SD Memory Card can be played back on a TV with an SD Memory Card slot.Note • Depending on the TV model, pictures may not be displayed on the full screen.Motion pictures cannot be played back. To play back motion pictures, connect the camera to the TV with the AV cable (supplied). You cannot play back pictures on SDHC cards if the TV does not support these cards.You may not be able to play back MultiMediaCards. You can enjoy high...

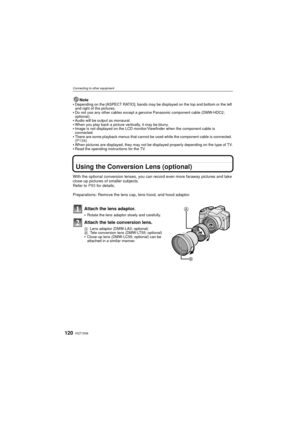

Page 120
![Page 120
VQT1S36120
Connecting to other equipment
Note
Depending on the [ASPECT RATIO], bands may be displayed on the top and bottom or the left
and right of the pictures.
Do not use any other cables except a g enuine Panasonic component cable (DMW-HDC2;
optional).
Audio will be output as monaural.When you play back a picture vertically, it may be blurry.Image is not displayed on the LCD monitor/Viewfinder when the component cable is
connected.
There are some playback menus that cannot be used while the...](http://img.usermanuals.tech/thumb/58/65486/w300_dmc-fz28_en_om_d-119.png "Page 120
VQT1S36120
Connecting to other equipment
Note
Depending on the [ASPECT RATIO], bands may be displayed on the top and bottom or the left
and right of the pictures.
Do not use any other cables except a g enuine Panasonic component cable (DMW-HDC2;
optional).
Audio will be output as monaural.When you play back a picture vertically, it may be blurry.Image is not displayed on the LCD monitor/Viewfinder when the component cable is
connected.
There are some playback menus that cannot be used while the...")
VQT1S36120 Connecting to other equipment Note Depending on the [ASPECT RATIO], bands may be displayed on the top and bottom or the left and right of the pictures. Do not use any other cables except a g enuine Panasonic component cable (DMW-HDC2; optional). Audio will be output as monaural.When you play back a picture vertically, it may be blurry.Image is not displayed on the LCD monitor/Viewfinder when the component cable is connected. There are some playback menus that cannot be used while the...
