Page 181
![Page 181
- 181 -
Connecting to other equipment
Preparations:
Turn on the camera and the PC.
Remove the card before using the pictures in the built-in memory.
Connect the camera to a PC via the USB connection cable A
(supplied).
•Do not use any other USB connection cables except the supplied one. Use of
cables other than the supplied USB connection cable may cause malfunction.
Press 3/4 to select [PC], and then press [MENU/
SET].
•If [USB MODE] (P36) is set to [PC] in the [SETUP] menu in
advance, the camera...](http://img.usermanuals.tech/thumb/58/65499/w300_dmc-fz40_adv_en_om_d-180.png "Page 181
- 181 -
Connecting to other equipment
Preparations:
Turn on the camera and the PC.
Remove the card before using the pictures in the built-in memory.
Connect the camera to a PC via the USB connection cable A
(supplied).
•Do not use any other USB connection cables except the supplied one. Use of
cables other than the supplied USB connection cable may cause malfunction.
Press 3/4 to select [PC], and then press [MENU/
SET].
•If [USB MODE] (P36) is set to [PC] in the [SETUP] menu in
advance, the camera...")
- 181 - Connecting to other equipment Preparations: Turn on the camera and the PC. Remove the card before using the pictures in the built-in memory. Connect the camera to a PC via the USB connection cable A (supplied). •Do not use any other USB connection cables except the supplied one. Use of cables other than the supplied USB connection cable may cause malfunction. Press 3/4 to select [PC], and then press [MENU/ SET]. •If [USB MODE] (P36) is set to [PC] in the [SETUP] menu in advance, the camera...
Page 182

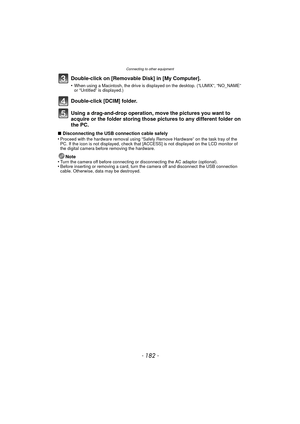

![Page 182
Connecting to other equipment
- 182 -
Double-click on [Removable Disk] in [My Computer].
•When using a Macintosh, the drive is displayed on the desktop. (“LUMIX”, “NO_NAME”
or “Untitled” is displayed.)
Double-click [DCIM] folder.
Using a drag-and-drop operation, move the pictures you want to
acquire or the folder storing those pi ctures to any different folder on
the PC.
∫ Disconnecting the USB connection cable safely
•Proceed with the hardware removal using “Safely Remove Hardware” on the task tray...](http://img.usermanuals.tech/thumb/58/65499/w300_dmc-fz40_adv_en_om_d-181.png "Page 182
Connecting to other equipment
- 182 -
Double-click on [Removable Disk] in [My Computer].
•When using a Macintosh, the drive is displayed on the desktop. (“LUMIX”, “NO_NAME”
or “Untitled” is displayed.)
Double-click [DCIM] folder.
Using a drag-and-drop operation, move the pictures you want to
acquire or the folder storing those pi ctures to any different folder on
the PC.
∫ Disconnecting the USB connection cable safely
•Proceed with the hardware removal using “Safely Remove Hardware” on the task tray...")
Connecting to other equipment - 182 - Double-click on [Removable Disk] in [My Computer]. •When using a Macintosh, the drive is displayed on the desktop. (“LUMIX”, “NO_NAME” or “Untitled” is displayed.) Double-click [DCIM] folder. Using a drag-and-drop operation, move the pictures you want to acquire or the folder storing those pi ctures to any different folder on the PC. ∫ Disconnecting the USB connection cable safely •Proceed with the hardware removal using “Safely Remove Hardware” on the task tray...
Page 183

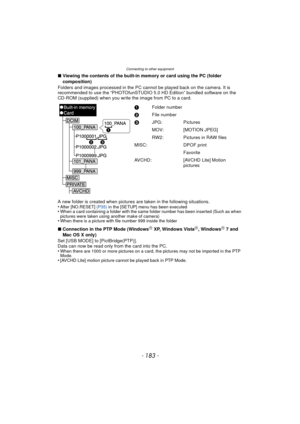

![Page 183
- 183 -
Connecting to other equipment
∫Viewing the contents of the built-in memory or card using the PC (folder
composition)
Folders and images processed in the PC cannot be played back on the camera. It is
recommended to use the “PHOTOfunSTUDIO 5.0 HD Edition” bundled software on the
CD-ROM (supplied) when you write the image from PC to a card.
A new folder is created when pictures are taken in the following situations.
•
After [NO.RESET] (P35) in the [SETUP] menu has been executed•When a card...](http://img.usermanuals.tech/thumb/58/65499/w300_dmc-fz40_adv_en_om_d-182.png "Page 183
- 183 -
Connecting to other equipment
∫Viewing the contents of the built-in memory or card using the PC (folder
composition)
Folders and images processed in the PC cannot be played back on the camera. It is
recommended to use the “PHOTOfunSTUDIO 5.0 HD Edition” bundled software on the
CD-ROM (supplied) when you write the image from PC to a card.
A new folder is created when pictures are taken in the following situations.
•
After [NO.RESET] (P35) in the [SETUP] menu has been executed•When a card...")
- 183 - Connecting to other equipment ∫Viewing the contents of the built-in memory or card using the PC (folder composition) Folders and images processed in the PC cannot be played back on the camera. It is recommended to use the “PHOTOfunSTUDIO 5.0 HD Edition” bundled software on the CD-ROM (supplied) when you write the image from PC to a card. A new folder is created when pictures are taken in the following situations. • After [NO.RESET] (P35) in the [SETUP] menu has been executed•When a card...

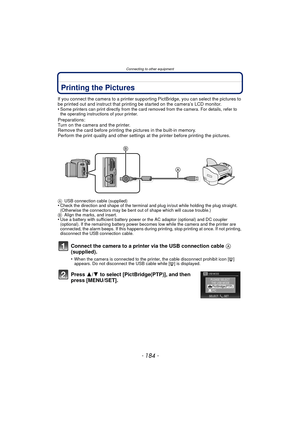

Page 184
Connecting to other equipment - 184 - Printing the Pictures If you connect the camera to a printer supporting PictBridge, you can select the pictures to be printed out and instruct that printing be started on the camera’s LCD monitor. • Some printers can print directly from the card removed from the camera. For details, refer to the operating instructions of your printer. Preparations: Turn on the camera and the printer. Remove the card before printing the pictures in the built-in memory. Perform the...

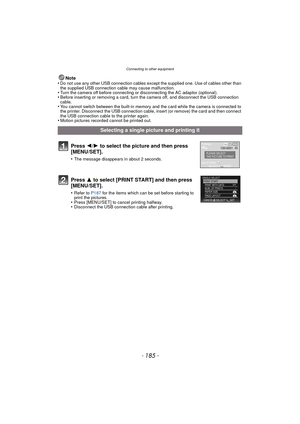

Page 185
- 185 - Connecting to other equipment Note •Do not use any other USB connection cables except the supplied one. Use of cables other than the supplied USB connection cable may cause malfunction. •Turn the camera off before connecting or disconnecting the AC adaptor (optional).•Before inserting or removing a card, turn the camera off, and disconnect the USB connection cable. •You cannot switch between the built-in memory and the card while the camera is connected to the printer. Disconnect the USB...
Page 186

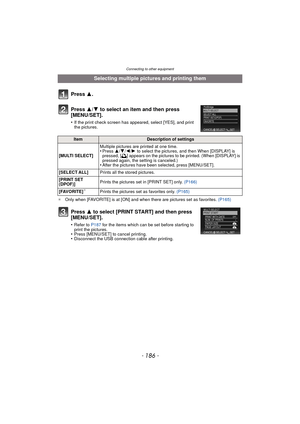

![Page 186
Connecting to other equipment
- 186 -
¢Only when [FAVORITE] is at [ON] and when there are pictures set as favorites. (P165)
Selecting multiple pictures and printing them
Press 3.
Press 3/4 to select an item and then press
[MENU/SET].
•If the print check screen has appeared, select [YES], and print
the pictures.
ItemDescription of settings
[MULTI SELECT] Multiple pictures are printed at one time.
•Press
3/4/ 2/1 to select the pictures, and then When [DISPLAY] is
pressed, [ é] appears on the...](http://img.usermanuals.tech/thumb/58/65499/w300_dmc-fz40_adv_en_om_d-185.png "Page 186
Connecting to other equipment
- 186 -
¢Only when [FAVORITE] is at [ON] and when there are pictures set as favorites. (P165)
Selecting multiple pictures and printing them
Press 3.
Press 3/4 to select an item and then press
[MENU/SET].
•If the print check screen has appeared, select [YES], and print
the pictures.
ItemDescription of settings
[MULTI SELECT] Multiple pictures are printed at one time.
•Press
3/4/ 2/1 to select the pictures, and then When [DISPLAY] is
pressed, [ é] appears on the...")
Connecting to other equipment - 186 - ¢Only when [FAVORITE] is at [ON] and when there are pictures set as favorites. (P165) Selecting multiple pictures and printing them Press 3. Press 3/4 to select an item and then press [MENU/SET]. •If the print check screen has appeared, select [YES], and print the pictures. ItemDescription of settings [MULTI SELECT] Multiple pictures are printed at one time. •Press 3/4/ 2/1 to select the pictures, and then When [DISPLAY] is pressed, [ é] appears on the...
Page 187

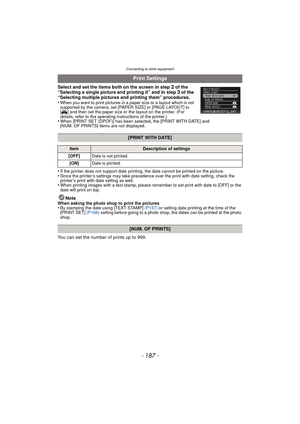

![Page 187
- 187 -
Connecting to other equipment
Select and set the items both on the screen in step 2 of the
“Selecting a single picture and printing it” and in step 3 of the
“Selecting multiple pictures and printing them” procedures.
•
When you want to print pictures in a paper size or a layout which is not
supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to
[ { ] and then set the paper size or the layout on the printer. (For
details, refer to the operating instructions of the printer.)
•When...](http://img.usermanuals.tech/thumb/58/65499/w300_dmc-fz40_adv_en_om_d-186.png "Page 187
- 187 -
Connecting to other equipment
Select and set the items both on the screen in step 2 of the
“Selecting a single picture and printing it” and in step 3 of the
“Selecting multiple pictures and printing them” procedures.
•
When you want to print pictures in a paper size or a layout which is not
supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to
[ { ] and then set the paper size or the layout on the printer. (For
details, refer to the operating instructions of the printer.)
•When...")
- 187 -
Connecting to other equipment
Select and set the items both on the screen in step 2 of the
“Selecting a single picture and printing it” and in step 3 of the
“Selecting multiple pictures and printing them” procedures.
•
When you want to print pictures in a paper size or a layout which is not
supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to
[ { ] and then set the paper size or the layout on the printer. (For
details, refer to the operating instructions of the printer.)
•When...
Page 188

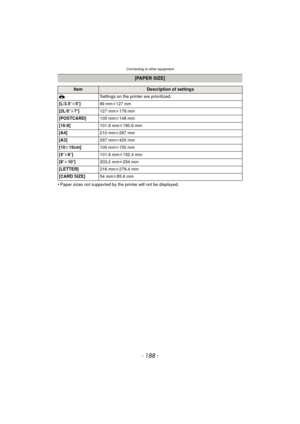

![Page 188
Connecting to other equipment
- 188 -
•Paper sizes not supported by the printer will not be displayed.
[PAPER SIZE]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm](http://img.usermanuals.tech/thumb/58/65499/w300_dmc-fz40_adv_en_om_d-187.png "Page 188
Connecting to other equipment
- 188 -
•Paper sizes not supported by the printer will not be displayed.
[PAPER SIZE]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm")
Connecting to other equipment
- 188 -
•Paper sizes not supported by the printer will not be displayed.
[PAPER SIZE]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm
Page 189

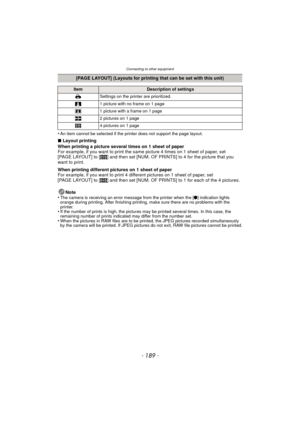

![Page 189
- 189 -
Connecting to other equipment
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if you want to print 4 different pictures on 1 sheet of paper, set...](http://img.usermanuals.tech/thumb/58/65499/w300_dmc-fz40_adv_en_om_d-188.png "Page 189
- 189 -
Connecting to other equipment
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you
want to print.
When printing different pictures on 1 sheet of paper
For example, if you want to print 4 different pictures on 1 sheet of paper, set...")
- 189 - Connecting to other equipment •An item cannot be selected if the printer does not support the page layout. ∫Layout printing When printing a picture several times on 1 sheet of paper For example, if you want to print the same picture 4 times on 1 sheet of paper, set [PAGE LAYOUT] to [ ä] and then set [NUM. OF PRINTS] to 4 for the picture that you want to print. When printing different pictures on 1 sheet of paper For example, if you want to print 4 different pictures on 1 sheet of paper, set...

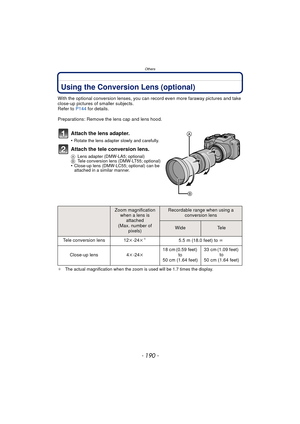

Page 190
Others - 190 - OthersUsing the Conversion Lens (optional) With the optional conversion lenses, you can record even more faraway pictures and take close-up pictures of smaller subjects. Refer to P144 for details. Preparations: Remove the lens cap and lens hood. Attach the lens adapter. •Rotate the lens adapter slowly and carefully. Attach the tele conversion lens. A Lens adapter (DMW-LA5; optional) B Tele conversion lens (DMW-LT55; optional) •Close-up lens (DMW-LC55; optional) can be attached in a...
