Panasonic Dmc Fz40 Operating Instructions Manual

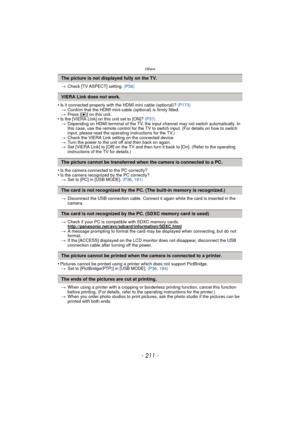

- 211 -
Others
>Check [TV ASPECT] setting.  (P36)
•Is it connected properly with the HDMI mini cable (optional)?  (P173)
> Confirm that the HDMI mini-cabl e (optional) is firmly fitted.
> Press [ (] on this unit.
•Is the [VIERA Link] on this unit set to [ON]? (P37)
> Depending on HDMI terminal of the TV, the i nput channel may not switch automatically. In
this case, use the remote control for the TV to switch input. (For details on how to switch
input, please read the operating instructions for the...

Others

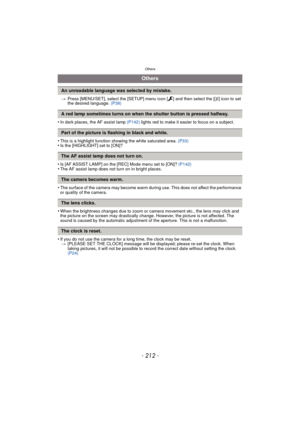

- 212 -
>Press [MENU/SET], select the [SETUP] menu icon [ ] and then select the [ ~] icon to set
the desired language.  (P39)
•In dark places, the AF assist lamp  (P142) lights red to make it easier to focus on a subject.
•This is a highlight function showing the white saturated area.  (P33)•Is the [HIGHLIGHT] set to [ON]?
•Is [AF ASSIST LAMP] on the [REC] Mode menu set to [ON]?  (P142)•The AF assist lamp does not turn on in bright places.
•The surface of the camera may become warm during use....

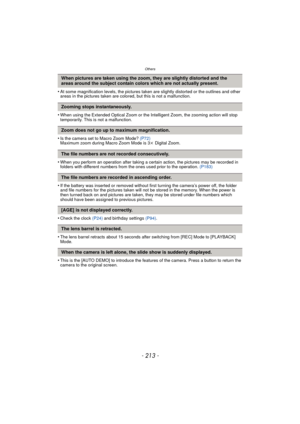

- 213 -
Others
•At some magnification levels, the pictures taken are slightly distorted or the outlines and other
areas in the pictures taken are colored, but this is not a malfunction.
•When using the Extended Optical Zoom or the Intelligent Zoom, the zooming action will stop
temporarily. This is not a malfunction.
•Is the camera set to Macro Zoom Mode?  (P72)
Maximum zoom during Macro Zoom Mode is 3 k Digital Zoom.
•When you perform an operation after taking a certain action, the pictures may be...

Others

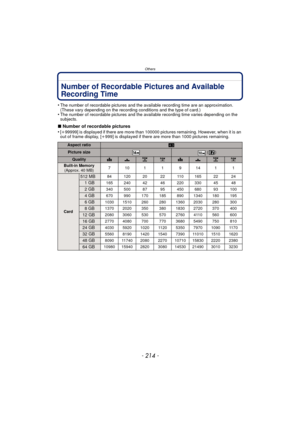

- 214 -
Number of Recordable Pictures and Available
Recording Time
•The number of recordable pictures and the available recording time are an approximation.
(These vary depending on the recording conditions and the type of card.)
•The number of recordable pictures and the available recording time varies depending on the
subjects.
∫Number of recordable pictures
•[ i 99999] is displayed if there are more than 100000 pictures remaining. However, when it is an
out of frame display, [ i999] is...

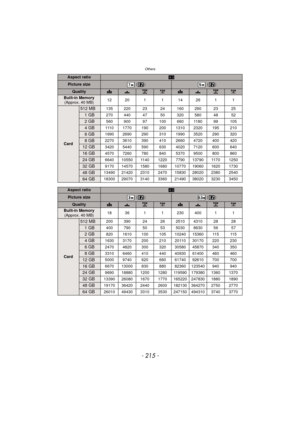

- 215 -
Others
Aspect ratioX
Picture size () ()
QualityA›A›
Built-in Memory(Approx. 40 MB) 12 20 1 1 14 26 1 1
Card
512 MB135 220 23 24 160 290 23 25
1GB270 440 47 50 320 580 48 52
2GB560 900 97 100 660 1180 99 105
4GB1110 1770 190 200 1310 2320 195 210
6GB1690 2690 290 310 1990 3520 290 320
8GB2270 3610 390 410 2660 4720 400 420
12 GB3420 5440 590 630 4020 7120 600 640
16 GB4570 7260 780 840 5370 9500 800 860
24 GB6640 10550 1140 1220 7790 13790 1170 1250
32 GB9170 14570 1580 1680 10770 19060 1620 1730...

Others
- 216 -
Aspect ratioY
Picture size ()
QualityA›A›
Built-in Memory(Approx. 40 MB) 7121 110161 1
Card
512 MB91 135 23 25 120 180 25 26
1GB180 270 47 52 240 360 50 54
2GB370 550 97 105 490 730 100 110
4GB730 1080 190 210 960 1430 200 220
6GB1110 1650 290 320 1460 2180 310 330
8GB1490 2210 390 420 1960 2920 410 440
12 GB2250 3330 590 640 2960 4400 630 670
16 GB3010 4450 780 860 3950 5880 840 900
24 GB4370 6460 1140 1250 5730 8540 1220 1310
32 GB6040 8930 1580 1730 7930 11800 1680 1810
48 GB8880 13000...

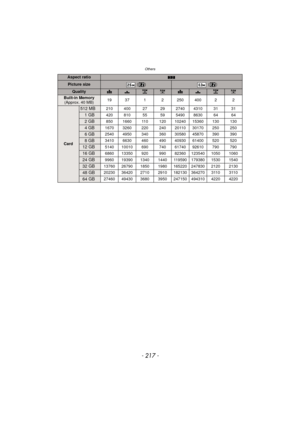

- 217 -
Others
Aspect ratioY
Picture size () ()
QualityA›A›
Built-in Memory(Approx. 40 MB) 19 37 1 2 250 400 2 2
Card
512 MB210 400 27 29 2740 4310 31 31
1GB420 810 55 59 5490 8630 64 64
2GB850 1660 110 120 10240 15360 130 130
4GB1670 3260 220 240 20110 30170 250 250
6GB2540 4950 340 360 30580 45870 390 390
8GB3410 6630 460 490 40930 61400 520 520
12 GB5140 10010 690 740 61740 92610 790 790
16 GB6860 13350 920 990 82360 123540 1050 1060
24 GB9960 19390 1340 1440 119590 179380 1530 1540
32 GB13760 26790...

Others

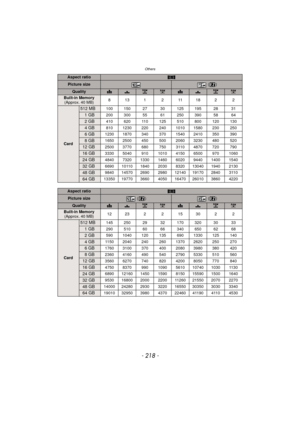

- 218 -
Aspect ratioW
Picture size ()
QualityA›A›
Built-in Memory(Approx. 40 MB) 8131 2 11182 2
Card
512 MB100 150 27 30 125 195 28 31
1GB200 300 55 61 250 390 58 64
2GB410 620 110 125 510 800 120 130
4GB810 1230 220 240 1010 1580 230 250
6GB1230 1870 340 370 1540 2410 350 390
8GB1650 2500 450 500 2060 3230 480 520
12 GB2500 3770 680 750 3110 4870 720 790
16 GB3330 5040 910 1010 4150 6500 970 1060
24 GB4840 7320 1330 1460 6020 9440 1400 1540
32 GB6690 10110 1840 2030 8320 13040 1940 2130
48 GB9840...

- 219 -
Others
Aspect ratioW
Picture size () ()
QualityA›A›
Built-in Memory(Approx. 40 MB) 42 82 2 2 310 470 2 2
Card
512 MB450 880 35 36 3350 5030 37 37
1GB910 1770 70 73 6710 10070 75 76
2GB1860 3610 140 150 12290 20480 150 155
4GB3650 7090 280 290 24130 40220 300 300
6GB5560 10790 430 450 36700 61160 460 460
8GB7440 14440 570 600 49120 81870 620 620
12 GB11220 21790 870 900 74090 123490 930 940
16 GB14970 29060 1160 1210 98830 164730 1250 1250
24 GB21740 42200 1690 1760 143510 239180 1810 1820
32...

Others

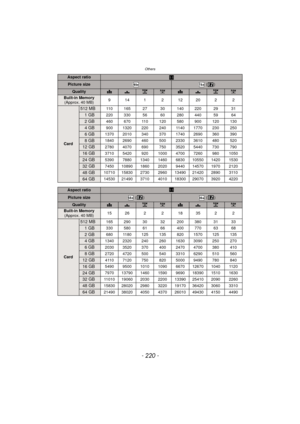

- 220 -
Aspect ratio
Picture size ()
QualityA›A›
Built-in Memory(Approx. 40 MB) 9141 212202 2
Card
512 MB110 165 27 30 140 220 29 31
1GB220 330 56 60 280 440 59 64
2GB460 670 110 120 580 900 120 130
4GB900 1320 220 240 1140 1770 230 250
6GB1370 2010 340 370 1740 2690 360 390
8GB1840 2690 460 500 2330 3610 480 520
12 GB2780 4070 690 750 3520 5440 730 790
16 GB3710 5420 920 1000 4700 7260 980 1050
24 GB5390 7880 1340 1460 6830 10550 1420 1530
32 GB7450 10890 1860 2020 9440 14570 1970 2120
48 GB10710...
