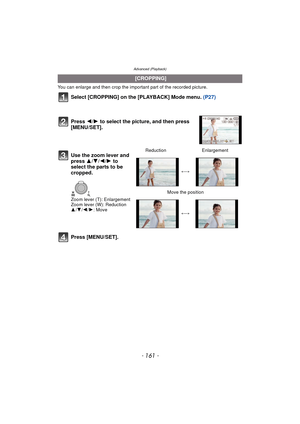

Panasonic Dmc Fz40 Operating Instructions Manual

- 161 -
Advanced (Playback)
You can enlarge and then crop the important part of the recorded picture.
Select [CROPPING] on the [PLAYBACK] Mode menu. (P27)
Press [MENU/SET].
  [CROPPING]
Press  2/1 to select the picture, and then press
[MENU/SET].
Use the zoom lever and
press  3/4/ 2/1 to
select the parts to be
cropped.
Zoom lever (T): Enlargement
Zoom lever (W): Reduction
3 /4 /2 /1: Move Reduction
Enlargement
()
Move the position
()
WT

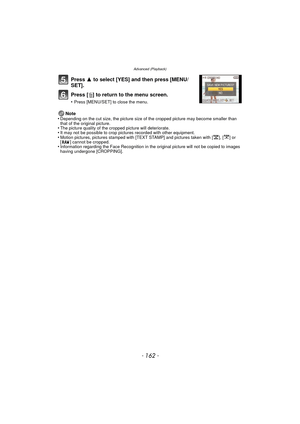

Advanced (Playback)
- 162 -
Press 3 to select [YES] and then press [MENU/
SET].
Press [‚ ] to return to the menu screen.
•Press [MENU/SET] to close the menu.
Note
•Depending on the cut size, the picture size of the cropped picture may become smaller than
that of the original picture.
•The picture quality of the cropped picture will deteriorate.•It may not be possible to crop pictures recorded with other equipment.•Motion pictures, pictures stamped with [TEXT STAMP] and pictures taken with [ ], [ ] or
[...

- 163 -
Advanced (Playback)

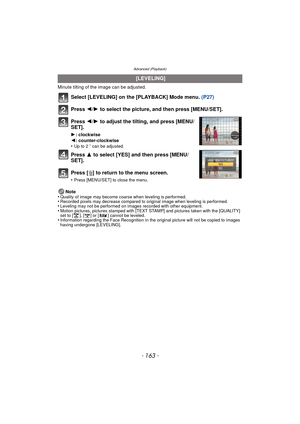

Minute tilting of the image can be adjusted.
Select [LEVELING] on the [PLAYBACK] Mode menu. (P27)
Press  2/1 to select the picture, and then press [MENU/SET].
Press  2/1 to adjust the tilting, and press [MENU/
SET].
1 : clockwise
2 : counter-clockwise
•
Up to 2 o can be adjusted.
Press  3 to select [YES] and then press [MENU/
SET].
Press [‚ ] to return to the menu screen.
•Press [MENU/SET] to close the menu.
Note
•Quality of image may become coarse when leveling is...

Advanced (Playback)
- 164 -

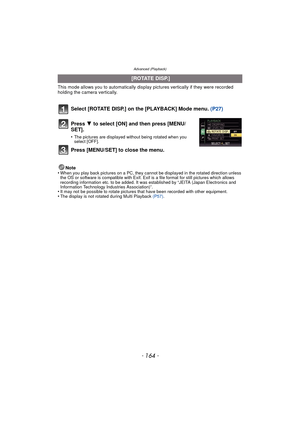

This mode allows you to automatically display pictures vertically if they were recorded
holding the camera vertically.
Select [ROTATE DISP.] on the [PLAYBACK] Mode menu.  (P27)
Note
•When you play back pictures on a PC, they canno t be displayed in the rotated direction unless
the OS or software is compatible with Exif. Exif  is a file format for still pictures which allows
recording information etc. to be added. It was established by “JEITA (Japan Electronics and...

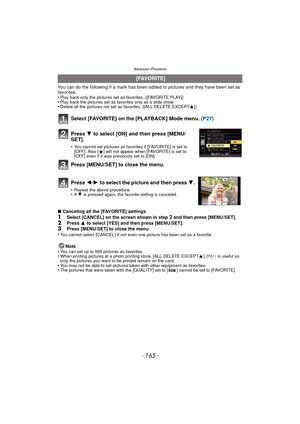

- 165 -
Advanced (Playback)
You can do the following if a mark has been added to pictures and they have been set as
favorites.
•
Play back only the pictures set as favorites. ([FAVORITE PLAY])•Play back the pictures set as favorites only as a slide show.•Delete all the pictures not set as favorites. ([ALL DELETE EXCEPT Ü])
Select [FAVORITE] on the [PLAYBACK] Mode menu.  (P27)
∫Canceling all the [FAVORITE] settings
1Select [CANCEL] on the screen shown in step 2 and then press [MENU/SET].2Press  3 to...

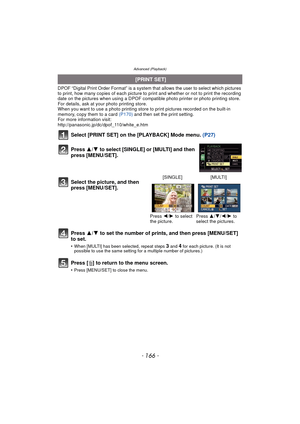

Advanced (Playback)
- 166 -
DPOF “Digital Print Order Format” is a system that allows the user to select which pictures
to print, how many copies of each picture to  print and whether or not to print the recording
date on the pictures when using a DPOF compatible photo printer or photo printing store.
For details, ask at your photo printing store.
When you want to use a photo printing store to print pictures recorded on the built-in
memory, copy them to a card  (P170) and then set the print setting....

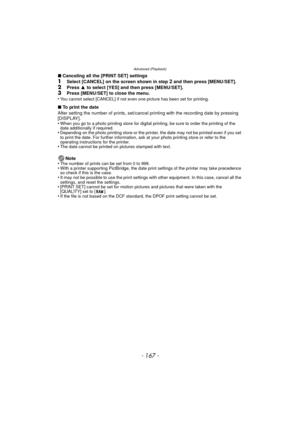

- 167 -
Advanced (Playback)
∫Canceling all the [PRINT SET] settings
1Select [CANCEL] on the screen shown in step 2 and then press [MENU/SET].2Press  3 to select [YES] and then press [MENU/SET].3Press [MENU/SET] to close the menu.
•You cannot select [CANCEL] if not even one picture has been set for printing.
∫ To print the date
After setting the number of prints, set/cancel  printing with the recording date by pressing
[DISPLAY].
•
When you go to a photo printing store for digital printing, be sure to...

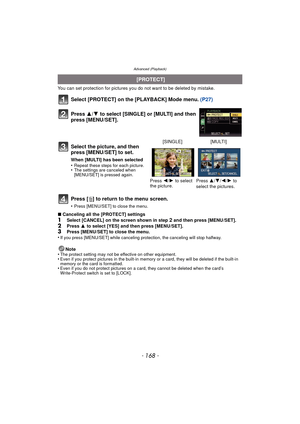

Advanced (Playback)
- 168 -
You can set protection for pictures you do not want to be deleted by mistake.
Select [PROTECT] on the [PLAYBACK] Mode menu.  (P27)
Press [‚ ] to return to the menu screen.
•Press [MENU/SET] to close the menu.
∫Canceling all the [PROTECT] settings
1Select [CANCEL] on the screen shown in step 2 and then press [MENU/SET].2Press  3 to select [YES] and then press [MENU/SET].3Press [MENU/SET] to close the menu.
•If you press [MENU/SET] while canceling protection, the canceling will...

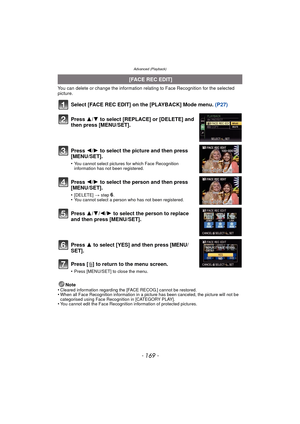

- 169 -
Advanced (Playback)
You can delete or change the information relating to Face Recognition for the selected
picture.
Select [FACE REC EDIT] on the [PLAYBACK] Mode menu. (P27)
Note
•Cleared information regarding the [FACE RECOG.] cannot be restored.•When all Face Recognition information in a picture has been canceled, the picture will not be
categorised using Face Recognition in [CATEGORY PLAY].
•You cannot edit the Face Recognition information of protected pictures.
  [FACE REC EDIT]
Press  3/4...

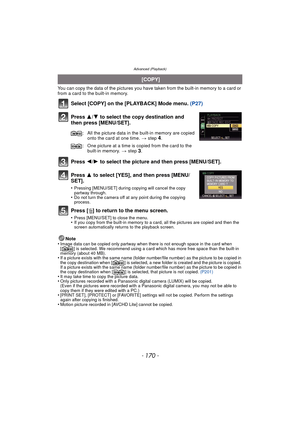

Advanced (Playback)
- 170 -
You can copy the data of the pictures you have taken from the built-in memory to a card or
from a card to the built-in memory.
Select [COPY] on the [PLAYBACK] Mode menu. (P27)
Press  3/4 to select the copy destination and
then press [MENU/SET].
Press  2/1 to select the picture and then press [MENU/SET].
Press  3 to select [YES], and then press [MENU/
SET].
•Pressing [MENU/SET] during  copying will cancel the copy
partway through.
•Do not turn the camera off at any point...
