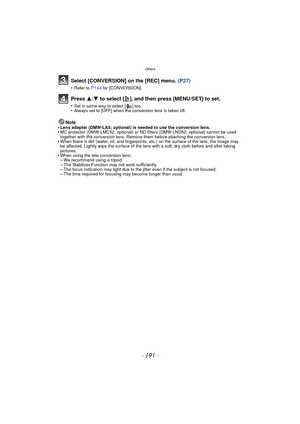

Panasonic Dmc Fz40 Operating Instructions Manual

- 191 -
Others
Select [CONVERSION] on the [REC] menu. (P27)
•Refer to P144 for [CONVERSION].
Press 3/4 to select [ ], and then press [MENU/SET] to set.
•Set in same way to select [ ] too.•Always set to [OFF] when the conversion lens is taken off.
Note
•Lens adapter (DMW-LA5; optional) is needed to use the conversion lens.•MC protector (DMW-LMC52; optional) or ND f ilters (DMW-LND52; optional) cannot be used
together with the conversion lens. Remove them before attaching the conversion lens.
•When there...

Others
- 192 -
Using the Protector/Filter (optional)
The MC protector (DMW-LMC52; optional) is a transparent filter which affects neither the
colors nor the amount of light, so it can always be used to protect the camera’s lens.
The ND filter (DMW-LND52; optional) reduces the amount of light to approximately 1/8th
(equal to adjusting the aperture value 3 increments) without affecting the color balance.
PL filter (DMW-LPL52; optional) will suppress the reflected light from a metal or non
spherical...

- 193 -
Others

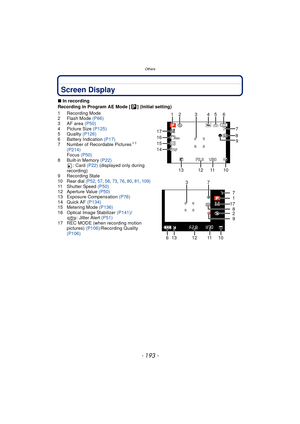

Screen Display
∫In recording
Recording in Program AE Mode [ ] (Initial setting)
1 Recording Mode
2 Flash Mode  (P66)
3 AF area  (P50)
4 Picture Size (P125)
5 Quality  (P126)
6 Battery Indication  (P17)
7 Number of Recordable Pictures
¢1
(P214)
Focus  (P50)
8 Built-in Memory  (P22)
: Card (P22)  (displayed only during
recording)
9 Recording State
10 Rear dial  (P52, 57 , 58,  73, 76,  80, 81 , 109)11 Shutter Speed  (P50)
12 Aperture Value (P50)
13 Exposure Compensation  (P76)
14 Quick AF...

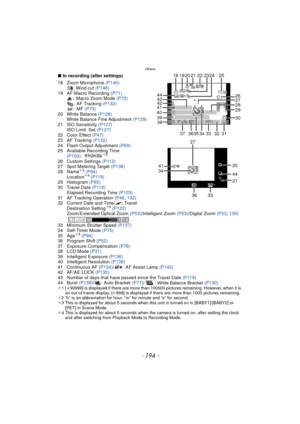

Others
- 194 -
∫In recording (after settings)
18 Zoom Microphone  (P146)
: Wind cut (P146)
19 AF Macro Recording  (P71)
: Macro Zoom Mode (P72) : AF Tracking  (P132)
: MF (P73)
20 White Balance  (P128)
White Balance Fine Adjustment  (P129)
21 ISO Sensitivity  (P127)
ISO Limit  Set (P127)
22 Color Effect  (P47)
23 AF Tracking  (P132)
24 Flash Output Adjustment  (P69)
25 Available Recording Time  (P103) :
¢2
26 Custom Settings  (P112)
27 Spot Metering Target  (P136)
28 Name
¢ 3 (P94)
Location¢ 4 (P119)
29...

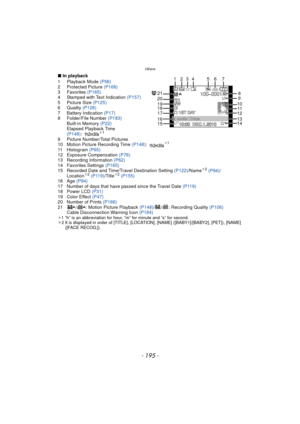

- 195 -
Others
∫In playback
1 Playback Mode  (P56)
2 Protected Picture  (P168)
3 Favorites  (P165)
4 Stamped with Text Indication  (P157)
5 Picture Size (P125)
6 Quality  (P126)
7 Battery Indication  (P17)
8 Folder/File Number (P183) Built-in Memory  (P22)
Elapsed Playback Time
(P148) :
¢1
9 Picture Number/Total Pictures
10 Motion Picture Recording Time  (P148):¢1
11 Histogram  (P65)
12 Exposure Compensation  (P76)
13 Recording Information  (P62)
14 Favorites Settings  (P165)
15 Recorded Date and...

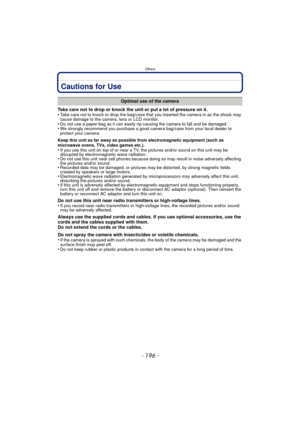

Others
- 196 -
Cautions for Use
Take care not to drop or knock the unit or put a lot of pressure on it.
•Take care not to knock or drop the bag/case that you inserted the camera in as the shock may
cause damage to the camera, lens or LCD monitor.
•Do not use a paper bag as it can easily rip causing the camera to fall and be damaged.•We strongly recommend you purchase a good camera bag/case from your local dealer to
protect your camera.
Keep this unit as far away as possible from electromagnetic...

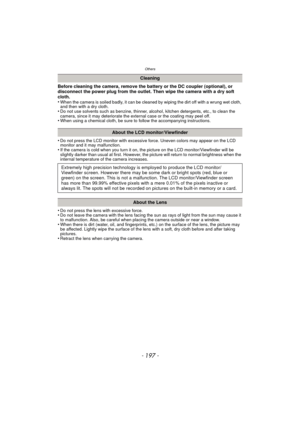

- 197 -
Others
Before cleaning the camera, remove the battery or the DC coupler (optional), or
disconnect the power plug from the outlet. Then wipe the camera with a dry soft
cloth.
•
When the camera is soiled badly, it can be cleaned by wiping the dirt off with a wrung wet cloth,
and then with a dry cloth.
•Do not use solvents such as benzine, thinner, alcohol, kitchen detergents, etc., to clean the
camera, since it may deteriorate the external case or the coating may peel off.
•When using a...

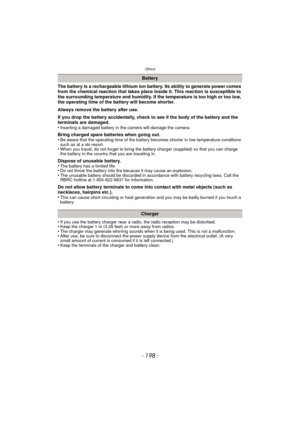

Others
- 198 -
The battery is a rechargeable lithium ion battery. Its ability to generate power comes
from the chemical reaction that takes place inside it. This reaction is susceptible to
the surrounding temperature and humidity. If the temperature is too high or too low,
the operating time of the battery will become shorter.
Always remove the battery after use.
If you drop the battery accidentally, check to see if the body of the battery and the
terminals are damaged.
•
Inserting a damaged battery...

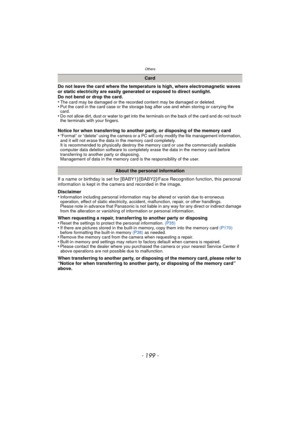

- 199 -
Others
Do not leave the card where the temperature is high, where electromagnetic waves
or static electricity are easily generated or exposed to direct sunlight.
Do not bend or drop the card.
•
The card may be damaged or the recorded content may be damaged or deleted.•Put the card in the card case or the storage bag after use and when storing or carrying the
card.
•Do not allow dirt, dust or water to get into the terminals on the back of the card and do not touch
the terminals with your...

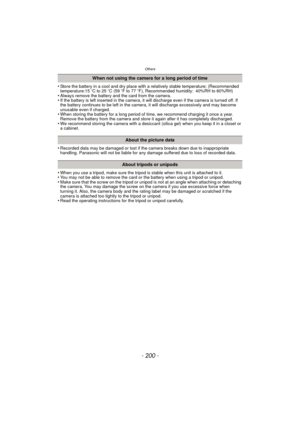

Others
- 200 -
•Store the battery in a cool and dry place with a relatively stable temperature: (Recommended
temperature:15oC to 25 oC (59 oF to 77 oF), Recommended humidity: 40%RH to 60%RH)
•Always remove the battery and the card from the camera.•If the battery is left inserted in the camera, it will discharge even if the camera is turned off. If
the battery continues to be left in the camera, it will discharge excessively and may become
unusable even if charged.
•When storing the battery for a long...
