Panasonic Dmc Fz7 Operating Instructions Manual

Advanced

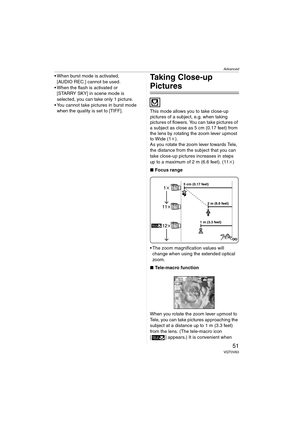

51VQT0V63
 When burst mode is activated,
[AUDIO REC.] cannot be used.
 When the flash is activated or
[STARRY SKY] in scene mode is
selected, you can take only 1 picture.
 You cannot take pictures in burst mode
when the quality is set to [TIFF].Taking Close-up
Pictures
This mode allows you to take close-up
pictures of a subject, e.g. when taking
pictures of flowers. You can take pictures of
a subject as close as 5 cm (0.17 feet) from
the lens by rotating the zoom lever upmost
to...

Advanced

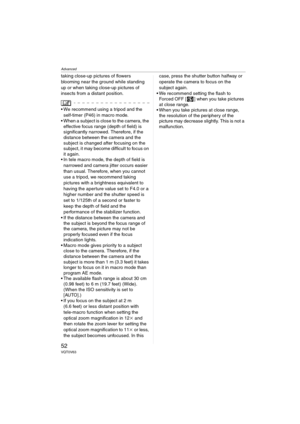

52VQT0V63
taking close-up pictures of flowers
blooming near the ground while standing
up or when taking close-up pictures of
insects from a distant position.
 We recommend using a tripod and the
self-timer (P46) in macro mode.
 When a subject is close to the camera, the
effective focus range (depth of field) is
significantly narrowed. Therefore, if the
distance between the camera and the
subject is changed after focusing on the
subject, it may become difficult to focus on
it again.
...

Advanced

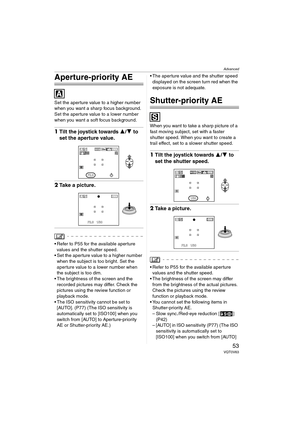

53VQT0V63
Aperture-priority AE
Set the aperture value to a higher number
when you want a sharp focus background.
Set the aperture value to a lower number
when you want a soft focus background.
1Tilt the joystick towards  3/4 to
set the aperture value.
2 Take a picture.
 Refer to P55 for the available aperture
values and the shutter speed.
 Set the aperture value to a higher number
when the subject is too bright. Set the
aperture value to a lower number when
the subject is too dim.
...

Advanced

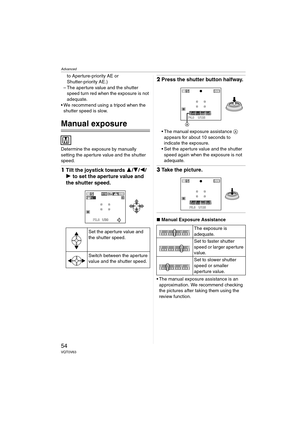

54VQT0V63
to Aperture-priority AE or
Shutter-priority AE.)
– The aperture value and the shutter  speed turn red when the exposure is not
adequate.
 We recommend using a tripod when the  shutter speed is slow.
Manual exposure
Determine the exposure by manually
setting the aperture value and the shutter
speed.
1 Tilt the joystick towards  3/4/ 2/
1 to set the aperture value and
the shutter speed.
2 Press the shutter button halfway.
 The manual exposure assistance  A
appears for about 10...

Advanced

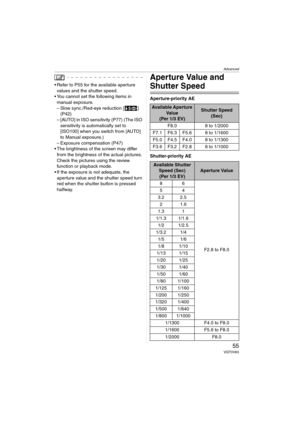

55VQT0V63
 Refer to P55 for the available aperture
values and the shutter speed.
 You cannot set the following items in
manual exposure.
– Slow sync./Red-eye reduction [ ]
(P42)
– [AUTO] in ISO sensitivity (P77) (The ISO
sensitivity is automatically set to
[ISO100] when you switch from [AUTO]
to Manual exposure.)
– Exposure compensation (P47)
 The brightness of the screen may differ
from the brightness of the actual pictures.
Check the pictures using the review
function or playback...

Advanced

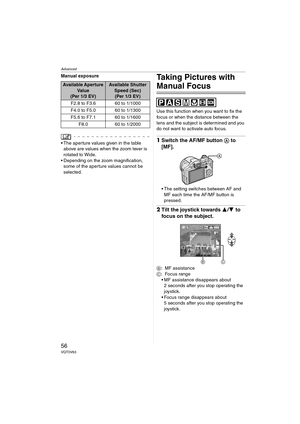

56VQT0V63
Manual exposure
 The aperture values given in the table
above are values when the zoom lever is
rotated to Wide.
 Depending on the zoom magnification,
some of the aperture values cannot be
selected.
Taking Pictures with
Manual Focus
Use this function when you want to fix the
focus or when the distance between the
lens and the subject is determined and you
do not want to activate auto focus.
1Switch the AF/MF button A to
[MF].
 The setting switches between AF and
MF each...

Advanced

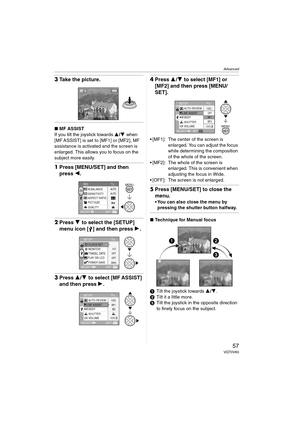

57VQT0V63
3Take the picture.
∫MF ASSIST
If you tilt the joystick towards 3/4 when
[MF ASSIST] is set to [MF1] or [MF2], MF
assistance is activated and the screen is
enlarged. This allows you to focus on the
subject more easily.
1Press [MENU/SET] and then
press 2.
2Press 4 to select the [SETUP]
menu icon [ ] and then press 1.
3Press 3/4 to select [MF ASSIST]
and then press 1.
4Press 3/4 to select [MF1] or
[MF2] and then press [MENU/
SET].
 [MF1]:  The center of the screen is
enlarged....

Advanced

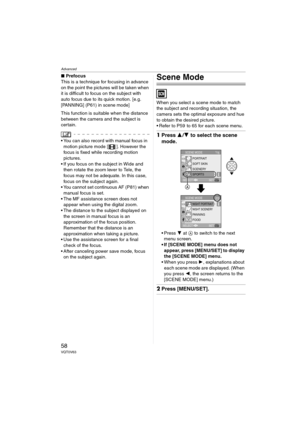

58VQT0V63
∫Prefocus
This is a technique for focusing in advance
on the point the pictures will be taken when
it is difficult to focus on the subject with
auto focus due to its quick motion. [e.g.
[PANNING] (P61) in scene mode]
This function is suitable when the distance
between the camera and the subject is
certain.
 You can also record with manual focus in
motion picture mode [ ]. However the
focus is fixed while recording motion
pictures.
 If you focus on the subject in Wide and...

Advanced

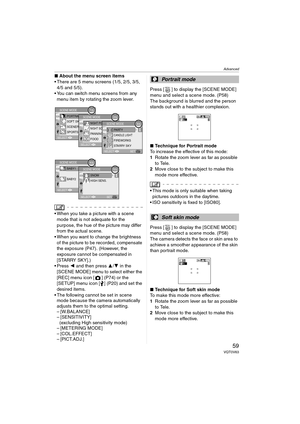

59VQT0V63
∫About the menu screen items
 There are 5 menu screens (1/5, 2/5, 3/5,  4/5 and 5/5).
 You can switch menu screens from any
menu item by rotating the zoom lever.
 When you take a picture with a scene mode that is not adequate for the
purpose, the hue of the picture may differ
from the actual scene.
 When you want to change the brightness  of the picture to be recorded, compensate
the exposure (P47). (However, the
exposure cannot be compensated in
[STARRY SKY].)
 Press  2 and...

Advanced

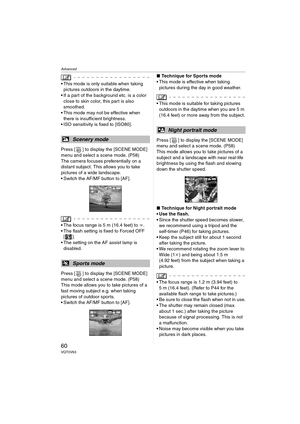

60VQT0V63
 This mode is only suitable when taking
pictures outdoors in the daytime.
 If a part of the background etc. is a color
close to skin color, this part is also
smoothed.
 This mode may not be effective when
there is insufficient brightness.
 ISO sensitivity is fixed to [ISO80].
Press [ ] to display the [SCENE MODE]
menu and select a scene mode. (P58)
The camera focuses preferentially on a
distant subject. This allows you to take
pictures of a wide landscape.
 Switch the AF/MF...
