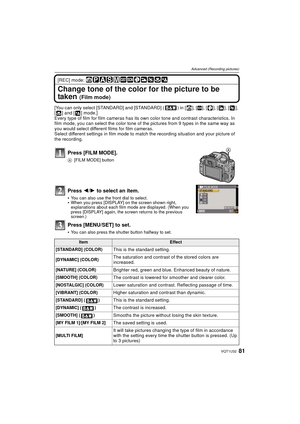

Page 81
![Page 81
81VQT1U32
Advanced (Recording pictures)
[REC] mode:
Change tone of the color for the picture to be
taken
(Film mode)
[You can only select [STANDARD] and [STANDARD] ( ) in [ ], [¿], [ ], [ ], [ ],
[ ] and [ ] mode.]
Every type of film for film cameras has its own color tone and contrast characteristics. In
film mode, you can select the color tone of the pictures from 9 types in the same way as
you would select different films for film cameras.
Select different settings in film mode to match the...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-80.png "Page 81
81VQT1U32
Advanced (Recording pictures)
[REC] mode:
Change tone of the color for the picture to be
taken
(Film mode)
[You can only select [STANDARD] and [STANDARD] ( ) in [ ], [¿], [ ], [ ], [ ],
[ ] and [ ] mode.]
Every type of film for film cameras has its own color tone and contrast characteristics. In
film mode, you can select the color tone of the pictures from 9 types in the same way as
you would select different films for film cameras.
Select different settings in film mode to match the...")
81VQT1U32 Advanced (Recording pictures) [REC] mode: Change tone of the color for the picture to be taken (Film mode) [You can only select [STANDARD] and [STANDARD] ( ) in [ ], [¿], [ ], [ ], [ ], [ ] and [ ] mode.] Every type of film for film cameras has its own color tone and contrast characteristics. In film mode, you can select the color tone of the pictures from 9 types in the same way as you would select different films for film cameras. Select different settings in film mode to match the...

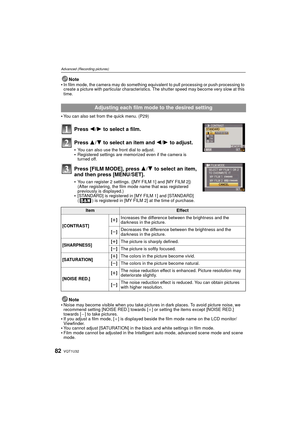

Page 82
![Page 82
VQT1U3282
Advanced (Recording pictures)
Note
In film mode, the camera may do something equivalent to pull processing or push processing to
create a picture with particular characteristics. The shutter speed may become very slow at this
time.
You can also set from the quick menu. (P29)
Press 2/ 1 to select a film.
Press 3/ 4 to select an item and 2/1 to adjust.
You can also use the front dial to adjust.Registered settings are memorized even if the camera is
turned off.
Press [FILM MODE], press 3/4 to...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-81.png "Page 82
VQT1U3282
Advanced (Recording pictures)
Note
In film mode, the camera may do something equivalent to pull processing or push processing to
create a picture with particular characteristics. The shutter speed may become very slow at this
time.
You can also set from the quick menu. (P29)
Press 2/ 1 to select a film.
Press 3/ 4 to select an item and 2/1 to adjust.
You can also use the front dial to adjust.Registered settings are memorized even if the camera is
turned off.
Press [FILM MODE], press 3/4 to...")
VQT1U3282 Advanced (Recording pictures) Note In film mode, the camera may do something equivalent to pull processing or push processing to create a picture with particular characteristics. The shutter speed may become very slow at this time. You can also set from the quick menu. (P29) Press 2/ 1 to select a film. Press 3/ 4 to select an item and 2/1 to adjust. You can also use the front dial to adjust.Registered settings are memorized even if the camera is turned off. Press [FILM MODE], press 3/4 to...

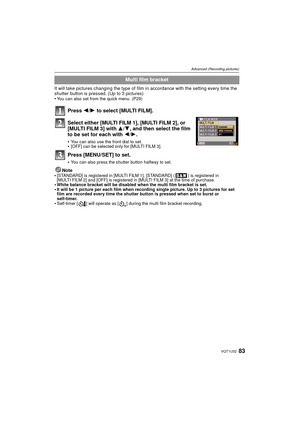

Page 83
![Page 83
83VQT1U32
Advanced (Recording pictures)
It will take pictures changing the type of film in accordance with the setting every time the
shutter button is pressed. (Up to 3 pictures)
You can also set from the quick menu. (P29)
Press 2/1 to select [MULTI FILM].
Select either [MULTI FILM 1], [MULTI FILM 2], or
[MULTI FILM 3] with 3/4, and then select the film
to be set for each with 2/1.
You can also use the front dial to set.[OFF] can be selected only for [MULTI FILM 3].
Press [MENU/SET] to set.
You...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-82.png "Page 83
83VQT1U32
Advanced (Recording pictures)
It will take pictures changing the type of film in accordance with the setting every time the
shutter button is pressed. (Up to 3 pictures)
You can also set from the quick menu. (P29)
Press 2/1 to select [MULTI FILM].
Select either [MULTI FILM 1], [MULTI FILM 2], or
[MULTI FILM 3] with 3/4, and then select the film
to be set for each with 2/1.
You can also use the front dial to set.[OFF] can be selected only for [MULTI FILM 3].
Press [MENU/SET] to set.
You...")
83VQT1U32 Advanced (Recording pictures) It will take pictures changing the type of film in accordance with the setting every time the shutter button is pressed. (Up to 3 pictures) You can also set from the quick menu. (P29) Press 2/1 to select [MULTI FILM]. Select either [MULTI FILM 1], [MULTI FILM 2], or [MULTI FILM 3] with 3/4, and then select the film to be set for each with 2/1. You can also use the front dial to set.[OFF] can be selected only for [MULTI FILM 3]. Press [MENU/SET] to set. You...

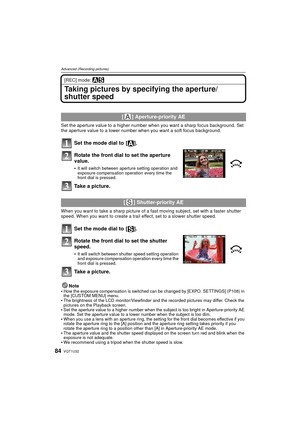

Page 84
![Page 84
VQT1U3284
Advanced (Recording pictures)
[REC] mode: ±´
Taking pictures by specifying the aperture/
shutter speed
Set the aperture value to a higher number when you want a sharp focus background. Set
the aperture value to a lower number when you want a soft focus background.
Set the mode dial to [ ].
Rotate the front dial to set the aperture
value.
It will switch between aperture setting operation and
exposure compensation operation every time the
front dial is pressed.
Take a picture.
When you want...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-83.png "Page 84
VQT1U3284
Advanced (Recording pictures)
[REC] mode: ±´
Taking pictures by specifying the aperture/
shutter speed
Set the aperture value to a higher number when you want a sharp focus background. Set
the aperture value to a lower number when you want a soft focus background.
Set the mode dial to [ ].
Rotate the front dial to set the aperture
value.
It will switch between aperture setting operation and
exposure compensation operation every time the
front dial is pressed.
Take a picture.
When you want...")
VQT1U3284 Advanced (Recording pictures) [REC] mode: ±´ Taking pictures by specifying the aperture/ shutter speed Set the aperture value to a higher number when you want a sharp focus background. Set the aperture value to a lower number when you want a soft focus background. Set the mode dial to [ ]. Rotate the front dial to set the aperture value. It will switch between aperture setting operation and exposure compensation operation every time the front dial is pressed. Take a picture. When you want...

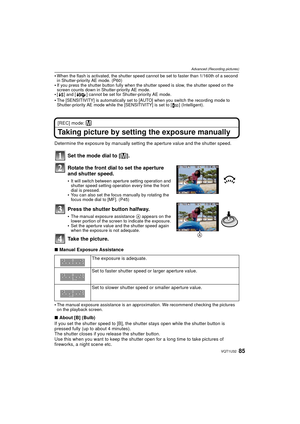

Page 85
![Page 85
85VQT1U32
Advanced (Recording pictures)
When the flash is activated, the shutter speed cannot be set to faster than 1/160th of a second
in Shutter-priority AE mode. (P60)
If you press the shutter button fully when the shutter speed is slow, the shutter speed on the
screen counts down in Shutter-priority AE mode.
[ ] and [ ] cannot be set for Shutter-priority AE mode.
The [SENSITIVITY] is automatically set to [AUTO] when you switch the recording mode to
Shutter-priority AE mode while the [SENSITIVITY]...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-84.png "Page 85
85VQT1U32
Advanced (Recording pictures)
When the flash is activated, the shutter speed cannot be set to faster than 1/160th of a second
in Shutter-priority AE mode. (P60)
If you press the shutter button fully when the shutter speed is slow, the shutter speed on the
screen counts down in Shutter-priority AE mode.
[ ] and [ ] cannot be set for Shutter-priority AE mode.
The [SENSITIVITY] is automatically set to [AUTO] when you switch the recording mode to
Shutter-priority AE mode while the [SENSITIVITY]...")
85VQT1U32 Advanced (Recording pictures) When the flash is activated, the shutter speed cannot be set to faster than 1/160th of a second in Shutter-priority AE mode. (P60) If you press the shutter button fully when the shutter speed is slow, the shutter speed on the screen counts down in Shutter-priority AE mode. [ ] and [ ] cannot be set for Shutter-priority AE mode. The [SENSITIVITY] is automatically set to [AUTO] when you switch the recording mode to Shutter-priority AE mode while the [SENSITIVITY]...

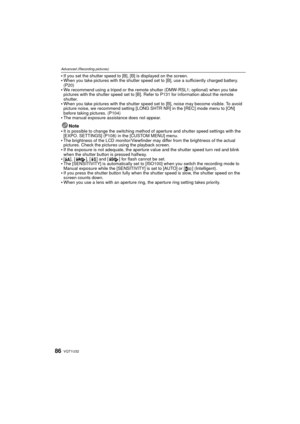

Page 86
![Page 86
VQT1U3286
Advanced (Recording pictures)
If you set the shutter speed to [B], [B] is displayed on the screen. When you take pictures with the shutter speed set to [B], use a sufficiently charged battery.
(P20)
We recommend using a tripod or the remote shutter (DMW-RSL1; optional) when you take
pictures with the shutter speed set to [B]. Refer to P131 for information about the remote
shutter.
When you take pictures with the shutter speed set to [B], noise may become visible. To avoid
picture noise, we...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-85.png "Page 86
VQT1U3286
Advanced (Recording pictures)
If you set the shutter speed to [B], [B] is displayed on the screen. When you take pictures with the shutter speed set to [B], use a sufficiently charged battery.
(P20)
We recommend using a tripod or the remote shutter (DMW-RSL1; optional) when you take
pictures with the shutter speed set to [B]. Refer to P131 for information about the remote
shutter.
When you take pictures with the shutter speed set to [B], noise may become visible. To avoid
picture noise, we...")
VQT1U3286 Advanced (Recording pictures) If you set the shutter speed to [B], [B] is displayed on the screen. When you take pictures with the shutter speed set to [B], use a sufficiently charged battery. (P20) We recommend using a tripod or the remote shutter (DMW-RSL1; optional) when you take pictures with the shutter speed set to [B]. Refer to P131 for information about the remote shutter. When you take pictures with the shutter speed set to [B], noise may become visible. To avoid picture noise, we...

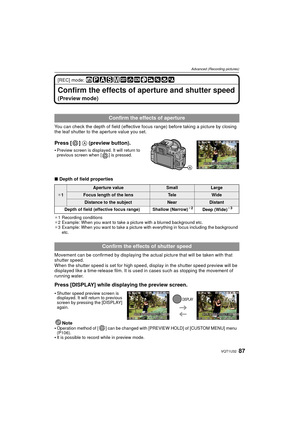

Page 87
![Page 87
87VQT1U32
Advanced (Recording pictures)
[REC] mode:
Confirm the effects of aperture and shutter speed
(Preview mode)
You can check the depth of field (effective focus range) before taking a picture by closing
the leaf shutter to the aperture value you set.
Press [ ] A (preview button).
Preview screen is displayed. It will return to
previous screen when [ ] is pressed.
∫Depth of field properties
¢1 Recording conditions
¢ 2 Example: When you want to take a picture with a blurred background etc.
¢ 3...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-86.png "Page 87
87VQT1U32
Advanced (Recording pictures)
[REC] mode:
Confirm the effects of aperture and shutter speed
(Preview mode)
You can check the depth of field (effective focus range) before taking a picture by closing
the leaf shutter to the aperture value you set.
Press [ ] A (preview button).
Preview screen is displayed. It will return to
previous screen when [ ] is pressed.
∫Depth of field properties
¢1 Recording conditions
¢ 2 Example: When you want to take a picture with a blurred background etc.
¢ 3...")
87VQT1U32 Advanced (Recording pictures) [REC] mode: Confirm the effects of aperture and shutter speed (Preview mode) You can check the depth of field (effective focus range) before taking a picture by closing the leaf shutter to the aperture value you set. Press [ ] A (preview button). Preview screen is displayed. It will return to previous screen when [ ] is pressed. ∫Depth of field properties ¢1 Recording conditions ¢ 2 Example: When you want to take a picture with a blurred background etc. ¢ 3...

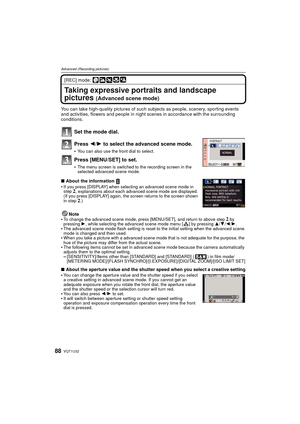

Page 88
![Page 88
VQT1U3288
Advanced (Recording pictures)
[REC] mode:
Taking expressive portraits and landscape
pictures
(Advanced scene mode)
You can take high-quality pictures of such subjects as people, scenery, sporting events
and activities, flowers and people in night scenes in accordance with the surrounding
conditions.
Set the mode dial.
Press 2/ 1 to select the advanced scene mode.
You can also use the front dial to select.
Press [MENU/SET] to set.
The menu screen is switched to the recording screen in the...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-87.png "Page 88
VQT1U3288
Advanced (Recording pictures)
[REC] mode:
Taking expressive portraits and landscape
pictures
(Advanced scene mode)
You can take high-quality pictures of such subjects as people, scenery, sporting events
and activities, flowers and people in night scenes in accordance with the surrounding
conditions.
Set the mode dial.
Press 2/ 1 to select the advanced scene mode.
You can also use the front dial to select.
Press [MENU/SET] to set.
The menu screen is switched to the recording screen in the...")
VQT1U3288 Advanced (Recording pictures) [REC] mode: Taking expressive portraits and landscape pictures (Advanced scene mode) You can take high-quality pictures of such subjects as people, scenery, sporting events and activities, flowers and people in night scenes in accordance with the surrounding conditions. Set the mode dial. Press 2/ 1 to select the advanced scene mode. You can also use the front dial to select. Press [MENU/SET] to set. The menu screen is switched to the recording screen in the...

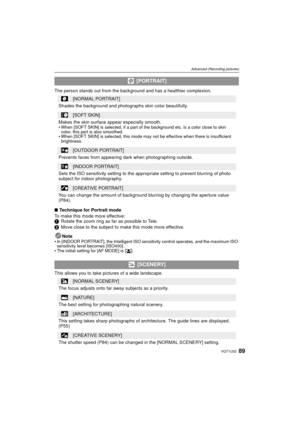

Page 89
![Page 89
89VQT1U32
Advanced (Recording pictures)
The person stands out from the background and has a healthier complexion.
∫Technique for Portrait mode
To make this mode more effective:
1 Rotate the zoom ring as far as possible to Tele.
2 Move close to the subject to make this mode more effective.
Note
In [INDOOR PORTRAIT], the Intelligent ISO sensitivity control operates, and the maximum ISO
sensitivity level becomes [ISO400].
The initial setting for [AF MODE] is [ š].
This allows you to take pi ctures of a...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-88.png "Page 89
89VQT1U32
Advanced (Recording pictures)
The person stands out from the background and has a healthier complexion.
∫Technique for Portrait mode
To make this mode more effective:
1 Rotate the zoom ring as far as possible to Tele.
2 Move close to the subject to make this mode more effective.
Note
In [INDOOR PORTRAIT], the Intelligent ISO sensitivity control operates, and the maximum ISO
sensitivity level becomes [ISO400].
The initial setting for [AF MODE] is [ š].
This allows you to take pi ctures of a...")
89VQT1U32 Advanced (Recording pictures) The person stands out from the background and has a healthier complexion. ∫Technique for Portrait mode To make this mode more effective: 1 Rotate the zoom ring as far as possible to Tele. 2 Move close to the subject to make this mode more effective. Note In [INDOOR PORTRAIT], the Intelligent ISO sensitivity control operates, and the maximum ISO sensitivity level becomes [ISO400]. The initial setting for [AF MODE] is [ š]. This allows you to take pi ctures of a...

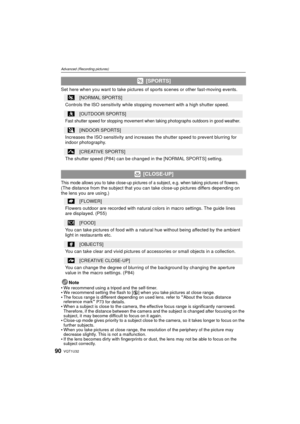

Page 90
![Page 90
VQT1U3290
Advanced (Recording pictures)
Set here when you want to take pictures of sports scenes or other fast-moving events.
This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of flowers.(The distance from the subject that you can take close-up pictures differs depending on
the lens you are using.)
Note
We recommend using a tripod and the self-timer.We recommend setting the flash to [ Œ] when you take pictures at close range.The focus range is different depending on...](http://img.usermanuals.tech/thumb/58/65512/w300_dmc-g1_en_om_d-89.png "Page 90
VQT1U3290
Advanced (Recording pictures)
Set here when you want to take pictures of sports scenes or other fast-moving events.
This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of flowers.(The distance from the subject that you can take close-up pictures differs depending on
the lens you are using.)
Note
We recommend using a tripod and the self-timer.We recommend setting the flash to [ Œ] when you take pictures at close range.The focus range is different depending on...")
VQT1U3290 Advanced (Recording pictures) Set here when you want to take pictures of sports scenes or other fast-moving events. This mode allows you to take close-up pictures of a subject, e.g. when taking pictures of flowers.(The distance from the subject that you can take close-up pictures differs depending on the lens you are using.) Note We recommend using a tripod and the self-timer.We recommend setting the flash to [ Œ] when you take pictures at close range.The focus range is different depending on...
