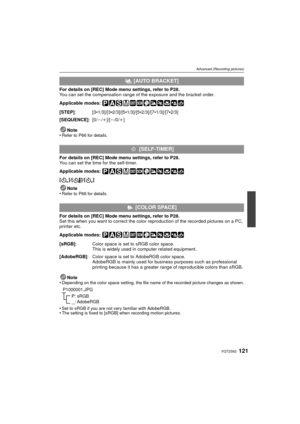

Page 121
![Page 121
121VQT2S62
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P28.
You can set the compensation range of the exposure and the bracket order.
Applicable modes: Note
•
Refer to P66 for details.
For details on [REC] Mode menu settings, refer to P28.
You can set the time for the self-timer.
Applicable modes:
[]/[ ]/[]
Note
•
Refer to P68 for details.
For details on [REC] Mode menu settings, refer to P28.
Set this when you want to correct the color reproduction of the recorded...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-120.png "Page 121
121VQT2S62
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P28.
You can set the compensation range of the exposure and the bracket order.
Applicable modes: Note
•
Refer to P66 for details.
For details on [REC] Mode menu settings, refer to P28.
You can set the time for the self-timer.
Applicable modes:
[]/[ ]/[]
Note
•
Refer to P68 for details.
For details on [REC] Mode menu settings, refer to P28.
Set this when you want to correct the color reproduction of the recorded...")
121VQT2S62 Advanced (Recording pictures) For details on [REC] Mode menu settings, refer to P28. You can set the compensation range of the exposure and the bracket order. Applicable modes: Note • Refer to P66 for details. For details on [REC] Mode menu settings, refer to P28. You can set the time for the self-timer. Applicable modes: []/[ ]/[] Note • Refer to P68 for details. For details on [REC] Mode menu settings, refer to P28. Set this when you want to correct the color reproduction of the recorded...

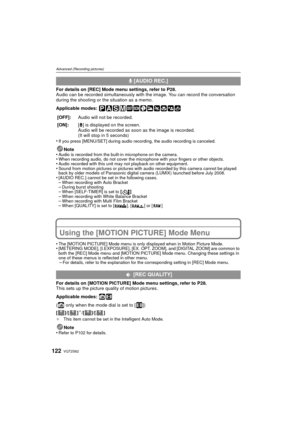

Page 122
![Page 122
VQT2S62122
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P28.
Audio can be recorded simultaneously with the image. You can record the conversation
during the shooting or the situation as a memo.
Applicable modes:
•
If you press [MENU/SET] during audio recording, the audio recording is canceled.
Note
•Audio is recorded from the built-in microphone on the camera.•When recording audio, do not cover the microphone with your fingers or other objects.•Audio recorded with...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-121.png "Page 122
VQT2S62122
Advanced (Recording pictures)
For details on [REC] Mode menu settings, refer to P28.
Audio can be recorded simultaneously with the image. You can record the conversation
during the shooting or the situation as a memo.
Applicable modes:
•
If you press [MENU/SET] during audio recording, the audio recording is canceled.
Note
•Audio is recorded from the built-in microphone on the camera.•When recording audio, do not cover the microphone with your fingers or other objects.•Audio recorded with...")
VQT2S62122 Advanced (Recording pictures) For details on [REC] Mode menu settings, refer to P28. Audio can be recorded simultaneously with the image. You can record the conversation during the shooting or the situation as a memo. Applicable modes: • If you press [MENU/SET] during audio recording, the audio recording is canceled. Note •Audio is recorded from the built-in microphone on the camera.•When recording audio, do not cover the microphone with your fingers or other objects.•Audio recorded with...

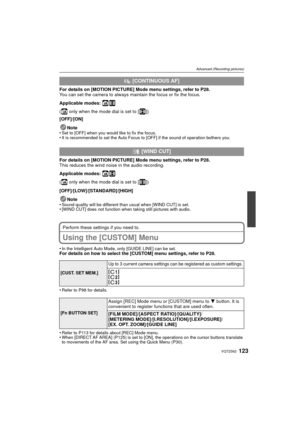

Page 123
![Page 123
123VQT2S62
Advanced (Recording pictures)
For details on [MOTION PICTURE] Mode menu settings, refer to P28.
You can set the camera to always maintain the focus or fix the focus.
Applicable modes:
( only when the mode dial is set to [ ])
[OFF]/[ON]Note
•
Set to [OFF] when you would like to fix the focus.•It is recommended to set the Auto Focus to [OFF] if the sound of operation bothers you.
For details on [MOTION PICTURE] Mode menu settings, refer to P28.
This reduces the wind noise in the audio...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-122.png "Page 123
123VQT2S62
Advanced (Recording pictures)
For details on [MOTION PICTURE] Mode menu settings, refer to P28.
You can set the camera to always maintain the focus or fix the focus.
Applicable modes:
( only when the mode dial is set to [ ])
[OFF]/[ON]Note
•
Set to [OFF] when you would like to fix the focus.•It is recommended to set the Auto Focus to [OFF] if the sound of operation bothers you.
For details on [MOTION PICTURE] Mode menu settings, refer to P28.
This reduces the wind noise in the audio...")
123VQT2S62 Advanced (Recording pictures) For details on [MOTION PICTURE] Mode menu settings, refer to P28. You can set the camera to always maintain the focus or fix the focus. Applicable modes: ( only when the mode dial is set to [ ]) [OFF]/[ON]Note • Set to [OFF] when you would like to fix the focus.•It is recommended to set the Auto Focus to [OFF] if the sound of operation bothers you. For details on [MOTION PICTURE] Mode menu settings, refer to P28. This reduces the wind noise in the audio...

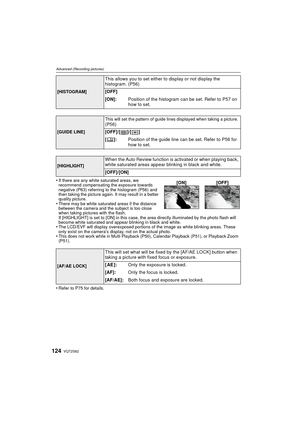

Page 124
![Page 124
VQT2S62124
Advanced (Recording pictures)
•If there are any white saturated areas, we
recommend compensating the exposure towards
negative (P63) referring to the histogram (P56) and
then taking the picture again. It may result in a better
quality picture.
•There may be white saturated areas if the distance
between the camera and the subject is too close
when taking pictures with the flash.
If [HIGHLIGHT] is set to [ON] in this case, the area directly illuminated by the photo flash will
become...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-123.png "Page 124
VQT2S62124
Advanced (Recording pictures)
•If there are any white saturated areas, we
recommend compensating the exposure towards
negative (P63) referring to the histogram (P56) and
then taking the picture again. It may result in a better
quality picture.
•There may be white saturated areas if the distance
between the camera and the subject is too close
when taking pictures with the flash.
If [HIGHLIGHT] is set to [ON] in this case, the area directly illuminated by the photo flash will
become...")
VQT2S62124 Advanced (Recording pictures) •If there are any white saturated areas, we recommend compensating the exposure towards negative (P63) referring to the histogram (P56) and then taking the picture again. It may result in a better quality picture. •There may be white saturated areas if the distance between the camera and the subject is too close when taking pictures with the flash. If [HIGHLIGHT] is set to [ON] in this case, the area directly illuminated by the photo flash will become...

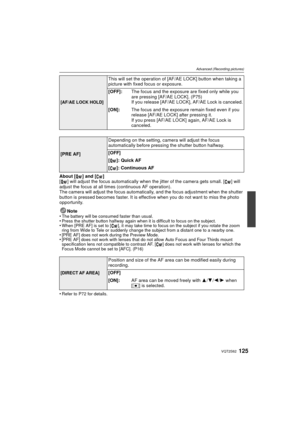

Page 125
![Page 125
125VQT2S62
Advanced (Recording pictures)
About [ ] and [ ]
[ ] will adjust the focus automatically when the jitter of the camera gets small. [ ] will
adjust the focus at all times (continuous AF operation).
The camera will adjust the focus automatically, and the focus adjustment when the shutter
button is pressed becomes faster. It is effective when you do not want to miss the photo
opportunity.Note
•
The battery will be consumed faster than usual.•Press the shutter button halfway again when it is...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-124.png "Page 125
125VQT2S62
Advanced (Recording pictures)
About [ ] and [ ]
[ ] will adjust the focus automatically when the jitter of the camera gets small. [ ] will
adjust the focus at all times (continuous AF operation).
The camera will adjust the focus automatically, and the focus adjustment when the shutter
button is pressed becomes faster. It is effective when you do not want to miss the photo
opportunity.Note
•
The battery will be consumed faster than usual.•Press the shutter button halfway again when it is...")
125VQT2S62 Advanced (Recording pictures) About [ ] and [ ] [ ] will adjust the focus automatically when the jitter of the camera gets small. [ ] will adjust the focus at all times (continuous AF operation). The camera will adjust the focus automatically, and the focus adjustment when the shutter button is pressed becomes faster. It is effective when you do not want to miss the photo opportunity.Note • The battery will be consumed faster than usual.•Press the shutter button halfway again when it is...

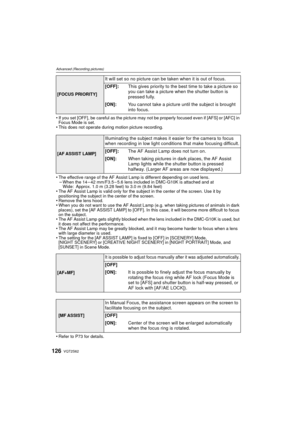

Page 126
![Page 126
VQT2S62126
Advanced (Recording pictures)
•If you set [OFF], be careful as the picture may not be properly focused even if [AFS] or [AFC] in
Focus Mode is set.
•This does not operate during motion picture recording.
•The effective range of the AF Assist Lamp is different depending on used lens.–When the 14 – 42 mm/F3.5 – 5.6 lens included in DMC-G10K is attached and at
Wide: Approx. 1.0 m (3.28 feet) to 3.0 m (9.84 feet)
•The AF Assist Lamp is valid only for the subject in the center of the screen. Use...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-125.png "Page 126
VQT2S62126
Advanced (Recording pictures)
•If you set [OFF], be careful as the picture may not be properly focused even if [AFS] or [AFC] in
Focus Mode is set.
•This does not operate during motion picture recording.
•The effective range of the AF Assist Lamp is different depending on used lens.–When the 14 – 42 mm/F3.5 – 5.6 lens included in DMC-G10K is attached and at
Wide: Approx. 1.0 m (3.28 feet) to 3.0 m (9.84 feet)
•The AF Assist Lamp is valid only for the subject in the center of the screen. Use...")
VQT2S62126 Advanced (Recording pictures) •If you set [OFF], be careful as the picture may not be properly focused even if [AFS] or [AFC] in Focus Mode is set. •This does not operate during motion picture recording. •The effective range of the AF Assist Lamp is different depending on used lens.–When the 14 – 42 mm/F3.5 – 5.6 lens included in DMC-G10K is attached and at Wide: Approx. 1.0 m (3.28 feet) to 3.0 m (9.84 feet) •The AF Assist Lamp is valid only for the subject in the center of the screen. Use...

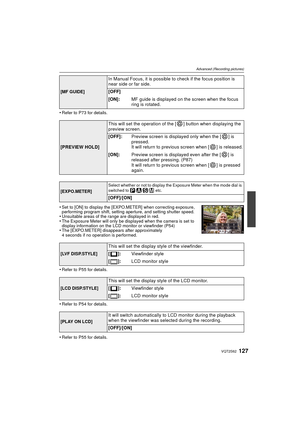

Page 127
![Page 127
127VQT2S62
Advanced (Recording pictures)
•Refer to P73 for details.
•Set to [ON] to display the [EXPO.METER] when correcting exposure,
performing program shift, setting aperture, and setting shutter speed.
•Unsuitable areas of the range are displayed in red.•The Exposure Meter will only be displayed when the camera is set to
display information on the LCD monitor or viewfinder (P54)
•The [EXPO.METER] disappears after approximately
4 seconds if no operation is performed.
•Refer to P55 for details....](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-126.png "Page 127
127VQT2S62
Advanced (Recording pictures)
•Refer to P73 for details.
•Set to [ON] to display the [EXPO.METER] when correcting exposure,
performing program shift, setting aperture, and setting shutter speed.
•Unsuitable areas of the range are displayed in red.•The Exposure Meter will only be displayed when the camera is set to
display information on the LCD monitor or viewfinder (P54)
•The [EXPO.METER] disappears after approximately
4 seconds if no operation is performed.
•Refer to P55 for details....")
127VQT2S62 Advanced (Recording pictures) •Refer to P73 for details. •Set to [ON] to display the [EXPO.METER] when correcting exposure, performing program shift, setting aperture, and setting shutter speed. •Unsuitable areas of the range are displayed in red.•The Exposure Meter will only be displayed when the camera is set to display information on the LCD monitor or viewfinder (P54) •The [EXPO.METER] disappears after approximately 4 seconds if no operation is performed. •Refer to P55 for details....

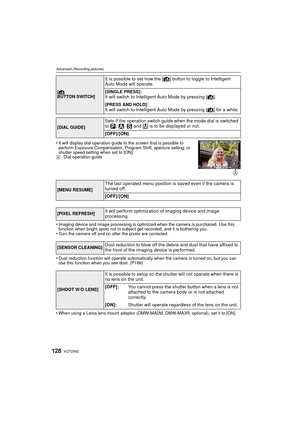

Page 128
![Page 128
VQT2S62128
Advanced (Recording pictures)
•It will display dial operation guide to the screen that is possible to
perform Exposure Compensation, Program Shift, aperture setting, or
shutter speed setting when set to [ON].
A Dial operation guide
•Imaging device and image processing is optimized when the camera is purchased. Use this
function when bright spots not in subject get recorded, and it is bothering you.
•Turn the camera off and on after the pixels are corrected.
•Dust reduction function will...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-127.png "Page 128
VQT2S62128
Advanced (Recording pictures)
•It will display dial operation guide to the screen that is possible to
perform Exposure Compensation, Program Shift, aperture setting, or
shutter speed setting when set to [ON].
A Dial operation guide
•Imaging device and image processing is optimized when the camera is purchased. Use this
function when bright spots not in subject get recorded, and it is bothering you.
•Turn the camera off and on after the pixels are corrected.
•Dust reduction function will...")
VQT2S62128 Advanced (Recording pictures) •It will display dial operation guide to the screen that is possible to perform Exposure Compensation, Program Shift, aperture setting, or shutter speed setting when set to [ON]. A Dial operation guide •Imaging device and image processing is optimized when the camera is purchased. Use this function when bright spots not in subject get recorded, and it is bothering you. •Turn the camera off and on after the pixels are corrected. •Dust reduction function will...

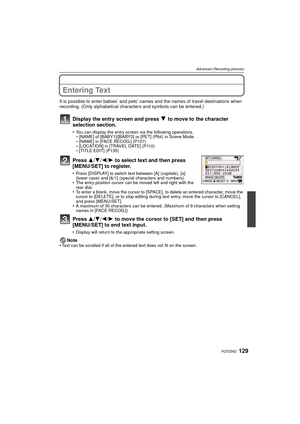

Page 129
![Page 129
129VQT2S62
Advanced (Recording pictures)
Entering Text
It is possible to enter babies’ and pets’ names and the names of travel destinations when
recording. (Only alphabetical characters and symbols can be entered.)
Display the entry screen and press 4 to move to the character
selection section.
•You can display the entry screen via the following operations.–[NAME] of [BABY1]/[BABY2] or [PET] (P94) in Scene Mode.–[NAME] in [FACE RECOG.] (P107)–[LOCATION] in [TRAVEL DATE] (P110)–[TITLE EDIT] (P135)
Press...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-128.png "Page 129
129VQT2S62
Advanced (Recording pictures)
Entering Text
It is possible to enter babies’ and pets’ names and the names of travel destinations when
recording. (Only alphabetical characters and symbols can be entered.)
Display the entry screen and press 4 to move to the character
selection section.
•You can display the entry screen via the following operations.–[NAME] of [BABY1]/[BABY2] or [PET] (P94) in Scene Mode.–[NAME] in [FACE RECOG.] (P107)–[LOCATION] in [TRAVEL DATE] (P110)–[TITLE EDIT] (P135)
Press...")
129VQT2S62 Advanced (Recording pictures) Entering Text It is possible to enter babies’ and pets’ names and the names of travel destinations when recording. (Only alphabetical characters and symbols can be entered.) Display the entry screen and press 4 to move to the character selection section. •You can display the entry screen via the following operations.–[NAME] of [BABY1]/[BABY2] or [PET] (P94) in Scene Mode.–[NAME] in [FACE RECOG.] (P107)–[LOCATION] in [TRAVEL DATE] (P110)–[TITLE EDIT] (P135) Press...

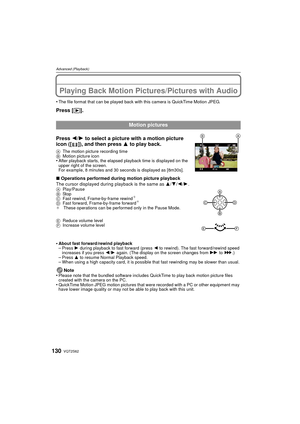

Page 130
![Page 130
VQT2S62130
Advanced (Playback)
Advanced (Playback)Playing Back Motion Pictures/Pictures with Audio
•The file format that can be played back with this camera is QuickTime Motion JPEG.
Press [(].
Press 2/ 1 to select a picture with a motion picture
icon ([ ]), and then press 3 to play back.
A The motion picture recording time
B Motion picture icon
•After playback starts, the elapsed playback time is displayed on the
upper right of the screen.
For example, 8 minutes and 30 seconds is displayed as...](http://img.usermanuals.tech/thumb/58/65511/w300_dmc-g10k_en_om_d-129.png "Page 130
VQT2S62130
Advanced (Playback)
Advanced (Playback)Playing Back Motion Pictures/Pictures with Audio
•The file format that can be played back with this camera is QuickTime Motion JPEG.
Press [(].
Press 2/ 1 to select a picture with a motion picture
icon ([ ]), and then press 3 to play back.
A The motion picture recording time
B Motion picture icon
•After playback starts, the elapsed playback time is displayed on the
upper right of the screen.
For example, 8 minutes and 30 seconds is displayed as...")
VQT2S62130 Advanced (Playback) Advanced (Playback)Playing Back Motion Pictures/Pictures with Audio •The file format that can be played back with this camera is QuickTime Motion JPEG. Press [(]. Press 2/ 1 to select a picture with a motion picture icon ([ ]), and then press 3 to play back. A The motion picture recording time B Motion picture icon •After playback starts, the elapsed playback time is displayed on the upper right of the screen. For example, 8 minutes and 30 seconds is displayed as...
