Panasonic Dmc G10k Operating Instructions Manual

81VQT2S62

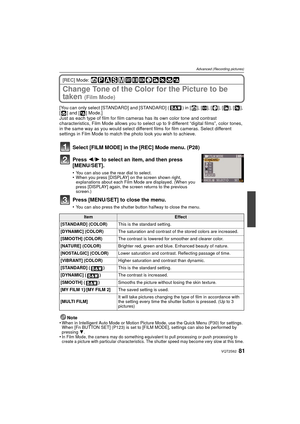

Advanced (Recording pictures)
[REC] Mode:
Change Tone of the Color for the Picture to be
taken
(Film Mode)
[You can only select [STANDARD] and [STANDARD] ( ) in [ ], [¿], [ ], [ ], [ ],
[ ] and [ ] Mode.]
Just as each type of film for film cameras has its own color tone and contrast
characteristics, Film Mode allows you to select up to 9 different “digital films”, color tones,
in the same way as you would select different films for film cameras. Select different
settings in Film Mode to...

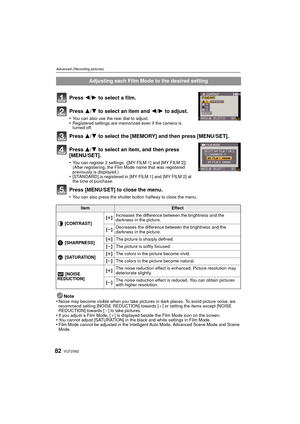

VQT2S6282
Advanced (Recording pictures)
Press 2/1 to select a film.
Press 3/ 4 to select an item and  2/1 to adjust.
•You can also use the rear dial to adjust.•Registered settings are memorized even if the camera is
turned off.
Press 3/ 4 to select the [MEMORY] and then press [MENU/SET].
Press 3/ 4 to select an item, and then press
[MENU/SET].
•You can register 2 settings. ([MY FILM 1] and [MY FILM 2])
(After registering, the Film Mode name that was registered
previously is displayed.)
•[STANDARD] is...

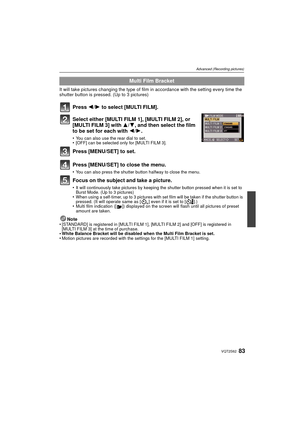

83VQT2S62
Advanced (Recording pictures)
It will take pictures changing the type of film in accordance with the setting every time the
shutter button is pressed. (Up to 3 pictures)
Press 2/1 to select [MULTI FILM].
Select either [MULTI FILM 1], [MULTI FILM 2], or
[MULTI FILM 3] with  3/4, and then select the film
to be set for each with  2/1.
•You can also use the rear dial to set.•[OFF] can be selected only for [MULTI FILM 3].
Press [MENU/SET] to set.
Press [MENU/SET] to close the menu.
•You can also...

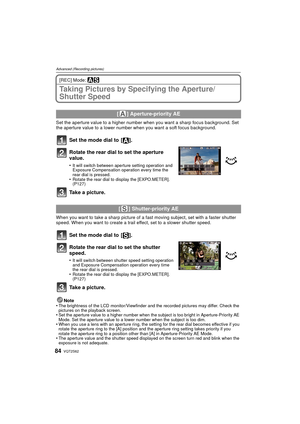

VQT2S6284
Advanced (Recording pictures)
[REC] Mode: ±´
Taking Pictures by Specifying the Aperture/
Shutter Speed
Set the aperture value to a higher number when you want a sharp focus background. Set
the aperture value to a lower number when you want a soft focus background.
Set the mode dial to  [ ].
Rotate the rear dial to set the aperture
value.
•It will switch between aperture setting operation and
Exposure Compensation operation every time the
rear dial is pressed.
•Rotate the rear dial to...

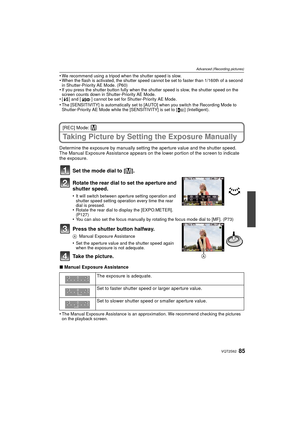

85VQT2S62
Advanced (Recording pictures)
•We recommend using a tripod when the shutter speed is slow.•When the flash is activated, the shutter speed cannot be set to faster than 1/160th of a second
in Shutter-Priority AE Mode. (P60)
•If you press the shutter button fully when the shutter speed is slow, the shutter speed on the
screen counts down in Shutter-Priority AE Mode.
•[ ] and [ ] cannot be set for Shutter-Priority AE Mode.•The [SENSITIVITY] is automatically set to [AUTO] when you switch the...

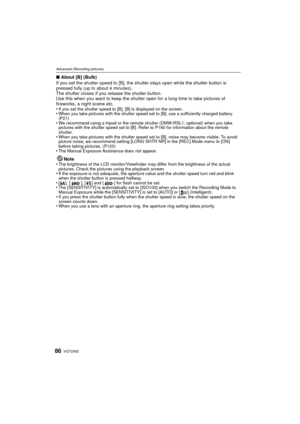

VQT2S6286
Advanced (Recording pictures)
∫About [B] (Bulb)
If you set the shutter speed to [B], the shutter stays open while the shutter button is
pressed fully (up to about 4 minutes).
The shutter closes if you release the shutter button.
Use this when you want to keep the shutter open for a long time to take pictures of
fireworks, a night scene etc.
•
If you set the shutter speed to [B], [B] is displayed on the screen.•When you take pictures with the shutter speed set to [B], use a sufficiently...

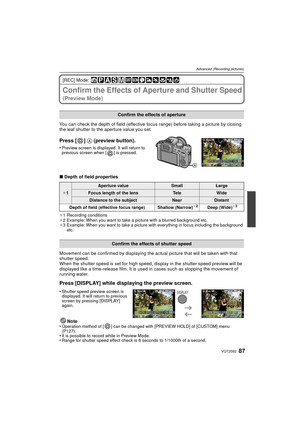

87VQT2S62
Advanced (Recording pictures)
[REC] Mode:
Confirm the Effects of Aperture and Shutter Speed
(Preview Mode)
You can check the depth of field (effective focus range) before taking a picture by closing
the leaf shutter to the aperture value you set.
Press [ ] A (preview button).
•Preview screen is displayed. It will return to
previous screen when [ ] is pressed.
∫Depth of field properties
¢1 Recording conditions
¢ 2 Example: When you want to take a picture with a blurred background etc.
¢ 3...

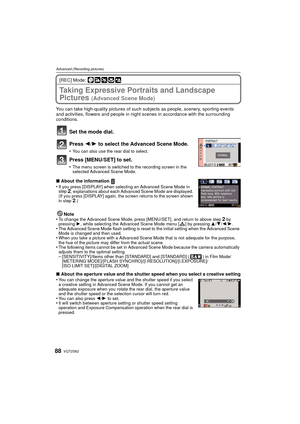

VQT2S6288
Advanced (Recording pictures)
[REC] Mode:
Taking Expressive Portraits and Landscape
Pictures
(Advanced Scene Mode)
You can take high-quality pictures of such subjects as people, scenery, sporting events
and activities, flowers and people in night scenes in accordance with the surrounding
conditions.
Set the mode dial.
Press 2/1 to select the Advanced Scene Mode.
•You can also use the rear dial to select.
Press [MENU/SET] to set.
•The menu screen is switched to the recording screen in the...

89VQT2S62

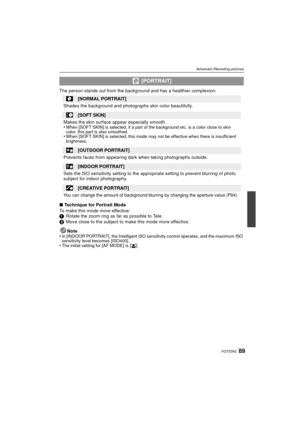

Advanced (Recording pictures)
The person stands out from the background and has a healthier complexion.
∫ Technique for Portrait Mode
To make this mode more effective:
1 Rotate the zoom ring as far as possible to Tele.
2 Move close to the subject to make this mode more effective.
Note
•
In [INDOOR PORTRAIT], the Intelligent ISO sensitivity control operates, and the maximum ISO
sensitivity level becomes [ISO400].
•The initial setting for [AF MODE] is [ š].
 [PORTRAIT]
[NORMAL PORTRAIT]
Shades...

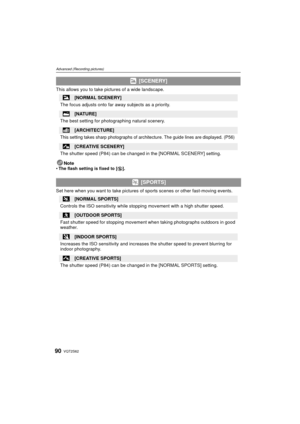

VQT2S6290
Advanced (Recording pictures)
This allows you to take pictures of a wide landscape.Note
•
The flash setting is fixed to [ Œ].
Set here when you want to take pictures of  sports scenes or other fast-moving events.
 [SCENERY]
[NORMAL SCENERY]
The focus adjusts onto far away subjects as a priority.
[NATURE]
The best setting for photographing natural scenery.
[ARCHITECTURE]
This setting takes sharp photographs of architecture. The guide lines are displayed. (P56)
[CREATIVE SCENERY]
The shutter...
