12. Connecting to other equipment
Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to
be printed out and instruct that printing be started on the camera’s monitor.
•
Group pictures will not be displayed as group pictures but as s ingle pictures.•Some printers can print directly from the card removed from the  camera. For details, refer to
the operating instructions of your printer.
Preparations:
Turn on the camera and the printer....

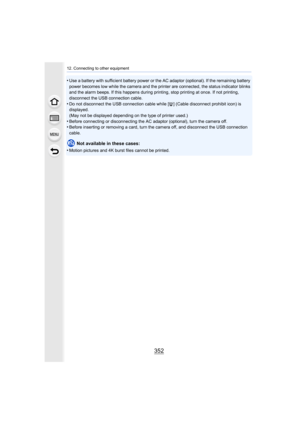

12. Connecting to other equipment
352
•Use a battery with sufficient battery power or the AC adaptor (optional). If the remaining battery
power becomes low while the camera and the printer are connecte d, the status indicator blinks
and the alarm beeps. If this happens during printing, stop prin ting at once. If not printing,
disconnect the USB connection cable.
•Do not disconnect the USB connection cable while [ å] (Cable disconnect prohibit icon) is
displayed.
(May not be displayed depending on the...

353
12. Connecting to other equipment
1Press 3.2Press  3/4  to select an item and then press [MENU/SET].
3Press  3 to select [Print start] and then press [MENU/SET].
•If the print check screen has appeared, select [Yes], and print  the pictures.•Refer to P354 for the items which can be set before starting to print the pi ctures.•Disconnect the USB connection cable after printing.
Selecting a single picture and printing it
1Press 2/1  to select the picture and then press
[MENU/SET].
2Press  3 to select...

12. Connecting to other equipment
354
Select and set the items both on the screen in step 2 of the “Selecting a single
picture and printing it” and in step 3 of the “Selecting multiple pictures and printing
them” procedures.
•
When you want to print pictures on a paper size or a layout whi ch is not supported by the
camera, set [Paper Size] or [Page Layout] to [ {] and then set the paper size or the layout on
the printer.
(For details, refer to the operating instructions of the printe r. )
•When...

355
12. Connecting to other equipment
∫[Paper Size]
•
Paper sizes not supported by the printer will not be displayed.
∫ [Page Layout] (Layouts for printing that can be set with this unit)
•
An item cannot be selected if the printer does not support the  page layout.
{Settings on the printer are prioritized.
[L/3.5qk5q]89 mmk127 mm
[2L/5 qk7q] 127 mm k178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk 6q] 101.6 mm k152.4 mm
[8 qk10...

12. Connecting to other equipment
356
∫Layout printing
When printing a picture several times on 1 sheet of paper.
For example, if you want to print the same picture 4 times on 1 sheet of paper, set [Page
Layout] to [ ä] and then set [Num.of prints] to 4 for the picture that you want to print.
When printing different pictures on 1 sheet of paper.
For example, if you want to print 4 different pictures on 1 shee t of paper, set [Page Layout]
to [ ä ] and then set [Num.of prints] to 1 for each of the 4...

357
12. Connecting to other equipment
Enjoying 3D pictures
Attaching the 3D interchangeable lens (H-FT012: optional) to the camera allows you to
take 3D pictures for extra impact.
To view 3D pictures, a television that supports 3D is required.
1Attach the 3D interchangeable lens to the camera.
2Bring the subject into the frame and record by pressing the shu tter
button fully.
•Focusing is not required when recording 3D pictures.•Still pictures recorded with the 3D interchangeable lens attach ed are...

12. Connecting to other equipment
358
Connecting the camera to a 3D compatible television and playing back pictures taken in
3D allows you to enjoy 3D pictures for extra impact.
It is also possible to play back the recorded 3D pictures by in serting an SD card into the
3D compatible television with an SD card slot.
Connect the unit to a 3D compatible television using the HDMI m icro cable
and display the playback screen.  (P341)
•When [VIERA Link] is set to [ON] and the camera is connected to  a TV...

359
12. Connecting to other equipment
∫Functions that cannot be used during 3D recording
When recording with the 3D interchangeable lens (H-FT012: optional), the following
feature will be disabled:
(Recording functions)
•
[Glistening Water]/[Glittering Illuminations]/[Handheld Night S hot] (Scene Guide Mode)•[Rough Monochrome]/[Impressive Art]/[High Dynamic]/[Toy Effect] /[Toy Pop]/[Star Filter]/[One
Point Color]/[Sunshine] (Creative Control Mode)
•Defocus control function
¢ 1 The motion picture...

360
13. Others
Optional accessories
•Some optional accessories may not be available in some countrie s.
After attaching the flash (DMW-FL360L, DMW-FL580L: optional), t he
effective range will be increased when compared to the camera’s  built
in flash.
Preparations:
•
Turn off the camera and close the built-in flash.
•To change the settings for external flashes on the camera, refe r to P233 .•Refer to  P238 about the settings for the wireless flash.
External Flash (optional)
Removing the Hot Shoe Cover...
