331
11. Using the Wi-Fi function
•Check the wireless access points instruction manual and settings when saving a wireless
access point.
•If no connection can be established, the wireless access point’ s radio waves may be too weak.
Refer to “Message Display”  (P372)  and “Troubleshooting” (P387)  for details.
•Depending on your environment, transmission speed between the camera and wireless access
point may decrease. In addition, the wireless access point may not be available for use.
You can select...

11. Using the Wi-Fi function
332
When the Wi-Fi function is used, a record is saved in the history. You can register records
as favorites.
Using the history or favorit es list, you can easily connect wit h the same settings as used
previously.
Check to see if the Wi-Fi settings of the device to connect to  are the same as used
previously.
•
If the settings of the device to connect to have been changed,  it may not be possible to connect
to the device.
1Select the menu. (P63)
2Select [Select a...

333
11. Using the Wi-Fi function
1Select the menu. (P63)
2Select the favorite history you want to edit, and then press  1.3Select the item.
•
Performing [Reset Wi-Fi Settings] clears the history and the co ntents saved in [Select a
destination from Favorite].
•When connecting to a network to which many PCs are connected by  using [Select a destination
from History] or [Select a destination from Favorite], a connection attempt may fail because the
previously-conn ected device will be identified from...

11. Using the Wi-Fi function
334
About settings for sending images
When sending images, select the method for sending them after selecting [New
Connection].
After the connection has been completed, settings for sending,  such as the image size for
sending, can also be changed.
∫ Images that can be sent
¢1 Sending by [Send Images While Recording] is not available.
¢ 2 A motion picture recorded in [AVCHD] can be sent to [PC] if th e file size is 4 GB or smaller. It
cannot be sent if the size is greater...

335
11. Using the Wi-Fi function
A picture can be automatically sent to a specified device every time you take it.
•Since the camera gives priority to recording, sending may take longer during the recording.
•When connected with [Send Images While Recording], [ ] is
displayed on the recording screen, and [ ] is displayed while
sending a file.
•If you turn off this unit or the Wi-Fi connection before sending is
complete, unsent pictures will not be resent.
•You may not be able to delete files or use...

11. Using the Wi-Fi function
336
Pressing [DISP.] after completing a connection allows you to change the settings for
sending such as the image size for sending.
¢ 1 Only available when the destination is set to [Web service].
¢ 2 Only available when the destination is set to [PC].
¢ 3 Only available when the destination is set to [Cloud Sync. Ser vice] or [Web service].
¢ 4 Only available when the destination is set to [Cloud Sync. Ser vice].
Changing the settings for sending images
[Size]Resize the...

337
11. Using the Wi-Fi function

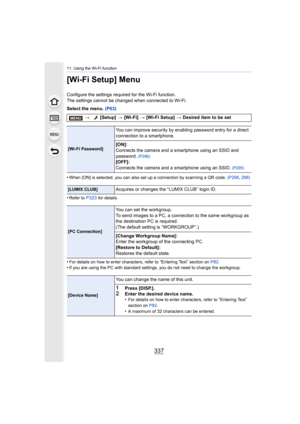

[Wi-Fi Setup] Menu
Configure the settings required for the Wi-Fi function.
The settings cannot be changed when connected to Wi-Fi.
Select the menu. (P63)
•
When [ON] is selected, you can also set up a connection by scan ning a QR code. (P296, 298)
•Refer to P323 for details.
•For details on how to enter characters, refer to “Entering Text” section on  P82.•If you are using the PC with standard settings, you do not need  to change the workgroup.
> [Setup]  > [Wi-Fi]  >...

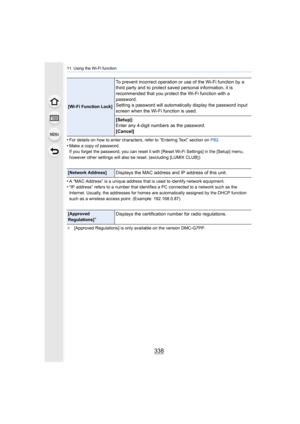

11. Using the Wi-Fi function
338
•For details on how to enter characters, refer to “Entering Text” section on P82.
•Make a copy of password.
If you forget the password, you can reset it with [Reset Wi-Fi  Settings] in the [Setup] menu,
however other settings will also be reset. (excluding [LUMIX CL UB] )
•A “MAC Address” is a unique address that is used to identify ne twork equipment.•“IP address” refers to a number that identifies a PC connected to a network such as the
Internet. Usually, the...

339
12.  Connecting to other equipment
Watching 4K motion pictures on a TV/
Saving 4K motion pictures on your PC or
recorder
∫ Playing Back on a TV Screen
By connecting the camera to a TV that supports motion pictures  in
4K and playing back motion pictures recorded with their size se t to
[4K] in [Rec Quality], you can enjoy finely-detailed motion pic tures
in 4K. Even though the output resolution will be lower, you can  also
play them back by connecting the camera to a TV that does not s upport...

12. Connecting to other equipment
340
∫Storing on a PC
You can acquire recorded pictures  to a PC by connecting the camera and the PC.
Refer to  P345 for details.
∫ Storing on a Hard Disk or DVD
You cannot dub motion pictures recorded with their size set to  [4K] in [Rec Quality] to
Blu-ray discs and DVDs with Panasonic recorders. (As of May 201 5)
With the “ PHOTOfunSTUDIO ” software on the DVD (supplied), you c an convert 4K motion
pictures into smaller sized motion pictures or copy 4K motion p...
