Panasonic Dmc G7 Owners Manual

31
2. Getting Started/Basic Operations
Inserting and Removing the Card (optional)/
the Battery
•Check that this unit is turned off.
•We recommend using a Panasonic card.
11: Slide the release lever in the direction of the arrow.
2: Open the card/battery door.
•Always use genuine Panasonic
batteries.
•If you use other batteries, we cannot
guarantee the quality of this product.
2Battery: Being careful about the
battery orientation, insert all the
way until you hear a locking
sound and then check that...

2. Getting Started/Basic Operations
32

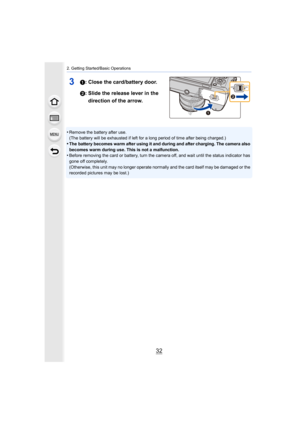

31: Close the card/battery door.
2: Slide the release lever in the direction of the arrow.
•Remove the battery after use.
(The battery will be exhausted if left for a long period of tim e after being charged.)
•The battery becomes warm after using it and during and after ch arging. The camera also
becomes warm during use. This is not a malfunction.
•Before removing the card or battery, turn the camera off, and w ait until the status indicator has
gone off...

33
2. Getting Started/Basic Operations
Access to the card
The access indication displays red when pictures are being
recorded on the card.
•
During access (image writing, reading and deleting,
formatting etc.), do not turn this unit off, remove the battery,
card or disconnect the AC adaptor (optional). Furthermore, do n ot subject the camera to
vibration, impact or static electricity.
The card or the data on the card may be damaged, and this unit  may no longer operate
normally.
If operation fails...

2. Getting Started/Basic Operations
34
∫Number of recordable pictures
•Aspect ratio [4:3], Quality [ A]
•Aspect ratio [4:3], Quality [ ]
∫Available recording time (when recording motion pictures)
•“h” is an abbreviation for hour, “m” for minute and “s” for sec ond.•The recordable time is the total time of all the motion pictures which have been recorded.
•[AVCHD]
•[MP4]
Approximate number of recordable pictures and available recordi ng
time
[Picture Size]8GB16 GB32 GB64 GB
L (16M) 890 1810 3630 7260
M...

35
2. Getting Started/Basic Operations

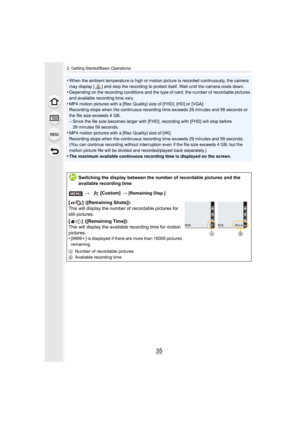

•When the ambient temperature is high or motion picture is recorded continuously, the camera
may display [ ] and stop the recording to protect itself. Wait until the camera cools down.
•Depending on the recording conditions and the type of card, the number of recordable pictures
and available recording time vary.
•MP4 motion pictures with a [Rec Quality] size of [FHD], [HD] or  [VGA]:
Recording stops when the continuous recording time exceeds 29 mi nutes and 59...

2. Getting Started/Basic Operations
36
Attaching/Removing the Lens
By changing the lens, you will increase your picture taking-options and further your
enjoyment of the camera. Change the lens using the following pr ocedure.
•
Check that the camera is turned off.•Change lenses where there is not a lot of dirt or dust. Refer t o P403  when dirt or dust gets on
the lens.
1Turn the lens rear cap A and the body cap  B in the direction of the
arrow to detach them.
•Do not put your hands inside the mount....

37
2. Getting Started/Basic Operations
•Attach the lens cap.
While pressing on the lens release button A,
rotate the lens toward the arrow until it stops and
then remove.
A Lens release button
•When the lens is removed from the camera body, make sure to att ach the body cap to the
camera body and attach the lens rear cap to the lens.
When using the interchangeable lens (H-FS1442A/
H-FS45150/H-FS14140)
Rotate the zoom ring of the lens.
A Te l e
B Wide
•If you operate the zoom after bringing the subject...

2. Getting Started/Basic Operations
38
When recording into strong backlight, irregular reflection may occur within the lens. The
lens hood reduces the inclusion of unwanted light in the recorded images and lowers the
drop in contrast. The lens hood cuts off excess lighting and improves the picture quality.
To attach the lens hood (flower shape) that came with the inter changeable lenses
(H-FS1442A/H-FS14140)
Hold the lens hood by placing your fingers as
shown in the figure.
•
Do not hold the lens...

39
2. Getting Started/Basic Operations
∫Interchangeable Lens (H-FS45150)
To attach the lens hood that came with the interchangeable lens (H-FS45150)
1Align the mark  A ( ) on the lens hood with the
mark on the tip of the lens.
2Rotate the lens hood in the direction of the
arrow until it clicks and then align the mark  B
( ) on the lens hood with the mark on the tip
of the lens.
Temporarily Storing the Lens Hood
1 Turn the lens hood in the direction of the arrow to detach it.
2 Align the mark  C ( )...

2. Getting Started/Basic Operations
40
Opening the Monitor/Adjusting the Monitor
At the time when this camera is purchased, the monitor is stowed in the camera body.
Bring out the monitor as shown below.
1 Open the monitor. (Maximum 180 o)
2 It can be rotated 180 o forward.
3 Return the monitor to its original position.
•
Only rotate the monitor after opening it wide enough, and be ca reful not to use
excessive force as it may be damaged.
∫ Free angle shooting
The monitor can be rotated to suit your...
