VQT2H86-1
Operating Instructions
Blu-ray Disc Player
Model No. DMP-BD65
DMP-BD655
DMP-BD45
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future
reference.
The illustration shows the image of DMP-BD65.
 For Canada only: The word “Participant” is used in place of the word
“Partner”.
As an ENERGY...

2VQT2H86
Getting started
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit.
Follow the safety instructions on the unit and the applicable safety
instructions listed below. Keep these operating instructions handy for
future reference.
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in...

3VQT2H86
Getting started
Connections & Settings
Playback
Settings
Reference
Table of contents
Getting started
IMPORTANT SAFETY
INSTRUCTIONS . . . . . . . . . . . . . . . .  2
Accessory . . . . . . . . . . . . . . . . . . . . .  4
Unit and media care  . . . . . . . . . . . . .  4
Control reference guide  . . . . . . . . . .  5
Playable discs/Cards/
USB devices . . . . . . . . . . . . . . . . . . .  6
Connections & Settings
STEP 1 : Connecting to a TV  . . . . . .  8
STEP 2 : Connecting to
an...

4VQT2H86
Accessory
Check the supplied accessories before using this unit.
1 Remote control
[BD65] [BD655] (N2QAKB000076)
[BD45] (N2QAKB000078)
1 Audio/Video cable
(K2KA6BA00004)
2 Batteries for remote control
1 AC power supply cord
[For[U.S.A.[and[Canada]
(K2CB2CB00022)
[For[units[with[PX[printed[on[the[outer[packaging]
(K2CQ2CA00007)
1[For[units[with[PX[printed[on[the[outer[packaging]
AC plug adaptor
(K2DAYYY00002)
1[BD655] HDMI cable
(K1HA19DA0005)
(ONLY FOR CANADA)
The enclosed Canadian French label...

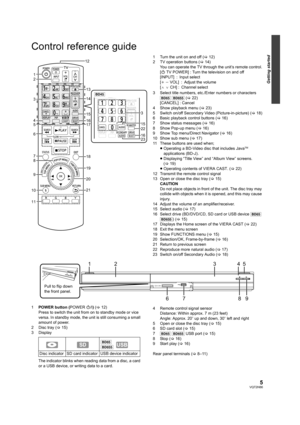

5VQT2H86
Getting started
Control reference guide
1 Turn the unit on and off (>12)
2 TV operation buttons (>14)
You can operate the TV through the unit’s remote control.
[ÍTV POWER] : Turn the television on and off
[INPUT] : Input select
[ijVOL] : Adjust the volume
[WXCH] : Channel select
3 Select title numbers, etc./Enter numbers or characters　
[BD65] [BD655] (>22)
[CANCEL] : Cancel
4 Show playback menu (>23)
5 Switch on/off Secondary Video (Picture-in-picture) (>18)
6 Basic playback control buttons...

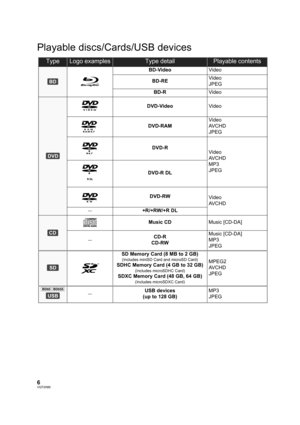

6VQT2H86
Playable discs/Cards/USB devices
TypeLogo examplesType detailPlayable contents
BD-VideoVideo
BD-REVideo
JPEG
BD-RVideo
DVD-VideoVideo
DVD-RAMVideo
AV C H D
JPEG
DVD-R
Video
AV C H D
MP3
JPEG
DVD-R DL
DVD-RW
Video
AV C H D
—+R/+RW/+R DL
Music CDMusic [CD-DA]
—CD-R
CD-RWMusic [CD-DA]
MP3
JPEG
SD Memory Card (8 MB to 2 GB)
(Includes miniSD Card and microSD Card)
SDHC Memory Card (4 GB to 32 GB)
(Includes microSDHC Card)
SDXC Memory Card (48 GB, 64 GB)
(Includes microSDXC Card)
MPEG2
AV C H D
JPEG...

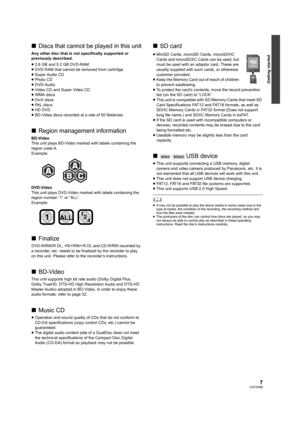

7VQT2H86
Getting started
∫Discs that cannot be played in this unit
Any other disc that is not specifically supported or
previously described.
≥2.6 GB and 5.2 GB DVD-RAM
≥DVD-RAM that cannot be removed from cartridge
≥Super Audio CD
≥Photo CD
≥DVD-Audio
≥Video CD and Super Video CD
≥WMA discs
≥DivX discs
≥PAL discs
≥HD DVD
≥BD-Video discs recorded at a rate of 50 fields/sec
∫Region management information
BD-Video
This unit plays BD-Video marked with labels containing the
region code A.
Example:...

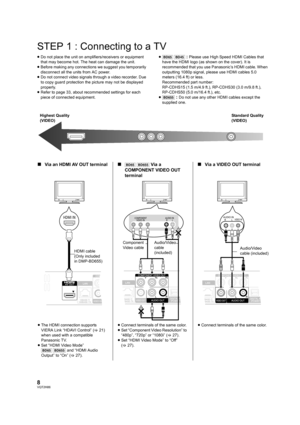

8VQT2H86
STEP 1 : Connecting to a TV
≥Do not place the unit on amplifiers/receivers or equipment
that may become hot. The heat can damage the unit.
≥ Before making any connections  we suggest you temporarily
disconnect all the units from AC power.
≥ Do not connect video signals through a video recorder. Due
to copy guard protection the picture may not be displayed
properly.
≥ Refer to page 33, about recommended settings for each
piece of connected equipment. ≥
[BD65] [BD45] : Please use High Speed...

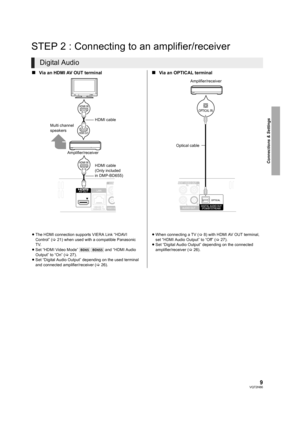

9VQT2H86
Connections & Settings
STEP 2 : Connecting to an amplifier/receiver
Digital Audio
∫Via an HDMI AV OUT terminal∫Via an OPTICAL terminal
≥The HDMI connection supports VIERA Link “HDAVI
Control” (>21) when used with a compatible Panasonic
TV.
≥Set “HDMI Video Mode” [BD65] [BD655]
 and “HDMI Audio
Output” to “On” (>27).
≥Set “Digital Audio Output” depending on the used terminal
and connected amplifier/receiver (>26).≥When connecting a TV (>8) with HDMI AV OUT terminal,
set “HDMI Audio Output”...

10VQT2H86
STEP 3 : Connecting to a broadband network [BD65] [BD655]
The following services can be used when this unit is
connected to broadband.
≥ Firmware can be updated  (> 14)
≥ You can enjoy BD-Live ( >18)
≥ You can enjoy VIERA CAST ( >22) For details about connection method, refer to the instructions
supplied with the connected equipment.
∫
Using LAN (ethernet) cable ∫Using Wireless LAN Adaptor DY-WL10
(optional)
≥Use shielded LAN cables when connecting to peripheral
devices.
≥ Inserting any...
