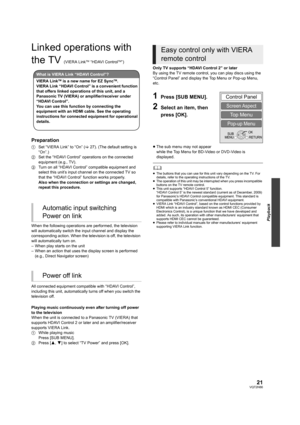

Panasonic Dmp Bd45 Operating Instructions

21VQT2H86
Playback
Linked operations with
the TV
(VIERA LinkTM “HDAVI ControlTM”)
Preparation
1Set “VIERA Link” to “On” (>27). (The default setting is
“On”.)
2Set the “HDAVI Control” operations on the connected
equipment (e.g., TV).
3Turn on all “HDAVI Control” compatible equipment and
select this unit’s input channel on the connected TV so
that the “HDAVI Control” function works properly.
Also when the connection or settings are changed,
repeat this procedure.
When the following operations are...

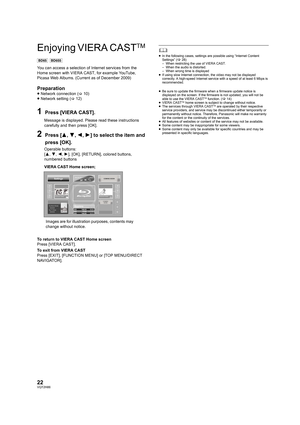

22VQT2H86
Enjoying VIERA CASTTM
[BD65] [BD655]
You can access a selection of Internet services from the
Home screen with VIERA CAST, for example YouTube,
Picasa Web Albums. (Current as of December 2009)
Preparation≥Network connection (>10)
≥Network setting (>12)
1Press [VIERA CAST].
Message is displayed. Please read these instructions
carefully and then press [OK].
2Press [3,4,2,1] to select the item and
press [OK].
Operable buttons:
[3,4,2,1], [OK], [RETURN], colored buttons,
numbered buttons...

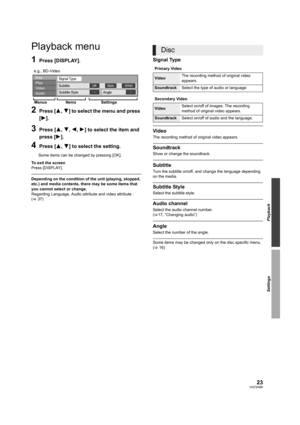

23VQT2H86
Playback
Settings
Settings
Playback menu
1Press [DISPLAY].
2Press [3,4] to select the menu and press
[1].
3Press [3,4,2,1] to select the item and
press [1].
4Press [3,4] to select the setting.
Some items can be changed by pressing [OK].
To exit the screen
Press [DISPLAY].
Depending on the condition of the unit (playing, stopped,
etc.) and media contents, there may be some items that
you cannot select or change.
Regarding Language, Audio attribute and video attribute :
(>37)
Signal Type...

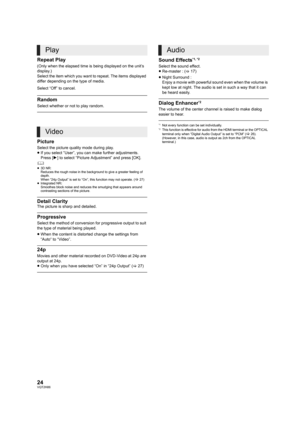

24VQT2H86
Repeat Play
(Only when the elapsed time is being displayed on the unit’s
display.)
Select the item which you want to repeat. The items displayed
differ depending on the type of media.
Select “Off” to cancel.
Random
Select whether or not to play random.
Select the picture quality mode during play.
≥If you select “User”, you can make further adjustments.
Press [1] to select “Picture Adjustment” and press [OK].
	≥3D NR:
Reduces the rough noise in the background to give a greater feeling...

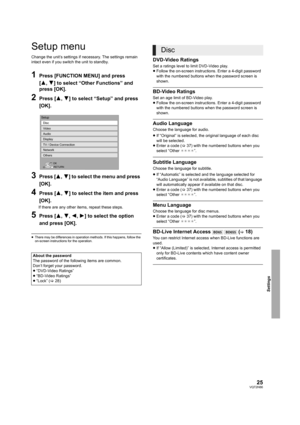

25VQT2H86
Settings
Setup menu
Change the unit’s settings if necessary. The settings remain
intact even if you switch the unit to standby.
1Press [FUNCTION MENU] and press
[3,4] to select “Other Functions” and
press [OK].
2Press [3,4] to select “Setup” and press
[OK].
3Press [3,4] to select the menu and press
[OK].
4Press [3,4] to select the item and press
[OK].
If there are any other items, repeat these steps.
5Press [3,4,2,1] to select the option
and press [OK].
≥There may be differences in...

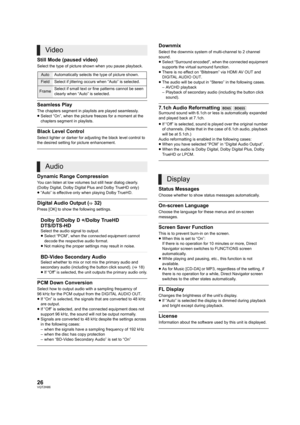

26VQT2H86
Still Mode (paused video)
Select the type of picture shown when you pause playback.
Seamless Play
The chapters segment in playlists are played seamlessly.
≥Select “On”, when the picture freezes for a moment at the
chapters segment in playlists.
Black Level Control
Select lighter or darker for adjusting the black level control to
the desired setting for picture enhancement.
Dynamic Range Compression
You can listen at low volumes but still hear dialog clearly.
(Dolby Digital, Dolby Digital Plus...

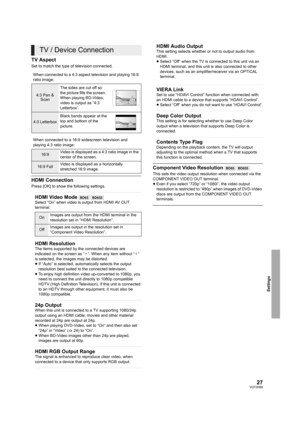

27VQT2H86
Settings
TV Aspect
Set to match the type of television connected.
HDMI Connection
Press [OK] to show the following settings.
Component Video Resolution [BD65] [BD655]
This sets the video output resolution when connected via the
COMPONENT VIDEO OUT terminal.
≥
Even if you select “720p” or “1080i”, the video output
resolution is restricted to “480p” when images of DVD-Video
discs are output from the COMPONENT VIDEO OUT
terminals.
TV / Device Connection
When connected to a 4:3 aspect...

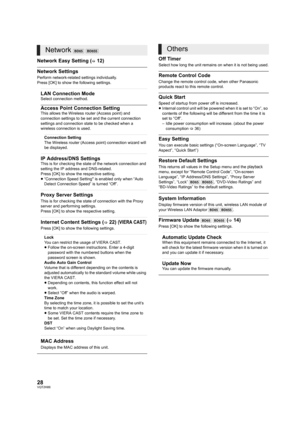

28VQT2H86
Network Easy Setting (>12)
Network Settings
Perform network-related settings individually.
Press [OK] to show the following settings.
Off Timer
Select how long the unit remains on when it is not being used.
Remote Control Code
Change the remote control code, when other Panasonic
products react to this remote control.
Quick Start
Speed of startup from power off is increased.
≥Internal control unit will be powered when it is set to “On”, so
contents of the following will be different from the...

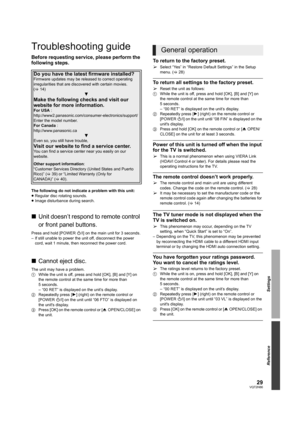

29VQT2H86
Settings
Reference
Reference
Troubleshooting guide
Before requesting service, please perform the
following steps.
The following do not indicate a problem with this unit:
≥Regular disc rotating sounds.
≥Image disturbance during search.
∫Unit doesn’t respond to remote control
or front panel buttons.
Press and hold [POWER Í/I] on the main unit for 3 seconds.
– If still unable to power the unit off, disconnect the power
cord, wait 1 minute, then reconnect the power cord.
∫Cannot eject disc.
The...

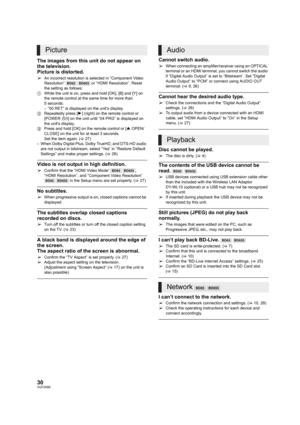

30VQT2H86
The images from this unit do not appear on
the television.
Picture is distorted.
¾An incorrect resolution is selected in “Component Video
Resolution” [BD65] [BD655] or “HDMI Resolution”. Reset
the setting as follows:
1While the unit is on, press and hold [OK], [B] and [Y] on
the remote control at the same time for more than
5 seconds.
– “00 RET” is displayed on the unit’s display.
2Repeatedly press [1] (right) on the remote control or
[POWER Í/I] on the unit until “04 PRG” is displayed on...
