Panasonic Dmp Bd45 Operating Instructions

11VQT2H86
Connections & Settings

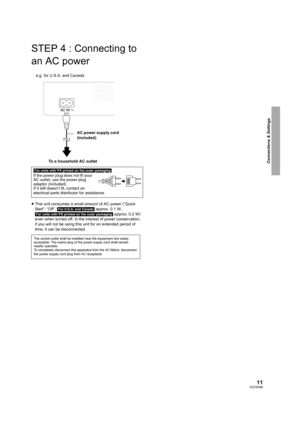

STEP 4 : Connecting to
an AC power
≥This unit consumes a small amount of AC power (“Quick
Start”: “Off”,  [For[U.S.A.[and[Canada]  approx. 0.1 W,
[For[units[with[PX[printed[on[the[outer[packaging]  approx. 0.2 W)
even when turned off. In the interest of power conservation,
if you will not be using this unit for an extended period of
time, it can be disconnected.
[For[units[with[PX[printed[on[the[outer[packaging]
If the power plug does not fit your
AC outlet, use...

12VQT2H86

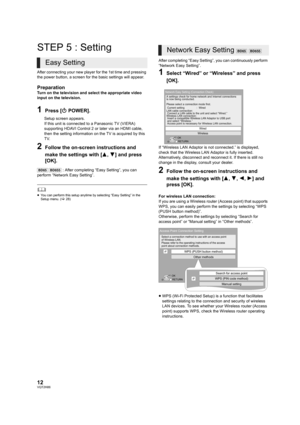

STEP 5 : Setting
After connecting your new player for the 1st time and pressing
the power button, a screen for the basic settings will appear.
PreparationTurn on the television and select the appropriate video
input on the television.
1Press [ÍPOWER].
Setup screen appears.
If this unit is connected to a Panasonic TV (VIERA)
supporting HDAVI Control 2 or later via an HDMI cable,
then the setting information on the TV is acquired by this
TV.
2Follow the on-screen instructions and
make the...

13VQT2H86
Connections & Settings

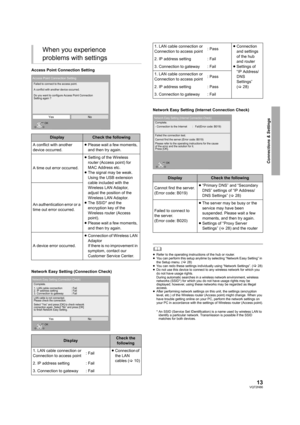

Access Point Connection Setting
Network Easy Setting (Connection Check)Network Easy Setting (Internet Connection Check)
	≥Refer to the operating instructions of the hub or router.
≥You can perform this setup anytime by selecting “Network Easy Setting” in
the Setup menu. (
>28)
≥You can redo these settings individually using “Network Settings”. (>28)
≥Do not use this device to connect to any wireless network for which you
do not have usage rights.
During automatic...

14VQT2H86

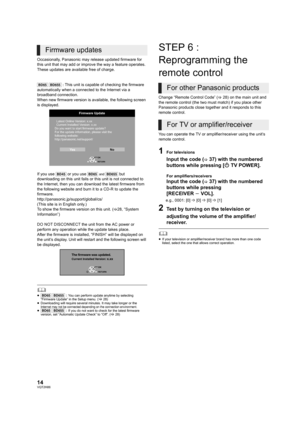

Occasionally, Panasonic may release updated firmware for
this unit that may add or improve the way a feature operates.
These updates are available free of charge.
[BD65] [BD655]
 : This unit is capable of checking the firmware
automatically when a connected to the Internet via a
broadband connection.
When new firmware version is available, the following screen
is displayed.
If you use [BD45]
 or you use [BD65] and [BD655] but
downloading on this unit fails or this unit is not connected to...

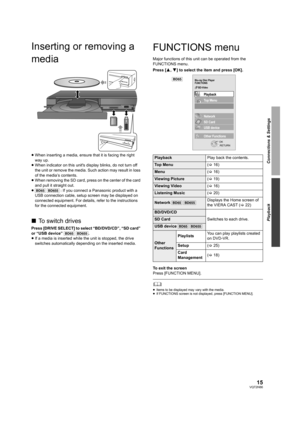

15VQT2H86
Connections & Settings
Playback
Playback
Inserting or removing a
media
≥When inserting a media, ensure that it is facing the right
way up.
≥When indicator on this units display blinks, do not turn off
the unit or remove the media. Such action may result in loss
of the media’s contents.
≥When removing the SD card, press on the center of the card
and pull it straight out.
≥[BD65] [BD655]
 : If you connect a Panasonic product with a
USB connection cable, setup screen may be displayed on...

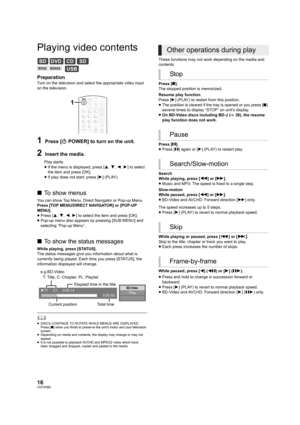

16VQT2H86
Playing video contents
Preparation
Turn on the television and select the appropriate video input
on the television.
1Press [ÍPOWER] to turn on the unit.
2Insert the media.
Play starts.
≥If the menu is displayed, press [3,4,2,1] to select
the item and press [OK].
≥If play does not start, press [1](PLAY).
∫To show menus
You can show Top Menu, Direct Navigator or Pop-up Menu.
Press [TOP MENU/DIRECT NAVIGATOR] or [POP-UP
MENU].
≥Press [3,4,2,1] to select the item and press [OK].
≥Pop-up menu...

17VQT2H86

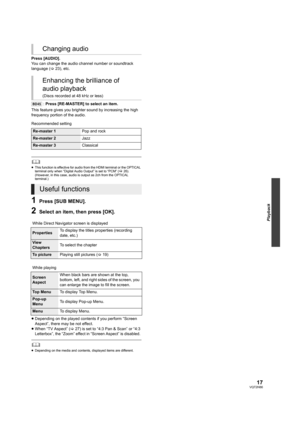

Playback
Press [AUDIO].
You can change the audio channel number or soundtrack
language (>23), etc.
[BD45] : Press [RE-MASTER] to select an item.
This feature gives you brighter sound by increasing the high
frequency portion of the audio.
Recommended setting
	≥This function is effective for audio from the HDMI terminal or the OPTICAL
terminal only when “Digital Audio Output” is set to “PCM” (>26).
(However, in this case, audio is output as 2ch from the OPTICAL
terminal.)
1Press [SUB MENU]....

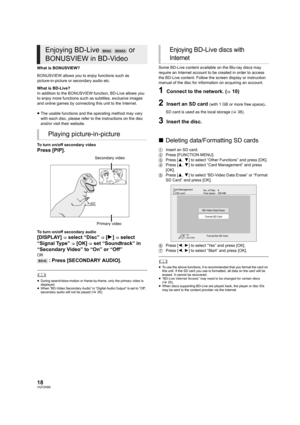

18VQT2H86
What is BONUSVIEW?
BONUSVIEW allows you to enjoy functions such as
picture-in-picture or secondary audio etc.
What is BD-Live?
In addition to the BONUSVIEW function, BD-Live allows you
to enjoy more functions such as subtitles, exclusive images
and online games by connecting this unit to the Internet.
≥The usable functions and the operating method may vary
with each disc, please refer to the instructions on the disc
and/or visit their website.
To turn on/off secondary video
Press [PIP].
To...

19VQT2H86
Playback

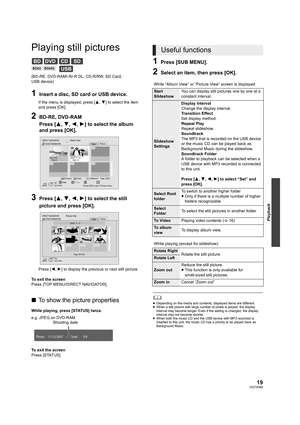

Playing still pictures
(BD-RE, DVD-RAM/-R/-R DL, CD-R/RW, SD Card,
USB device)
1Insert a disc, SD card or USB device.
If the menu is displayed, press [3,4] to select the item
and press [OK].
2BD-RE, DVD-RAM
Press [3,4,2,1] to select the album
and press [OK].
3Press [3,4,2,1] to select the still
picture and press [OK].
Press [2,1] to display the previous or next still picture.
To exit the screen
Press [TOP MENU/DIRECT NAVIGATOR].
∫To show the picture properties
While playing, press...

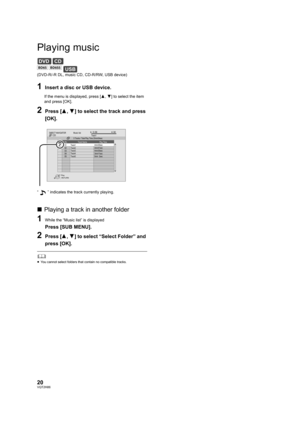

20VQT2H86
Playing music
(DVD-R/-R DL, music CD, CD-R/RW, USB device)
1Insert a disc or USB device.
If the menu is displayed, press [3,4] to select the item
and press [OK].
2Press [ 3,4] to select the track and press
[OK].
∫ Playing a track in another folder
1While the “Music list” is displayed
Press [SUB MENU].
2Press [ 3,4] to select “Select Folder” and
press [OK].
	≥ You cannot select folders that contain no compatible tracks.
DVDCD
USB[BD65] [BD655]
 0.09  4.30
01
02
03
04
05Music listNo.
