Panasonic Dmp Bd45 Operating Instructions

31VQT2H86
Reference

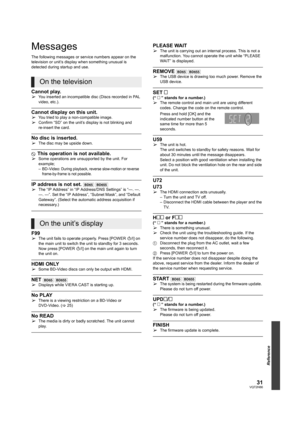

Messages
The following messages or service numbers appear on the
television or unit’s display when something unusual is
detected during startup and use.
Cannot play.¾You inserted an incompatible disc (Discs recorded in PAL
video, etc.).
Cannot display on this unit.¾You tried to play a non-compatible image.
¾Confirm “SD” on the unit’s display is not blinking and
re-insert the card.
No disc is inserted.¾The disc may be upside down.
$ This operation is not available.¾Some operations...

32VQT2H86

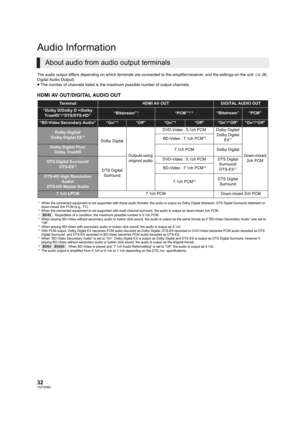

Audio Information
The audio output differs depending on which terminals are connected to the amplifier/receiver, and the settings on the unit. (>26,
Digital Audio Output)
≥The number of channels listed is the maximum possible number of output channels.
HDMI AV OUT/DIGITAL AUDIO OUT
About audio from audio output terminals
TerminalHDMI AV OUTDIGITAL AUDIO OUT
“Dolby D/Dolby D +/Dolby
TrueHD”/“DTS/DTS-HD” “Bitstream”*1
*1When the connected equipment is not supported with these audio formats, the...

33VQT2H86
Reference

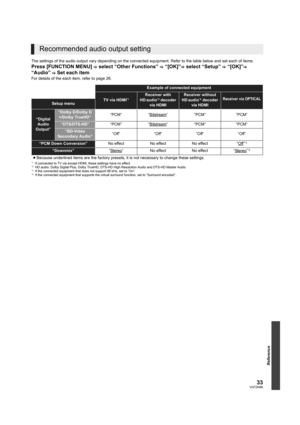

The settings of the audio output vary depending on the connected equipment. Refer to the table below and set each of items.
Press [FUNCTION MENU] > select “Other Functions” > “[OK]”> select “Setup” > “[OK]”>
“Audio” > Set each item
For details of the each item, refer to page 26.
Recommended audio output setting
Example of connected equipment
TV via HDMI*1Receiver with
HD audio*2 decoder
via HDMI
Receiver without
HD audio*2 decoder
via HDMIReceiver via OPTICALSetup menu
“Digital...

34VQT2H86

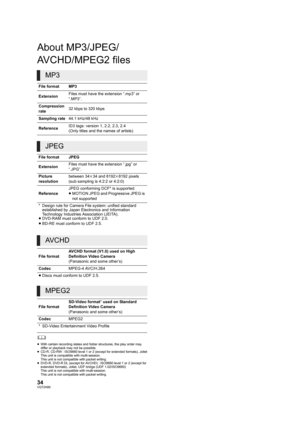

About MP3/JPEG/
AVCHD/MPEG2 files

≥With certain recording states and folder structures, the play order may
differ or playback may not be possible.
≥CD-R, CD-RW : ISO9660 level 1 or 2 (except for extended formats), Joliet
This unit is compatible with multi-session.
This unit is not compatible with packet writing.
≥DVD-R, DVD-R DL (except for AVCHD) : ISO9660 level 1 or 2 (except for
extended formats), Joliet, UDF bridge (UDF 1.02/ISO9660)
This unit is not compatible with multi-session.
This...

35VQT2H86
Reference

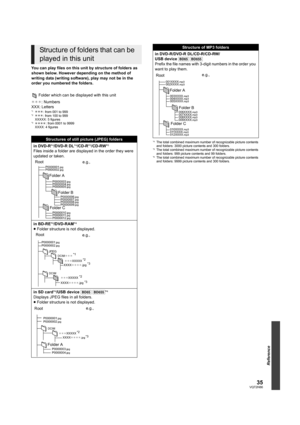

You can play files on this unit by structure of folders as
shown below. However depending on the method of
writing data (writing software), play may not be in the
order you numbered the folders.
 Folder which can be displayed with this unit
¢¢¢: Numbers
XXX: Letters
*1¢¢¢: from 001 to 999*2¢¢¢: from 100 to 999
XXXXX: 5 figures
*3¢¢¢¢: from 0001 to 9999
XXXX: 4 figures
*4The total combined maximum number of recognizable picture contents
and folders: 3000 picture contents and 300...

36VQT2H86

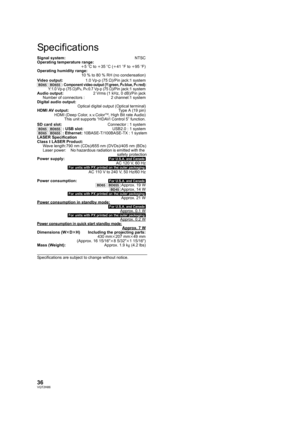

Specifications
Signal system: NTSC
Operating temperature range:
i5 oC to  i35  oC ( i41  oF to  i95  oF)
Operating humidity range: 10 % to 80 % RH (no condensation)
Video output: 1.0 Vp-p (75≠)/Pin jack:1 system
[BD65]  [BD655]
 : Component video output (Y:green, PB:blue, PR:red): Y:1.0 Vp-p (75≠)/PB, PR:0.7 Vp-p (75≠)/Pin jack:1 system
Audio output: 2 Vrms (1 kHz, 0 dB)/Pin jack
Number of connectors :  2 channel:1 system
Digital audio output:
 Optical digital output (Optical terminal)
HDMI AV...

37VQT2H86
Reference

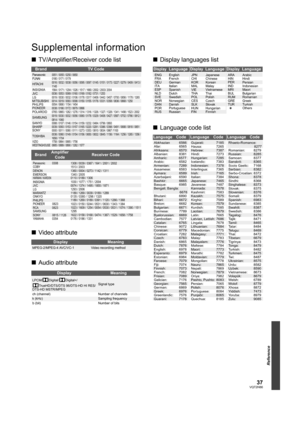

Supplemental information
∫TV/Amplifier/Receiver code list
∫Video attribute
∫Audio attribute∫Display languages list
∫Language code list
BrandTV Code
BrandAmplifier
CodeReceiver Code
DisplayMeaning
MPEG-2/MPEG-4 AVC/VC-1Video recording method
DisplayMeaning
LPCM/ Digital/ Digital+/
TrueHD/DTS/DTS 96/DTS-HD HI RES/
DTS-HD MSTR/MPEGSignal type
ch (channel) Number of channels
k (kHz)Sampling frequency
b (bit) Number of bits
FUNAI
HITACHI
JVC
INSIGNIA
LG
MITSUBISHI
PHILIPS
PIONEER...

38VQT2H86

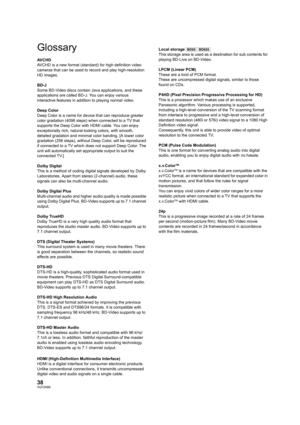

Glossary
AVCHD
AVCHD is a new format (standard) for high definition video
cameras that can be used to record and play high-resolution
HD images.
BD-J
Some BD-Video discs contain Java applications, and these
applications are called BD-J. You can enjoy various
interactive features in addition to playing normal video.
Deep Color
Deep Color is a name for device that can reproduce greater
color gradation (4096 steps) when connected to a TV that
supports the Deep Color with HDMI cable. You can...

39VQT2H86
Reference

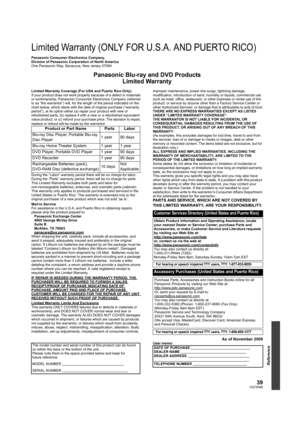

Limited Warranty (ONLY FOR U.S.A. AND PUERTO RICO)
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Blu-ray and DVD Products
Limited Warranty
Limited Warranty Coverage (For USA and Puerto Rico Only)
If your product does not work properly because of a defect in materials
or workmanship, Panasonic Consumer Electronics Company (referred
to as “the warrantor”) will, for the length of the...

40VQT2H86

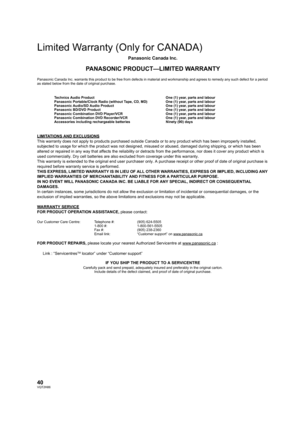

Limited Warranty (Only for CANADA)
Panasonic Canada Inc.
PANASONIC PRODUCT—LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period
as stated below from the date of original purchase.
Technics Audio Product  One (1) year, parts and labour
Panasonic Portable/Clock Radio (without Tape, CD, MD) One (1) year, parts and labour
Panasonic Audio/SD Audio Product One (1) year, parts and labour...
