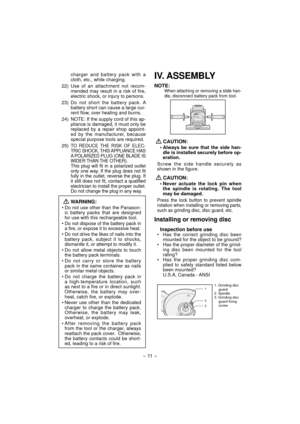

- 11  -
charger and battery pack with a
cloth, etc., while charging.
 22) Use of an attachment not recom-
mended may result in a risk of fire,
electric shock, or injury to persons.
 23) Do not short the battery pack. A
battery short can cause a large cur-
rent flow, over heating and burns.
  24)  NOTE: If the supply cord of this ap-
pliance is damaged, it must only be
replaced by a repair shop appoint-
ed by the manufacturer, because
special purpose tools are required.
 25)
TO REDUCE THE RISK OF...

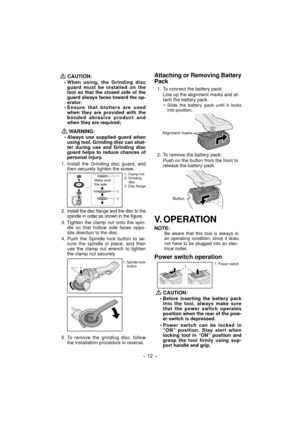

- 12 -
 CAUTION:
• When using, the Grinding disc
guard must be installed on the
tool so that the closed side of the
guard always faces toward the op-
erator.
• Ensure that blotters are used
when they are provided with the
bonded abrasive product and
when they are required;
   WARNING:
• Always use supplied guard when
using tool. Grinding disc can shat-
ter during use and Grinding disc
guard helps to reduce chances of
personal injury.
1. Install the Grinding disc guard, and
then securely...

- 13 -

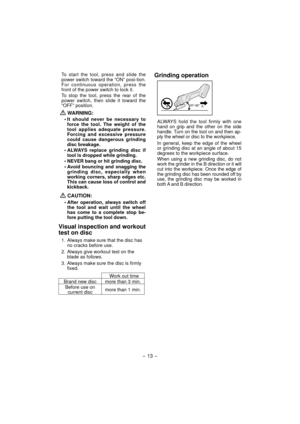

To start the tool, press and slide the
power switch toward the “ON” posi-tion.
For continuous operation, press the
front of the power switch to lock it.
To stop the tool, press the rear of the
power switch, then slide it toward the
“OFF” position.

WARNING:
• It should never be necessary to
force the tool. The weight of the
tool applies adequate pressure.
Forcing and excessive pressure
could cause dangerous grinding
disc breakage.
• ALWAYS replace grinding disc if
tool is dropped...

- 14 -
Using a cut-off disc guard
(EY9X213E) (Available as an
accessory, not included)
Make sure the side.

WARNING:
• When using an abrasive cut-off
disc, be sure to use only the cut-
off disc guard designed for this
use with cut-off disc.
• NEVER use cut-off disc for grinding.
• Do not jam the Disc or apply ex-
cessive pressure. Do not attempt
to make an excessive depth of
cut. Overstressing the cut-off disc
increases the loading and suscep-
tibility to twisting or binding of the
cut-off...

- 15 -

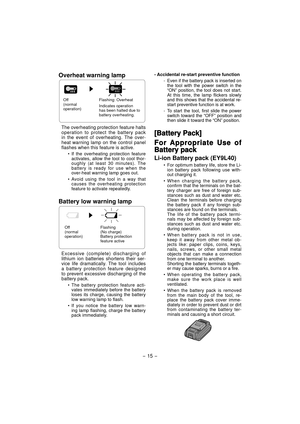

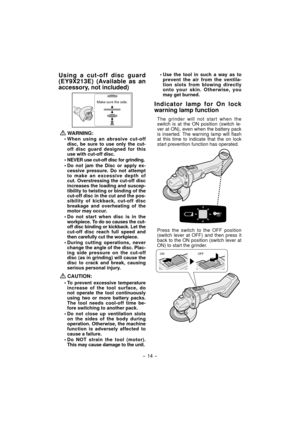

Overheat warning lamp
Off
(normal
operation)Flashing: Overheat
Indicates operation
has been halted due to
battery overheating.
The overheating protection feature halts
operation to protect the battery pack
in the event of overheating. The over-
heat warning lamp on the control panel
flashes when this feature is active.
• If the overheating protection feature
activates, allow the tool to cool thor-
oughly (at least 30 minutes). The
battery is ready for use when the
over-heat warning...

- 16 -

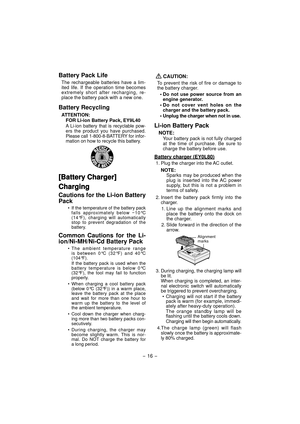

Battery Pack Life
The rechargeable batteries have a lim-
ited life. If the operation time becomes
extremely short after recharging, re-
place the battery pack with a new one.
Battery Recycling
ATTENTION:
FOR Li-ion Battery Pack, EY9L40
A Li-ion battery that is recyclable pow-
ers the product you have purchased.
Please call 1-800-8-BATTERY for infor-
mation on how to recycle this battery.
[Battery Charger][Battery Charger]
ChargingCharging
Cautions for the Li-ion Battery
Pack
•  If the...

- 17 -

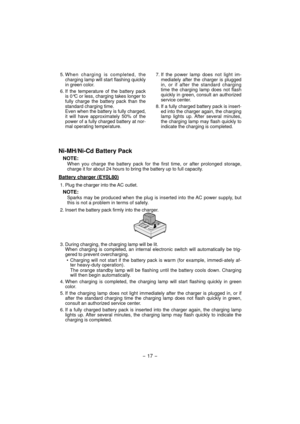

5. When charging is completed, the
charging lamp will start flashing quickly
in green color.
6. If the temperature of the battery pack
is 0°C or less, charging takes longer to
fully charge the battery pack than the
standard charging time.
Even when the battery is fully charged,
it will have approximately 50% of the
power of a fully charged battery at nor-
mal operating temperature.7. If the power lamp does not light im-
mediately after the charger is plugged
in, or if after the standard...

- 18 -

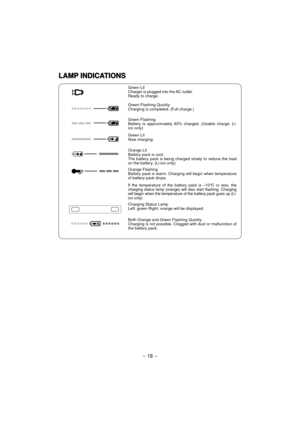

LAMP INDICATIONSLAMP INDICATIONS
Green Lit
Charger is plugged into the AC outlet.
Ready to charge.
Green Flashing Quickly
Charging is completed. (Full charge.)
Green Flashing
Battery is approximately 80% charg ed. (Usable charge. Li-
ion only)
Green Lit
Now charging.
Orange Lit
Battery pack is cool.
The battery pack is being charged slowly to reduce the load
on the battery. (Li-ion only)
Orange Flashing
Battery pack is warm. Charging will begin when temperature
of battery pack drops.
If the...

- 19 -

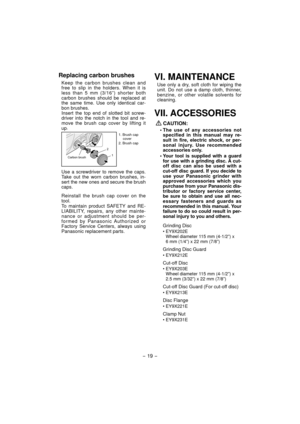

Replacing carbon brushes
Keep the carbon brushes clean and
free to slip in the holders. When it is
less than 5 mm (3/16”) shorter both
carbon brushes should be replaced at
the same time. Use only identical car-
bon brushes.
Insert the top end of slotted bit screw-
driver into the notch in the tool and re-
move the brush cap cover by lifting it
up.
1. Brush cap
cover
2. Brush cap
2
1
Use a screwdriver to remove the caps.
Take out the worn carbon brushes, in-
sert the new ones and secure...

- 20 -

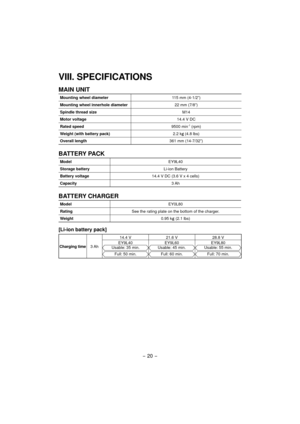

VIII. SPECIFICATIONS
MAIN UNIT
Mounting wheel diameter115 mm (4-1/2”)
Mounting wheel innerhole diameter22 mm (7/8”)
Spindle thread sizeM14
Motor voltage14.4 V DC
Rated speed9500 min
-1 (rpm)
Weight (with battery pack)2.2 kg (4.8 lbs)
Overall length361 mm (14-7/32”)
BATTERY PACK
ModelEY9L40
Storage batteryLi-ion Battery
Battery voltage14.4 V DC (3.6 V x 4 cells)
Capacity3 Ah
BATTERY CHARGER
ModelEY0L80
RatingSee the rating plate on the bottom of the charger.
Weight0.95 kg
(2.1 lbs)
[Li-ion...
