Panasonic Hdc Hs250 Operating Instructions

71VQT1Y31

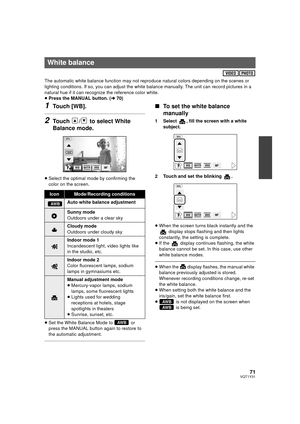

The automatic white balance function may not reproduce natural colors depending on the scenes or
lighting conditions. If so, you can adjust the white balance manually. The unit can record pictures in a
natural hue if it can recognize the reference color white.
≥ Press the MANUAL button. ( l70)
1Touch [WB].
2Touch  /  to select White
Balance mode.
≥Select the optimal mode by confirming the
color on the screen.
≥ Set the White Balance Mode to   or
press the MANUAL button again to restore to...

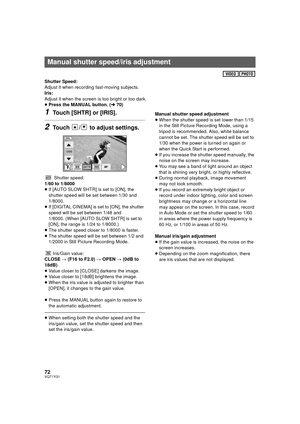

72VQT1Y31
Shutter Speed:
Adjust it when recording fast-moving subjects.
Iris:
Adjust it when the screen is too bright or too dark.
≥Press the MANUAL button. ( l70)
1Touch [SHTR] or [IRIS].
2Touch  /  to adjust settings.
Shutter speed:
1/60 to 1/8000
≥ If [AUTO SLOW SHTR] is set to [ON], the
shutter speed will be set between 1/30 and
1/8000.
≥ If [DIGITAL CINEMA] is set to [ON], the shutter
speed will be set between 1/48 and
1/8000. (When [AUTO SLOW SHTR] is set to
[ON], the range is 1/24 to...

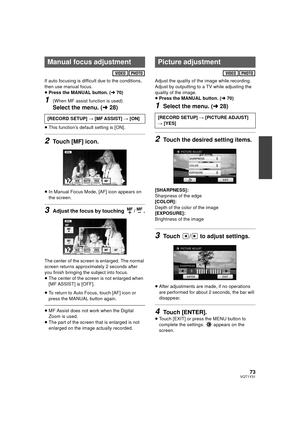

73VQT1Y31
If auto focusing is difficult due to the conditions,
then use manual focus.
≥Press the MANUAL button. ( l70)
1(When MF assist function is used)
Select the menu. ( l28)
≥This function’s default setting is [ON].
2Touch [MF] icon.
≥In Manual Focus Mode, [AF] icon appears on
the screen.
3Adjust the focus by touching  / .
The center of the screen is enlarged. The normal
screen returns approximately 2 seconds after
you finish bringing the subject into focus.
≥The center of the screen is not...

74VQT1Y31

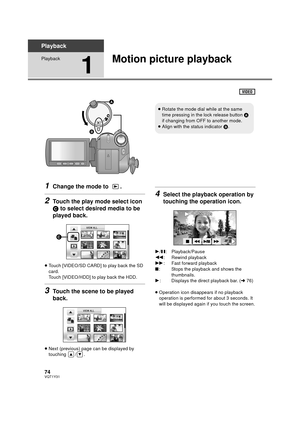

Playback
Playback
1
Motion picture playback
1Change the mode to  .
2Touch the play mode select icon
C to select desired media to be
played back.
≥ Touch [VIDEO/SD CARD] to play back the SD
card.
Touch [VIDEO/HDD] to play back the HDD.
3Touch the scene to be played
back.
≥Next (previous) page can be displayed by
touching / .
4Select the playback operation by
touching the operation icon.
1/ ;: Playback/Pause
6 : Rewind playback
5 : Fast forward playback
∫: Stops the playback and shows the...

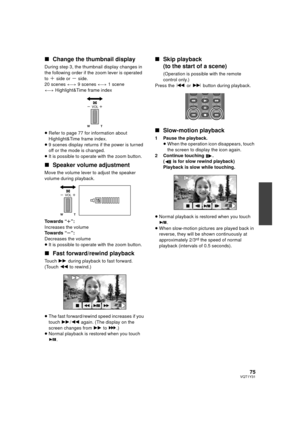

75VQT1Y31
∫Change the thumbnail display
During step 3, the thumbnail display changes in
the following order if the zoom lever is operated
to
_ side or ` side.
20 scenes  () 9 scenes  () 1 scene
()  Highlight&Time frame index
≥ Refer to page 77 for information about
Highlight&Time frame index.
≥ 9 scenes display returns if the power is turned
off or the mode is changed.
≥ It is possible to operate with the zoom button.
∫ Speaker volume adjustment
Move the volume lever to adjust the speaker
volume...

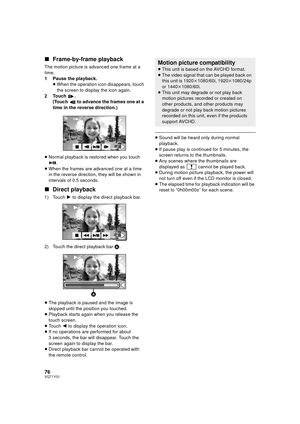

76VQT1Y31
∫Frame-by-frame playback
The motion picture is advanced one frame at a
time.
1 Pause the playback.
≥When the operation icon disappears, touch
the screen to display the icon again.
2Touch . (Touch   to advance the frames one at a
time in the reverse direction.)
≥ Normal playback is restored when you touch
.
≥ When the frames are advanced one at a time
in the reverse direction, they will be shown in
intervals of 0.5 seconds.
∫ Direct playback
1) Touch  1 to display the direct playback bar....

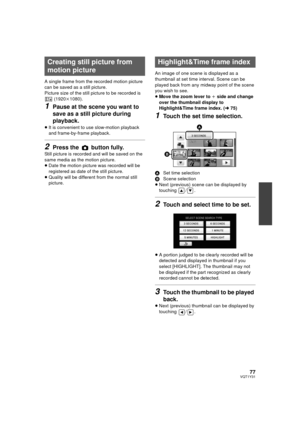

77VQT1Y31
A single frame from the recorded motion picture
can be saved as a still picture.
Picture size of the still picture to be recorded is  (1920k 1080).
1Pause at the scene you want to
save as a still picture during
playback.
≥It is convenient to use slow-motion playback
and frame-by-frame playback.
2Press the   button fully.
Still picture is recorded and will be saved on the
same media as the motion picture.
≥Date the motion picture was recorded will be
registered as date of the still...

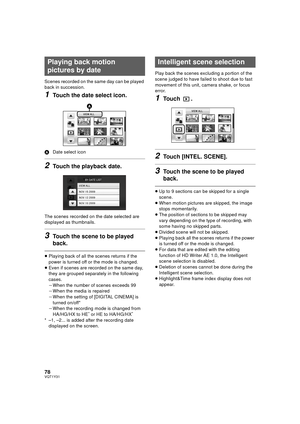

78VQT1Y31
Scenes recorded on the same day can be played
back in succession.
1Touch the date select icon.
ADate select icon
2Touch the playback date.
The scenes recorded on the date selected are
displayed as thumbnails.
3Touch the scene to be played
back.
≥Playing back of all the scenes returns if the
power is turned off or the mode is changed.
≥ Even if scenes are recorded on the same day,
they are grouped separately in the following
cases.
jWhen the number of scenes exceeds 99
j When the media is...

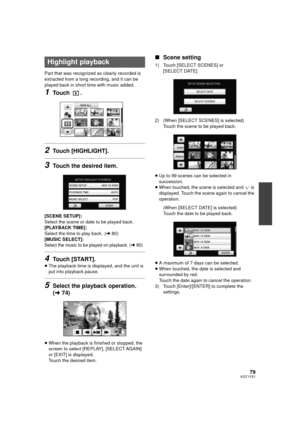

79VQT1Y31
Part that was recognized as clearly recorded is
extracted from a long recording, and it can be
played back in short time with music added.
1Touch .
2Touch [HIGHLIGHT].
3Touch the desired item.
[SCENE SETUP]:
Select the scene or date to be played back.
[PLAYBACK TIME]:
Select the time to play back.
 (l80)
[MUSIC SELECT]:
Select the music to be played on playback. (l80)
4Touch [START].
≥ The playback time is displayed, and the unit is
put into playback pause.
5Select the playback operation....

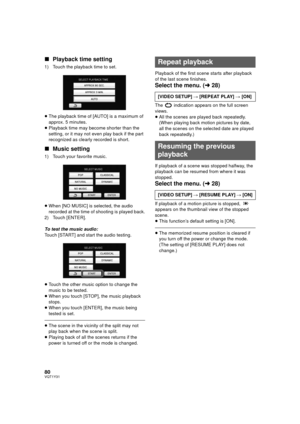

80VQT1Y31
∫Playback time setting
1) Touch the playback time to set.
≥The playback time of [AUTO] is a maximum of
approx. 5 minutes.
≥ Playback time may become shorter than the
setting, or it may not even play back if the part
recognized as clearly recorded is short.
∫ Music setting
1) Touch your favorite music.
≥When [NO MUSIC] is selected, the audio
recorded at the time of shooting is played back.
2) Touch [ENTER].
To test the music audio:
Touch [START] and start the audio testing.
≥ Touch the other...
