Panasonic High Speed Color Scanner Kv S1025c S Operating Instructions

Setting up the Scanner
11

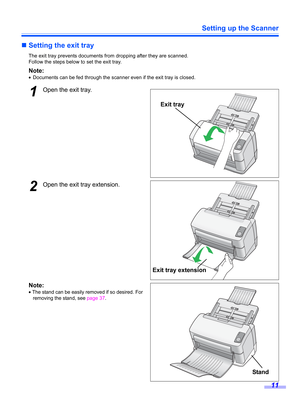

„Setting the exit tray
The exit tray prevents documents from dropping after they are scanned.
Follow the steps below to set the exit tray.
Note:
•Documents can be fed through the scanner even if the exit tray is closed.
1Open the exit tray.
2Open the exit tray extension.
Note:
• The stand can be easily removed if so desired. For
removing the stand, see page 37.
Exit tray
Exit tray extension
Stand

Setting up the Scanner
12

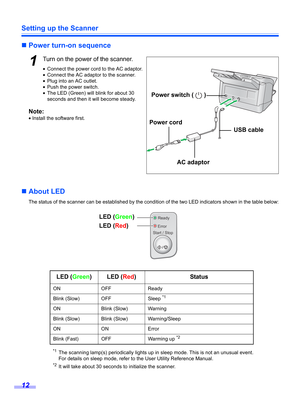

„Power turn-on sequence
1Turn on the power of the scanner.
•Connect the power cord to the AC adaptor.
•Connect the AC adaptor to the scanner.
•Plug into an AC outlet.
•Push the power switch.
•The LED (Green) will blink for about 30
seconds and then it will become steady.
Note:
• Install the software first.
„About LED
The status of the scanner can be established by the condition of the two LED indicators shown in the table below:
*1The scanning lamp(s) periodically lights up in...

13
Installing Software

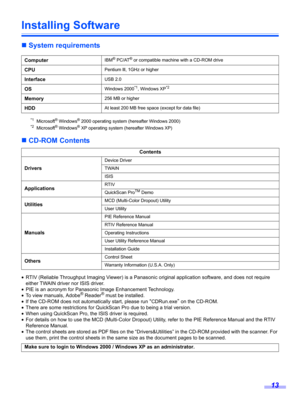

„System requirements
*1Microsoft® Windows® 2000 operating system (hereafter Windows 2000)*2Microsoft® Windows® XP operating system (hereafter Windows XP)
„CD-ROM Contents
•RTIV (Reliable Throughput Imaging Viewer) is a Panasonic original application software, and does not require
either TWAIN driver nor ISIS driver.
•PIE is an acronym for Panasonic Image Enhancement Technology.
•To view manuals, Adobe
® Reader® must be installed.
•If the CD-ROM does not automatically start, please...

Installing Software
14

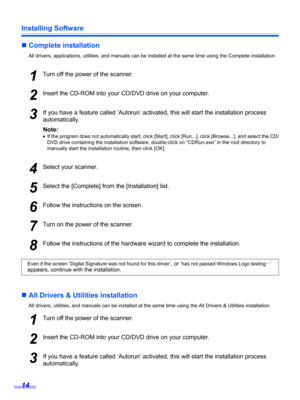

„Complete installation
All drivers, applications, utilities, and manuals can be installed at the same time using the Complete installation.
1Turn off the power of the scanner.
2Insert the CD-ROM into your CD/DVD drive on your computer.
3If you have a feature called ’Autorun’ activated, this will start the installation process
automatically.
Note:
•If the program does not automatically start, click [Start], click [Run...], click [Browse...], and select the CD/
DVD drive containing...

Installing Software
15

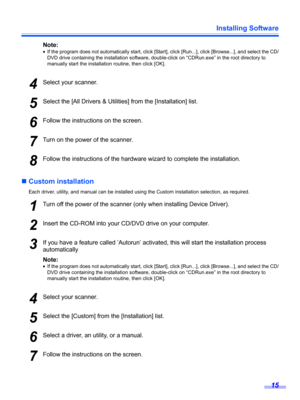

Note:
•If the program does not automatically start, click [Start], click [Run...], click [Browse...], and select the CD/
DVD drive containing the installation software, double-click on “CDRun.exe” in the root directory to
manually start the installation routine, then click [OK].
4Select your scanner.
5Select the [All Drivers & Utilities] from the [Installation] list.
6Follow the instructions on the screen.
7Turn on the power of the scanner.
8Follow the instructions of the hardware...

Installing Software
16

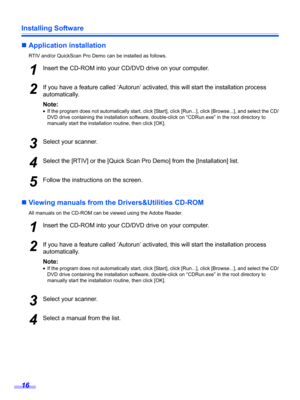

„Application installation
RTIV and/or QuickScan Pro Demo can be installed as follows.
1Insert the CD-ROM into your CD/DVD drive on your computer.
2If you have a feature called ’Autorun’ activated, this will start the installation process
automatically.
Note:
•If the program does not automatically start, click [Start], click [Run...], click [Browse...], and select the CD/
DVD drive containing the installation software, double-click on “CDRun.exe” in the root directory to
manually...

Installing Software
17

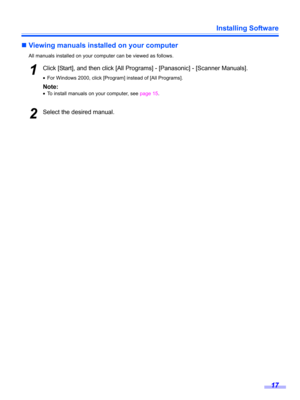

„Viewing manuals installed on your computer
All manuals installed on your computer can be viewed as follows.
1Click [Start], and then click [All Programs] - [Panasonic] - [Scanner Manuals].
•For Windows 2000, click [Program] instead of [All Programs].
Note:
•To install manuals on your computer, see page 15.
2Select the desired manual.

18

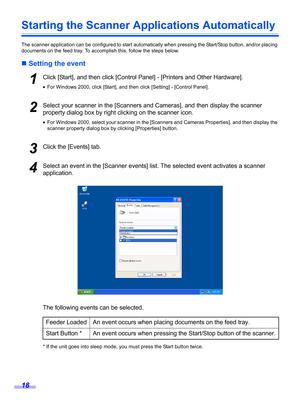

Starting the Scanner Applications Automatically
The scanner application can be configured to start automatically when pressing the Start/Stop button, and/or placing
documents on the feed tray. To accomplish this, follow the steps below.
„Setting the event
1Click [Start], and then click [Control Panel] - [Printers and Other Hardware].
•For Windows 2000, click [Start], and then click [Setting] - [Control Panel].
2Select your scanner in the [Scanners and Cameras], and then display the scanner
property...

Starting the Scanner Applications Automatically
19

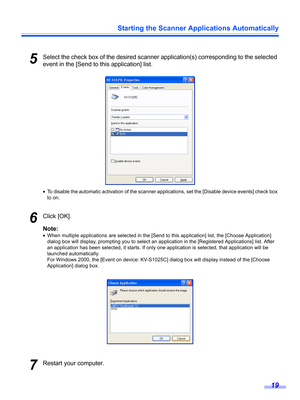

5Select the check box of the desired scanner application(s) corresponding to the selected
event in the [Send to this application] list.
•To disable the automatic activation of the scanner applications, set the [Disable device events] check box
to on.
6Click [OK].
Note:
•When multiple applications are selected in the [Send to this application] list, the [Choose Application]
dialog box will display, prompting you to select an application in the...

20

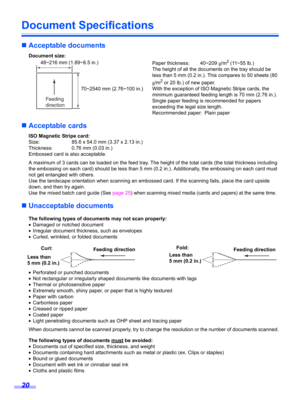

Document Specifications
„Acceptable documents
Document size:
Paper thickness: 40~209 g/m
2 (11~55 lb.)
The height of all the documents on the tray should be
less than 5 mm (0.2 in.). This compares to 50 sheets (80
g/m
2 or 20 lb.) of new paper.
With the exception of ISO Magnetic Stripe cards, the
minimum guaranteed feeding length is 70 mm (2.76 in.).
Single paper feeding is recommended for papers
exceeding the legal size length.
Recommended paper: Plain paper
„Acceptable cards
ISO Magnetic Stripe...
