Panasonic High Speed Color Scanner Kv S1025c S Operating Instructions

21

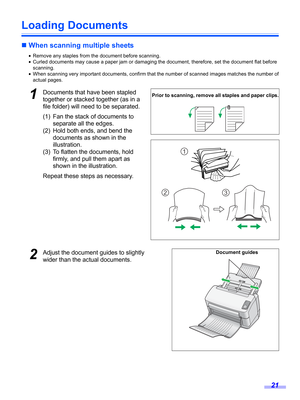

Loading Documents
„When scanning multiple sheets
•Remove any staples from the document before scanning.
•Curled documents may cause a paper jam or damaging the document, therefore, set the document flat before
scanning.
•When scanning very important documents, confirm that the number of scanned images matches the number of
actual pages.
1Documents that have been stapled
together or stacked together (as in a
file folder) will need to be separated.
(1) Fan the stack of documents to
separate all the...

Loading Documents

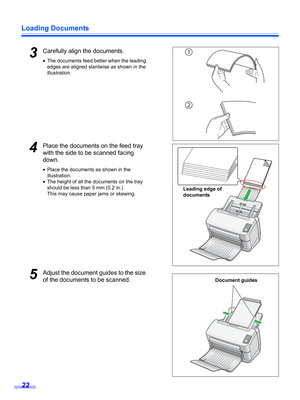

22
3Carefully align the documents.
•The documents feed better when the leading
edges are aligned slantwise as shown in the
illustration.
4Place the documents on the feed tray
with the side to be scanned facing
down.
•Place the documents as shown in the
illustration.
•The height of all the documents on the tray
should be less than 5 mm (0.2 in.).
This may cause paper jams or skewing.
5Adjust the document guides to the size
of the documents to be scanned.
1
2
Document guides...

23

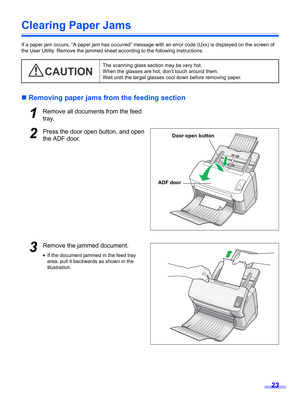

Clearing Paper Jams
If a paper jam occurs, “A paper jam has occurred” message with an error code (Uxx) is displayed on the screen of
the User Utility. Remove the jammed sheet according to the following instructions.
„Removing paper jams from the feeding section
1Remove all documents from the feed
tray.
2Press the door open button, and open
the ADF door.
3Remove the jammed document.
•If the document jammed in the feed tray
area, pull it backwards as shown in the
illustration.The scanning glass...

Clearing Paper Jams

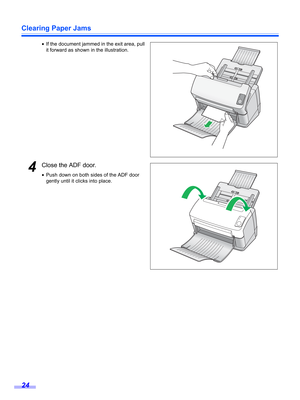

24
•If the document jammed in the exit area, pull
it forward as shown in the illustration.
4Close the ADF door.
•Push down on both sides of the ADF door
gently until it clicks into place.

25

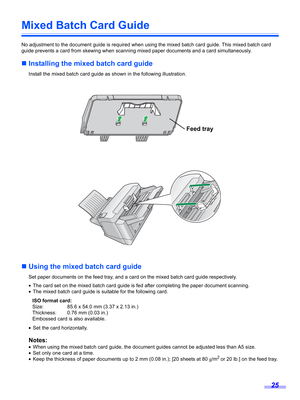

Mixed Batch Card Guide
No adjustment to the document guide is required when using the mixed batch card guide. This mixed batch card
guide prevents a card from skewing when scanning mixed paper documents and a card simultaneously.
„Installing the mixed batch card guide
Install the mixed batch card guide as shown in the following illustration.
„Using the mixed batch card guide
Set paper documents on the feed tray, and a card on the mixed batch card guide respectively.
•The card set on the mixed batch...

26

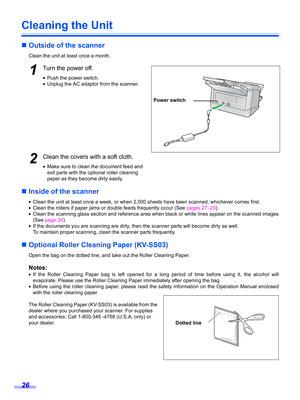

Cleaning the Unit
„Outside of the scanner
Clean the unit at least once a month.
1Turn the power off.
•Push the power switch.
•Unplug the AC adaptor from the scanner.
2Clean the covers with a soft cloth.
•Make sure to clean the document feed and
exit parts with the optional roller cleaning
paper as they become dirty easily.
„Inside of the scanner
•Clean the unit at least once a week, or when 2,000 sheets have been scanned, whichever comes first.
•Clean the rollers if paper jams or double feeds...

Cleaning the Unit
27

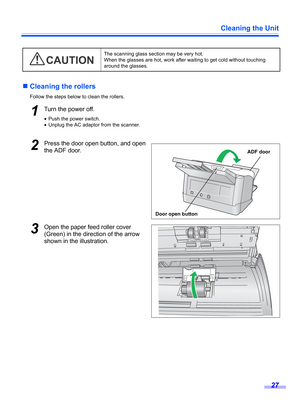

„Cleaning the rollers
Follow the steps below to clean the rollers.
1Turn the power off.
•Push the power switch.
•Unplug the AC adaptor from the scanner.
2Press the door open button, and open
the ADF door.
3Open the paper feed roller cover
(Green) in the direction of the arrow
shown in the illustration.
The scanning glass section may be very hot.
When the glasses are hot, work after waiting to get cold without touching
around the glasses.
CAUTION
Door open buttonADF door

Cleaning the Unit

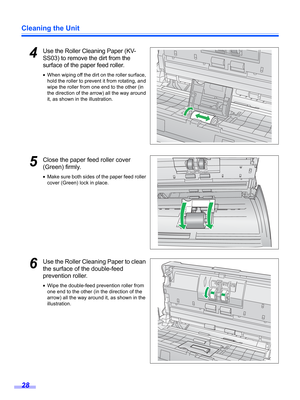

28
4Use the Roller Cleaning Paper (KV-
SS03) to remove the dirt from the
surface of the paper feed roller.
•When wiping off the dirt on the roller surface,
hold the roller to prevent it from rotating, and
wipe the roller from one end to the other (in
the direction of the arrow) all the way around
it, as shown in the illustration.
5Close the paper feed roller cover
(Green) firmly.
•Make sure both sides of the paper feed roller
cover (Green) lock in place.
6Use the Roller Cleaning...

Cleaning the Unit

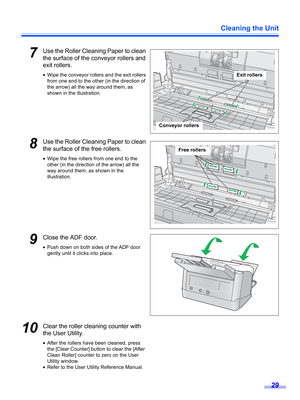

29
7Use the Roller Cleaning Paper to clean
the surface of the conveyor rollers and
exit rollers.
•Wipe the conveyor rollers and the exit rollers
from one end to the other (in the direction of
the arrow) all the way around them, as
shown in the illustration.
8Use the Roller Cleaning Paper to clean
the surface of the free rollers.
•Wipe the free rollers from one end to the
other (in the direction of the arrow) all the
way around them, as shown in the
illustration.
9Close the...

Cleaning the Unit

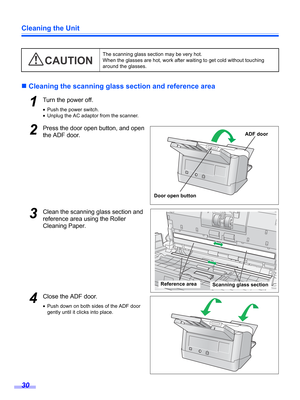

30
„Cleaning the scanning glass section and reference area
1Turn the power off.
•Push the power switch.
•Unplug the AC adaptor from the scanner.
2Press the door open button, and open
the ADF door.
3Clean the scanning glass section and
reference area using the Roller
Cleaning Paper.
4Close the ADF door.
•Push down on both sides of the ADF door
gently until it clicks into place.The scanning glass section may be very hot.
When the glasses are hot, work after waiting to get cold...
