Panasonic High Speed Color Scanner Kv S1025c S Operating Instructions

31
Replacing Consumables

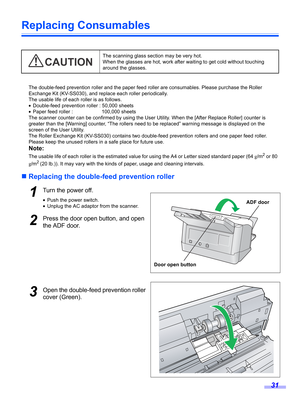

The double-feed prevention roller and the paper feed roller are consumables. Please purchase the Roller
Exchange Kit (KV-SS030), and replace each roller periodically.
The usable life of each roller is as follows.
•Double-feed prevention roller : 50,000 sheets
•Paper feed roller :  100,000 sheets
The scanner counter can be confirmed by using the User Utility. When the [After Replace Roller] counter is
greater than the [Warning] counter, “The rollers need to be replaced” warning...

Replacing Consumables
32

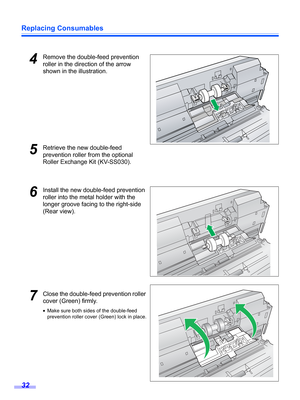

4Remove the double-feed prevention
roller in the direction of the arrow
shown in the illustration.
5Retrieve the new double-feed
prevention roller from the optional
Roller Exchange Kit (KV-SS030).
6Install the new double-feed prevention
roller into the metal holder with the
longer groove facing to the right-side
(Rear view).
7Close the double-feed prevention roller
cover (Green) firmly.
•Make sure both sides of the double-feed
prevention roller cover
 (Green) lock in...

Replacing Consumables
33

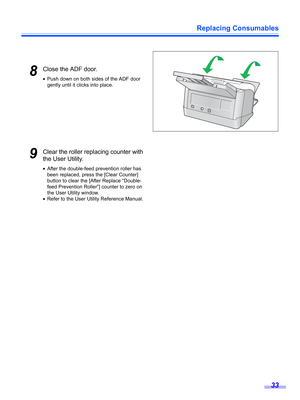

8Close the ADF door.
•Push down on both sides of the ADF door
gently until it clicks into place.
9Clear the roller replacing counter with
the User Utility.
•After the double-feed prevention roller has
been replaced, press the [Clear Counter]
button to clear the [After Replace “Double-
feed Prevention Roller”] counter to zero on
the User Utility window.
•Refer to the User Utility Reference Manual.

Replacing Consumables
34
„Replacing the paper feed roller
1Turn the power off.
•Push the power switch.
•Unplug the AC adaptor from the scanner.
2Press the door open button, and open
the ADF door.
3Open the paper feed roller cover
(Green) in the direction of the arrow
shown in the illustration.
4Remove the paper feed roller.
Door open buttonADF door

Replacing Consumables
35

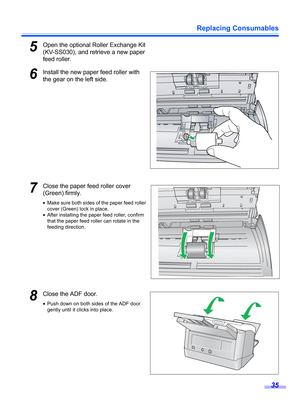

5Open the optional Roller Exchange Kit
(KV-SS030), and retrieve a new paper
feed roller.
6Install the new paper feed roller with
the gear on the left side.
7Close the paper feed roller cover
(Green) firmly.
•Make sure both sides of the paper feed roller
cover (Green) lock in place.
•After installing the paper feed roller, confirm
that the paper feed roller can rotate in the
feeding direction.
8Close the ADF door.
•Push down on both sides of the ADF door
gently until it...

Replacing Consumables
36

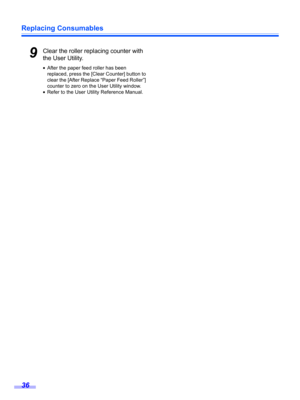

9Clear the roller replacing counter with
the User Utility.
•After the paper feed roller has been
replaced, press the [Clear Counter] button to
clear the [After Replace “Paper Feed Roller”]
counter to zero on the User Utility window.
•Refer to the User Utility Reference Manual.

37

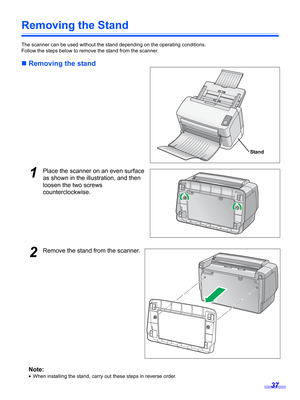

Removing the Stand
The scanner can be used without the stand depending on the operating conditions.
Follow the steps below to remove the stand from the scanner.
„Removing the stand
1Place the scanner on an even surface
as shown in the illustration, and then
loosen the two screws
counterclockwise.
2Remove the stand from the scanner.
Note:
•When installing the stand, carry out these steps in reverse order.
Stand

38

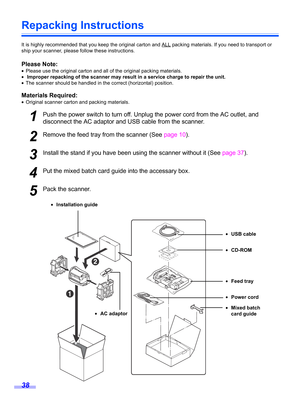

Repacking Instructions
It is highly recommended that you keep the original carton and ALL packing materials. If you need to transport or
ship your scanner, please follow these instructions.
Please Note:
•Please use the original carton and all of the original packing materials.
• Improper repacking of the scanner may result in a service charge to repair the unit.
•The scanner should be handled in the correct (horizontal) position.
Materials Required:
•Original scanner carton and packing materials....

39
Specifications

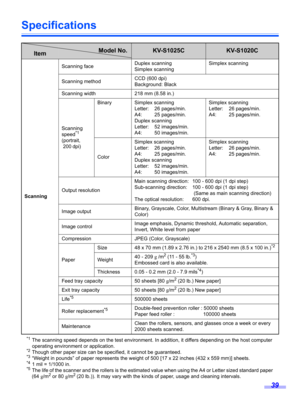

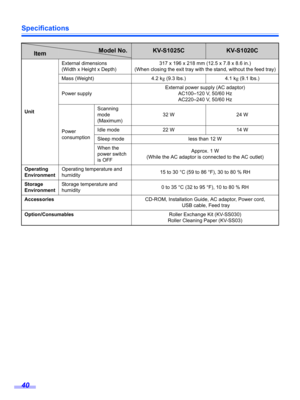

ItemModel No.KV-S1025CKV-S1020C
ScanningScanning faceDuplex scanning
Simplex scanningSimplex scanning
Scanning methodCCD (600 dpi)
Background: Black
Scanning width 218 mm (8.58 in.)
Scanning
speed
*1
(portrait,
 200 dpi)Binary Simplex scanning
Letter: 26 pages/min.
A4: 25 pages/min.
Duplex scanning
Letter: 52 images/min.
A4: 50 images/min.Simplex scanning
Letter: 26 pages/min.
A4: 25 pages/min.
ColorSimplex scanning
Letter: 26 pages/min.
A4: 25 pages/min.
Duplex scanning
Letter: 52...

Specifications
40
UnitExternal dimensions
(Width x Height x Depth)317 x 196 x 218 mm (12.5 x 7.8 x 8.6 in.)
(When closing the exit tray with the stand, without the feed tray)
Mass (Weight) 4.2 kg (9.3 lbs.) 4.1 kg (9.1 lbs.)
Power supplyExternal power supply (AC adaptor)
AC100–120 V, 50/60 Hz
AC220–240 V, 50/60 Hz
Power
consumptionScanning
mode
(Maximum)32 W 24 W
Idle mode 22 W 14 W
Sleep mode less than 12 W
When the
power switch
is OFFApprox. 1 W
(While the AC adaptor is connected to the AC...
