About Printing Control Sheets•Print the control sheet at the specified size; do not enlarge or reduce the size.
• When printing the control sheet, make sure that the pattern is 25 mm (1 in.) from the top of the page and
centered horizontally.
• Use the control sheet that is the same size as the document you are scanning.
• Be careful not to get the control sheet dirty. Do not fold or crease the control sheet. Scanning will not be
performed properly.
• For details on control sheet and separation sheet,...

Printing control sheets
Note•In order to print control sheets, Adobe ®
 Reader ®
 must been installed on your computer.
• Refer to the instruction manual for your printer for details about changing print settings.
1. Insert the CD-ROM into the CD/DVD driver on your computer.
• If you have a feature called "Autorun" activated, the installation process will start automatically.
• The setup window will appear.
Note
•If the AutoPlay dialog box is displayed in Windows Vista or Windows 7, select...

Changing the Scan Background ColorBy switching the reference plates on the scanner, you can change the scanning background color between
black and white. The default setting is black.
Notice
•Set the reference plate (F) and reference plate (B) to the same color. If the front and rear settings are
different, then documents will not be scanned correctly.

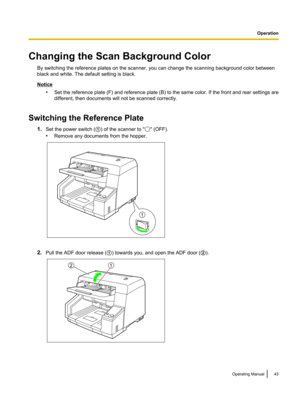

Switching the Reference Plate 1.Set the power switch ( A) of the scanner to "
" (OFF).
• Remove any documents from the hopper.
2.Pull the ADF door...

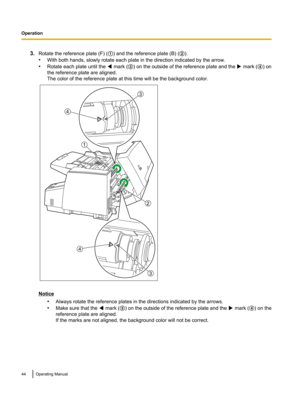

3.Rotate the reference plate (F) ( A) and the reference plate (B) ( B).
• With both hands, slowly rotate each plate in the direction indicated by the arrow.
• Rotate each plate until the
 mark ( C) on the outside of the reference plate and the  mark ( D) on
the reference plate are aligned.
The color of the reference plate at this time will be the background color.
Notice
•Always rotate the reference plates in the directions indicated by the arrows.
• Make sure that the
 mark ( C) on the outside of the...

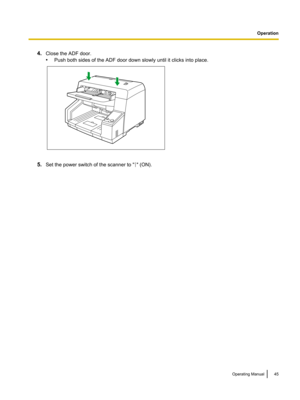

4.Close the ADF door.
• Push both sides of the ADF door down slowly until it clicks into place.
5.Set the power switch of the scanner to "" (ON).
Operating Manual45Operation

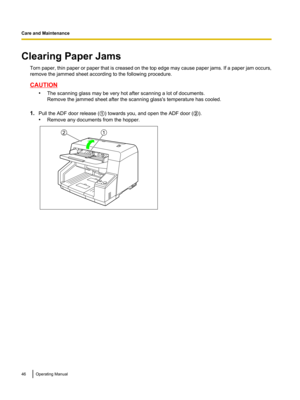

Clearing Paper JamsTorn paper, thin paper or paper that is creased on the top edge may cause paper jams. If a paper jam occurs,
remove the jammed sheet according to the following procedure.
CAUTION
•The scanning glass may be very hot after scanning a lot of documents.
Remove the jammed sheet after the scanning glass's temperature has cooled.
1. Pull the ADF door release ( A) towards you, and open the ADF door ( B).
• Remove any documents from the hopper.
46Operating ManualC
a
r
e
a
n
d
M
a
i
n
t
e
n...

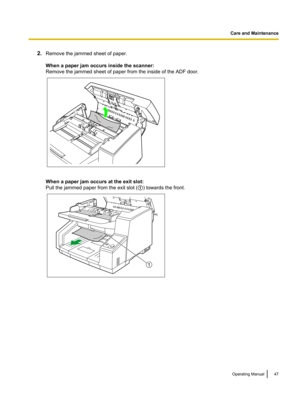

2.Remove the jammed sheet of paper.
When a paper jam occurs inside the scanner:
Remove the jammed sheet of paper from the inside of the ADF door.
When a paper jam occurs at the exit slot:
Pull the jammed paper from the exit slot ( A) towards the front.
Operating Manual47Care and Maintenance 1

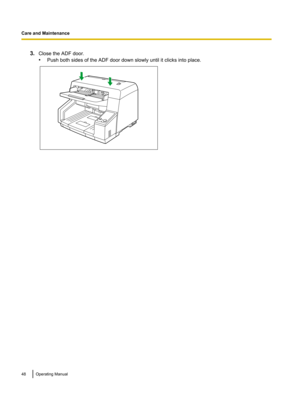

3.Close the ADF door.
• Push both sides of the ADF door down slowly until it clicks into place.48Operating ManualCare and Maintenance

Cleaning the Scanner
Outside of the Scanner
Notice •Do not use thinner, benzine, or cleaners containing abrasives or surfactants, for cleaning the outside
of the scanner.
• Clean the scanner at least once a month.

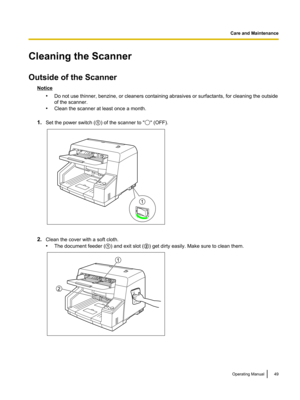

1. Set the power switch ( A) of the scanner to "
" (OFF).
2. Clean the cover with a soft cloth.
• The document feeder ( A) and exit slot ( B) get dirty easily. Make sure to clean them.
Operating Manual49Care and Maintenance 1 2
1

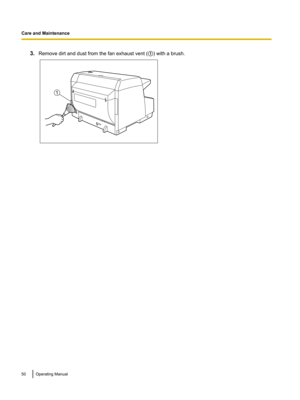

3.Remove dirt and dust from the fan exhaust vent ( A) with a brush.50Operating ManualCare and Maintenance1
