Panasonic High Speed Color Scanner Kvs1045c Operating Manual

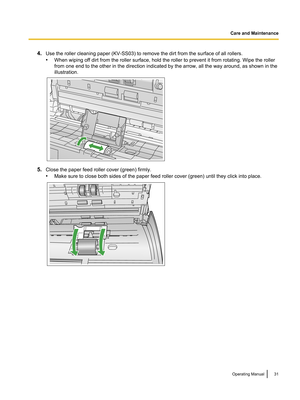

4.Use the roller cleaning paper (KV-SS03) to remove the dirt from the surface of all rollers.
• When wiping off dirt from the roller surface, hold the roller to prevent it from rotating. Wipe the roller
from one end to the other in the direction indicated by the arrow, all the way around, as shown in the
illustration.
5. Close the paper feed roller cover (green) firmly.
• Make sure to close both sides of the paper feed roller cover (green) until they click into place.
Operating Manual31Care and...

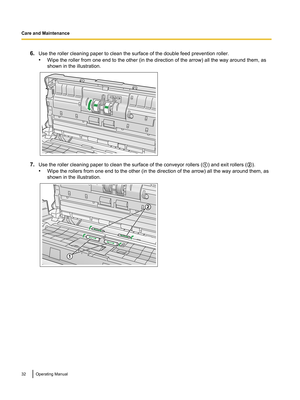

6.Use the roller cleaning paper to clean the surface of the double feed prevention roller.
• Wipe the roller from one end to the other (in the direction of the arrow) all the way around them, as
shown in the illustration.
7. Use the roller cleaning paper to clean the surface of the conveyor rollers ( A) and exit rollers ( B).
• Wipe the rollers from one end to the other (in the direction of the arrow) all the way around them, as
shown in the illustration.
32Operating ManualCare and Maintenance 1
2

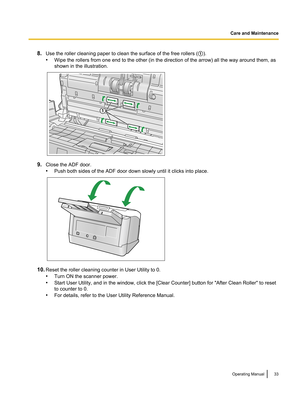

8.Use the roller cleaning paper to clean the surface of the free rollers ( A).
• Wipe the rollers from one end to the other (in the direction of the arrow) all the way around them, as
shown in the illustration.
9. Close the ADF door.
• Push both sides of the ADF door down slowly until it clicks into place.
10.Reset the roller cleaning counter in User Utility to 0.
• Turn ON the scanner power.
• Start User Utility, and in the window, click the [Clear Counter] button for "After Clean Roller" to...

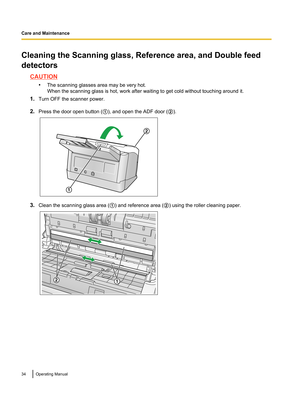

Cleaning the Scanning glass, Reference area, and Double feed
detectors
CAUTION •The scanning glasses area may be very hot.
When the scanning glass is hot, work after waiting to get cold without touching around it.
1. Turn OFF the scanner power.
2. Press the door open button ( A), and open the ADF door ( B).
3. Clean the scanning glass area ( A) and reference area ( B) using the roller cleaning paper.
34Operating ManualCare and Maintenance2
1 12

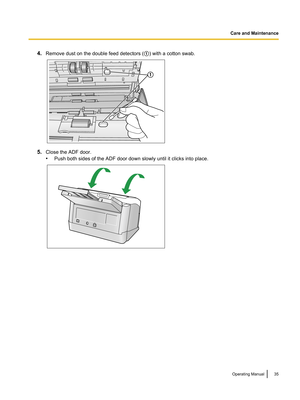

4.Remove dust on the double feed detectors ( A) with a cotton swab.
5. Close the ADF door.
• Push both sides of the ADF door down slowly until it clicks into place.
Operating Manual35Care and Maintenance1

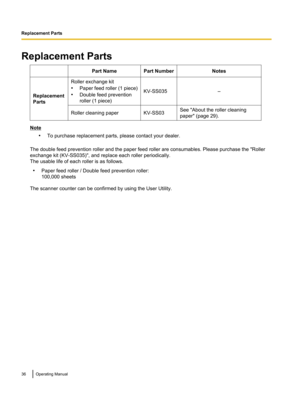

Replacement PartsPart NamePart NumberNotes
Replacement
Parts
Roller exchange kit
• Paper feed roller (1 piece)
• Double feed prevention
roller (1 piece)
KV-SS035–
Roller cleaning paperKV-SS03See "About the roller cleaning
paper" (page 29).
Note
•To purchase replacement parts, please contact your dealer.
The double feed prevention roller and the paper feed roller are consumables. Please purchase the "Roller
exchange kit (KV-SS035)", and replace each roller periodically.
The usable life of...

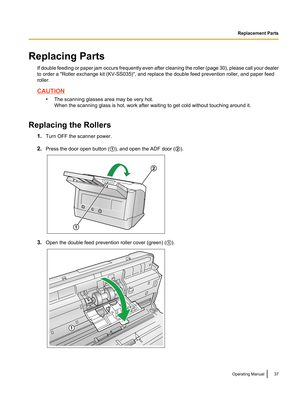

Replacing PartsIf double feeding or paper jam occurs frequently even after cleaning the roller (page  30), please call your dealer
to order a "Roller exchange kit (KV-SS035)", and replace the double feed prevention roller, and paper feed
roller.
CAUTION
•The scanning glasses area may be very hot.
When the scanning glass is hot, work after waiting to get cold without touching around it.
Replacing the Rollers 1.Turn OFF the scanner power.
2. Press the door open button ( A), and open the ADF door (...

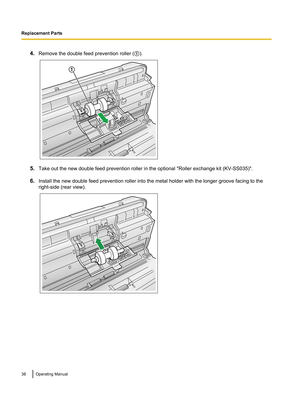

4.Remove the double feed prevention roller ( A).
5. Take out the new double feed prevention roller in the optional "Roller exchange kit (KV-SS035)".
6. Install the new double feed prevention roller into the metal holder with the longer groove facing to the
right-side (rear view).
38Operating ManualReplacement Parts1

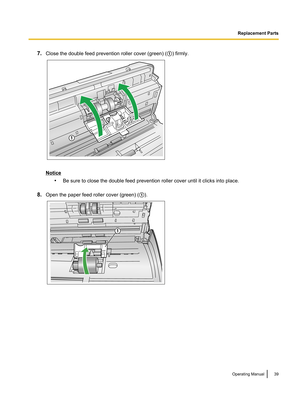

7.Close the double feed prevention roller cover (green) ( A) firmly.
Notice
•Be sure to close the double feed prevention roller cover until it clicks into place.
8. Open the paper feed roller cover (green) ( A).
Operating Manual39Replacement Parts1 1

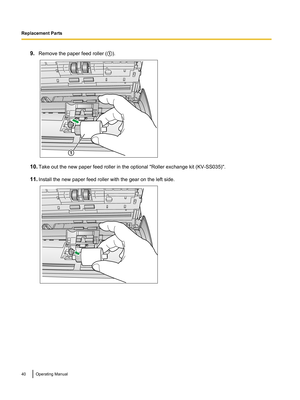

9.Remove the paper feed roller ( A).
10. Take out the new paper feed roller in the optional "Roller exchange kit (KV-SS035)".
11. Install the new paper feed roller with the gear on the left side.
40Operating ManualReplacement Parts1
