Panasonic High Speed Color Scanner Kvs7065c Operating Instructions

Model No. KV-S7065C
These instructions contain information on operating the scanner. Before reading these
instructions, please read the installation manual enclosed with this unit.
Please carefully read these instructions, the enclosed installation manual and maintenance
manual. Keep all documentation in a safe place for future reference.
Keep the CD-ROM in the protective case. Do not expose the CD-ROM to direct sunlight or
extreme heat and do not scratch or smudge the surface of the CD-ROM.

2 Thank you for purchasing a Panasonic “High Speed Color Scanner.”
≥Panasonic supports your imaging needs with a reliable and easy to use document scanner.
≥Panasonic has developed Panasonic Image Enhancement Technology to improve the quality of your scanned
images even beyond the quality of your original document.
∫System requirements
When using the scanner, the required host computer conditions are as follows.
§1 GB or more free space is required in the HDD.
§Color images larger than A3 size cannot...

3
Notice  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   4
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   7
Component Identification  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   10
≥Power turn-on sequence  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   12
≥About LED  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....

4
Notice
Federal Communications Commission Requirements
(For United States only)
Note:This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction...

Notice
5

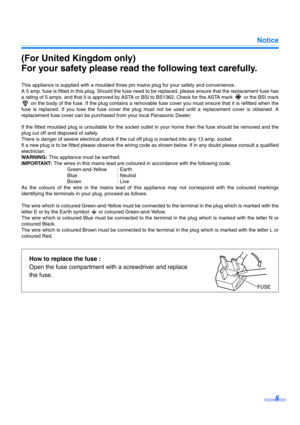

(For United Kingdom only)
For your safety please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for your safety and convenience.
A 5 amp. fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has
a rating of 5 amps. and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark   or the BSI mark
 on the body of the fuse. If the plug contains a removable fuse cover you must ensure...

Notice
6

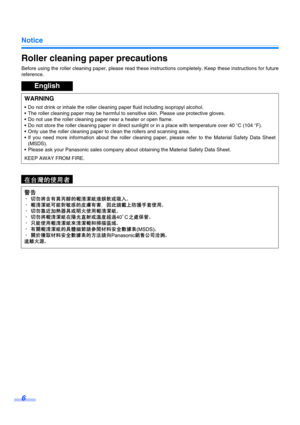

Roller cleaning paper precautions
Before using the roller cleaning paper, please read these instructions completely. Keep these instructions for future
reference.
English
WARNING
 Do not drink or inhale the roller cleaning paper fluid including isopropyl alcohol.
 The roller cleaning paper may be harmful to sensitive skin. Please use protective gloves.
 Do not use the roller cleaning paper near a heater or open flame.
 Do not store the roller cleaning paper in direct sunlight or in a place...

7

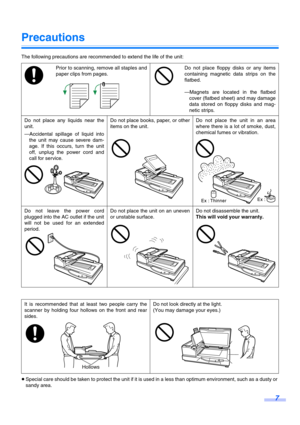

Precautions
The following precautions are recommended to extend the life of the unit:
≥ Special care should be taken to protect the unit if it is  used in a less than optimum environment, such as a dusty or
sandy area. Prior to scanning, remove all staples and
paper clips from pages.
Do not place floppy disks or any items
containing magnetic data strips on the
flatbed.
—Magnets are located in the flatbed
cover (flatbed sheet) and may damage
data stored on floppy disks and mag-
netic strips.
Do not...

Precautions
8

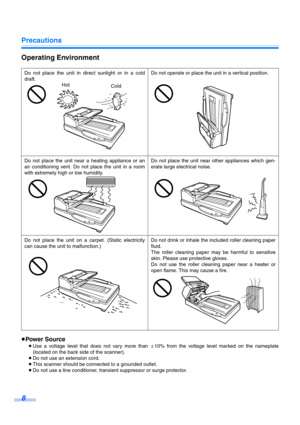

Operating Environment
≥Power Source
≥Use a voltage level that does not vary more than d10% from the voltage level marked on the nameplate
(located on the back side of the scanner).
≥Do not use an extension cord.
≥This scanner should be connected to a grounded outlet.
≥Do not use a line conditioner, transient suppressor or surge protector. Do not place the unit in direct sunlight or in a cold
draft.Do not operate or place the unit in a vertical position.
Do not place the unit near a heating...

Precautions
9

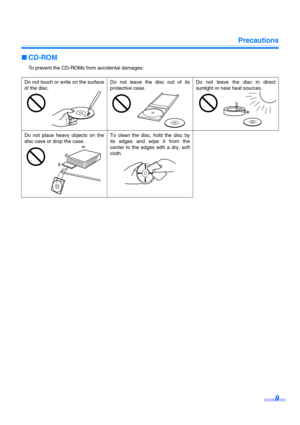

∫CD-ROM
To prevent the CD-ROMs from accidental damages:
Do not touch or write on the surface
of the disc.Do not leave the disc out of its
protective case.Do not leave the disc in direct
sunlight or near heat sources.
Do not place heavy objects on the
disc case or drop the case.To clean the disc, hold the disc by
its edges and wipe it from the
center to the edges with a dry, soft
cloth.

10

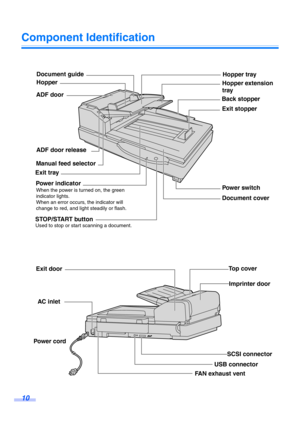

Component Identification
Manual feed selector
Document guide
Hopper extension
trayHopper
ADF door
ADF door release
Power indicatorHopper tray
Back stopper
Exit stopper
Document cover Power switch
STOP/START button
Exit tray
When the power is turned on, the green
indicator lights.
When an error occurs, the indicator will
change to red, and light steadily or flash.
Used to stop or start scanning a document.
Exit door
AC inlet
Imprinter door
Power cord
Top cover
SCSI connector
FAN exhaust vent
USB...
