Panasonic High Speed Color Scanner Kvs7065c Operating Instructions

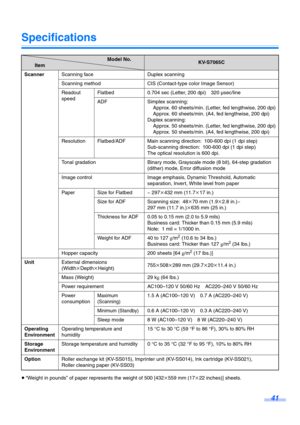

41
Specifications
≥“Weight in pounds” of paper represents the weight of 500 [432k559 mm (17k22 inches)] sheets.
Item
Model No.KV-S7065C
ScannerScanning face Duplex scanning
Scanning method CIS (Contact-type color Image Sensor)
Readout
speedFlatbed 0.704 sec (Letter, 200 dpi) 320 µsec/line
ADF Simplex scanning:
Approx. 60 sheets/min. (Letter, fed lengthwise, 200 dpi)
Approx. 60 sheets/min. (A4, fed lengthwise, 200 dpi)
Duplex scanning:
Approx. 50 sheets/min. (Letter, fed lengthwise, 200 dpi)
Approx. 50...

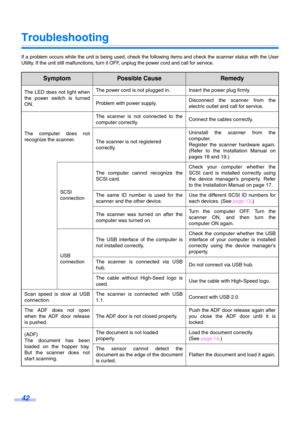

42
Troubleshooting
If a problem occurs while the unit is being used, check the following items and check the scanner status with the User
Utility. If the unit still malfunctions, turn it OFF, unplug the power cord and call for service.
SymptomPossible CauseRemedy
The LED does not light when
the power switch is turned
ON.The power cord is not plugged in. Insert the power plug firmly.
Problem with power supply.Disconnect the scanner from the
electric outlet and call for service.
The computer does not...

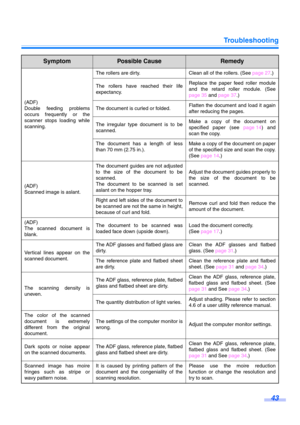

Troubleshooting
43
(ADF)
Double feeding problems
occurs frequently or the
scanner stops loading while
scanning.The rollers are dirty. Clean all of the rollers. (See page 27.)
The rollers have reached their life
expectancy.Replace the paper feed roller module
and the retard roller module. (See
page 35 and page 37.)
The document is curled or folded.Flatten the document and load it again
after reducing the pages.
The irregular type document is to be
scanned.Make a copy of the document on
specified paper...

44
Pag e Pa ge
Index
A
AC inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Acceptable documents . . . . . . . . . . . . . . . 14
Accessories  . . . . . . . . . . . . . . . . . . . . . . . 26
ADF door  . . . . . . . . . . . . . . . . . . .  10, 24, 27
ADF door release . . . . . . . . . . . . . 10, 24, 27
ADF glass . . . . . . . . . . . . . . . . . . . . . .  11, 31
B
Back stopper . . . . . . . . . . . . . . . . . . . . . . . 10
Blower . . . . . . . . . . . . . . . . . . . . . .  32, 33, 34...

Index
45
Pag e Pa ge
P
Paper  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Paper feed roller . . . . . . . . . . . . . . . . . 27, 35
Paper jams . . . . . . . . . . . . . . . . . . . . . . . . 24
Paper sensor  . . . . . . . . . . . . . . . . . . . . . . 32
Paper slot . . . . . . . . . . . . . . . . . . . . . . . . . 18
Portrait  . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Power consumption  . . . . . . . . . . . . . . . . . 41
Power cord . . . . . . . . . . . . . . . . . . . 4,...
