Panasonic High Speed Color Scanner Kvs7065c Operating Instructions

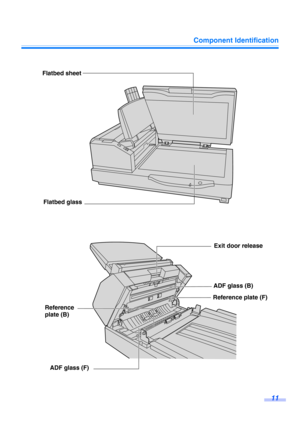

Component Identification
11
Flatbed sheet
Flatbed glass
Exit door release
ADF glass (B)
Reference plate (F)
Reference
plate (B)
ADF glass (F)

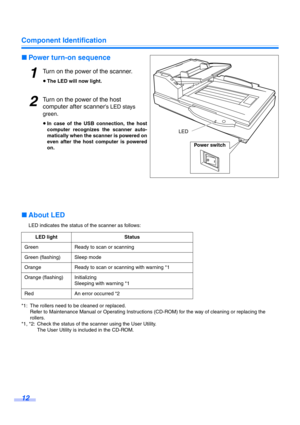

Component Identification
12
∫Power turn-on sequence
1Turn on the power of the scanner.
≥The LED will now light.
2Turn on the power of the host
computer after scanner
’s LED stays
green
.
≥In case of the USB connection, the host
computer recognizes the scanner auto-
matically when the scanner is powered on
even after the host computer is powered
on.
∫About LED
LED indicates the status of the scanner as follows:
*1: The rollers need to be cleaned or replaced.
Refer to Maintenance Manual or Operating...

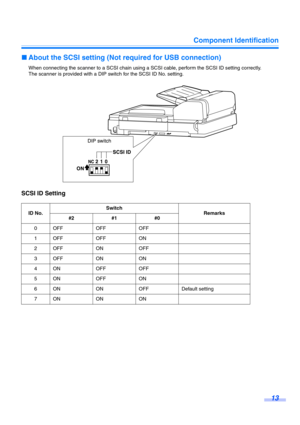

Component Identification
13
∫About the SCSI setting (Not required for USB connection)
When connecting the scanner to a SCSI chain using a SCSI cable, perform the SCSI ID setting correctly.
The scanner is provided with a DIP switch for the SCSI ID No. setting.
SCSI ID Setting
ID No.Switch
Remarks
#2 #1 #0
0 OFF OFF OFF
1OFF OFF ON
2 OFF ON OFF
3 OFF ON ON
4ON OFF OFF
5ON OFF ON
6 ON ON OFF Default setting
7ON ON ON

14

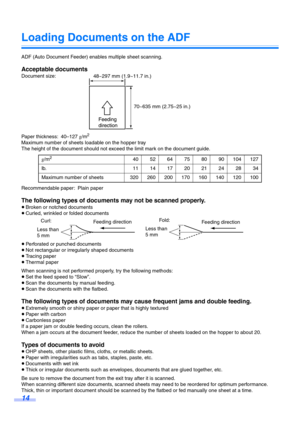

Loading Documents on the ADF
ADF (Auto Document Feeder) enables multiple sheet scanning.
Acceptable documents
Document size:
Paper thickness: 40–127 g/m
2
Maximum number of sheets loadable on the hopper tray
The height of the document should not exceed the limit mark on the document guide.
Recommendable paper: Plain paper
The following types of documents  may not be scanned properly.
≥Broken or notched documents
≥ Curled, wrinkled or folded documents
≥ Perforated or punched documents
≥ Not rectangular...

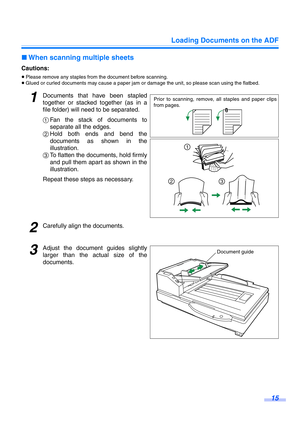

Loading Documents on the ADF
15
∫When scanning multiple sheets
Cautions:
≥Please remove any staples from the document before scanning.
≥Glued or curled documents may cause a paper jam or damage the unit, so please scan using the flatbed.
1Documents that have been stapled
together or stacked together (as in a
file folder) will need to be separated.
1Fan the stack of documents to
separate all the edges.
2Hold both ends and bend the
documents as shown in the
illustration.
3To flatten the documents, hold...

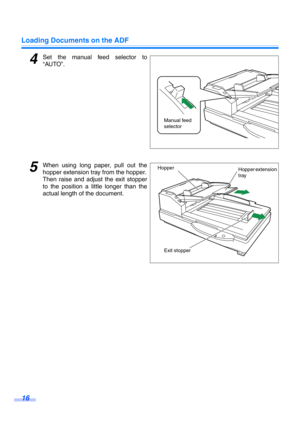

Loading Documents on the ADF
16
4Set the manual feed selector to
“AUTO”.
5When using long paper, pull out the
hopper extension tray from the hopper.
Then raise and adjust the exit stopper
to the position a little longer than the
actual length of the document.
Manual feed
selector
Hopper extension
tray Hopper
Exit stopper

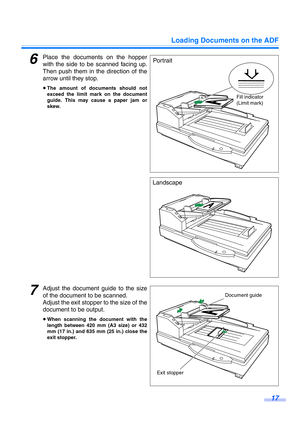

Loading Documents on the ADF
17
6Place the documents on the hopper
with the side to be scanned facing up.
Then push them in the direction of the
arrow until they stop.
≥The amount of documents should not
exceed the limit mark on the document
guide. This may cause a paper jam or
skew.
7Adjust the document guide to the size
of the document to be scanned.
Adjust the exit stopper to the size of the
document to be output.
≥When scanning the document with the
length between 420 mm (A3 size) or 432
mm (17 in.)...

18
Feeding a Document Manually
When scanning a document one page at a time with the ADF, set the manual feed selector to “MANUAL” and the
pages can be scanned one page at a time.
Cautions:
≥Please remove any staples from the document before scanning.
≥Glued or curled documents may cause a paper jam or damage the unit, so please scan using the flatbed.
1Set the manual feed selector to
“MANUAL”.
2Match the document guide with the
size of the document.
3Inser t the document into the paper slot
one page at a...

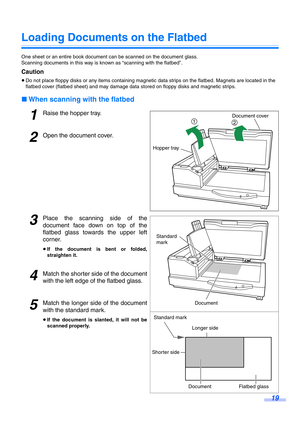

19
Loading Documents on the Flatbed
One sheet or an entire book document can be scanned on the document glass.
Scanning documents in this way is kn own as “scanning with the flatbed”.
Caution
≥Do not place floppy disks or any items containing magnetic  data strips on the flatbed. Magnets are located in the
flatbed cover (flatbed sheet) a nd may damage data stored on floppy disks and magnetic strips.
∫When scanning with the flatbed
1Raise the hopper tray.
2Open the document cover.
3Place the scanning...

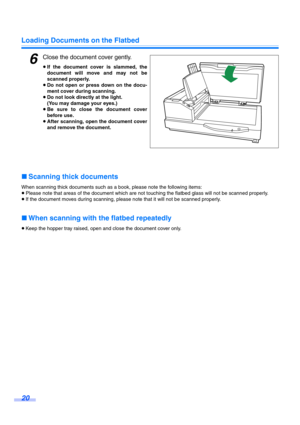

Loading Documents on the Flatbed
20
6Close the document cover gently.
≥If the document cover is slammed, the
document will move and may not be
scanned properly.
≥Do not open or press down on the docu-
ment cover during scanning.
≥Do not look directly at the light.
(You may damage your eyes.)
≥Be sure to close the document cover
before use.
≥After scanning, open the document cover
and remove the document.
∫Scanning thick documents
When scanning thick documents such as a book, please note the following...
