Panasonic High Speed Scanner Kvs2065l Operating Instructions

11

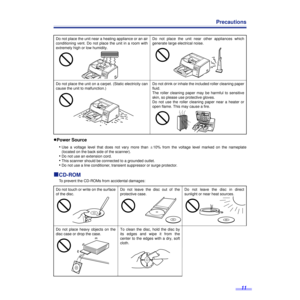

Precautions
³³ ³ ³
Power Source
•
Use a voltage level that does not vary more than d10% from the voltage level marked on the nameplate
(located on the back side of the scanner).
•Do not use an extension cord.
•This scanner should be connected to a grounded outlet.
•Do not use a line conditioner, transient suppressor or surge protector.
ºº º ºCD-ROM
To prevent the CD-ROMs from accidental damages: Do not place the unit near a heating appliance or an air
conditioning vent. Do not place the unit in a room...

12

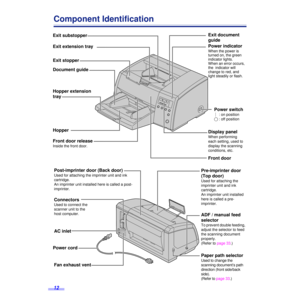

Component Identification
  Exit substopper
Exit extension tray
Exit stopper
Document guide
Hopper extension
tray
Hopper
Front door release
Inside the front door.
Exit document
guide
Power indicator
When the power is
turned on, the green
indicator lights.
When an error occurs,
the  indicator will
change to red, and
light steadily or flash.
Power switch
 [: on position
²: off position
Display panel
When performing
each setting, used to
display the scanning
conditions, etc.
Front door
ADF /...

13

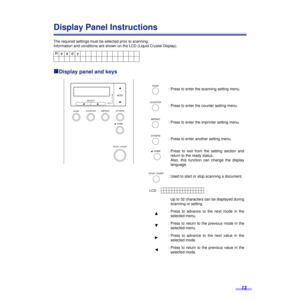

Display Panel Instructions
The required settings must be selected prior to scanning.
Information and conditions are shown on the LCD (Liquid Crystal Display).
ºº º ºDisplay panel and keys
Ready
: Press to enter the scanning setting menu.
: Press to enter the counter setting menu.
: Press to enter the imprinter setting menu.
: Press to enter another setting menu.
: Press to exit from the setting section and
return to the ready status.
Also, this function can change the display
language.
: Used to...


14
Display Panel Instructions
´

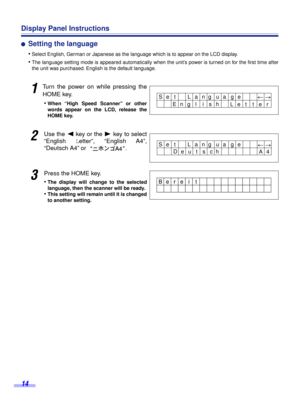

Setting the language
•
Select English, German or Japanese as the language which is to appear on the LCD display.
•
The language setting mode is appeared automatically when the unit’s power is turned on for the first time after
the unit was purchased. English is the default language.
1

Turn the power on while pressing the
HOME key.
•
When “High Speed Scanner” or other
words appear on the LCD, release the
HOME key.
2

Use the
2

 key or the
1

 key to...


15 Display Panel Instructions      ºº º º  Setting the scanner  The following parameters can be customized using the scanner’s various setting modes. If the application
software provides these features, it will be supported by the scanner.  Scan menu  No.
ItemLCD displayContentsPage
  01
Front side dropout
colorF. Color dropColor selection for dropout when scanning the front
side of a document.
20 02 Front side brightness F. BrightnessSelection for density when scanning the front side of a
document....


16  Display Panel Instructions  Counter menu  No.
ItemLCD displayContentsPage
  17 Feed speed Feed SpeedSelection for feed speed when a document is being
scanned.
23 18Save settings
(Select memory)Save Setting Selects the memory where the conditions are saved
into.
Save scanning
settings (Execution)Save Setting Saves the scanning conditions into the memory.
(2 memory settings)
19Load scanning
settingLoad SettingLoads the memory where the scanning conditions have
already been saved. If “Default” is...


17 Display Panel Instructions  Imprinter menu  Depending on the setting of the “Counter setting menu”, the page number of the scanned document will be
printed. The imprinter option (KV-SS010) is required. If a host computer is connected, there may be settings
required on the host computer as well.  No.
ItemLCD displayContentsPage
  01Setting the pre-
imprinter dataPre ImprintAllows for the selection of the printing content using an
imprinter.
The imprinter will print on the printing (front) side of...


18  Display Panel Instructions  Others menu  No.
ItemLCD displayContentsPage
  01 Checking the version VersionDisplays the firmware version of the mechanical
control, pre-imprinter or post-imprinter. If an optional
imprinter is not installed, the imprinter version will not
be displayed.
27 02 Setting the buzzer BuzzerSelects whether the buzzer is turned on or off. If
selection is in the “ON” position:
When pressing a key, one short beep will be heard.
When there is an error, 5 short beeps will be...


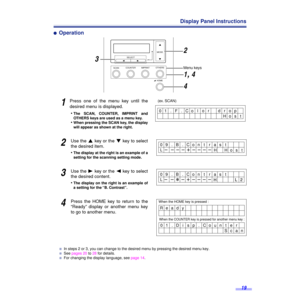

19 Display Panel Instructions  ´  Operation 1  Press one of the menu key until the
desired menu is displayed.
•
The SCAN, COUNTER, IMPRINT and
OTHERS keys are used as a menu key.
•
When pressing the SCAN key, the display
will appear as shown at the right.
2

Use the
3

 key or the
4

 key to select
the desired item.
•
The display at the right is an example of a
setting for the scanning setting mode.
3

Use the
1

 key or the
2

 key to select
the desired content.
•
The display on...

20
Display Panel Instructions

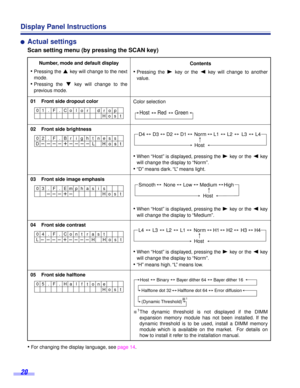

´Actual settings
Scan setting menu (by pressing the SCAN key)
¥
For changing the display language, see page 14. Number, mode and default display
¥Pressing the 3 key will change to the next
mode.
¥Pressing the 4 key will change to the
previous mode.Contents
¥Pressing the 1 key or the 2 key will change to another
value.
01    Front side dropout color
Color selection
02    Front side brightness
¥When ÒHostÓ is displayed, pressing the 1 key or the 2 key
will change the display...
