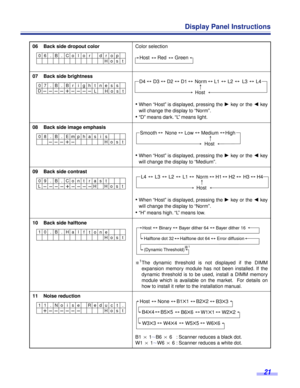

Display Panel Instructions
06    Back side dropout colorColor selection
07    Back side brightness
¥When ÒHostÓ is displayed, pressing the 1 key or the 2 key
will change the display to ÒNormÓ.
¥ÒDÓ means dark. ÒLÓ means light.
08    Back side image emphasis
¥When ÒHostÓ is displayed, pressing the 1 key or the 2 key
will change the display to ÒMediumÓ.
09    Back side contrast
¥When ÒHostÓ is displayed, pressing the 1 key or the 2 key
will change the display to ÒNormÓ.
¥ÒHÓ means high. ÒLÓ means low....

22
Display Panel Instructions
•When scanning a document which is shorter than 210 mm / 8.3 (A5 size) in length, double feed detection will
not work well.
•Thick, creased, or edited documents with correction fluid as well as documents with holes near the center may
give you false double feed warning. 12    Black line removal
•This setting is valid only when the white roller kit is installed.

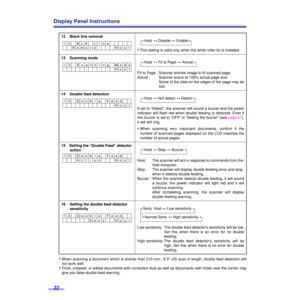

13    Scanning mode
Fit to Page : Scanner shrinks image to fit scanned page.
Actual
:Scanner scans at 100% actual...

23
Display Panel Instructions

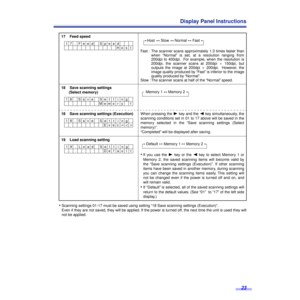

•Scanning settings 01-17 must be saved using setting “18 Save scanning settings (Execution)”.
Even if they are not saved, they will be applied. If the power is turned off, the next time the unit is used they will
not be applied. 17    Feed speed
 Fast : The scanner scans approximately 1.3 times faster than
when “Normal” is set, at a resolution ranging from
200dpi to 400dpi.  For example, when the resolution is
200dpi, the scanner scans at 200dpi a 150dpi, but
outputs the...

24
Display Panel Instructions
Counter setting menu (by pressing the COUNTER key)
Number, mode and default display
¥Pressing the 3 key will change to the
next mode.
¥Pressing the 4 key will change to the
previous mode.Contents
¥Pressing the 1 key or the 2 key will change to another value.

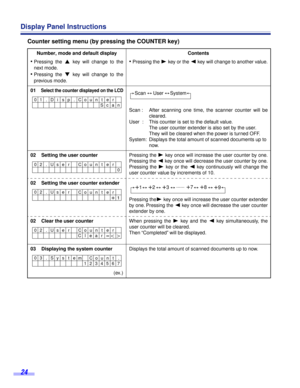

01
Select the counter displayed on the LCD
Scan : After scanning one time, the scanner counter will be
cleared.
User  : This counter is set to the default value.
The user counter extender is also set by the user....

25
Display Panel Instructions

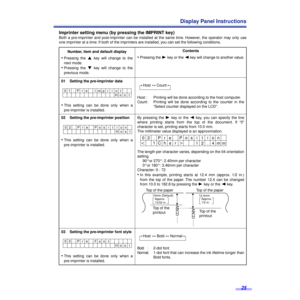

Imprinter setting menu (by pressing the IMPRINT key)
Both a pre-imprinter and post-imprinter can be installed at the same time. However, the operator may only use
one imprinter at a time. If both of the imprinters are installed, you can set the following conditions.
Number, item and default display
•Pressing the 3 key will change to the
next mode.
•Pressing the 4 key will change to the
previous mode.Contents
•Pressing the 1 key or the 2 key will change to another value.
01...

26
Display Panel Instructions

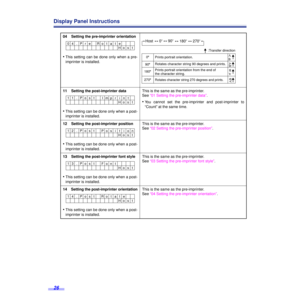

04    Setting the pre-imprinter orientation
•This setting can be done only when a pre-
imprinter is installed.
11    Setting the post-imprinter data
•This setting can be done only when a post-
imprinter is installed.This is the same as the pre-imprinter.
See “01 Setting the pre-imprinter data”.
•You cannot set the pre-imprinter and post-imprinter to
“Count” at the same time.
12    Setting the post-imprinter position
•This setting can be done only when a post-
imprinter is...

27
Display Panel Instructions
Others setting menu (by pressing the OTHERS key)
Number, mode and default display
¥Pressing the 3 key will change to the
next mode.
¥Pressing the 4 key will change to the
previous mode.Contents
¥Pressing the 1 key or the 2 key will change to another value.

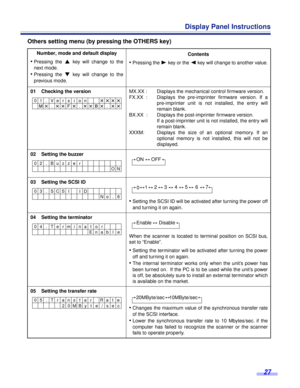

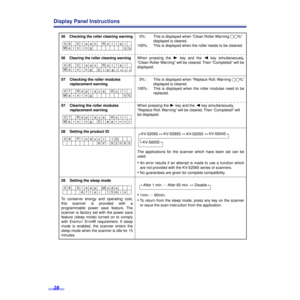

01    Checking the versionMX.XX :
FX.XX  :
BX.XX  :
XXXM:Displays the mechanical control Þrmware version.
Displays the pre-imprinter Þrmware version. If a
pre-imprinter unit is not installed, the entry will
remain...

28
Display Panel Instructions
06    Checking the roller cleaning warning  0%: This is displayed when “Clean Roller Warning ²²%”
displayed is cleared.
100%: This is displayed when the roller needs to be cleaned.
06    Clearing the roller cleaning warningWhen pressing the 1 key and the 2 key simultaneously,
“Clean Roller Warning” will be cleared. Then “Completed” will be
displayed.
07    Checking the roller modules
replacement warning  0% : This is displayed when “Replace Roll. Warning ²²%”
displayed...

29
Display Panel Instructions
´Other display explanations

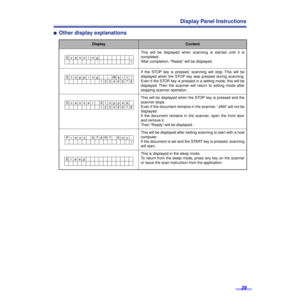

DisplayContent
This will be displayed when scanning is started until it is
completed.
After completion, “Ready” will be displayed.
If the STOP key is pressed, scanning will stop. This will be
displayed when the STOP key was pressed during scanning.
Even if the STOP key is pressed in a setting mode, this will be
displayed. Then the scanner will return to setting mode after
stopping scanner operation.
This will be displayed when the STOP key is...


30
Loading Documents

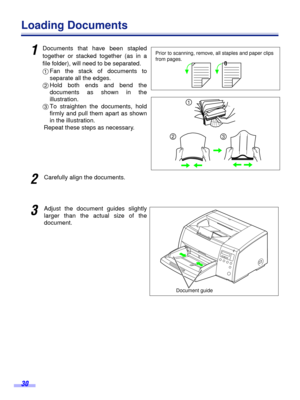

1

Documents that have been stapled
together or stacked together (as in a
file folder), will need to be separated.
1
Fan the stack of documents to
separate all the edges.
2
Hold both ends and bend the
documents as shown in the
illustration.
3
To straighten the documents, hold
firmly and pull them apart as shown
in the illustration.
Repeat these steps as necessary.
2

Carefully align the documents.
3

Adjust the document guides slightly
larger than the actual size...
