Panasonic High Speed Scanner Kvs2065l Operating Instructions


31

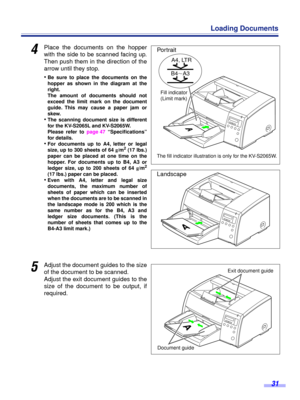

Loading Documents
4

Place the documents on the hopper
with the side to be scanned facing up.
Then push them in the direction of the
arrow until they stop.
•
Be sure to place the documents on the
hopper as shown in the diagram at the
right.
The amount of documents should not
exceed the limit mark on the document
guide. This may cause a paper jam or
skew.
•
The scanning document size is different
for the KV-S2065L and KV-S2065W.
Please refer to page 47 “Specifications”
for details.
•
For...


32

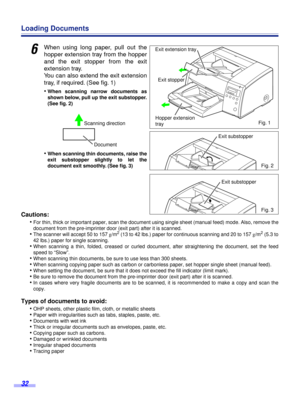

Loading Documents
6

When using long paper, pull out the
hopper extension tray from the hopper
and the exit stopper from the exit
extension tray.
You can also extend the exit extension
tray, if required. (See fig. 1)
•
When scanning narrow documents as
shown below, pull up the exit substopper.
(See fig. 2)
•
When scanning thin documents, raise the
exit substopper slightly to let the
document exit smoothly. (See fig. 3)
Cautions:
•
For thin, thick or important paper, scan the document using...

33

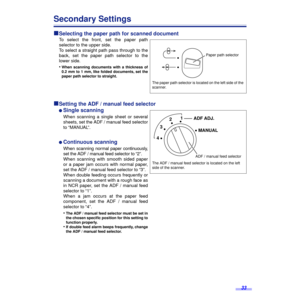

Secondary Settings
ºº º ºSelecting the paper path for scanned document
To select the front, set the paper path
selector to the upper side.
To select a straight path pass through to the
back, set the paper path selector to the
lower side.
•
When scanning documents with a thickness of
0.2 mm to 1 mm, like folded documents, set the
paper path selector to straight.
ºº º ºSetting the ADF / manual feed selector
´Single scanning
When scanning a single sheet or several
sheets, set the ADF / manual feed...


34
Others
ºº º º

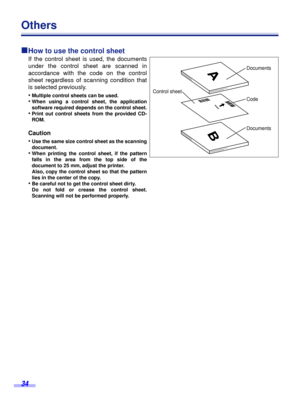

How to use the control sheet
If the control sheet is used, the documents
under the control sheet are scanned in
accordance with the code on the control
sheet regardless of scanning condition that
is selected previously.
•
Multiple control sheets can be used.
•
When using a control sheet, the application
software required depends on the control sheet.
•
Print out control sheets from the provided CD-
ROM.
Caution
•
Use the same size control sheet as the scanning
document....

35

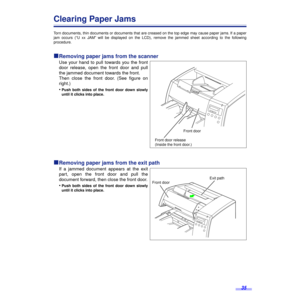

Clearing Paper Jams
Torn documents, thin documents or documents that are creased on the top edge may cause paper jams. If a paper
jam occurs (“U xx JAM” will be displayed on the LCD), remove the jammed sheet according to the following
procedure.
ºº º ºRemoving paper jams from the scanner
Use your hand to pull towards you the front
door release, open the front door and pull
the jammed document towards the front.
Then close the front door. (See figure on
right.)
•
Push both sides of the front door down...

36

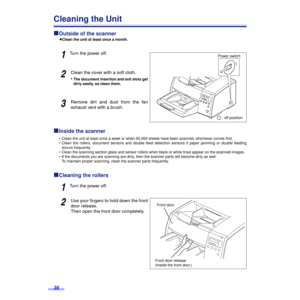

Cleaning the Unit
ºº º ºOutside of the scanner
³³ ³ ³
Clean the unit at least once a month.
1Turn the power off.
2Clean the cover with a soft cloth.
•
The document insertion and exit slots get
dirty easily, so clean them.
3Remove dirt and dust from the fan
exhaust vent with a brush.
ºº º ºInside the scanner
• Clean the unit at least once a week or when 50,000 sheets have been scanned, whichever comes first.
• Clean the rollers, document sensors and double feed detection sensors if paper jamming or...

37

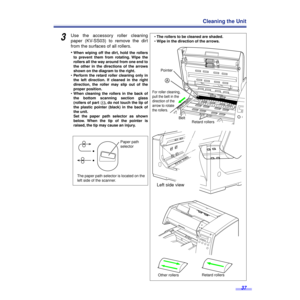

Cleaning the Unit
3Use the accessory roller cleaning
paper (KV-SS03) to remove the dirt
from the surfaces of all rollers.
•
When wiping off the dirt, hold the rollers
to prevent them from rotating. Wipe the
rollers all the way around from one end to
the other in the directions of the arrows
shown on the diagram to the right.
•Perform the retard roller cleaning only in
the left direction. If cleaned in the right
direction, the roller may slip out of the
proper position.
•When cleaning the rollers in...

38

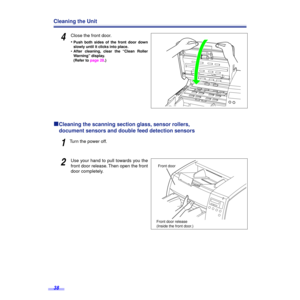

Cleaning the Unit
4Close the front door.
•
Push both sides of the front door down
slowly until it clicks into place.
•After cleaning, clear the “Clean Roller
Warning” display.
(Refer to page 28.)
ºº º ºCleaning the scanning section glass, sensor rollers,
document sensors and double feed detection sensors
1Turn the power off.
2Use your hand to pull towards you the
front door release. Then open the front
door completely.
Front door
Front door release
(Inside the front door.)

39

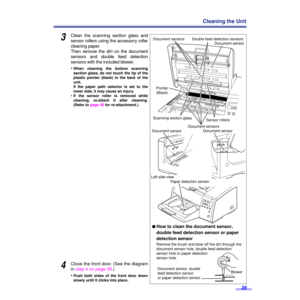

Cleaning the Unit
3Clean the scanning section glass and
sensor rollers using the accessory roller
cleaning paper.
Then remove the dirt on the document
sensors and double feed detection
sensors with the included blower.
•
When cleaning the bottom scanning
section glass, do not touch the tip of the
plastic pointer (black) in the back of the
unit.
If the paper path selector is set to the
lower side, it may cause an injury.
•If the sensor roller is removed while
cleaning, re-attach it after cleaning....

40

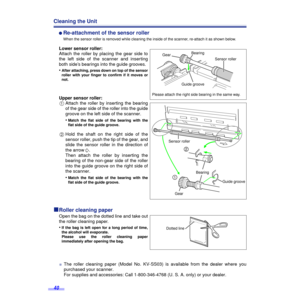

Cleaning the Unit
´Re-attachment of the sensor roller
When the sensor roller is removed while cleaning the inside of the scanner, re-attach it as shown below.
Lower sensor roller:
Attach the roller by placing the gear side to
the left side of the scanner and inserting
both side’s bearings into the guide grooves.
•
After attaching, press down on top of the sensor
roller with your finger to confirm if it moves or
not.
Upper sensor roller:
1Attach the roller by inserting the bearing
of the gear side of the...
