Panasonic High Speed Scanner Kvs6050w Operating Instructions

51

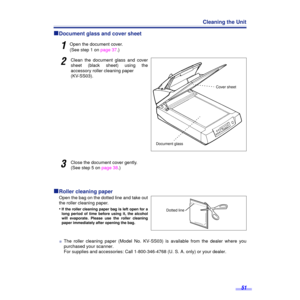

Cleaning the Unit
ºº º ºDocument glass and cover sheet
1Open the document cover.
(See step 1 on page 37.)
2Clean the document glass and cover
sheet (black sheet) using the
accessory roller cleaning paper
(KV-SS03).
3Close the document cover gently.
(See step 5 on page 38.)
ºº º ºRoller cleaning paper
Open the bag on the dotted line and take out
the roller cleaning paper.
•
If the roller cleaning paper bag is left open for a
long period of time before using it, the alcohol
will evaporate. Please use...

52
Replacing Consumable Roller Modules
If “Warning Replace Roller” message is displayed on the LCD, replace the paper feed roller module, separation
roller module and retard roller module at the same time.
1Confirm that the manual feed selector
is set to “AUTO”, turn the power off and
unplug the power cord.
•
If the power is turned off with the manual
feed selector set to “MANUAL”, the retard
roller module cannot be removed.
2Using your hand, pull the ADF door
release towards you, then open the
ADF door...

53

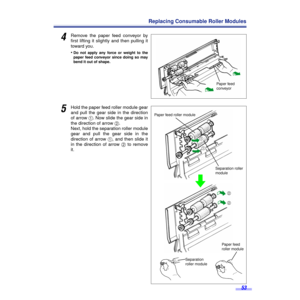

Replacing Consumable Roller Modules
4Remove the paper feed conveyor by
first lifting it slightly and then pulling it
toward you.
•
Do not apply any force or weight to the
paper feed conveyor since doing so may
bend it out of shape.
5Hold the paper feed roller module gear
and pull the gear side in the direction
of arrow 1. Now slide the gear side in
the direction of arrow 2.
Next, hold the separation roller module
gear and pull the gear side in the
direction of arrow 1, and then slide it
in the...

54

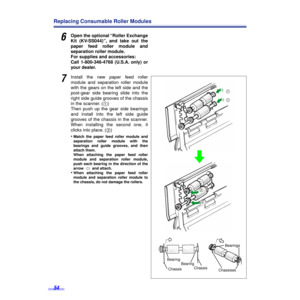

Replacing Consumable Roller Modules
6Open the optional “Roller Exchange
Kit (KV-SS044)”, and take out the
paper feed roller module and
separation roller module.
For supplies and accessories:
Call 1-800-346-4768 (U.S.A. only) or
your dealer.
7Install the new paper feed roller
module and separation roller module
with the gears on the left side and the
post-gear side bearing slide into the
right side guide grooves of the chassis
in the scanner. (1)
Then push up the gear side bearings
and install into...

55

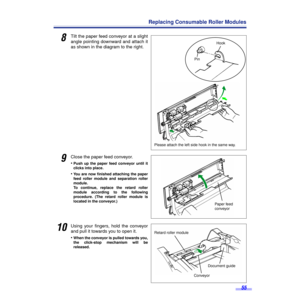

Replacing Consumable Roller Modules
8Tilt the paper feed conveyor at a slight
angle pointing downward and attach it
as shown in the diagram to the right.
9Close the paper feed conveyor.
•
Push up the paper feed conveyor until it
clicks into place.
•You are now finished attaching the paper
feed roller module and separation roller
module.
To continue, replace the retard roller
module according to the following
procedure. (The retard roller module is
located in the conveyor.)
10Using your fingers, hold...

56

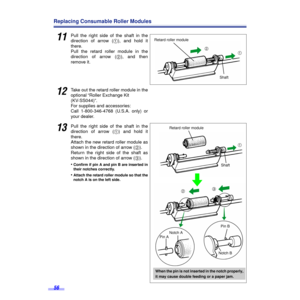

Replacing Consumable Roller Modules
11Pull the right side of the shaft in the
direction of arrow (1), and hold it
there.
Pull the retard roller module in the
direction of arrow (2), and then
remove it.
12Take out the retard roller module in the
optional “Roller Exchange Kit
(KV-SS044)”.
For supplies and accessories:
Call 1-800-346-4768 (U.S.A. only) or
your dealer.
13Pull the right side of the shaft in the
direction of arrow (1) and hold it
there.
Attach the new retard roller module as
shown in the...

57

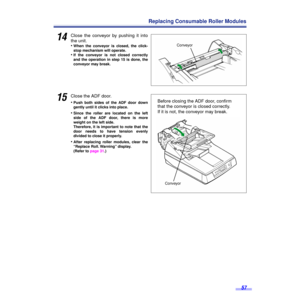

Replacing Consumable Roller Modules
14Close the conveyor by pushing it into
the unit.
•
When the conveyor is closed, the click-
stop mechanism will operate.
•If the conveyor is not closed correctly
and the operation in step 15 is done, the
conveyor may break.
15Close the ADF door.
•
Push both sides of the ADF door down
gently until it clicks into place.
•Since the roller are located on the left
side of the ADF door, there is more
weight on the left side.
Therefore, it is important to note that the...

58

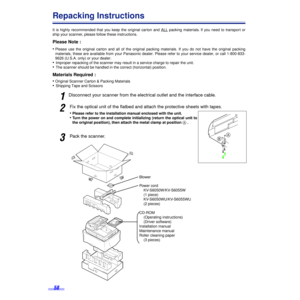

Repacking Instructions
It is highly recommended that you keep the original carton and ALL packing materials. lf you need to transport or
ship your scanner, please follow these instructions.
Please Note :
•
Please use the original carton and all of the original packing materials. If you do not have the original packing
materials, these are available from your Panasonic dealer. Please refer to your service dealer, or call 1-800-833-
9626 (U.S.A. only) or your dealer.
•Improper repacking of the scanner...


59
Specifications
•
“Weight in pounds” of paper represents the weight of 500 [ 432
a
559mm (17
a
22 inches)] sheets.
•
The red lamp option (KV-SS045) must be installed by a trained service engineer. Consult your dealer.
•
If the red lamp is installed, any red letters on the back side of the document will automatically not be scanned.
Model No.
Item
KV-S6050W
KV-S6055W

Scanner
Scanning face Simplex scanning Duplex scanning
Scanning method CCD image sensorADF front side/Flatbed :...


Specifications
60
•
The red lamp option (KV-SS045) must be installed by a trained service engineer. Consult your dealer.
•
If the red lamp is installed, any red letters on the back side of the document will automatically not be scanned.
Model No.
Item
KV-S6050WU
KV-S6055WU

Scanner
Scanning face Simplex scanning Duplex scanning
Scanning method CCD image sensorADF front side/Flatbed :
  CCD image sensor
ADF back side :
  CIS (Contact Type Image Sensor)
Readout speedFlatbed 1.5 sec (1 paper, A4...
